John Boos 3BCS-184-2D18-X Compartment Sinks
Description

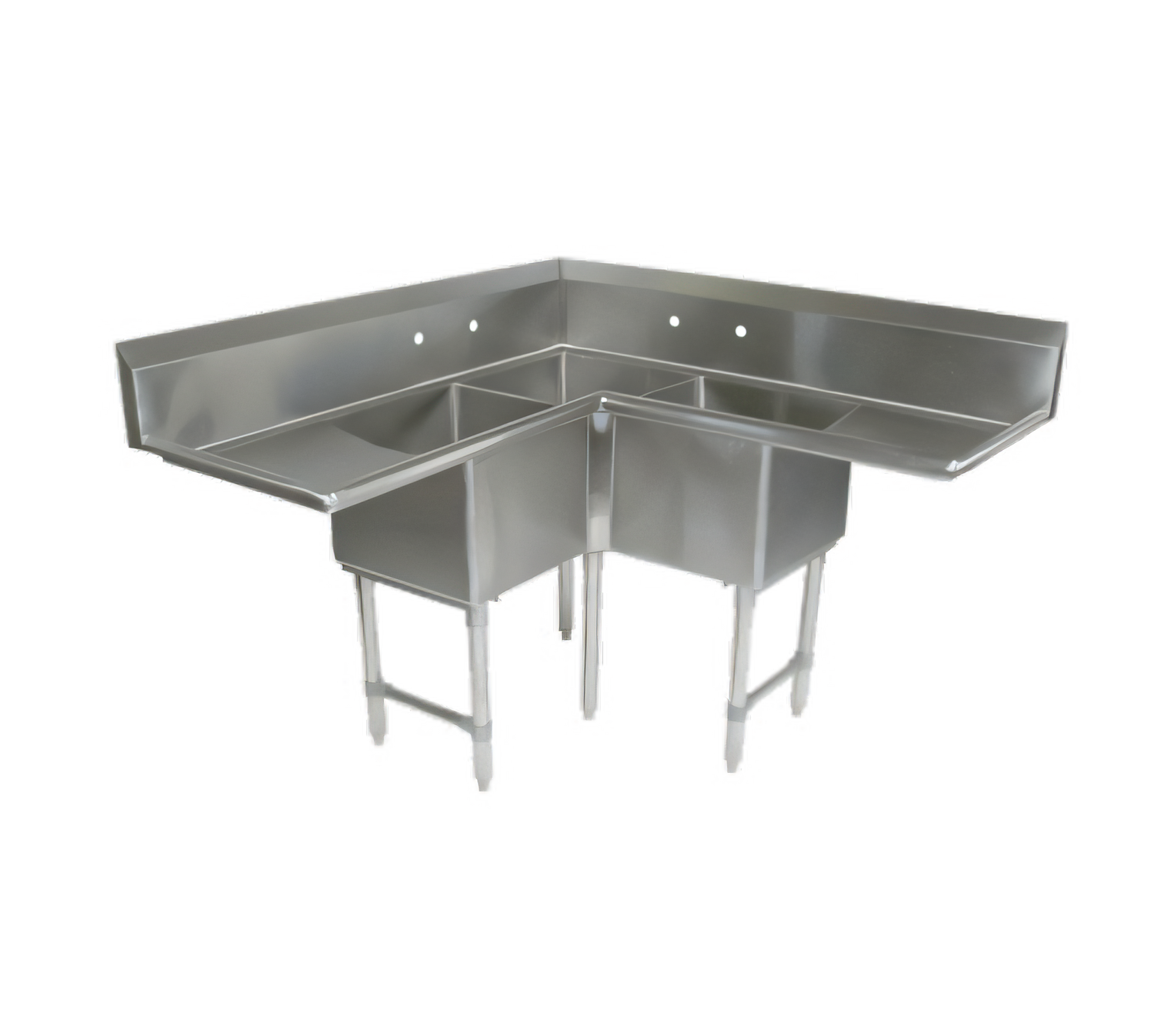

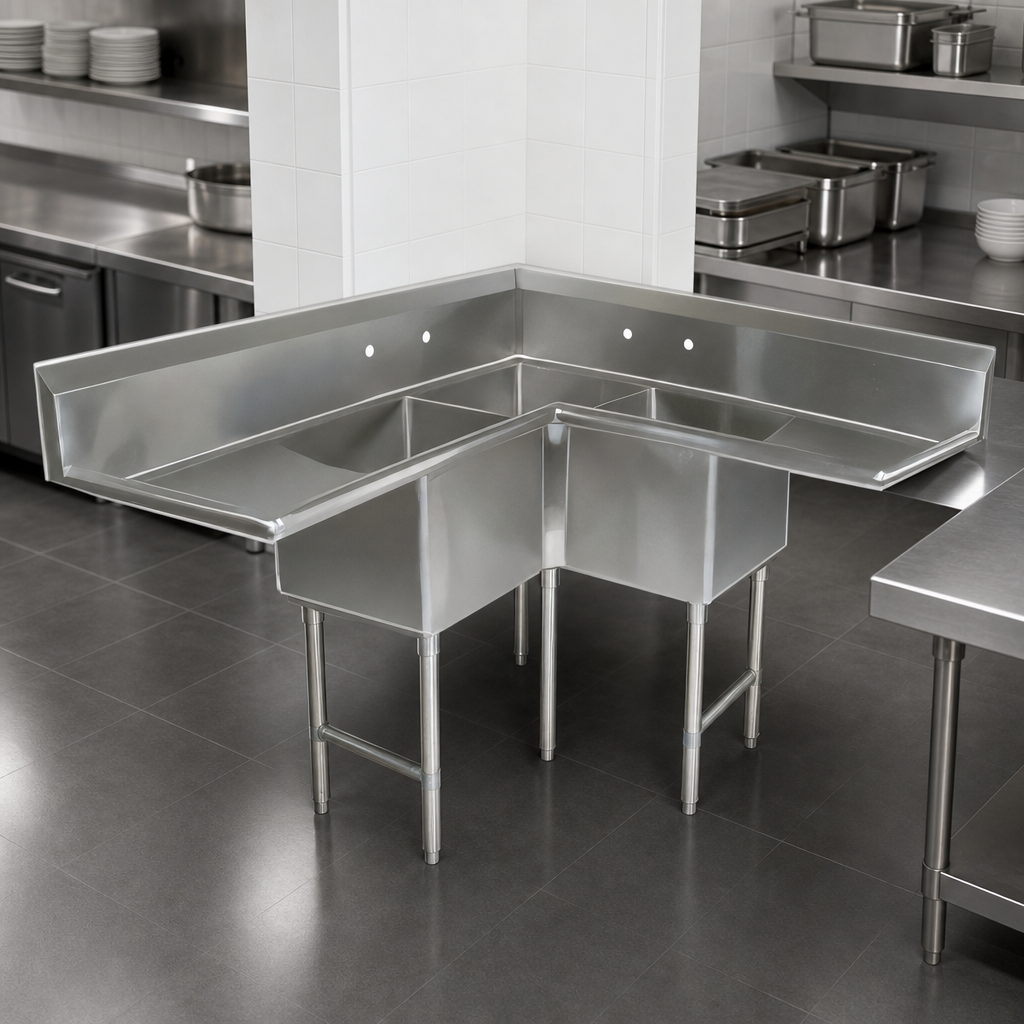

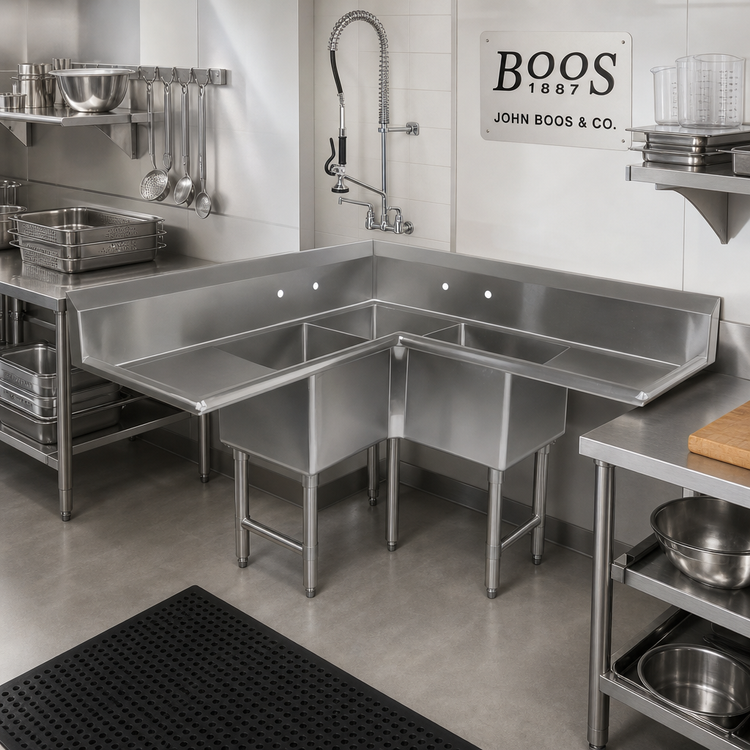

“B” Series 3-Compartment Corner Sink – 58 ½" x 58 ½"
John Boos Model 3BCS-184-2D18 | NSF CertifiedMaximize every inch of back-of-house real estate with the John Boos “B” Series Corner Sink. Engineered from heavy-duty 16 ga. Type 300 stainless steel, this space-saving powerhouse delivers three full-size compartments plus dual drainboards—perfect for high-volume prep, wash and rinse cycles in tight footprints.
Why It Belongs In Your Kitchen
- Corner configuration opens valuable straight-line wall space.
- (3) deep 18" x 18" x 14" bowls handle large pots, sheet pans & bus tubs.
- (2) 18" drainboards (left & right) speed up drying and staging.
- 10" boxed backsplash with 45° rolled top & 2" rear return keeps water off the walls.
- (2) sets of 1 ⅛" splash-mount faucet holes on 8" centers – ready for add-on faucets or pre-rinse units.
- 3 ½" die-stamped drain openings—compatible with most commercial strainers & disposers.
- Coved ¾" radius interior corners for effortless wipe-down.
- TIG-welded bowls, MIG-welded stainless frame; exposed welds polished to match #4 satin finish.
- 1 ⅝" O.D. stainless legs with adjustable cross bracing & gussets for rock-solid stability.
- Adjustable stainless bullet feet simplify leveling on uneven floors.
- NSF listed – meets the highest food-safety standards.
- Proudly fabricated in Effingham, IL & Nevada, MO.
At-A-Glance Specs
| Overall dimensions | 58 ½" W x 58 ½" D x 44" H (to top of backsplash) |
|---|---|
| Working height | ~34" to sink rim (adjustable) |
| Bowl size (each) | 18" W x 18" F-B x 14" D |
| Drainboards | (2) × 18" – left & right |
| Backsplash | 10" boxed, 45° top, 2" wall return |
| Faucet holes | (2) sets, 1 ⅛" Ø, on 8" centers |
| Drain openings | 3 ½" die-stamped (one per bowl) |
| Material | 16 ga Type 300 stainless steel (#4 satin) |
| Legs / bracing | Stainless steel 1 ⅝" legs, 1 ¼" O.D. bracing, adj. bullet feet |
| Shipping weight | Approx. 123 lb |
Popular Accessories *
- Gooseneck or lever-handle faucets
- Add-A-Faucet adapters
- Pre-rinse spray units
- Over-shelves & pot racks
- Lever or twist-waste drains
*Accessories sold separately—see “Compatible Items” below or talk with your Boos representative.
Stainless Care Tips
- Clean daily with mild soap or Bar Keepers Friend; rinse & wipe dry.
- Avoid chlorine bleach & abrasive pads that can break the protective film.
- Restore luster with John Boos Stainless Steel Cleaner & polish along grain lines.
