John Boos 3B244-X Compartment Sinks
Description

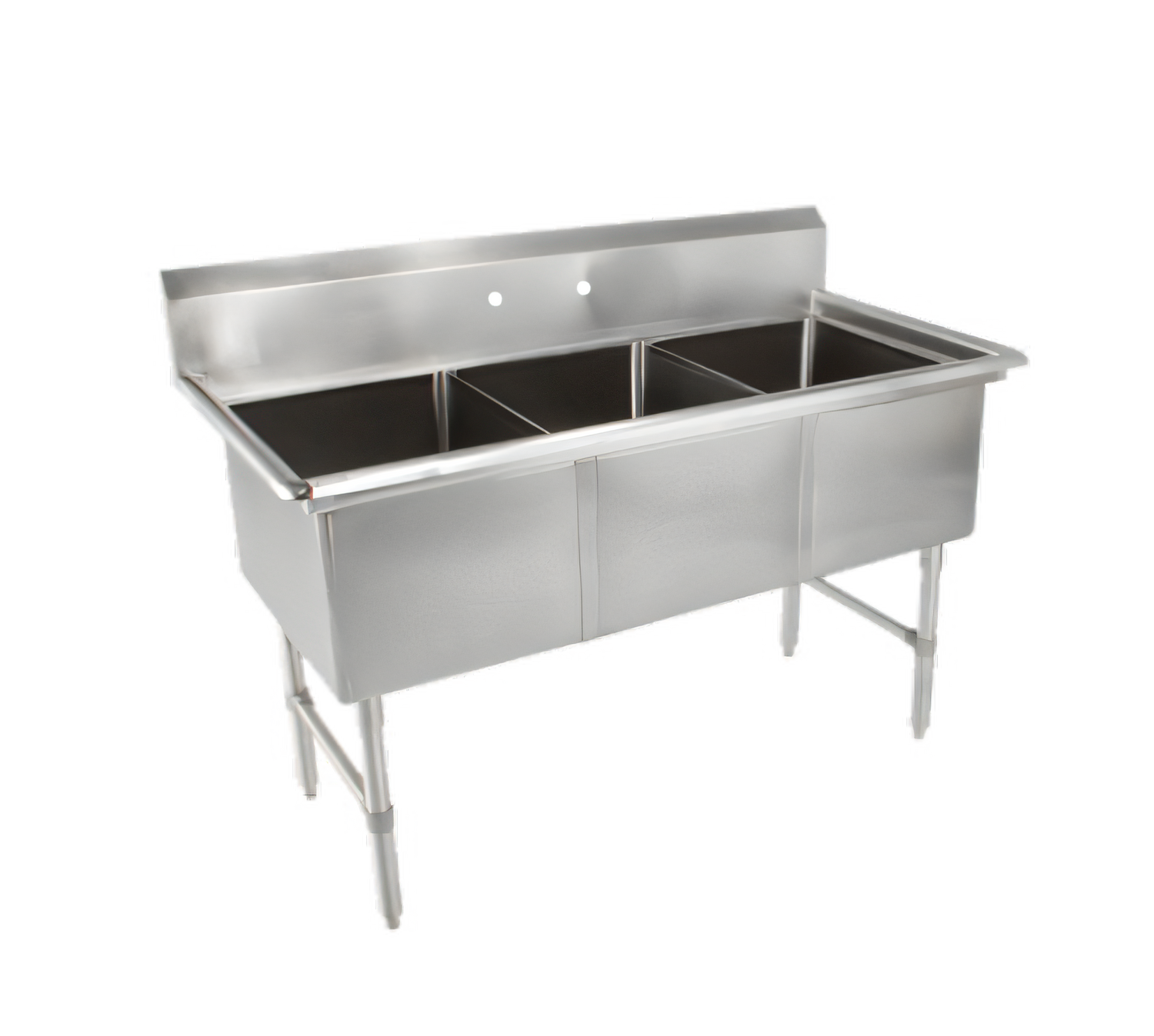

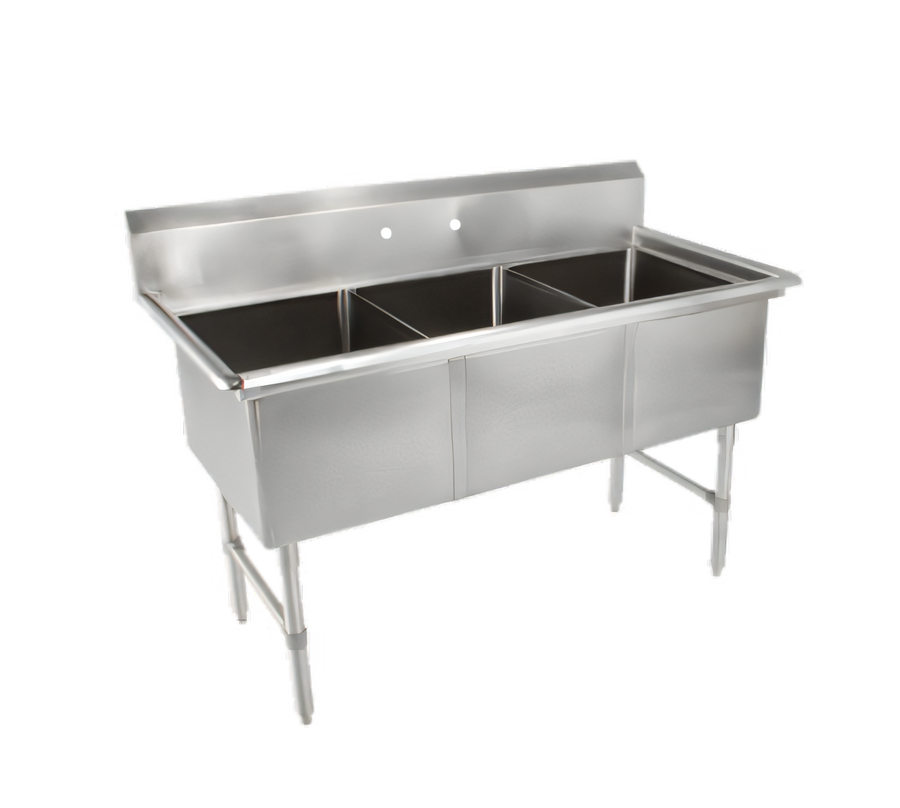

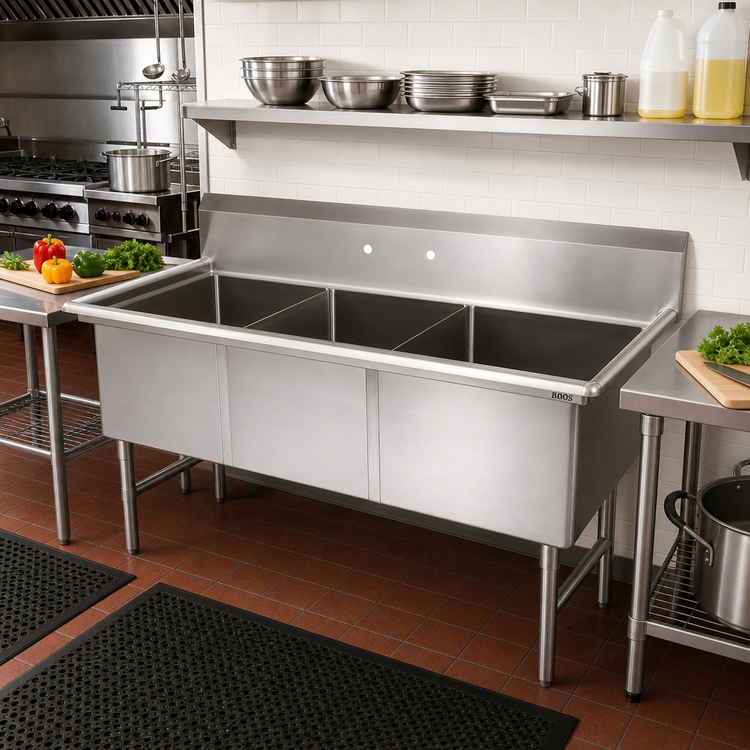

John Boos “B” Series 3-Compartment Sink – 77" Wide
Model 3B244 | Heavy-Duty 16 GA Type 300 Stainless SteelBuilt for the daily rigors of high-volume foodservice, the John Boos 3B244 delivers generous bowl capacity, rock-solid stability and the cleanability operators demand. Three 24" × 24" × 14" deep compartments speed through washing, rinsing and sanitizing while the full-length boxed backsplash helps keep surrounding surfaces dry and safe.
Key Features

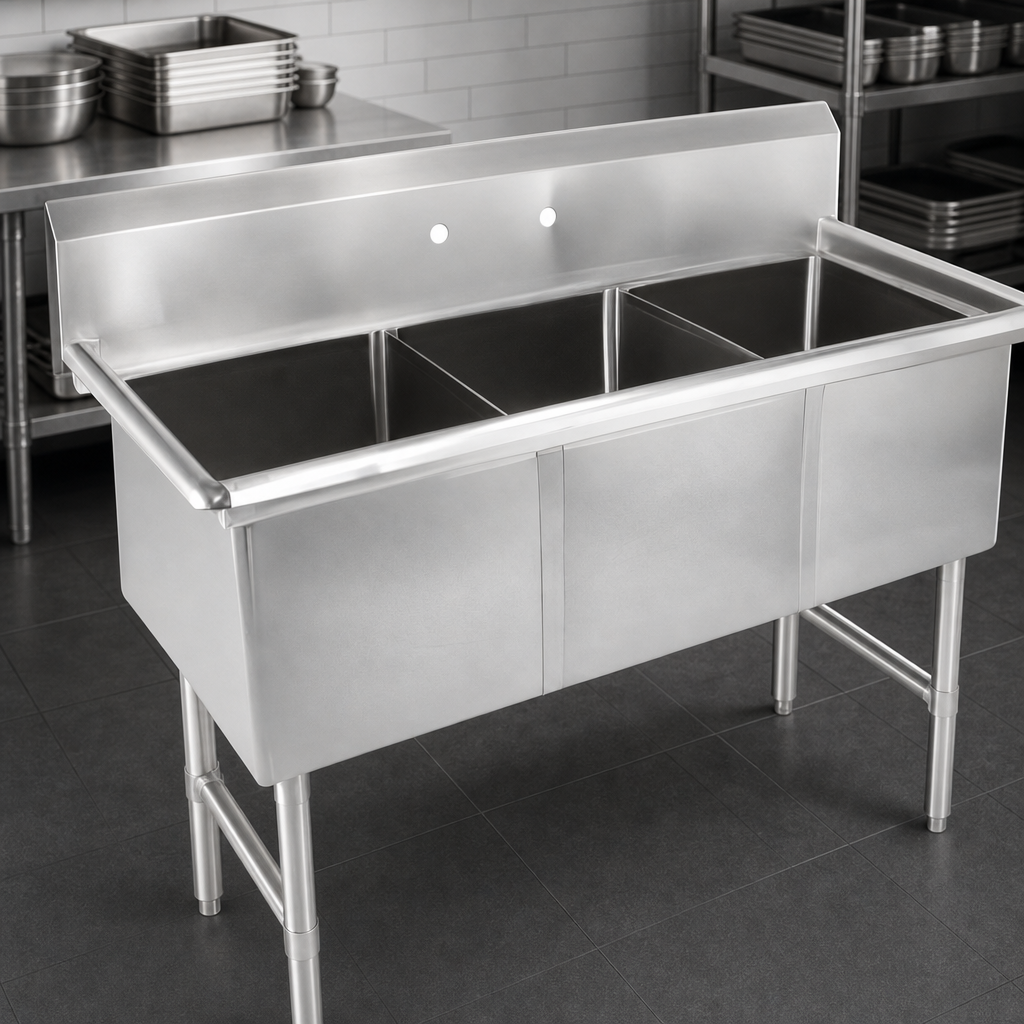

- True 3-compartment design with three 24" × 24" × 14" bowls for efficient wash/rinse/sanitize workflow.
- Fabricated from 16 GA, Type 300 stainless steel with a #4 satin polish for lasting corrosion resistance.
- 10" high boxed backsplash with 45° top edge and 2" return protects walls from overspray.
- (2) sets of splash-mount faucet holes on 8" centers—ideal for pre-rinse and fill faucets (faucets sold separately).
- 3-1/2" die-stamped drain openings; bowl bottoms are pitched for rapid drainage.
- All vertical & horizontal corners coved to a 3/4" radius for easy cleaning and food safety.
- 1-5/8" Ø stainless steel legs with adjustable side bracing and 1" bullet feet level the sink on uneven floors.
- TIG-welded top; exposed welds are polished to blend seamlessly with adjoining surfaces.
- NSF & CSA-Sanitation listed; built in Effingham, IL and Nevada, MO.
Specifications
| Overall Dimensions (W × D × H) | 77" × 29-1/2" × 44" (to top of backsplash) |
|---|---|
| Compartment Size (each) | 24" W × 24" F/B × 14" D |
| Backsplash | 10" H boxed style, 45° top, 2" return |
| Faucet Mounting | (2) sets of 1" diameter holes on 8" centers |
| Drain Openings | 3-1/2" die-stamped (strainer baskets not included) |
| Material / Finish | 16 GA Type 300 stainless steel, #4 satin |
| Base & Reinforcement | Stainless legs & 1-1/4" Ø stainless cross-bracing |
| Adjustability | Side bracing and bullet feet both height adjustable |
| Certifications | NSF, CSA-Sanitation |
| Shipping Weight | Approx. 137 lb |
Popular Add-Ons (sold separately)
- Deck or splash-mount faucets – plain spout, add-a-faucet or pre-rinse units
- Lever waste drains for hands-free emptying
- Stainless overshelves or pot racks for vertical storage
- John Boos Stainless Steel Care Kit for routine cleaning and passivation
Maintain the sink’s brilliant finish by cleaning daily with non-chloride detergents and soft cloths. Avoid harsh abrasives or steel pads. For heavy buildup, use Bar Keepers Friend, rinse thoroughly, and polish with John Boos Stainless Steel Cleaner.
