John Boos 3B244-1D24R-X Compartment Sinks
Description

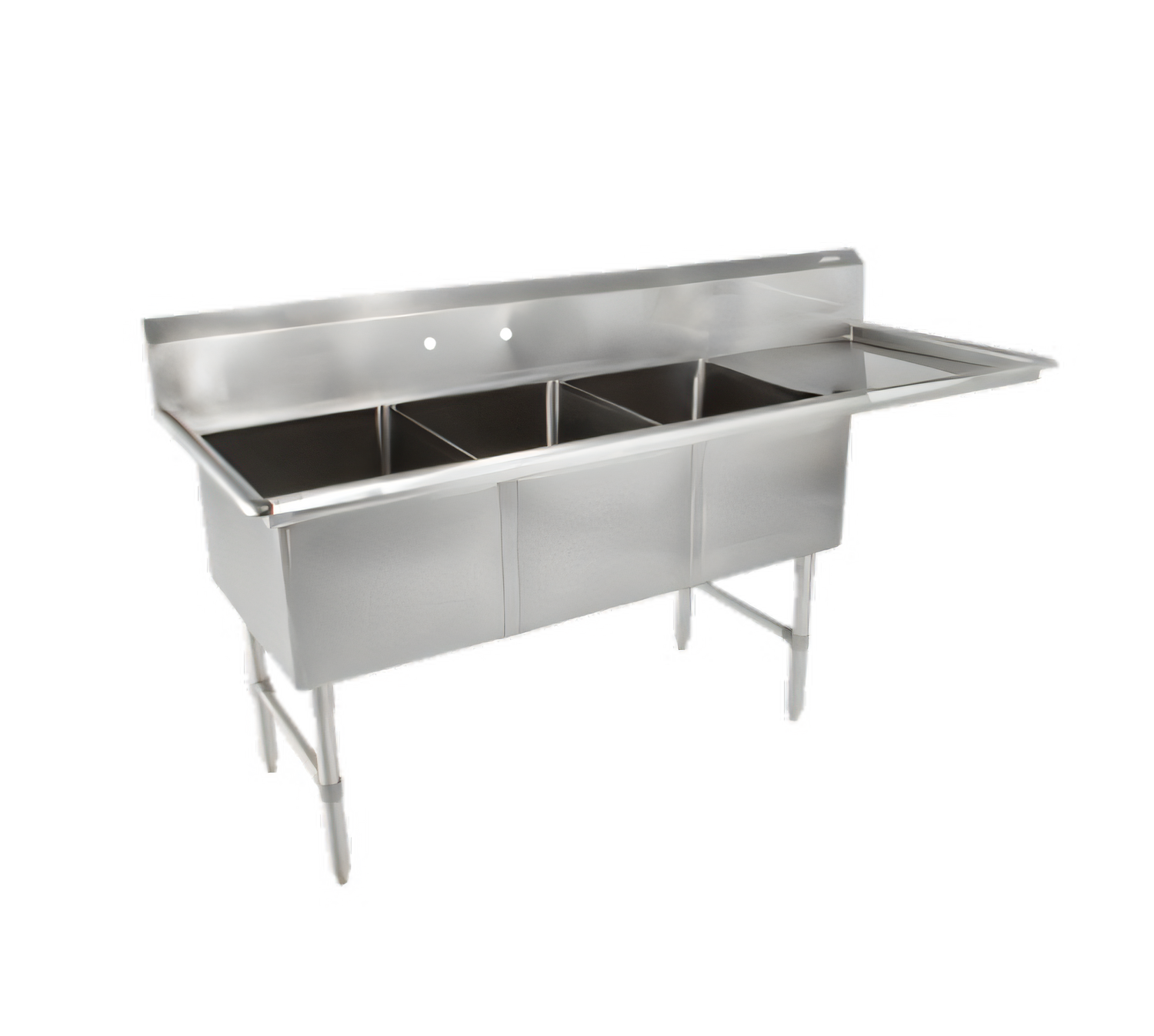

John Boos “B” Series 3-Compartment Sink w/ Right Drainboard – 100 in.
Model 3B244-1D24R | NSF & CSA-Sanitation ListedBuilt in Effingham, IL, this heavy-duty 16-gauge stainless steel sink delivers the rugged performance and food-safety compliance demanded by busy restaurants, bars, and commissaries. Three generously sized bowls plus a 24" right-hand drainboard keep your wash–rinse–sanitize workflow moving fast and efficiently.
Key Features

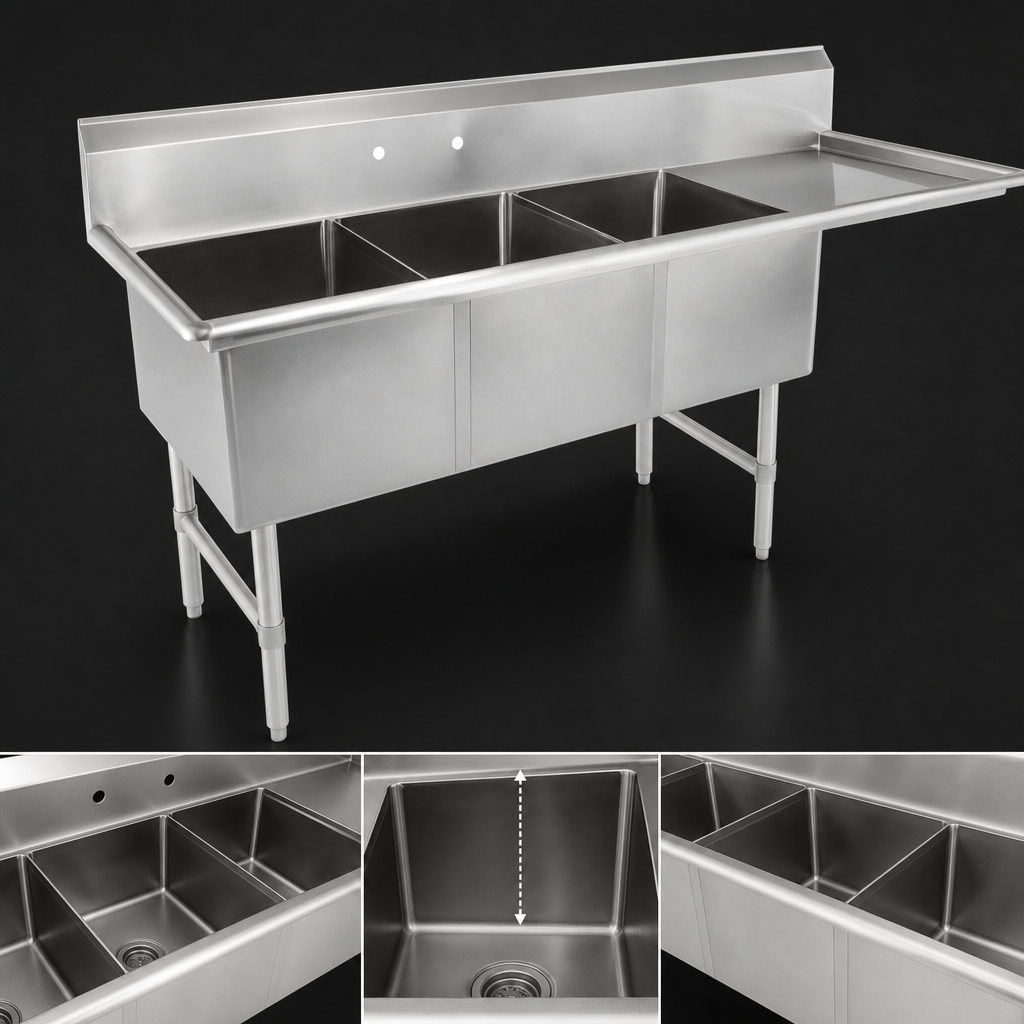

- (3) 24" W × 24" F-B × 14" D bowls handle large stock pots & sheet pans
- 24" right-side drainboard speeds drying and staging
- 10" boxed backsplash with 45° top & 2" return protects walls
- (2) sets of 1" splash-mount faucet holes, 8" on-center – ready for pre-rinse and add-on faucets
- 3-1/2" die-stamped drain openings accept standard basket or lever wastes
- 16-gauge Type 300 stainless steel with #4 satin finish – tough, easy to clean, professional look
- 1-5/8" Ø stainless steel legs, 1-1/4" Ø side bracing & adjustable bullet feet for rock-solid stability
- All welds TIG-finished; 3/4" coved bowl corners for superior sanitation
- NSF & CSA-Sanitation certified for peace of mind
Specifications
| Overall size | 100" W × 29-1/2" D × 44" H |
|---|---|
| Compartment size (each) | 24" W × 24" F-B × 14" D |
| Drainboard | 24" W (right side) |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet holes | (2) sets, 1" dia., 8" centers |
| Drain openings | 3-1/2" dia. die-stamped |
| Material / gauge | 16 ga Type 300 stainless steel, #4 satin polish |
| Legs & bracing | Stainless steel legs (1-5/8" Ø) with adjustable 1-1/4" Ø side bracing & bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Origin | Made in Effingham, IL, USA |
Engineered for Non-Stop Service
Whether you’re cranking through peak dinner rush or tackling end-of-day cleanup, the “B” Series sink stays rigid under load. Thick-wall stainless resists denting, while coved corners and satin polish make daily cleansing quick and health-inspector friendly.
Popular Add-Ons (sold separately)
- 8" on-center splash-mount faucets or pre-rinse units
- Lever waste assemblies
- Stainless steel overshelves & pot racks
Care & Maintenance
For best results, rinse and wipe dry after every shift with mild soap and water. Avoid chlorine bleach or abrasive pads that can compromise the stainless passive layer. Restore the factory sheen with a non-chloride stainless steel polish (e.g., Bar Keepers Friend) as needed.
Questions about installation or accessories? Reach out via chat or phone – our sink specialists are here to help.
