John Boos 3B244-1D24R Compartment Sinks
Description
John Boos 3B244-1D24R “B” Series 3-Compartment Sink w/ 24" Right Drainboard
100" W × 29-1/2" D × 44" H overall — heavy-duty 16-ga type 300 stainless steelEngineered for busy commercial kitchens, this John Boos “B” Series sink delivers triple-bowl versatility, a generous right-side drainboard and the rock-solid durability operators have trusted since 1887.
Key Features

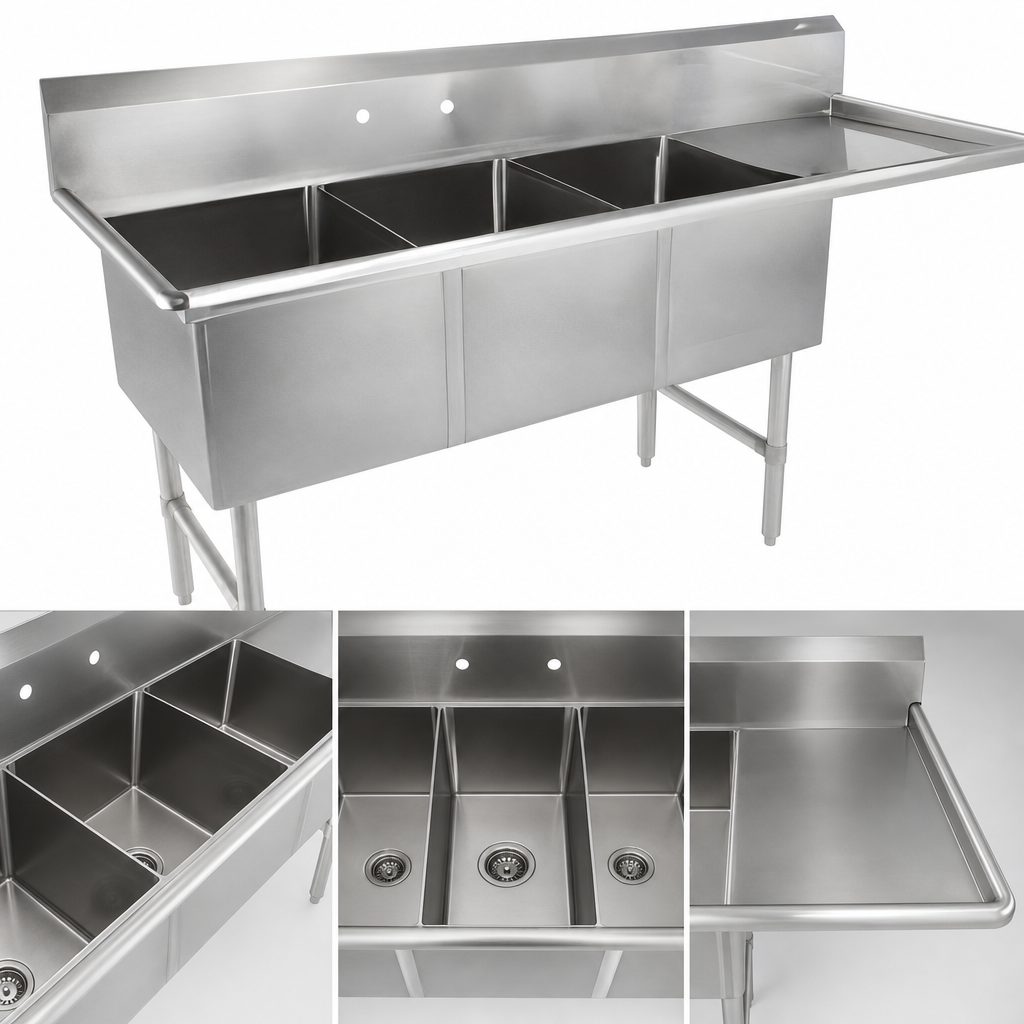

- Three 24" × 24" × 14" deep compartments for efficient wash / rinse / sanitize workflow
- Integrated 24" right-hand drainboard keeps drying racks and utensils organized
- 10" high boxed backsplash with 45° rolled top and 2" return shields walls from moisture
- (2) sets of 1" splash-mount faucet holes on 8" centers accommodate pre-rinse or add-a-faucet assemblies
- 3-1/2" die-stamped drain openings in every bowl for positive drainage
- 16-gauge, type 300 stainless steel top & bowls with hygienic #4 satin finish
- 3/4" coved corners and bull-nosed edges for easy cleaning and operator safety
- 1-5/8" O.D. stainless steel legs with adjustable side bracing & bullet feet for rock-solid stability
- NSF & CSA-Sanitation listed for nationwide code compliance
At-a-Glance Specs
| Model | 3B244-1D24R (Right drainboard) |
|---|---|
| Compartments | 3 |
| Bowl Size (each) | 24" L × 24" F-B × 14" D |
| Drainboard | 24" W – right side |
| Overall Dimensions | 100-3/16" W × 29-1/2" D × 44" H |
| Work Height to Rim | ≈ 36-5/16" |
| Backsplash | 10" H boxed, 2" return, 45° top |
| Faucet Holes | (2) sets, 1" dia., 8" on-center |
| Drain Opening | 3-1/2" die-stamped (per bowl) |
| Material / Gauge | 16-ga Type 300 stainless steel |
| Legs / Feet | Stainless legs, adjustable side bracing & bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Approx. Weight | 156 lb |
Why Choose a John Boos “B” Series Sink?
- TIG-welded construction with polished seams for a sanitary, one-piece look
- Bull-nosed exposed edges for comfort and a finished appearance
- Field-adjustable bullet feet level the sink on uneven floors in seconds
- Compatible with John Boos faucets, lever wastes, overshelves & pot racks (sold separately)
Simple Care & Cleaning
Maintain the brilliant satin finish with non-chloride cleaners such as Bar Keepers Friend and a soft cloth. Avoid abrasive pads and bleach-based chemicals. Rinse and towel-dry after each use to preserve the stainless steel’s protective film.
