John Boos  |  SKU: 3B244-1D24L  |  UPC: 662969160746

John Boos 3B244-1D24L Compartment Sinks

$3,126.19
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Instructions Care & maintenance
Related Searches
3-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

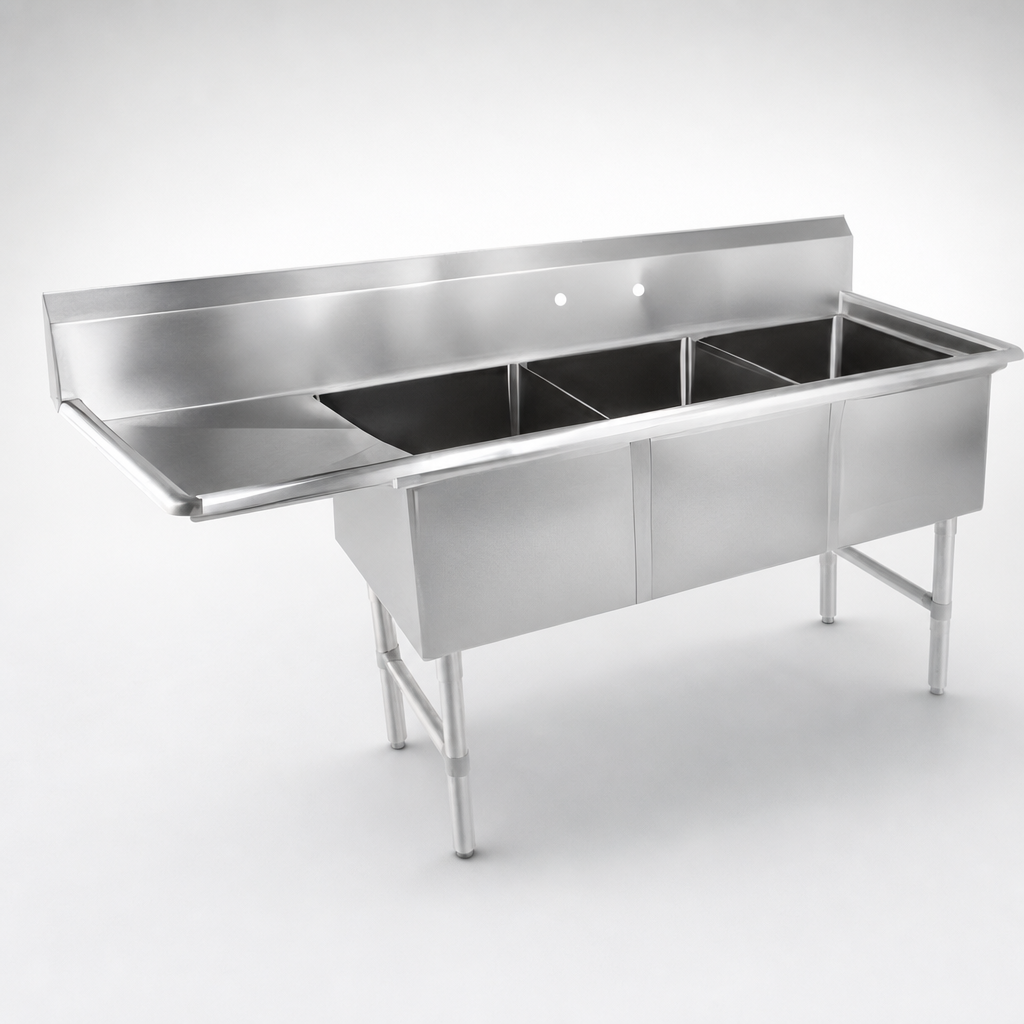

John Boos “B” Series 3-Compartment Sink – 100" x 29-1/2"

Model 3B244-1D24L | Left-Hand Drainboard | NSF & CSA-Sanitation

Engineered for demanding commercial kitchens, this John Boos “B” Series sink combines generous bowl capacity, a full-size drainboard, and rock-solid 16-gauge stainless construction. Wash, rinse, and sanitize in three roomy 24" x 24" x 14" compartments while the 24" left drainboard keeps workflow organized and countertops dry.

Key Features & Benefits

  • Durable 16-gauge, Type 300 stainless steel with attractive #4 satin finish.
  • (3) 24" W x 24" F/B x 14" D bowls formed for rapid drainage to 3-1/2" die-stamped openings.
  • 10" boxed backsplash with 45° rolled top & 2" return protects surrounding walls.
  • (2) sets of splash-mount faucet holes on 8" centers—ideal for dual faucets or faucet + pre-rinse.
  • 24" left drainboard slopes toward the bowl for fast, mess-free drying.
  • 1-5/8" O.D. stainless steel legs with 1-1/4" O.D. adjustable side bracing for maximum rigidity.
  • Adjustable stainless steel bullet feet level the sink on uneven floors.
  • All corners bull-nosed and all welds TIG-polished for a smooth, sanitary finish.
  • NSF and CSA-Sanitation listed for nationwide code compliance.

Specifications

Overall size 100" W x 29-1/2" D x 44" H (to top of backsplash)
Bowl size (each) 24" W x 24" F/B x 14" D
Compartments 3
Drainboard 24" L (left side)
Backsplash 10" H boxed, 45° top, 2" return
Faucet holes (2) sets, 8" centers, 1" dia.
Drain openings 3-1/2" dia. die-stamped
Material 16-ga Type 300 stainless steel
Leg assembly Stainless steel legs & adjustable side bracing
Feet 1" adjustable stainless steel bullet feet
Certifications NSF, CSA-Sanitation
Need a right-hand drainboard? Order model 3B244-1D24R.

Ideal Applications

  • High-volume restaurants & cafés
  • Institutional kitchens: schools, hospitals, correctional facilities
  • Commissaries & food-truck build-outs
  • Breweries, bakeries, and specialty food production

Stainless Steel Care Tips

  • Clean daily with mild soap or detergent and warm water; wipe with the grain.
  • Avoid chlorine bleach and abrasive pads—use Bar Keepers Friend or John Boos Stainless Steel Cleaner for stubborn stains.
  • Rinse and dry after cleaning to maintain the protective stainless film.
Installation Note: Faucet sets, drains, and overflow assemblies are sold separately. Confirm local plumbing code requirements before installation.
John Boos & Co. reserves the right to modify specifications without notice.

Features & Specs

Manufacturer

John Boos

Certifications

NSF, CSA-Sanitation

Height

44.0in

Width

100.18in

Depth

29.5in

Shipping Weight

156.0lbs

Drainboards

with left-hand drainboard

Compartment Width (side - side)

24"

Splash Height

10"

Base Type

legs with side crossrails

Sink Depth (rim - drain)

14"

Compartment (front - back)

24"

Overall Length

97" - 108"

Top Stainless Series

300 series

Top Gauge

16 gauge

Base Construction

stainless steel

Specifications

"B" Series Sink, 3-compartment, 100-3/16"W x 29-1/2"D x 44"H overall size, (3) 24"W x 24" front-to-back x 14" deep compartments, (1) 24" left drainboard, 10"H boxed backsplash with 45° top and 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable side bracing, adjustable bullet feet, NSF, CSA-Sanitation
