John Boos 3B20304-2D30-X Compartment Sinks
Description

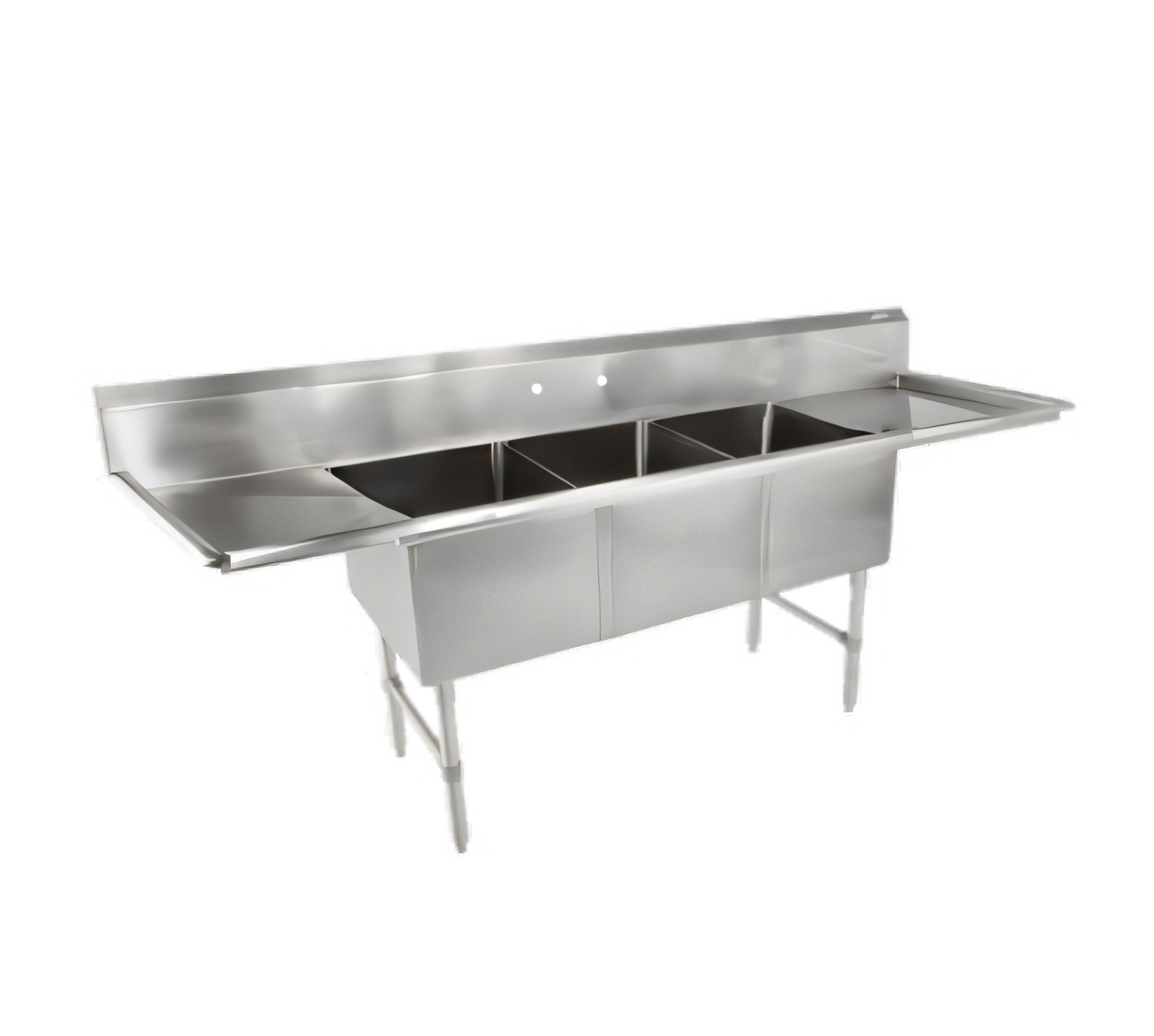

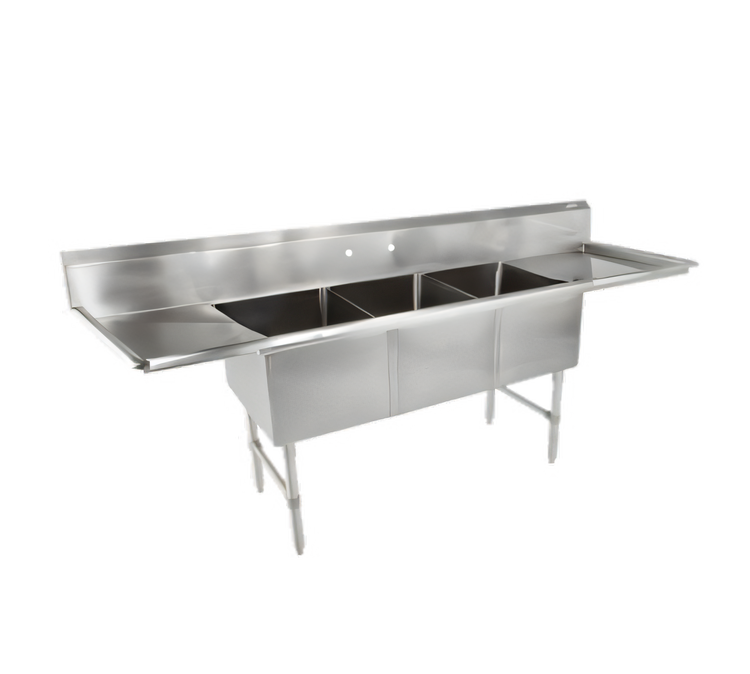

John Boos B-Series 3-Compartment Sink with Dual 30" Drainboards
Model 3B20304-2D30 | 123" W x 35-1/2" D x 44" HMade in Effingham, IL, this heavy-duty B-Series sink gives high-volume kitchens the rugged capacity, workflow and sanitation they demand—backed by NSF and CSA-Sanitation approvals.
Key Advantages

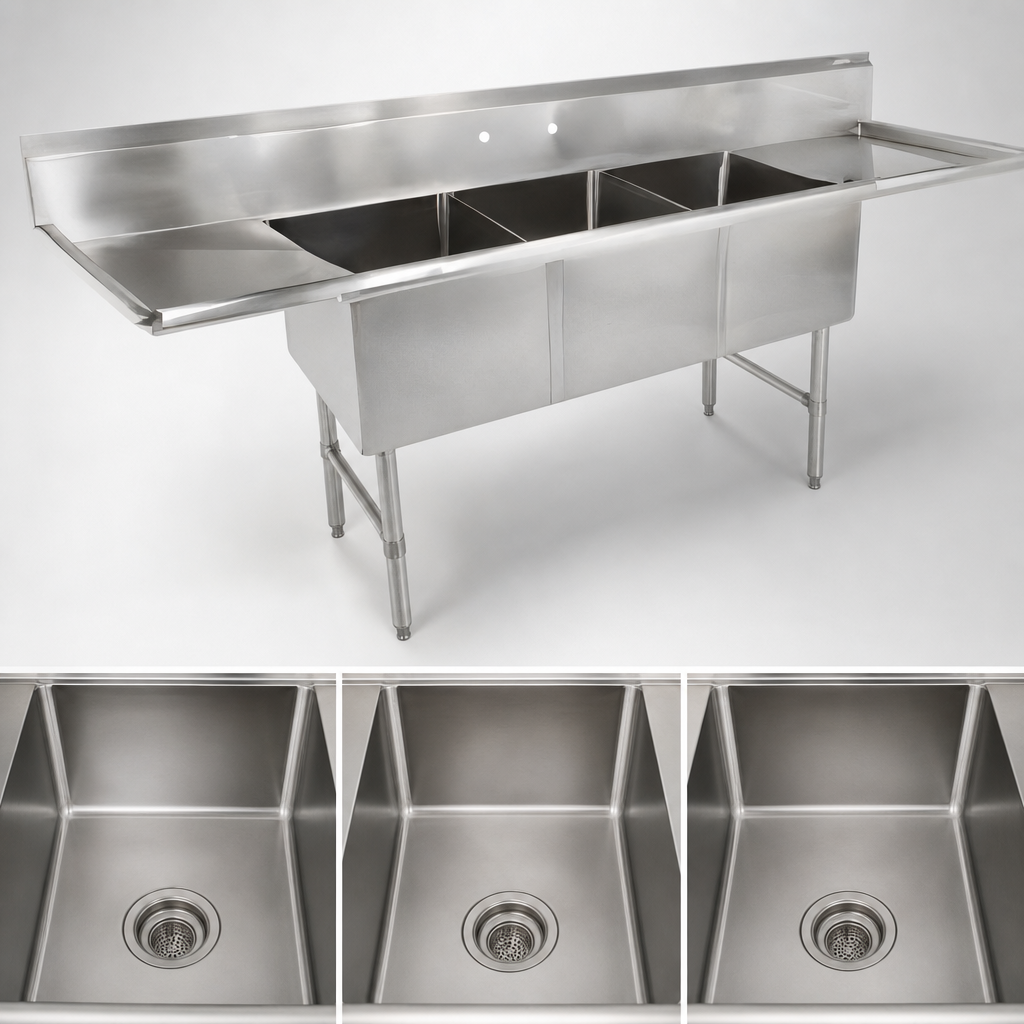

- Expansive 123" overall length maximises wash, rinse & sanitise stations.
- (3) 14" deep bowls (20" W x 30" F/B) easily hold sheet pans and stock pots.
- Generous 30" drainboards on both sides keep clean and dirty wares clearly separated.
- 10" high boxed backsplash with 45° top and 2" return protects surrounding walls.
- 16-gauge, type 300 stainless steel with #4 satin polish resists corrosion and wipes clean fast.
- 3/4" radius coved corners inside and out for effortless sanitation.
- Factory die-stamped 3-1/2" drain openings accept standard basket strainers (sold separately).
- Pre-punched splash-mount faucet holes on 8" centers—ready for your choice of faucet.
- Stainless steel 1-5/8" Ø legs with 1-1/4" Ø adjustable side bracing add strength and stability.
- 1" adjustable stainless bullet feet level the sink on uneven floors.
At-a-Glance Specs
| Series / Type | B-Series Commercial Compartment Sink |
|---|---|
| Model | 3B20304-2D30 |
| Compartments | 3 |
| Bowl Interior (each) | 20" W x 30" F/B x 14" D |
| Drainboards | (2) 30" – left & right |
| Overall Dimensions | 123" W x 35-1/2" D x 44" H (to top of backsplash) |
| Backsplash | 10" boxed, 45° top, 2" return |
| Faucet Mount | 1 set, 8" centers (splash-mount) |
| Drain Openings | 3-1/2" dia., die-stamped |
| Material | 16-ga. Type 300 stainless steel, #4 satin finish |
| Legs & Bracing | Stainless 1-5/8" Ø legs & 1-1/4" Ø side bracing |
| Feet | 1" adjustable stainless bullet feet |
| Certifications | NSF & CSA-Sanitation |
| Ship Weight | Approx. 188 lb |
| Manufactured | Effingham, Illinois, USA |
Built to Endure
John Boos TIG-welds every seam, then grinds and polishes welds to match the surrounding satin surface—creating a seamless, easy-to-clean sink that shrugs off daily chemical and thermal shock.
Stainless Care Tips
- Clean daily with mild soap or a non-chloride stainless cleaner.
- Scrub and dry in the direction of the grain to maintain the protective finish.
- Avoid wire brushes, steel wool and cleaners containing bleach or chlorides.
- For stubborn residue, use Bar Keepers Friend® on a wet, non-metallic pad; rinse and dry immediately.
Faucets, basket strainers and other accessories are sold separately. Always verify local plumbing codes before installation.
