John Boos 3B20304-2D24-X Compartment Sinks
Description

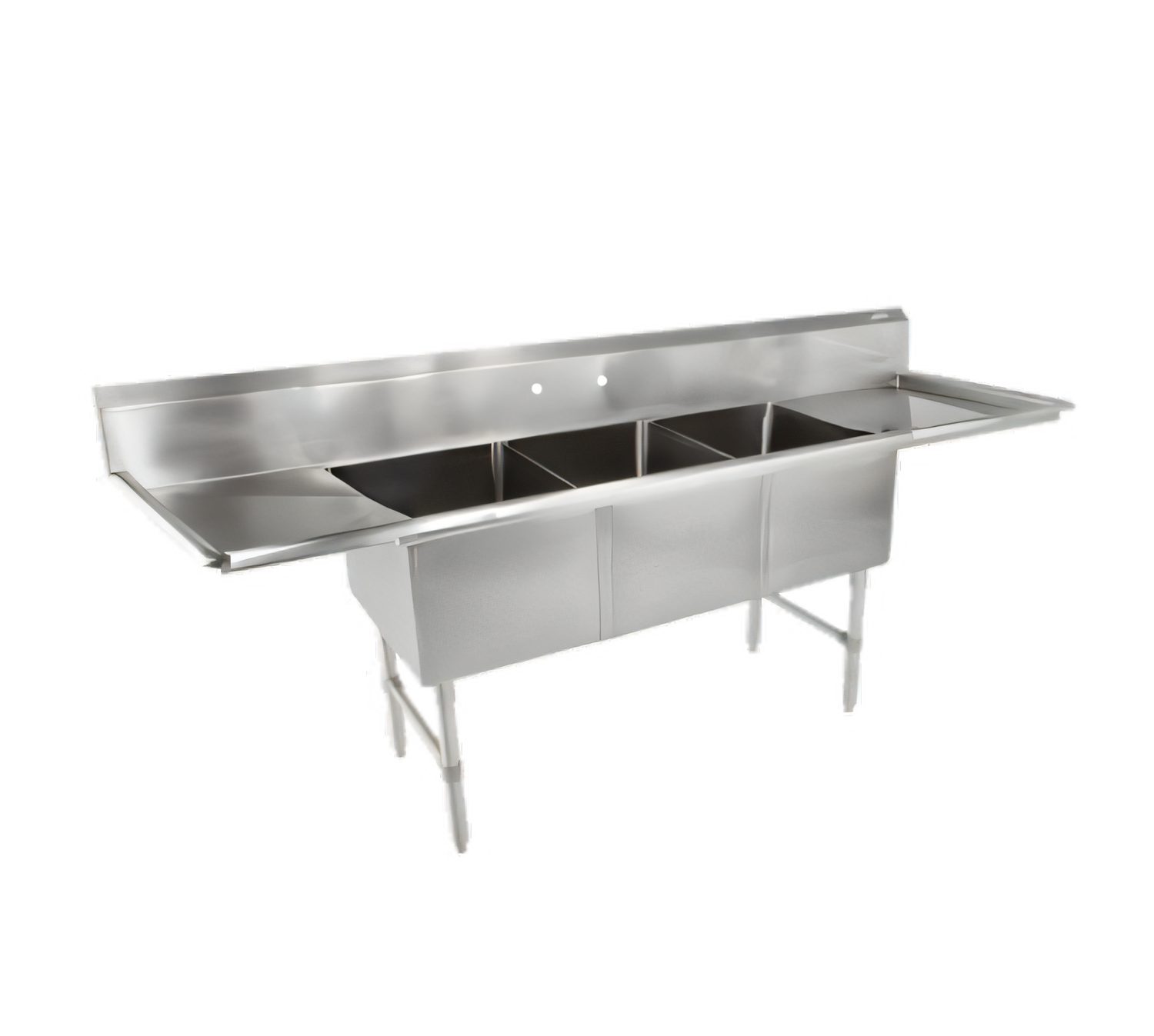

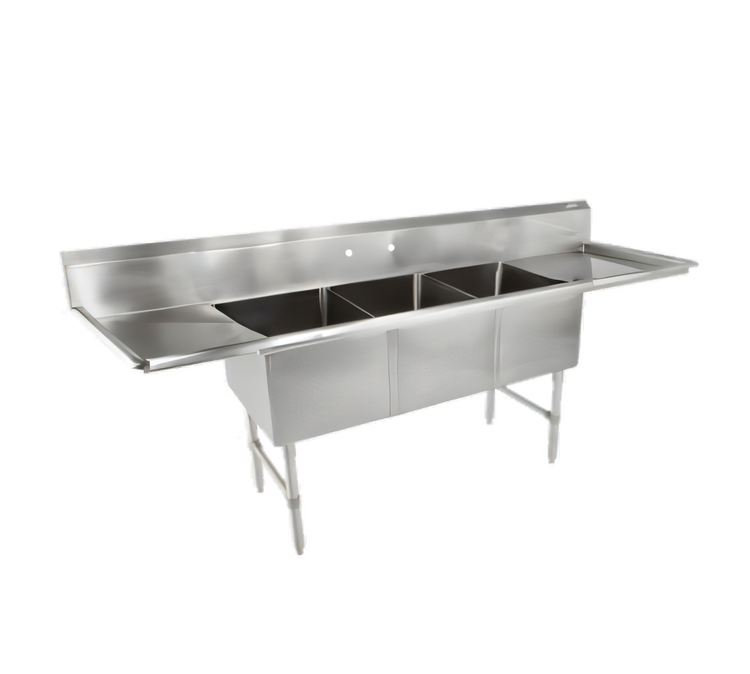

John Boos “B” Series 3-Compartment Sink – 111"W with Dual 24" Drainboards
Model 3B20304-2D24 | 16 GA Type 300 Stainless SteelBuilt to thrive in high-volume food-service environments, the John Boos “B” Series 3-compartment sink pairs rugged, 16-gauge stainless construction with extra-large bowls and drainboards—giving your crew the space and durability they need to wash, rinse and sanitize efficiently while meeting the strictest health codes.
Key Features

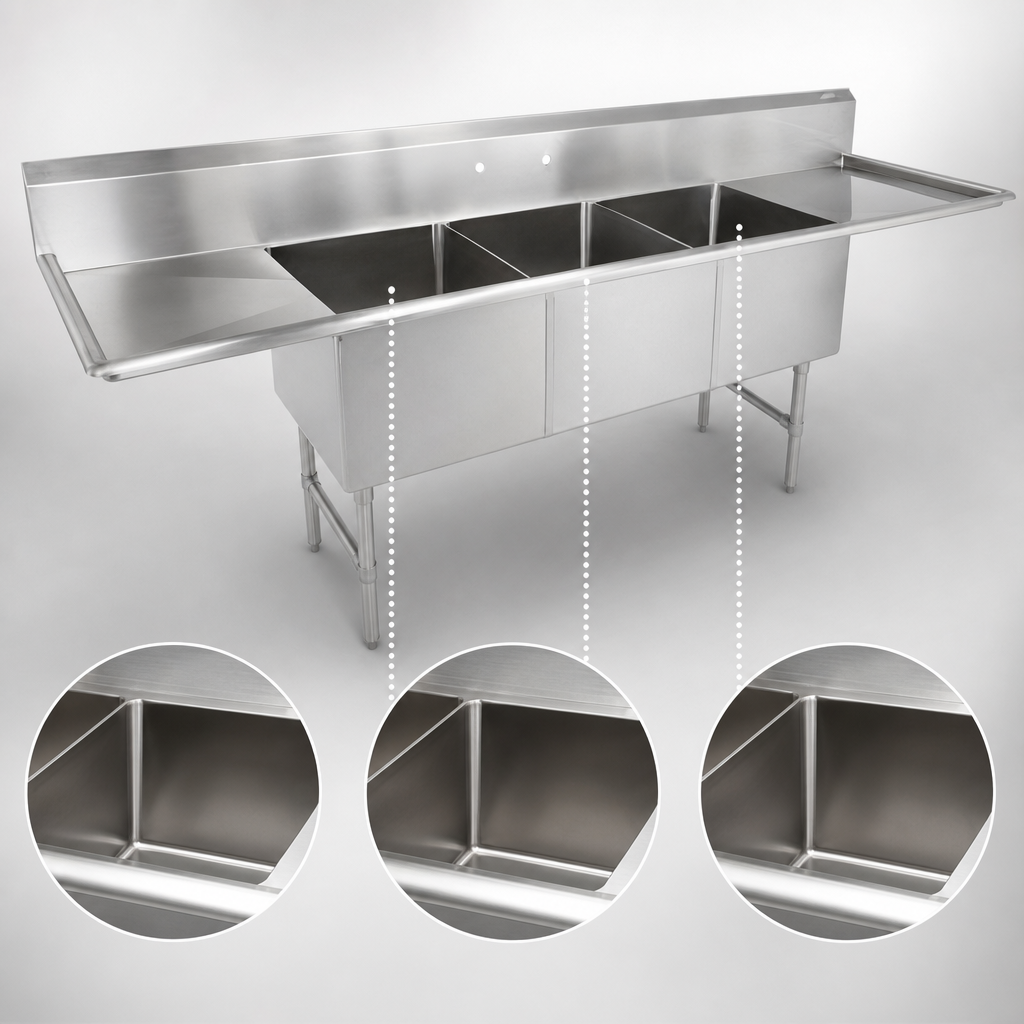

- (3) 14"-deep bowls measure 20" W × 30" F-B—plenty of room for stock pots, sheet pans and hotel pans.
- Left & right 24" drainboards keep soiled and clean ware organized and flowing.
- 10"‐high boxed backsplash with 2" return and 45° sanitary top protects walls and contains splashes.
- 1 set of splash-mount faucet holes on 8" centers—ready for a pre-rinse or deck faucet of your choice.
- Precision 3-1/2" die-stamped drain openings accept standard basket strainers (sold separately).
- Coved 3/4" bowl corners & bull-nosed edges enhance safety and simplify clean-up.
- 1-5/8" Ø all-stainless legs with 1-1/4" Ø side bracing and adjustable bullet feet for rock-solid, level placement.
- #4 satin finish wipes down quickly and maintains a professional appearance.
- NSF & CSA-Sanitation listed for worry-free code compliance.
Detailed Specifications
| Overall size | 111" W × 35-1/2" D × 44" H (to top of backsplash) |
|---|---|
| Compartment interior (3) | 20" W × 30" F-B × 14" D |
| Drainboards | (2) 24" L, left & right |
| Backsplash | 10" H boxed, 2" return, 45° top, 1" turned-down rear lip |
| Faucet holes | (1) set, 1" Ø on 8" centers, splash mount |
| Drain opening | 3-1/2" Ø die-stamped |
| Material / finish | 16-ga 304 stainless steel, #4 satin |
| Legs & bracing | Stainless steel legs (1-5/8" Ø) & side bracing (1-1/4" Ø) with adjustable bullet feet |
| Shipping weight | Approx. 178 lb |
| Certifications | NSF, CSA-Sanitation |
| Manufactured | Effingham, IL & Nevada, MO facilities |
Compatible accessories—faucets, lever wastes, overshelves, pot racks and more—are available separately. Shop accessories ›
Perfect For
- Restaurants, hotels & institutional kitchens
- Commissaries, ghost kitchens & food trucks
- Bakeries, butcher shops & grocery delis
- School, healthcare & corporate food-service operations
Care & Maintenance
- Clean daily with a non-chloride stainless steel cleaner; rinse and dry thoroughly.
- Avoid abrasive pads or wire brushes—always wipe in the direction of the grain.
- If bleach or chlorides contact the surface, rinse immediately with fresh water.
