John Boos | SKU:
3B20304-2D24
John Boos 3B20304-2D24 Compartment Sinks
$3,457.13
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos 3B20304-2D24 Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 3B20304-2D24 Compartment Sinks
$3,457.13
Unit price
/
Unavailable
Description

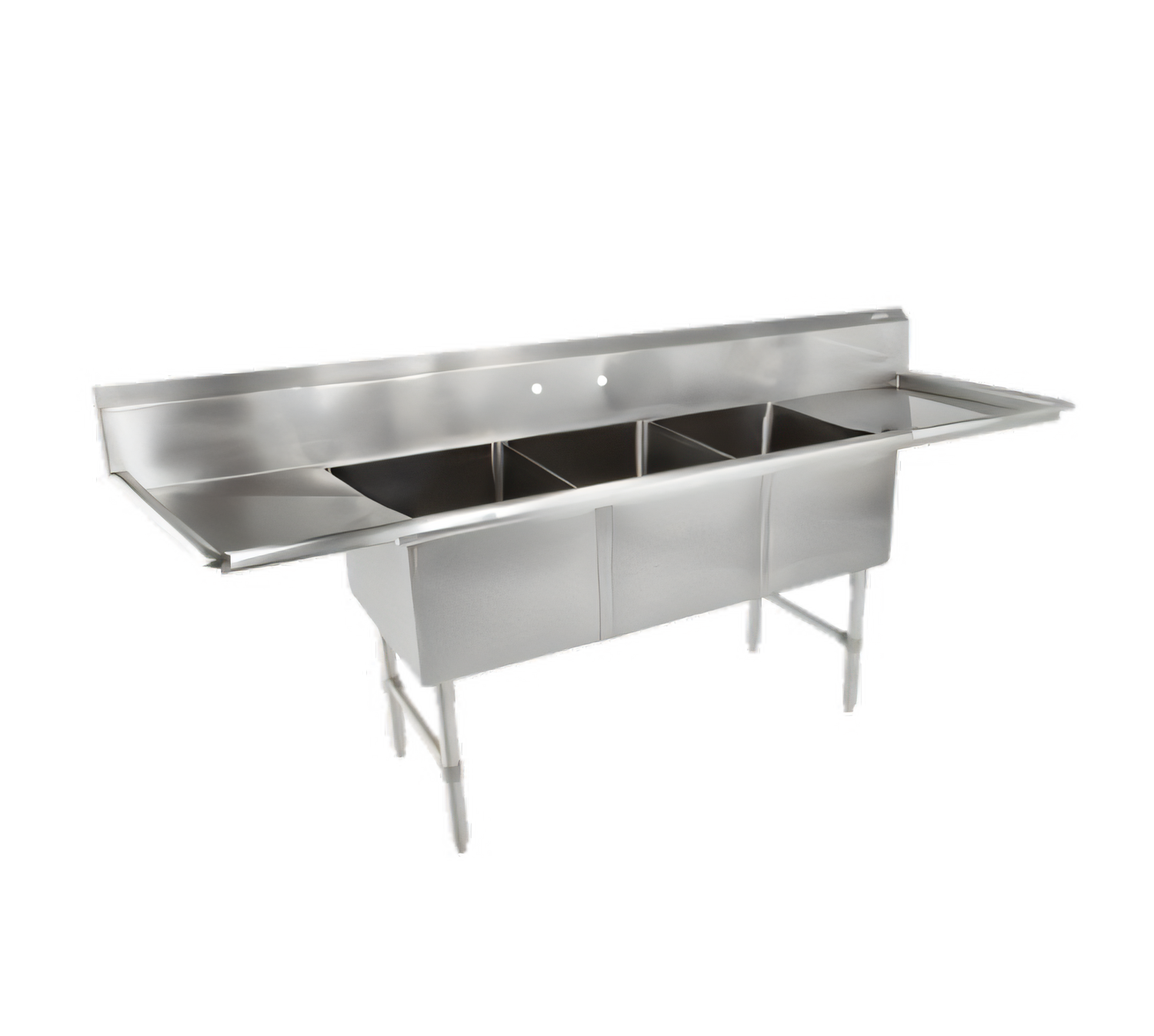

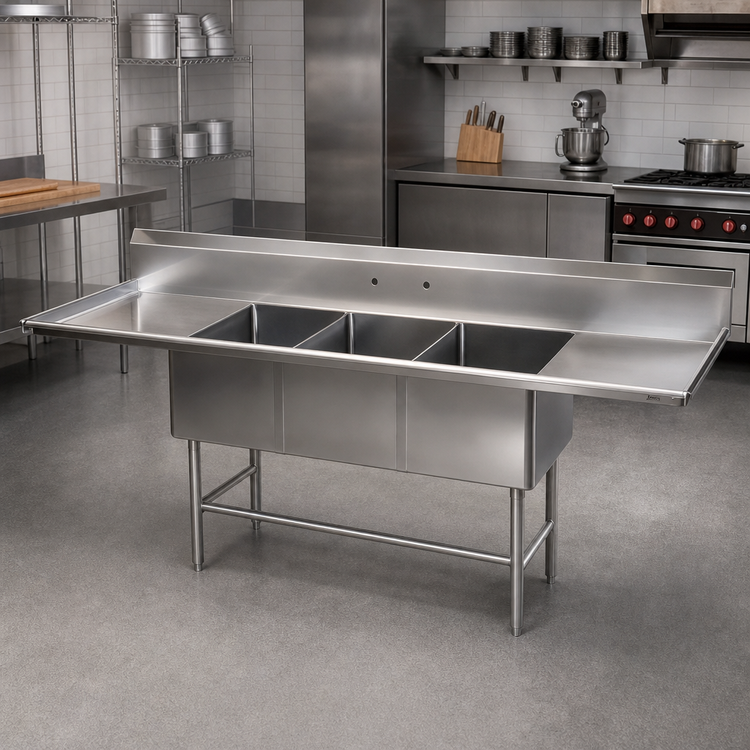

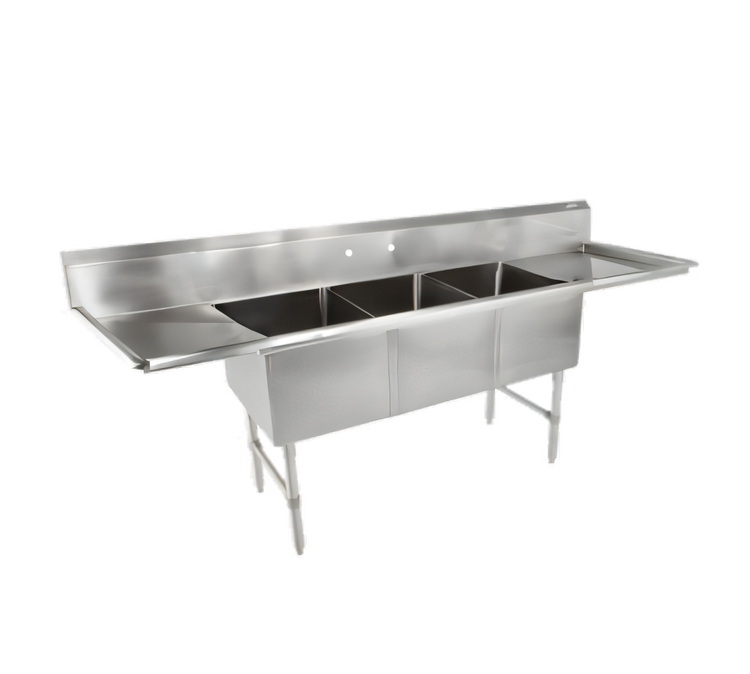

John Boos “B” Series 3-Compartment Sink – 111" W
Model 3B20304-2D24 | 16 ga Type 300 stainless steel with twin 24" drainboardsBuilt to thrive in the toughest commercial kitchens, this John Boos “B” Series sink combines generous bowl capacity, heavy-duty 16-gauge stainless steel and food-safe certifications in one dependable, easy-to-clean workstation.
Key features & benefits

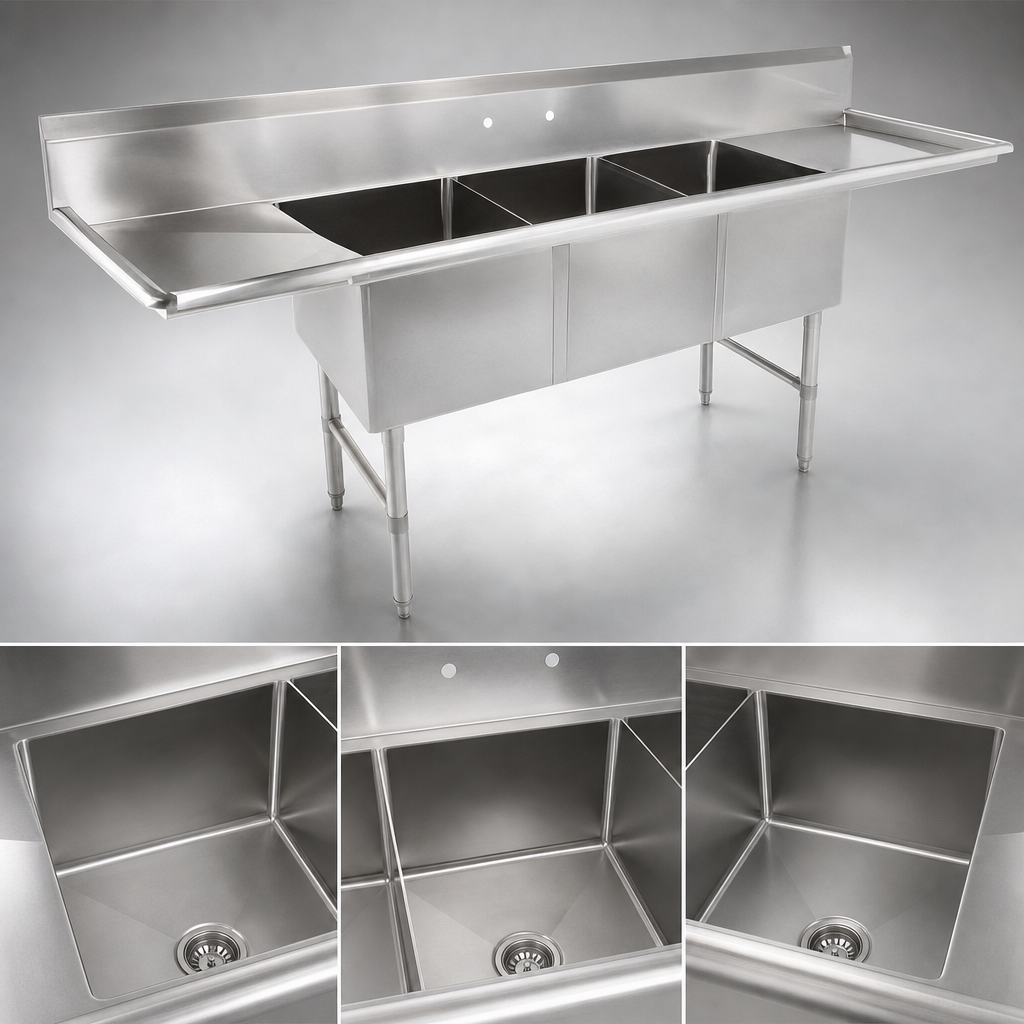

- Three 20" W × 30" front-to-back × 14" deep bowls – accommodates sheet pans & stock pots.
- 24" left & right drainboards keep soiled and clean wares separate for smoother workflow.
- 10" boxed backsplash with 45° rolled top and 2" return protects walls from overspray.
- (1) set of pre-punched 8"-center splash-mount faucet holes – ready for your faucet of choice.
- 3-1/2" die-stamped drain openings accept standard basket strainers or lever wastes.
- TIG-welded 16 ga Type 300 stainless steel, #4 satin finish – corrosion-resistant & simple to sanitize.
- 1-5/8" Ø stainless steel legs with adjustable side bracing for rock-solid stability.
- Adjustable stainless steel bullet feet level the sink on uneven floors.
- NSF & CSA-Sanitation listed – meets health-department requirements nationwide.
Specifications
| Model | 3B20304-2D24 |
|---|---|
| Overall dimensions | 111" W × 35-1/2" D × 44" H |
| Compartments | 3 |
| Bowl size (each) | 20" W × 30" F/B × 14" D |
| Drainboards | Two 24" (left & right) |
| Backsplash | 10" boxed, 2" return |
| Faucet holes | 8" centers, splash-mount |
| Drain opening | 3-1/2" die-stamped |
| Material | 16 ga Type 300 stainless steel, #4 satin |
| Legs / bracing | Stainless steel 1-5/8" legs with 1-1/4" side bracing |
| Feet | Adjustable stainless steel bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Approx. shipping weight | 178 lb |
Perfect for
- Restaurant & bar dishrooms
- Institutional cafeterias & school kitchens
- Hotels, resorts & banquet facilities
- Breweries, bakeries & commissary prep areas
Popular accessories (sold separately)
- Deck or wall-mount faucets & add-a-faucet adapters
- Lever waste drains & basket strainers
- Pre-rinse units to speed up dish cycles
- Over-shelves & pot racks for additional storage
Care tip: After each shift, rinse, wipe dry and apply a non-chloride stainless steel cleaner to preserve the protective chromium film and keep your sink looking new.
Looking for a different size or bowl configuration? Explore the full John Boos “B” Series or contact us for custom fabrication.
Features & Specs
Features & Specs
Manufacturer
John Boos
Certifications
NSF, CSA-Sanitation
Height
44.0in
Width
111.25in
Depth
35.5in
Shipping Weight
178.0lbs
Top Gauge
16 gauge
Splash Height
10"
Drainboards
with left & right-hand drainboards
Sink Depth (rim - drain)
14"
Base Type
legs with side crossrails
Overall Length
109" - 170"
Compartment (front - back)
30"
Compartment Width (side - side)
20"
Base Construction
stainless steel
Top Stainless Series
300 series
Specifications
"B" Series Sink, 3-compartment, 111-1/4"W x 35-1/2"D x 44"H overall size, (3) 20"W x 30" front-to-back x 14" deep compartments, (2) 24" left & right drainboards, 10"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable side bracing, adjustable bullet feet, NSF, CSA-Sanitation
