Key specifications
- Dimensions
- 93.25"W × 23.5"D × 44.0"H
- Type
- 3-Compartment Sink
- Style
- B Series
- Installation Type
- Floor Model
- Material
- Stainless Steel
- Base Type
- Legs With Side Crossrails
John Boos 3B184-2D18 3-Compartment Sink, 18" Compartments
Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The John Boos 3B184-2D18 is a 3-compartment sink with three 18-inch-wide by 18-inch front-to-back by 14-inch-deep compartments, left and right 18-inch drainboards, and a 10-inch boxed backsplash.
The sink is constructed from 16-gauge Type 300 stainless steel with a #4 polish and satin finish. Its base includes stainless steel legs, adjustable side bracing, and adjustable bullet feet.
- One set of splash-mount faucet holes with 8-inch centers
- 3-1/2-inch die-stamped drain openings
- 2-inch backsplash return at a 45-degree angle
- NSF and CSA-Sanitation certified
Overall Dimensions:
93.25"W x 23.5"D x 44.0"HProduct Weight:

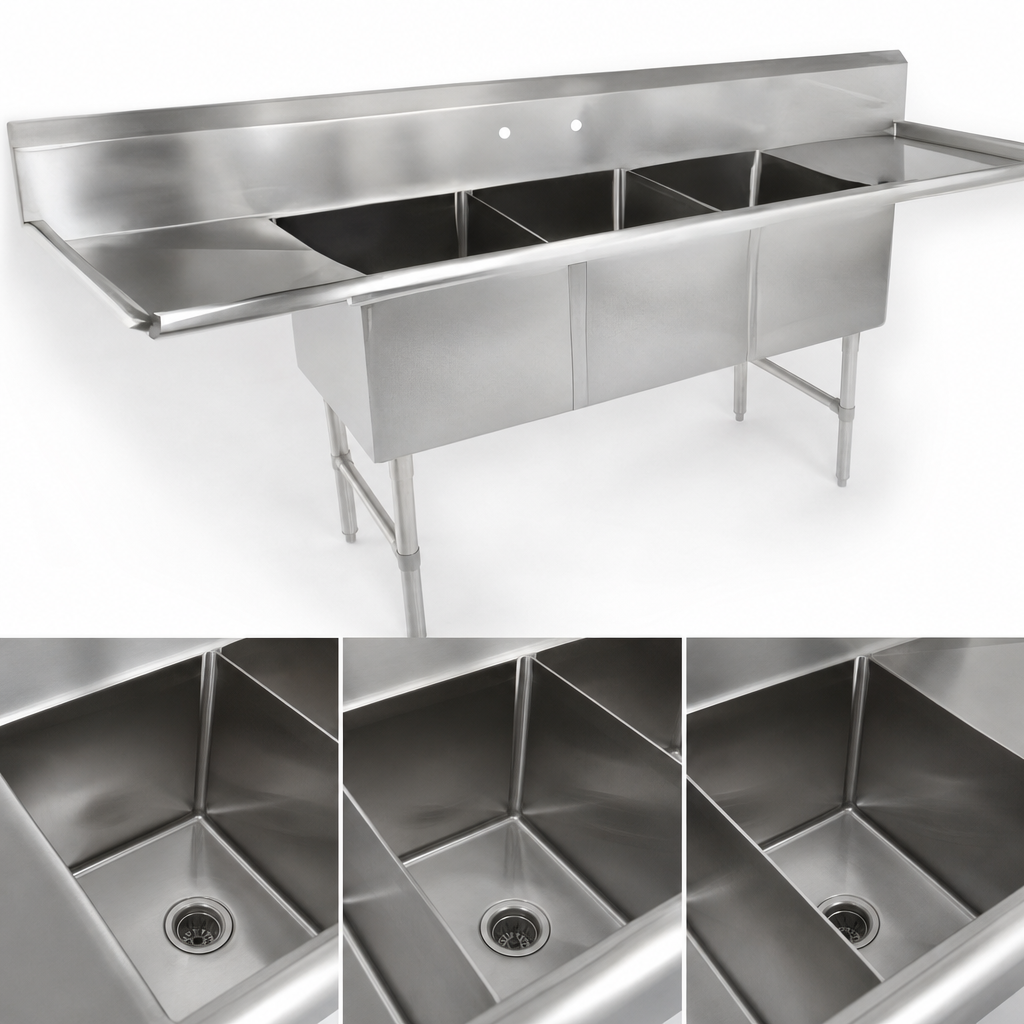

123.0 lbThree Compartments
Includes three compartments, each 18 inches wide, 18 inches front-to-back, and 14 inches deep.
Left and Right Drainboards
Includes an 18-inch drainboard on each side of the sink.
Stainless Steel Construction
The bowls and top are made from 16-gauge Type 300 stainless steel with a #4 polish and satin finish.
Boxed Backsplash
The full-length backsplash is 10 inches high and has a 2-inch return to the wall at 45 degrees.
Faucet Mounting
Includes one set of 1-inch faucet holes in the backsplash with 8-inch centers.
Drain Openings
The bowl bottoms are formed for drainage to 3-1/2-inch die-stamped openings.
Adjustable Base
The stainless steel base has adjustable side bracing and adjustable bullet feet.
