John Boos

John Boos B-Series 3-Compartment Stainless Steel Sink with Right Drainboard, 76-3/16" W x 23-1/2" D, 16-Gauge

SKU: 3B184-1D18R-X
$1,678.08
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

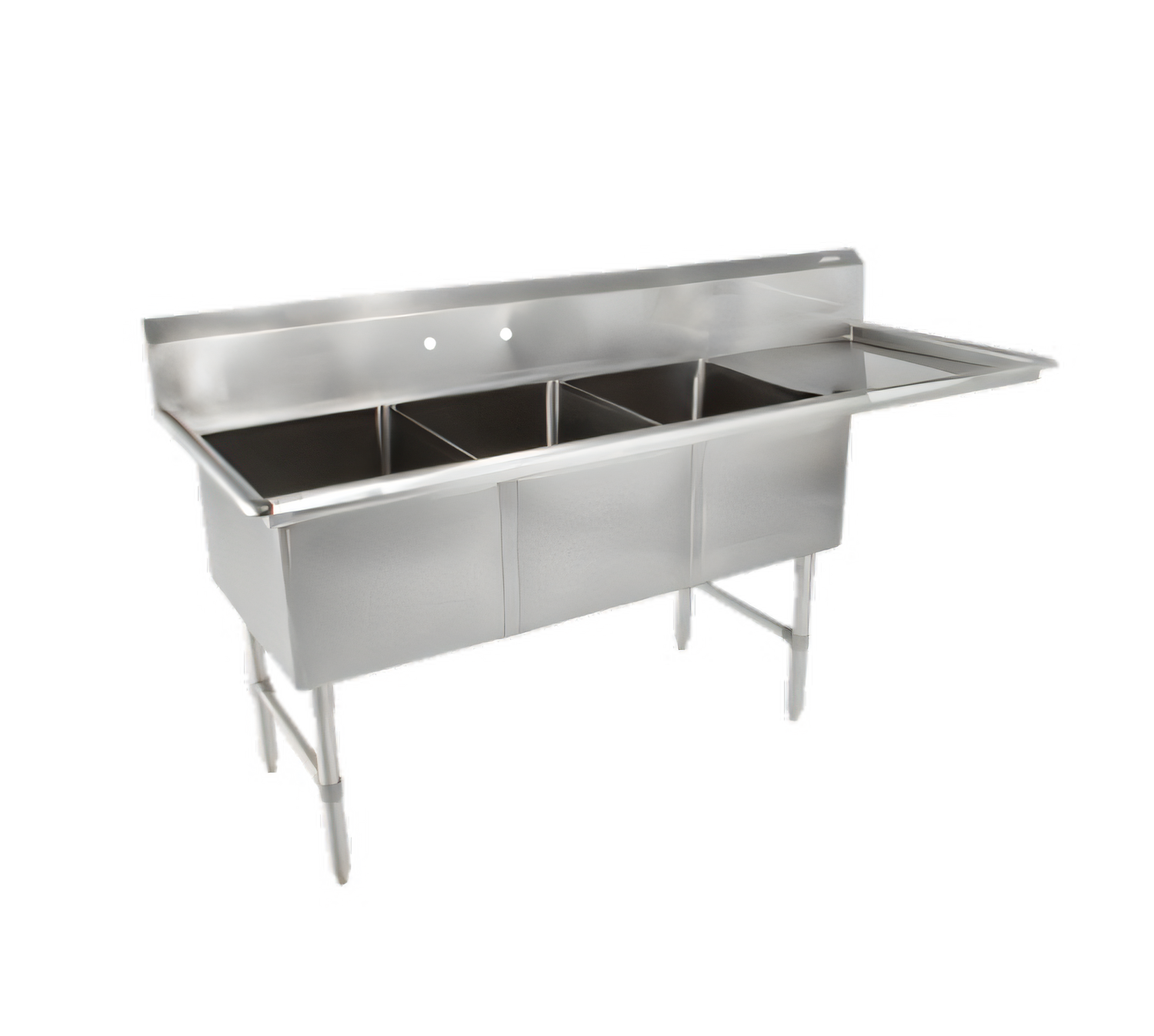

John Boos B-Series 3-Compartment Stainless Steel Sink with Right Drainboard, 76-3/16" W x 23-1/2" D, 16-Gauge

14" Deep Bowls, 10" Boxed Backsplash, Stainless Steel Legs

Built for high-volume dish rooms, this freestanding 3-compartment sink pairs a right-hand drainboard with durable 16-gauge stainless steel construction.

  • Three 18" x 18" x 14" compartments support wash, rinse, and sanitize workflows.
  • 18" right-hand drainboard adds landing space and helps manage wet items.
  • 16-gauge stainless steel construction offers the durability needed for commercial use.
  • 10" boxed backsplash with a 45° return helps protect the wall from splashes.
  • Stainless steel legs, side bracing, and adjustable bullet feet provide stable support and leveling.
  • NSF and CSA-Sanitation listed for commercial kitchen applications.

Overall Dimensions:

76.18"W x 23.5"D x 44.0"H

Product Weight:

114.0 lb

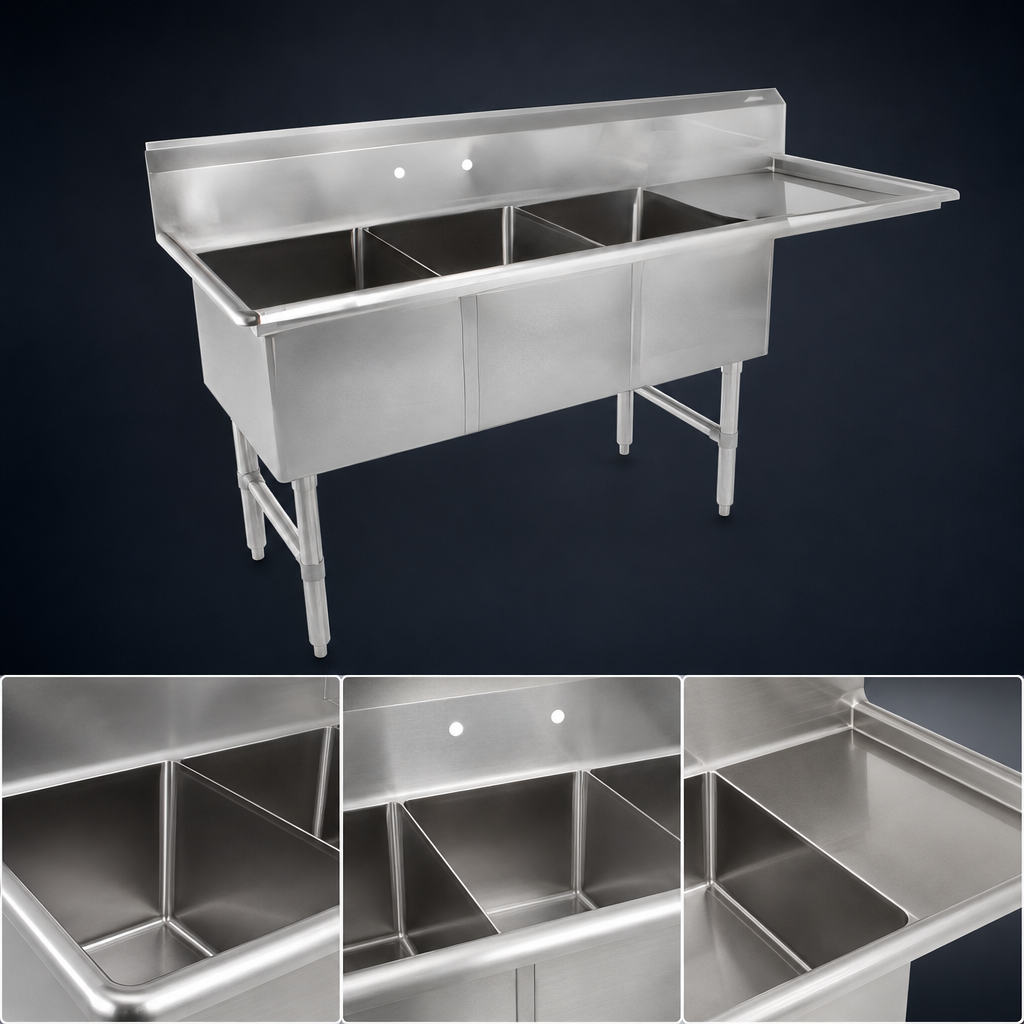

Three-Compartment Layout

Provides three 18" wide by 18" front-to-back bowls for efficient multi-step sink workflow.

Right-Hand Drainboard

Includes one 18" drainboard on the right side for staging, draining, and drying items.

Heavy-Duty Stainless Steel Construction

Made with 16-gauge Type 300 stainless steel and a satin finish for strength and corrosion resistance.

Boxed Backsplash

10" high backsplash includes a 2" return to the wall at 45° plus a turned-down rear lip to help contain splashes.

Drainage-Friendly Bowls

Bowls are formed for drainage and feature 3-1/2" die-stamped drain openings.

Coved Bowl Corners

All vertical and horizontal corners are coved with a 3/4" radius for easier cleaning.

Stainless Steel Base

Stainless steel legs, side bracing, gussets, and adjustable bullet feet provide a sturdy freestanding base.

Safe, Finished Edges

Bullnosed outside corners create a smoother, cleaner edge around the assembly.

Splash-Mount Faucet Holes

Supplied with one set of splash-mount faucet holes with 8" centers.

Type 3-Compartment Sink
Style With Right Drainboard
Installation Type Freestanding
Compartments 3
Material Stainless Steel
Finish Satin Finish
Top Gauge 16 Gauge
Backsplash Height 10 Inches
Bowl Depth 14 Inches
Drainboard Side Right
Shipping Width 77 Inches
Shipping Depth 24 Inches
Shipping Height 44 Inches
Shipping Weight 114 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Video assembly instructions PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Each compartment measures 18" side-to-side by 18" front-to-back by 14" deep.
Yes. This model includes one 18" right-hand drainboard.
It has a 10" boxed backsplash with a 2" return to the wall at 45°.
It is constructed of 16-gauge Type 300 stainless steel with stainless steel legs and base components.
The sink includes one set of splash-mount faucet holes with 8" centers.
It is listed as NSF and CSA-Sanitation.
