John Boos 3B184-1D18L-X Compartment Sinks
Description

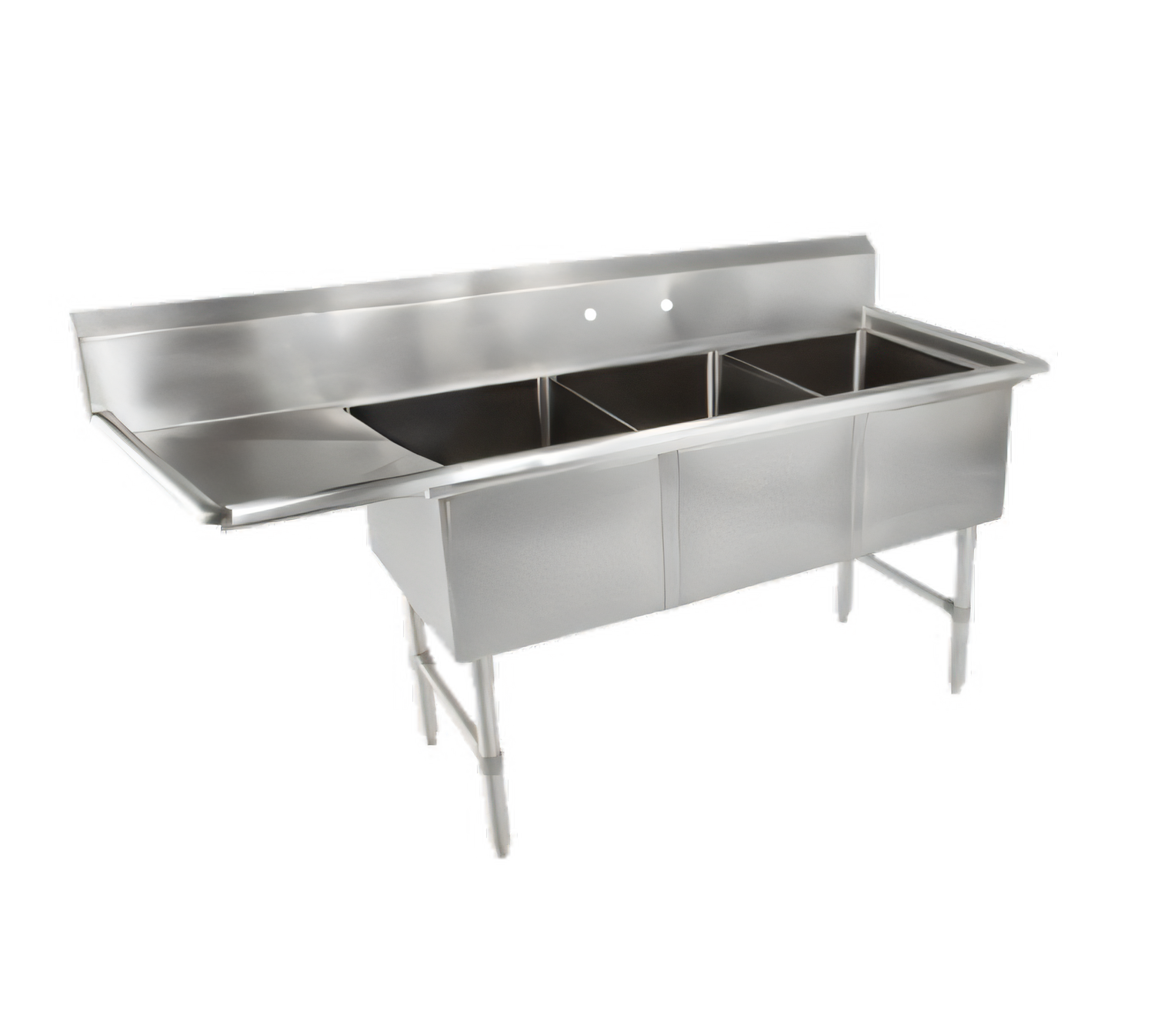

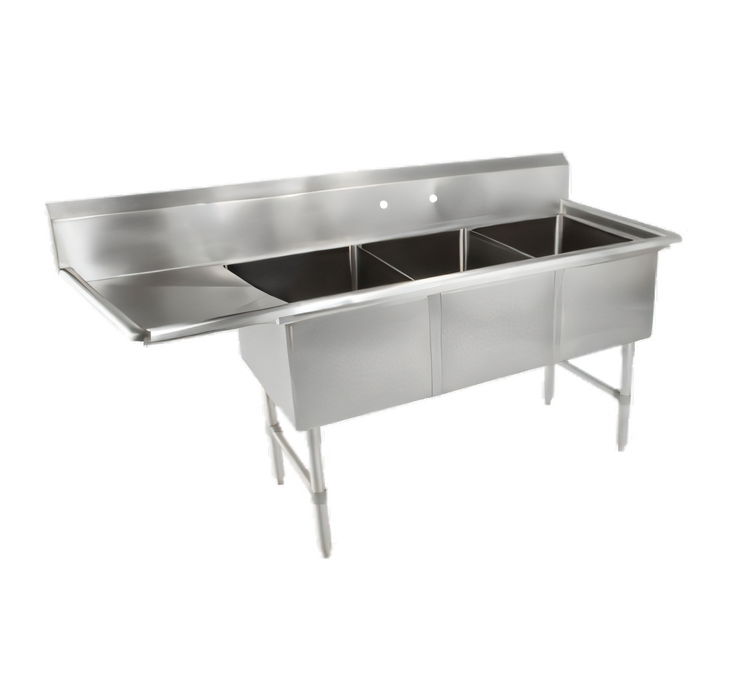

John Boos “B” Series 3-Compartment Sink – 76" W, 18" Left Drainboard
Heavy-duty 16 GA Type 300 stainless steel | NSF & CSA-Sanitation certifiedDesigned for high-volume foodservice kitchens, this John Boos B-Series sink gives you three roomy 18" x 18" x 14" compartments plus a convenient 18" left-side drainboard—all in a compact 76" footprint. From the TIG-welded bowls to the adjustable stainless base, every detail is built for years of hygienic, worry-free performance.
Key benefits
- 16 GA Type 300 stainless steel with #4 satin polish resists corrosion and cleans up fast.
- 10" boxed backsplash with 45° top & 2" return protects walls from water damage.

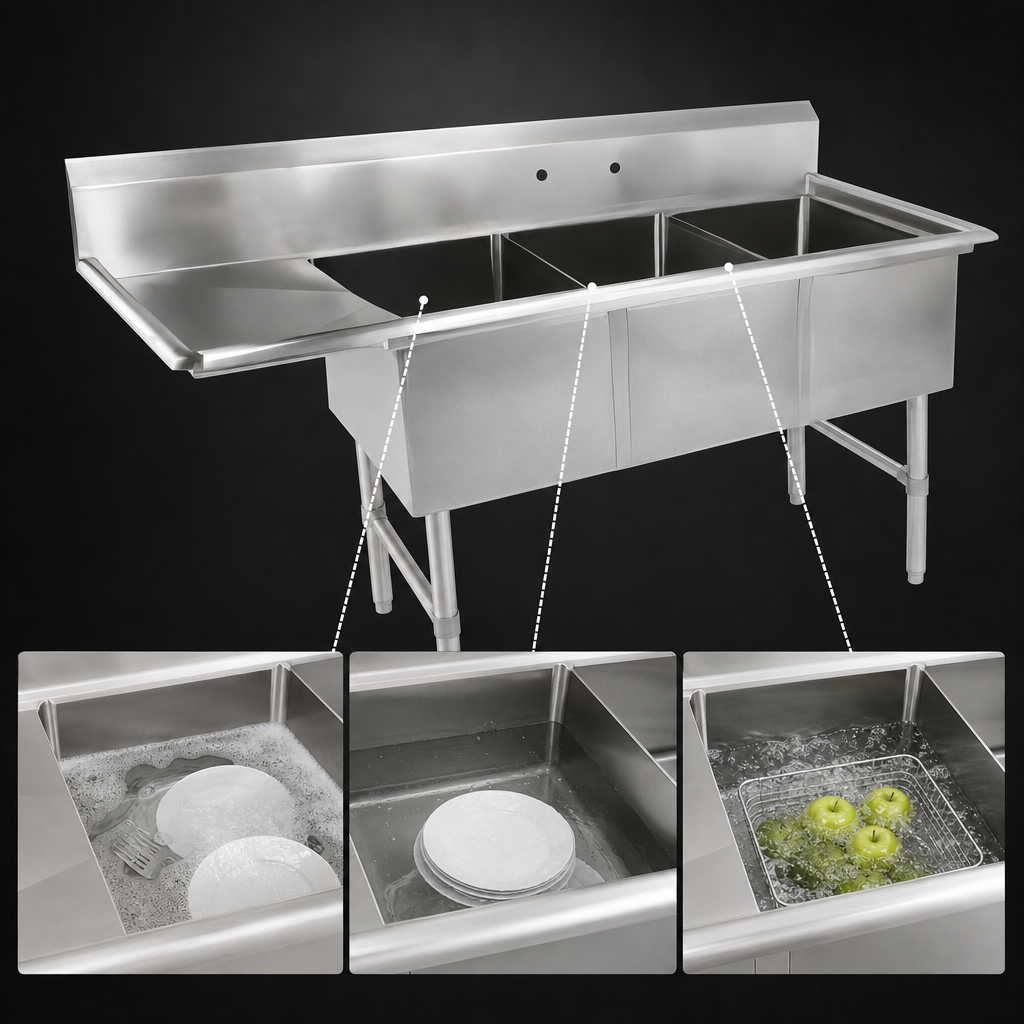

- Three square 14"-deep bowls (3⁄4" radius corners) speed up warewashing and sanitizing.
- 18" integrated left drainboard keeps clean items or air-drying wares within reach.
- Pre-punched 8"-on-center splash-mount faucet holes (faucet sold separately).
- 3½" die-stamped drain openings accept standard basket strainers or lever wastes.
- Stainless legs, 1-¼" side bracing & adjustable bullet feet for rock-solid leveling.
- NSF & CSA-Sanitation listed—ideal for any commercial kitchen.
- Made in the USA (Effingham, IL & Nevada, MO facilities).
Specifications
| Model | 3B184-1D18L |
|---|---|
| Overall dimensions | 76 ⅛" W × 23 ½" D × 44" H (to top of backsplash) |
| Compartments (qty 3) | 18" W × 18" F-B × 14" D |
| Drainboard | 18" L (left side, integrally welded) |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet mounting | (1) set 8" O.C. splash-mount holes, 1" dia. |
| Drain openings | 3 ½" dia. die-stamped (qty 3) |
| Material / finish | 16 GA Type 300 stainless, #4 satin polish |
| Legs & bracing | 1 5⁄8" O.D. stainless legs with 1 ¼" O.D. side bracing |
| Feet | 1" stainless adjustable bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Ship weight | Approx. 114 lb |
Installation & compatibility
- Ships knocked down; simple bolt-on leg assembly.
- Compatible with John Boos lever wastes, pre-rinse units, overshelves, and pot racks (sold separately).
- Requires standard 8" center splash-mount faucet and 3 ½" basket strainers or drains.
Stainless care tips
- Clean daily with a soft cloth/sponge and non-chloride cleanser.
- Always wipe in the direction of the grain to maintain the #4 finish.
- Avoid harsh chlorides or steel wool that can compromise the passive film.
- Polish periodically with John Boos Stainless Steel Cleaner to restore luster.
Looking for a right-side drainboard or additional accessories? Chat with us—we’re an authorized John Boos dealer and can outfit your entire dish room.
