Key specifications

Dimensions
59.13"W × 29.5"D × 44.0"H
Type
Three-Compartment Sink
Style
B Series
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Spec sheet
John Boos SKU: 3B18244 UPC: 662969160692

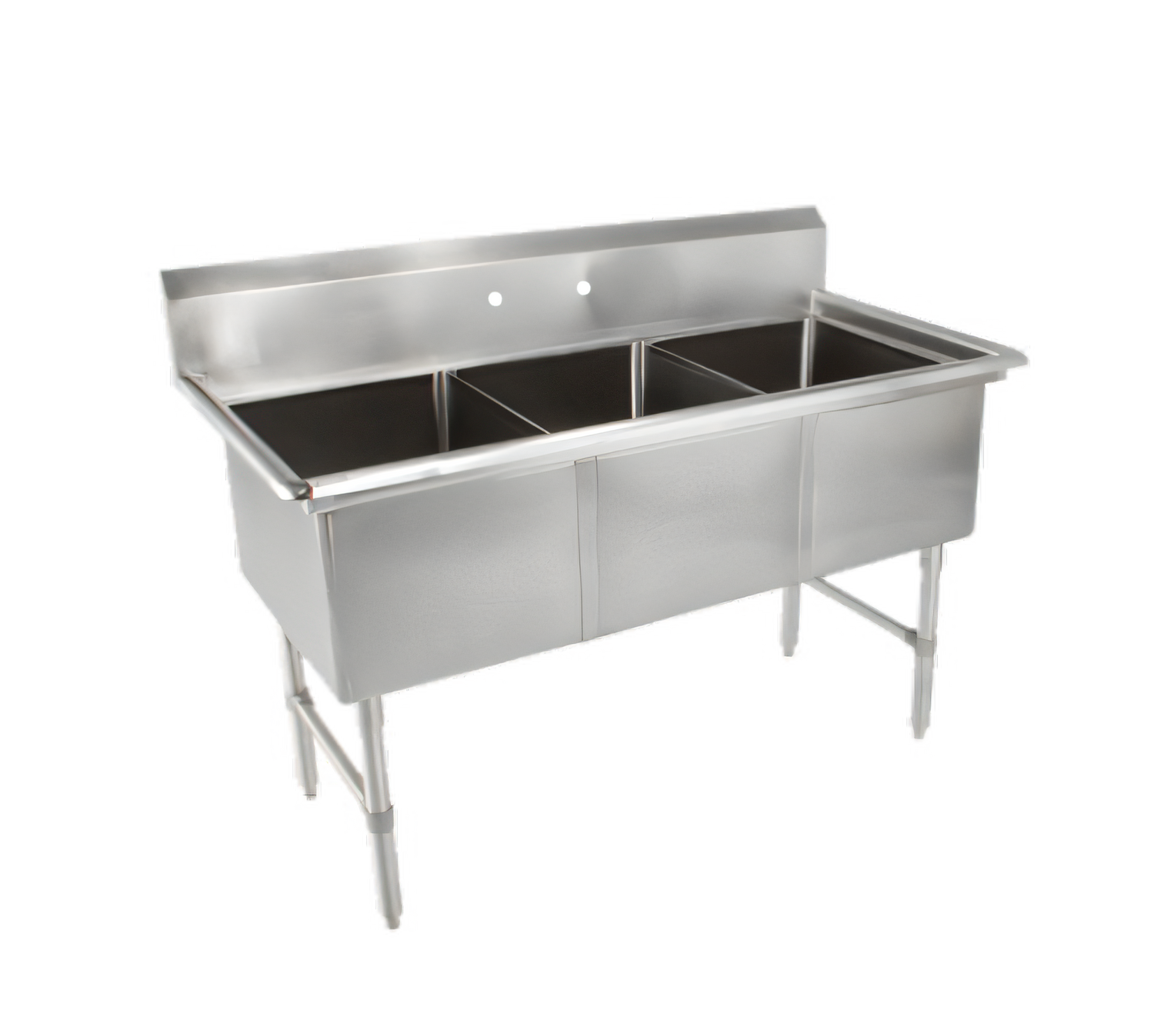

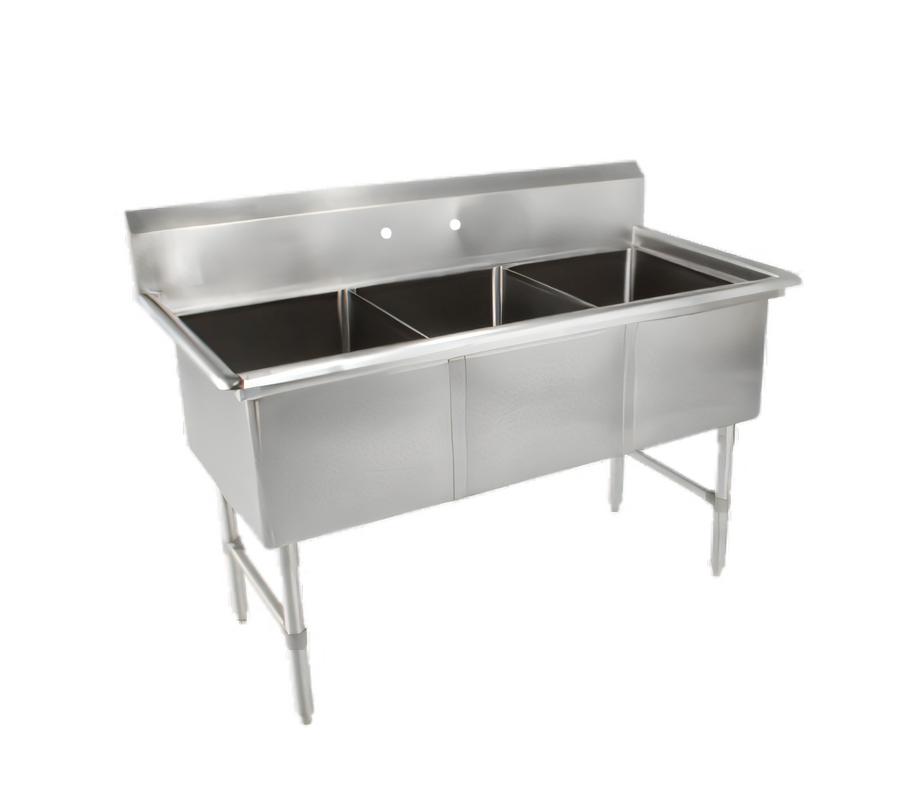

John Boos 3B18244 3-Compartment Sink, 14-Inch-Deep Bowls

$2,040.39
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $189/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Three-Compartment Sink
Style B Series
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Compartments 3
Compartment Width 18 Inches
Compartment Front-to-Back 24 Inches
Compartment Depth 14 Inches
Gauge 16 Gauge
Stainless Steel Series 300 Series
Backsplash Height 10 Inches
Backsplash Return 2 Inches
Backsplash Angle 45 Degrees
Faucet Hole Sets 1 Set
Faucet Hole Centers 8 Inches
Faucet Hole Diameter 1 Inch
Drain Opening Diameter 3-1/2 Inches
Drainboards Without Drainboards
Base Type Legs With Adjustable Side Bracing
Leg Diameter 1-5/8 Inches
Brace Diameter 1-1/4 Inches
Feet Adjustable Bullet Feet
Corner Radius 3/4 Inch
Overall Width 59-1/8 Inches
Overall Depth 29-1/2 Inches
Overall Height 44 Inches
Weight 115 Pounds

Description

John Boos 3B18244 is a three-compartment sink with 18-inch-wide x 24-inch front-to-back x 14-inch-deep compartments and no drainboards.

The sink has 16-gauge Type 300 stainless steel construction with a #4 polish satin finish, a 10-inch boxed backsplash, stainless steel legs, adjustable side bracing, and adjustable bullet feet.

  • One set of splash-mount faucet holes on 8-inch centers
  • 3-1/2-inch die-stamped drain openings
  • Coved vertical and horizontal corners with a 3/4-inch radius
  • Overall size of 59-1/8 inches wide x 29-1/2 inches deep x 44 inches high

Overall Dimensions:

59.13"W x 29.5"D x 44.0"H

Product Weight:

115.0 lb

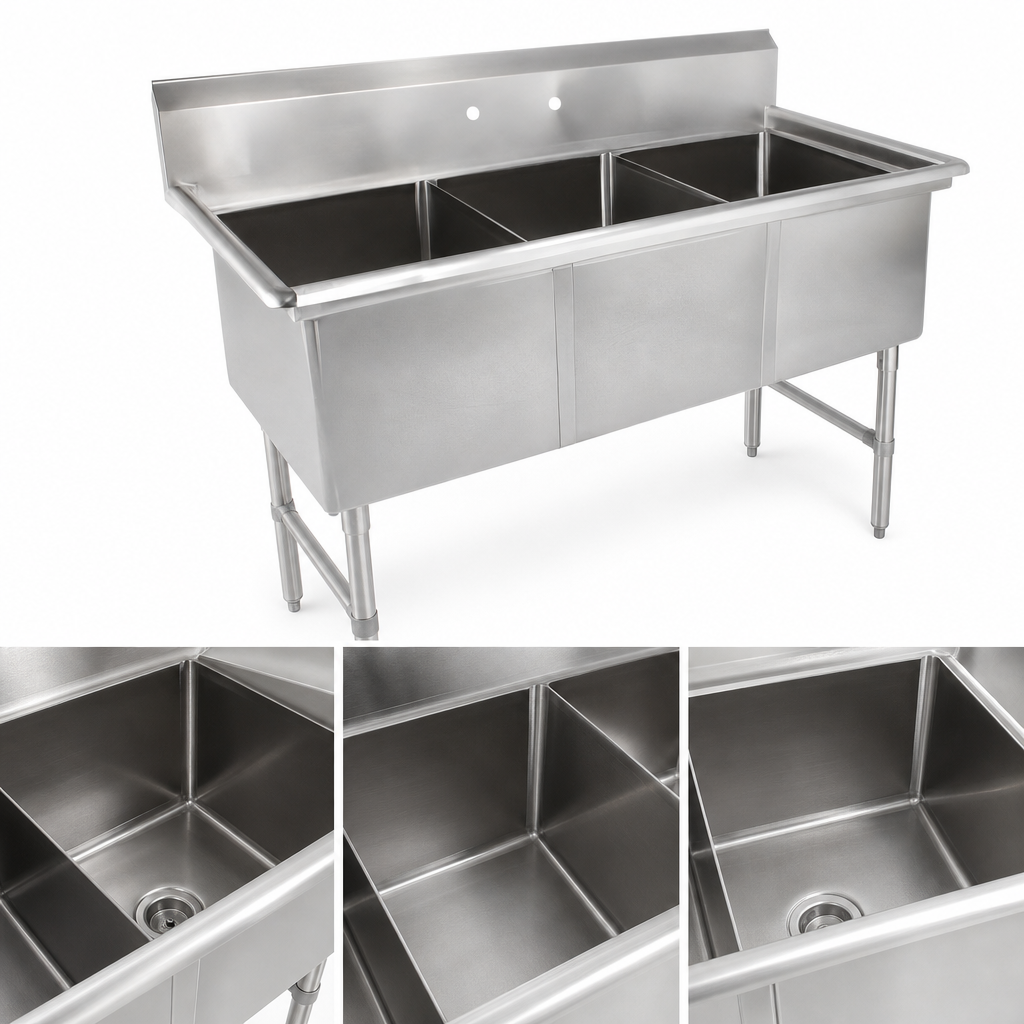

Three Compartments

Includes three 18-inch-wide x 24-inch front-to-back x 14-inch-deep compartments.

16-Gauge Stainless Steel

Constructed from 16-gauge Type 300 stainless steel with a #4 polish satin finish.

Boxed Backsplash

The backsplash is 10 inches high and has a 45-degree top with a 2-inch return.

Faucet Holes

Includes one set of splash-mount faucet holes with 8-inch centers.

Drain Openings

Features 3-1/2-inch die-stamped drain openings.

Adjustable Support Base

Uses stainless steel legs, adjustable side bracing, and adjustable stainless steel bullet feet.

Coved Corners

Vertical and horizontal corners are coved at a 3/4-inch radius.

No Drainboards

The exact model is specified without drainboards.

Frequently Asked Questions

The overall dimensions are 59-1/8 inches wide x 29-1/2 inches deep x 44 inches high.
Each of the three compartments measures 18 inches wide x 24 inches front-to-back x 14 inches deep.
No. The exact model is specified without drainboards.
It includes a 10-inch-high boxed backsplash with a 45-degree top and a 2-inch return.
It has one set of splash-mount faucet holes with 8-inch centers and 1-inch holes.
The listed certifications are CSA-Sanitation and NSF.
