John Boos

John Boos B Series 3-Compartment Stainless Steel Sink with Left and Right Drainboards, 105-1/4" W x 29-1/2" D

SKU: 3B18244-2D24
GTIN: 662969178239
$2,955.42
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

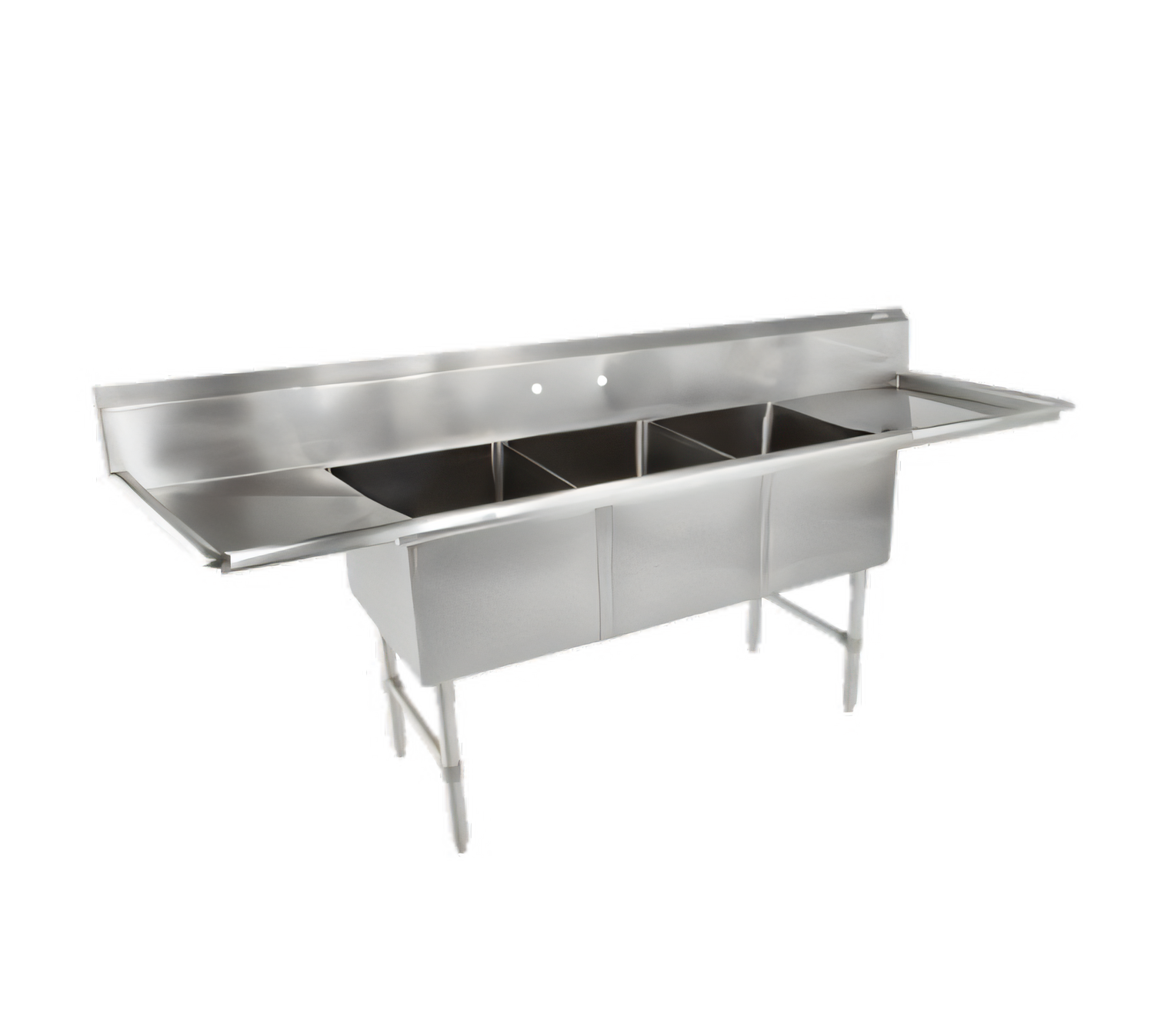

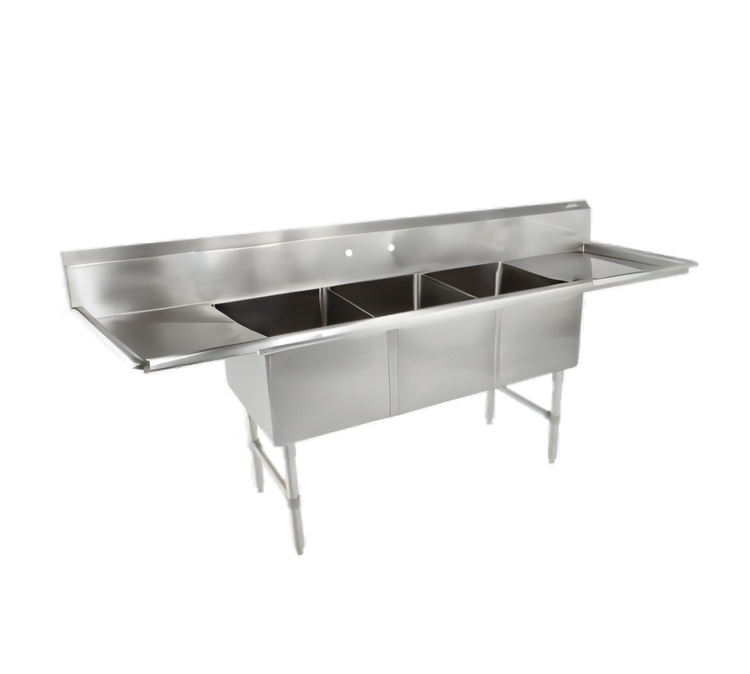

John Boos B Series 3-Compartment Stainless Steel Sink with Left and Right Drainboards, 105-1/4" W x 29-1/2" D

14" Deep Compartments, 10" Backsplash, 16-Gauge 300 Series Stainless Steel

A rugged floor-model sink that combines three wash compartments with dual drainboards and a tall backsplash for an efficient, wall-protecting workflow.

  • Floor-model 3-compartment sink with left and right drainboards for prep, wash, and dry zones.
  • Three 18" W x 24" front-to-back x 14" deep compartments provide ample working space.
  • 10" boxed backsplash with a 45° top and 2" return helps protect the wall from splashes.
  • Built from 16-gauge 300 series stainless steel for dependable commercial durability.
  • Stainless steel legs, adjustable side bracing, and adjustable bullet feet add stability.
  • One splash-mount faucet hole set with 8" centers and 3-1/2" die-stamped drain openings.
  • NSF and CSA-Sanitation listed for commercial foodservice use.

Overall Dimensions:

105.25"W x 29.5"D x 44.0"H

Product Weight:

151.0 lb

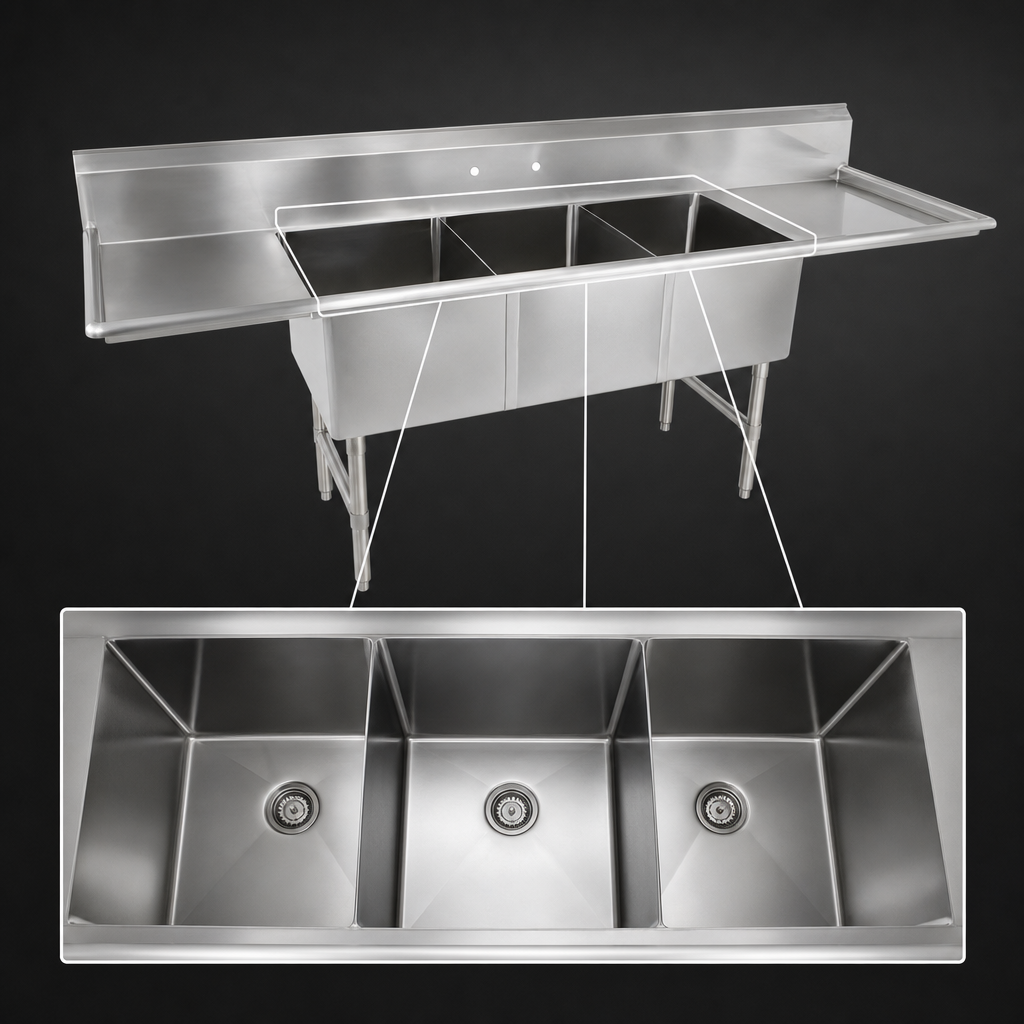

3-Compartment Layout

Includes three separate compartments sized 18" wide x 24" front-to-back x 14" deep for wash-rinse-sanitize workflows.

Dual Drainboards

24" left and right drainboards provide convenient landing space for dirty dishes, prep items, or drying racks.

Boxed Backsplash

10" backsplash with a 45° top and 2" return helps contain splashes and protect adjacent surfaces.

Faucet Hole Set

Supplied with one set of splash-mount faucet holes spaced 8" on center.

Stainless Steel Construction

Made with 16/300 stainless steel construction for strength and corrosion resistance.

Stable Base

Features stainless steel legs with adjustable side bracing and adjustable bullet feet.

Die-Stamped Drains

3-1/2" die-stamped drain openings support drainage from each compartment.

Sanitation Certified

NSF and CSA-Sanitation listed.

Type 3-Compartment Sink
Style With Left and Right Drainboards
Installation Type Floor Model
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Top Gauge 16 Gauge
Compartments 3
Compartment Width 18 Inches
Compartment Depth 24 Inches
Sink Depth 14 Inches
Splash Height 10 Inches
Drainboards Left and Right
Drain Opening Size 3-1/2 Inches
Faucet Centers 8 Inches
Shipping Width 106 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 151 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall size is 105-1/4" W x 29-1/2" D x 44" H.
It has three compartments.
Each compartment measures 18" wide x 24" front-to-back x 14" deep.
Yes. It includes 24" left and right drainboards.
It has a 10" boxed backsplash with a 45° top and 2" return, plus one set of splash-mount faucet holes with 8" centers.
It is constructed from 16/300 stainless steel with stainless steel legs and adjustable side bracing.
