John Boos 3B18244-1D18R Compartment Sinks
Description

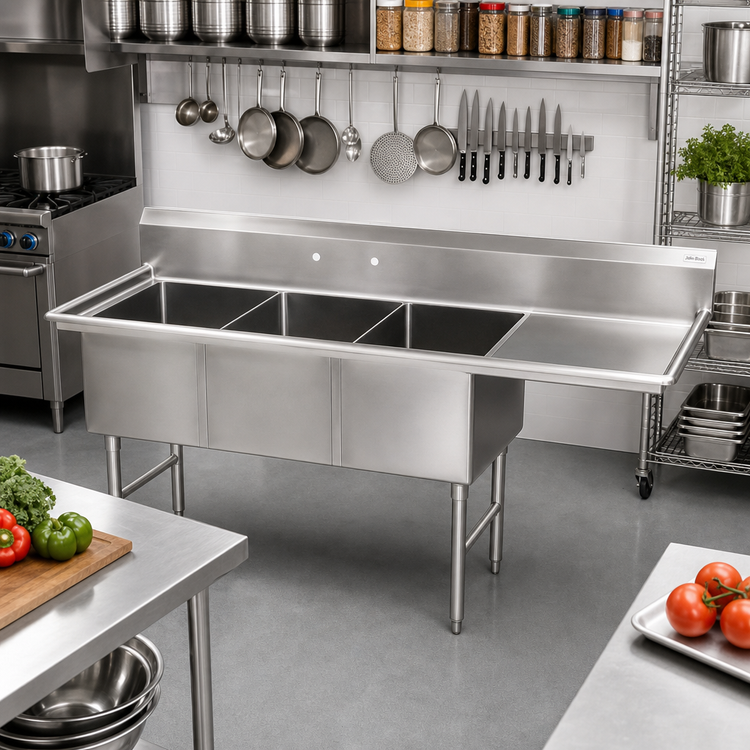

B-Series 3-Compartment Sink – 76" with 18" Right Drainboard
Model 3B18244-1D18R | John Boos & Co.Built for the daily demands of high-volume kitchens, this John Boos B-Series sink delivers worry-free performance, effortless sanitation and the rugged good looks of heavy-duty 16 gauge stainless steel. Three generous 18" x 24" x 14" compartments handle prep, wash and rinse tasks while the integrated 18" right-side drainboard keeps your work area organized and OSHA compliant.

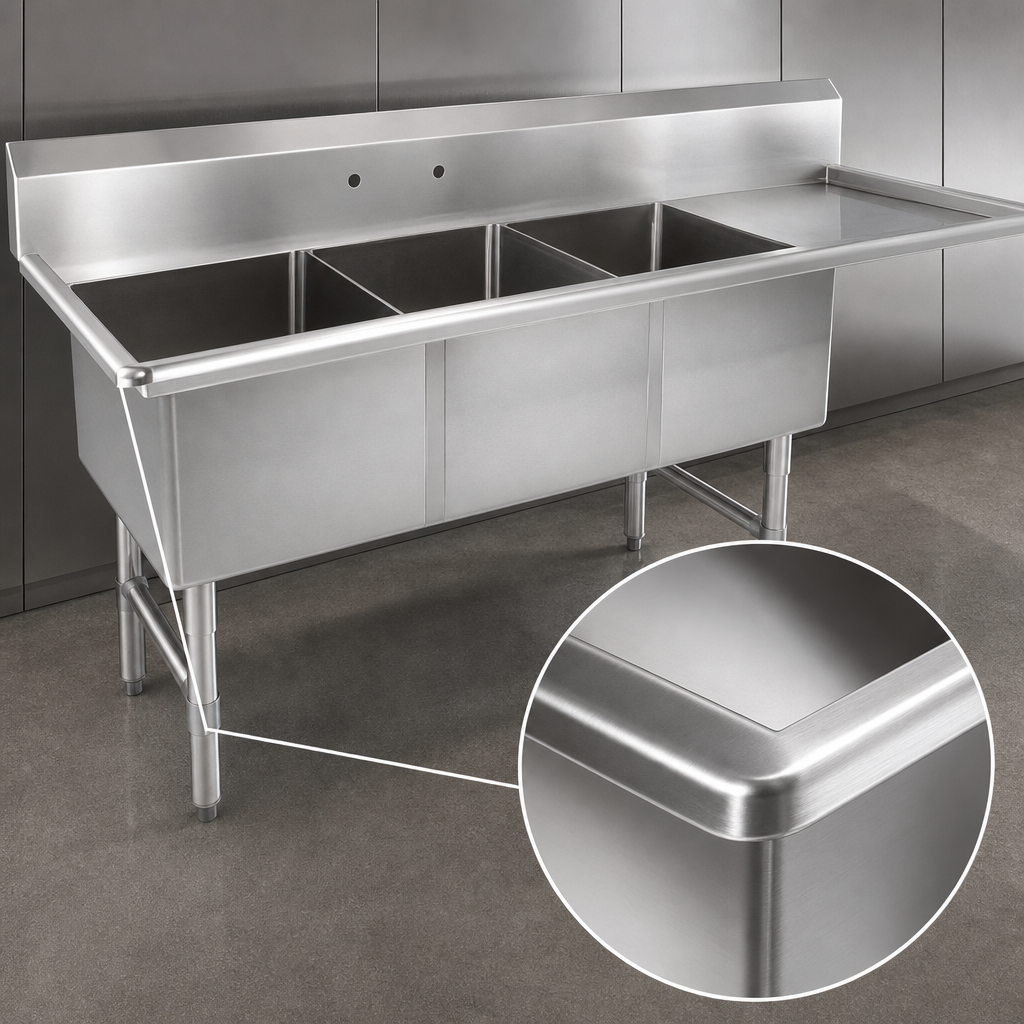

Why this sink works for you- 16 GA Type 300 stainless steel top & bowls with #4 satin polish – resists corrosion and wipes clean fast.
- Full-length 10" boxed backsplash with 2" 45° return limits splashes and protects walls.
- (1) set of 1" splash-mount faucet holes, 8" on center, ready for your choice of faucet or pre-rinse unit.
- Three 3-½" die-stamped drain openings and coved ¾" interior corners speed up clean-outs.
- Stainless 1-⅝" O.D. legs with adjustable side bracing add rock-solid stability.
- 1" adjustable stainless bullet feet level the sink on uneven floors.
- NSF & CSA-Sanitation listed for front-of-house or back-of-house installation.
| Overall dimensions | 76 ⅛" W × 29 ½" D × 44 ⅟₁₆" H |
|---|---|
| Bowl size (3) | 18" W × 24" F-B × 14" D |
| Drainboard | 18" right-hand, integrally welded |
| Backsplash | 10" H boxed, 2" 45° return, 1" turned-down rear lip |
| Faucet holes | (2) × 1" dia., 8" centers, splash-mount |
| Drain openings | (3) × 3-½" dia. die-stamped |
| Material | 16 GA Type 300 stainless steel (top & bowls) |
| Legs / bracing | 1-⅝" O.D. stainless legs with 1-¼" O.D. stainless adjustable bracing |
| Feet | 1" stainless adjustable bullet feet |
| Shipping weight | ≈ 131 lb (crated) |
| Certifications | NSF, CSA-Sanitation |
Keep the #4 satin finish looking factory-fresh by cleaning with non-chloride detergents and a soft cloth, always wiping in the direction of the polish lines. For tougher build-up, a mild abrasive such as Bar Keepers Friend followed by a fresh-water rinse and dry towel will restore the protective chromium oxide layer.
Never use steel wool, wire brushes or cleaners containing bleach or quaternary salts on stainless steel.
Popular accessories (sold separately)- 8" center deck-mount faucets or pre-rinse units
- Lever waste drains for hands-free emptying
- Stainless overshelves & pot racks to maximize vertical space
