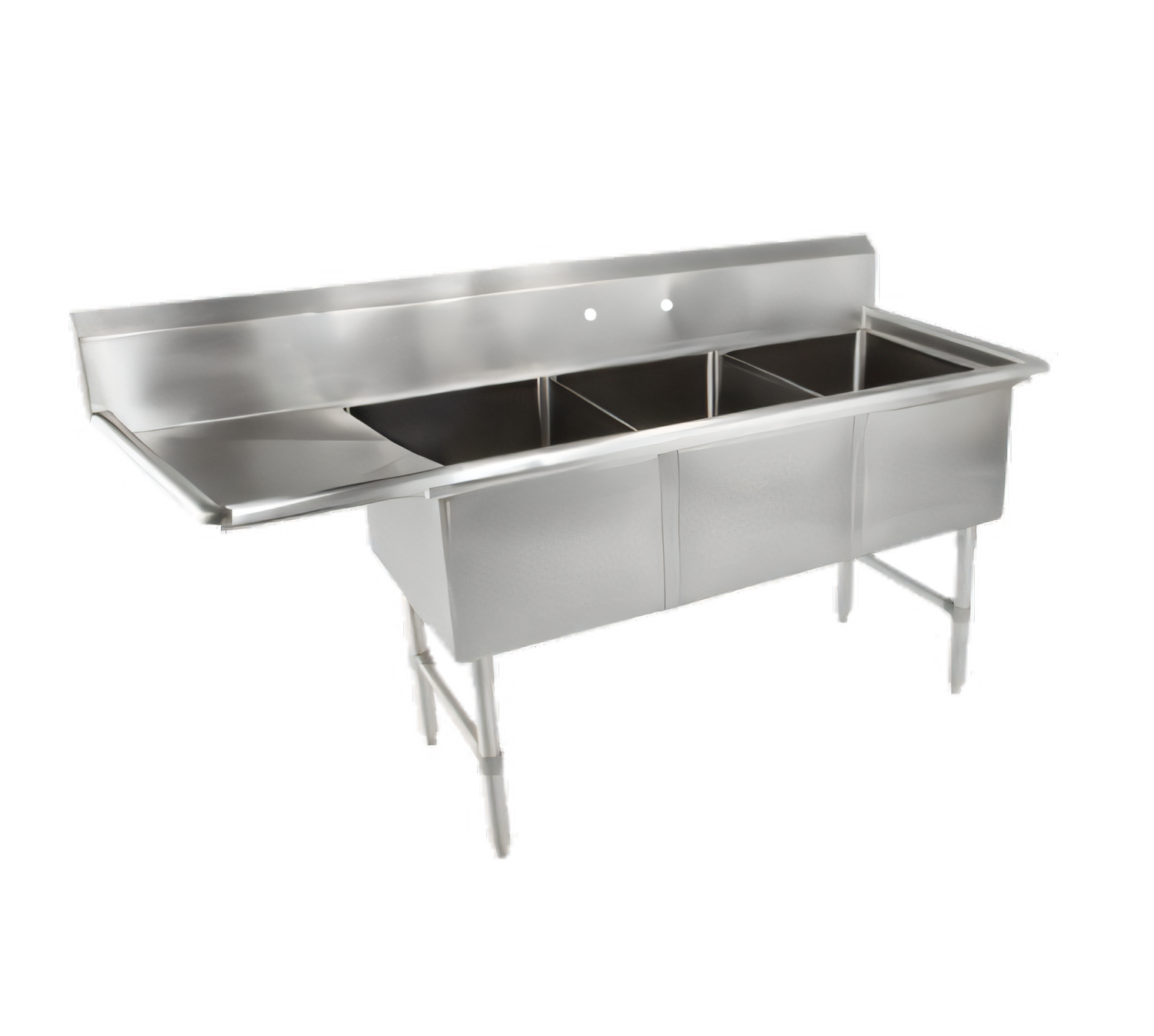

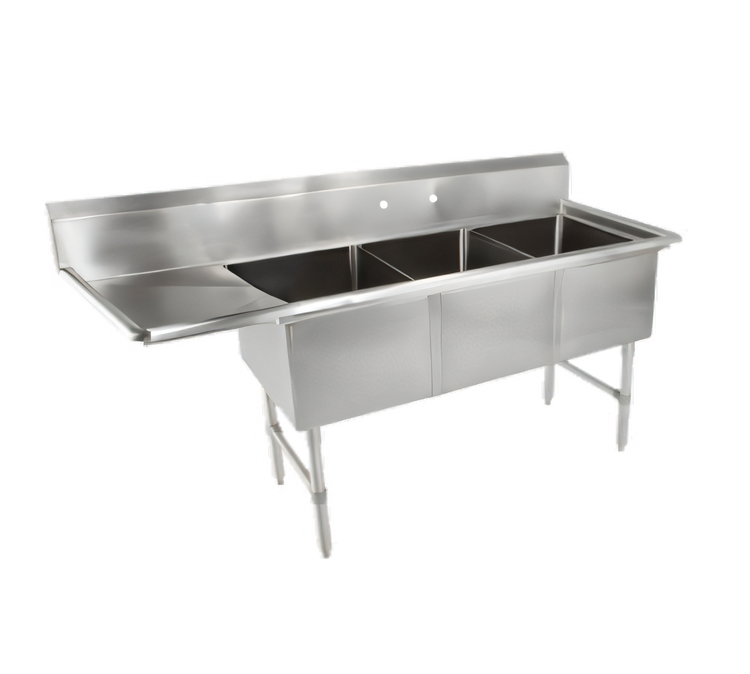

John Boos B-Series 3-Compartment Sink with Left Drainboard, 76-3/16 Inch x 29-1/2 Inch, 16 Gauge Stainless Steel

SKU: 3B18244-1D18L-X
$1,823.58
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos B-Series 3-Compartment Sink with Left Drainboard, 76-3/16 Inch x 29-1/2 Inch, 16 Gauge Stainless Steel

18 x 24 x 14 Inch Bowls, 10 Inch Boxed Backsplash

Built for busy prep and wash areas, this heavy-duty 3-compartment sink combines deep bowls, a left drainboard, and stainless steel construction in one sanitary workstation.

  • Three 18" x 24" x 14" deep compartments separate washing, rinsing, and sanitizing tasks.
  • Left-hand 18" drainboard adds convenient landing and drying space.
  • 16-gauge Type 300 stainless steel construction is built for demanding commercial use.
  • 10" boxed backsplash with a 45° top return helps protect the wall and simplify installation.
  • Stainless steel legs, side bracing, and adjustable bullet feet provide a stable, level base.
  • Die-stamped 3-1/2" drain openings and coved corners support drainage and easier cleaning.

Overall Dimensions:

76.18"W x 29.5"D x 44.0"H

Product Weight:

131.0 lb

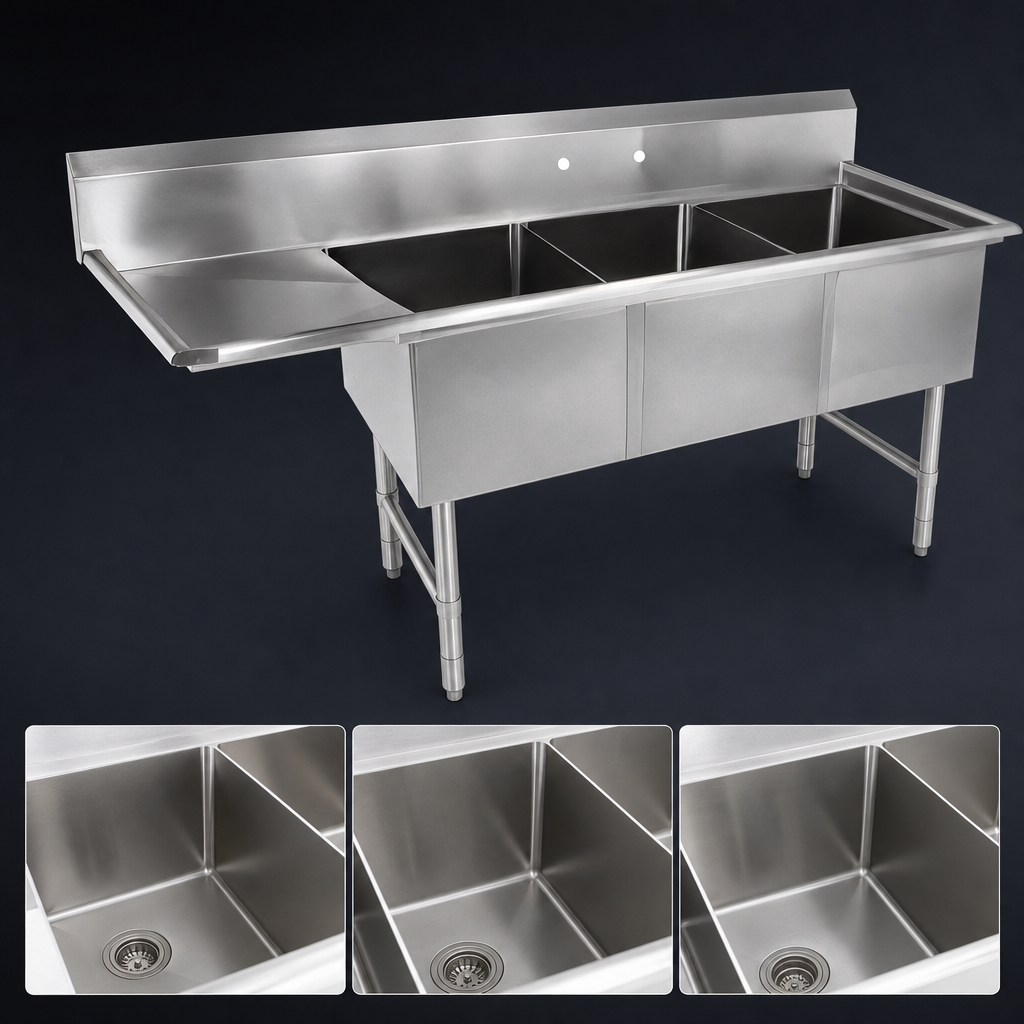

Three-Compartment Layout

Three large sink bowls provide dedicated space for wash, rinse, and sanitize operations.

Left-Hand Drainboard

The built-in 18-inch left drainboard offers extra room for prep, staging, and drying.

16-Gauge Stainless Steel Construction

Type 300 stainless steel top and bowls deliver durable commercial-grade performance with a satin finish.

Deep Sink Bowls

Each compartment is 14 inches deep to help contain water and accommodate larger wares.

Boxed Backsplash

The 10-inch high backsplash includes a 45° top return and turned-down rear lip to help protect the wall.

Splash-Mount Faucet Holes

One set of faucet holes with 8-inch centers is included in the backsplash.

Drainage-Friendly Bowl Design

Coved corners and 3-1/2-inch die-stamped drain openings help water flow out efficiently.

Stainless Steel Base

Stainless steel legs, side bracing, gussets, and adjustable bullet feet provide strength and leveling support.

Type Compartment Sink
Style B-Series
Installation Type Floor Model
Compartments 3
Drainboard Side Left
Drainboard Length 18 Inches
Splash Height 10 Inches
Top Gauge 16 Gauge
Base Type Legs with Side Crossrails
Material Stainless Steel
Interior Finish Type 300 Stainless Steel
Finish Satin Finish
Selling Unit Each
Units Per Case 1
Shipping Width 77 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 131 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Each compartment measures 18 inches wide x 24 inches front-to-back x 14 inches deep.
Yes. This model includes a single 18-inch left-hand drainboard.
It includes one set of splash-mount faucet holes with 8-inch centers.
It is built from 16-gauge Type 300 stainless steel with stainless steel legs and support bracing.
The bowl bottoms are formed to drain to 3-1/2-inch die-stamped openings.
