John Boos 3B16204-X Compartment Sinks
Description

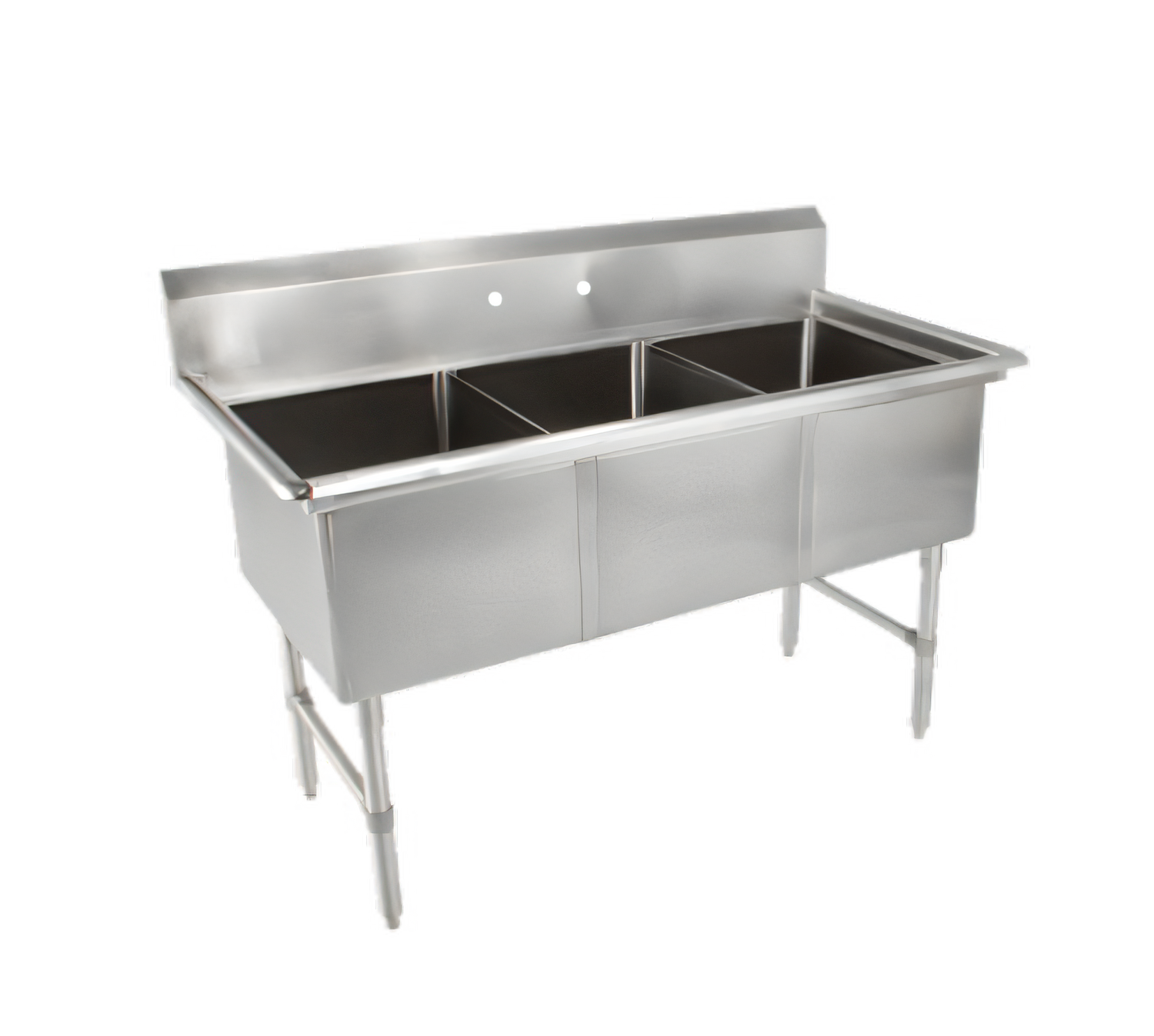

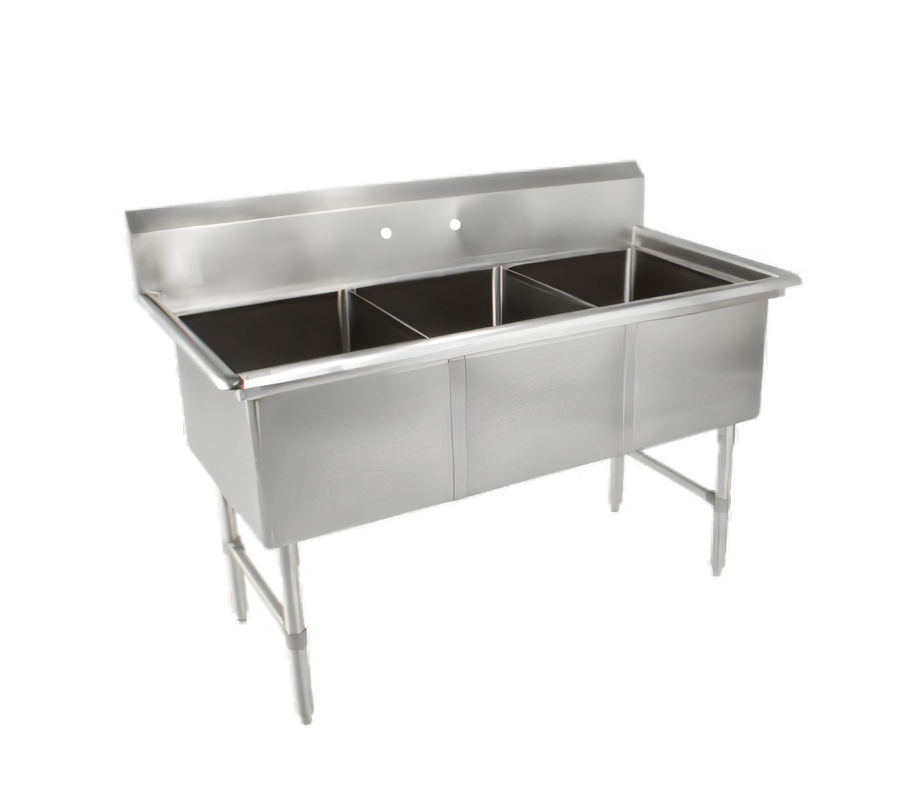

John Boos “B” Series 3-Compartment Sink – 53″ W
Model 3B16204 | 16 ga Type 300 Stainless Steel | NSF & CSA-SanitationBuilt for demanding food-service, hospitality and institutional kitchens, the John Boos 3B16204 delivers exceptional durability, easy sanitation and ergonomic workflow in a compact 53″ footprint. Three generously sized 14″-deep compartments make quick work of wash, rinse and sanitize stages while the heavy-duty 16-gauge stainless construction stands up to years of daily use.
Why You’ll Love It
- 16 gauge, Type 300 stainless steel top, bowls & backsplash with #4 satin polish

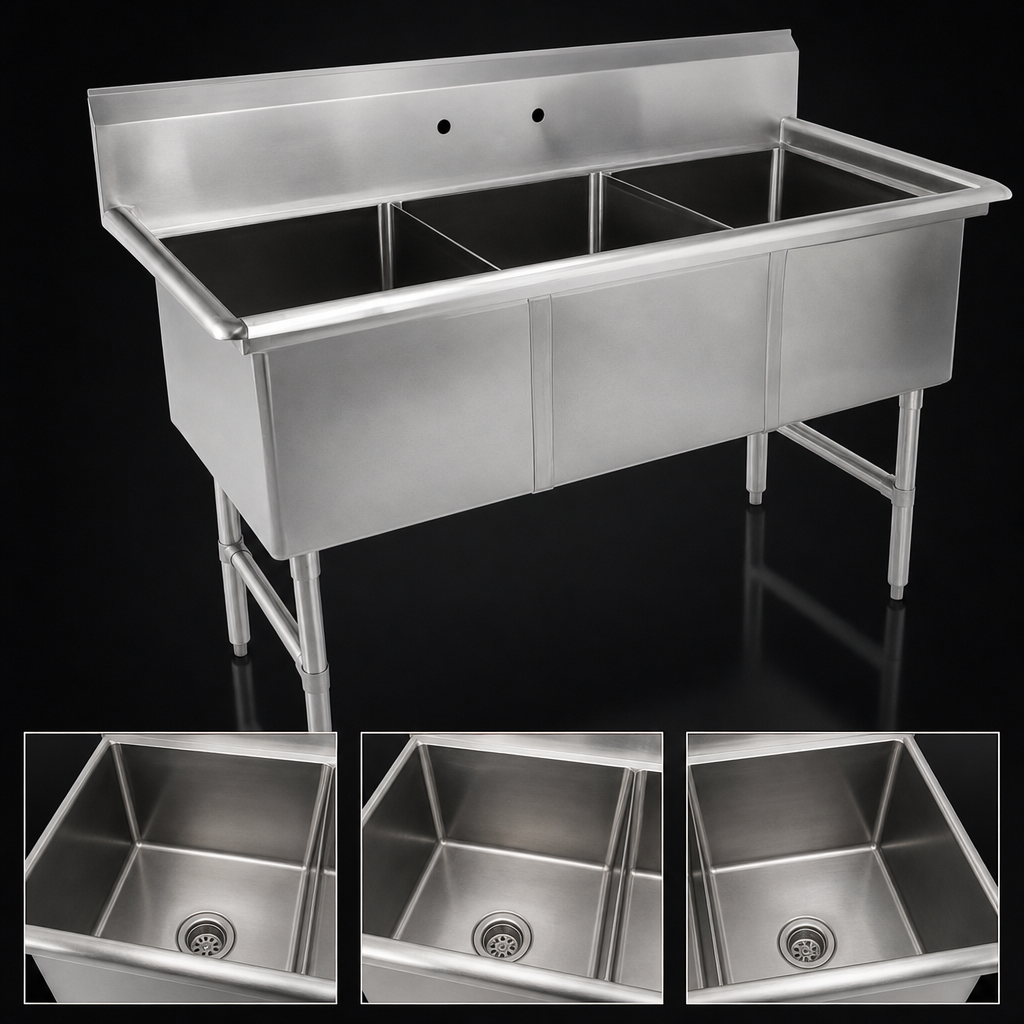

- (3) 16″ W x 20″ F-to-B x 14″ D bowls – perfect for full-size sheet pans & utensils
- 10″ boxed backsplash with 45° return and 1″ turned-down rear lip keeps walls dry
- Splash-mount faucet deck pre-drilled on 8″ centers (1 set of 1″ holes)
- 3-1/2″ die-stamped drain openings speed water evacuation
- 1-5/8″ Ø stainless legs with adjustable side bracing for rock-solid stability
- Stainless 1″ bullet feet let you level the sink on uneven floors
- All interior & exterior corners are coved/bullnosed for easy, safe cleaning
- TIG-welded top; exposed welds polished to match adjacent surfaces
- NSF & CSA-Sanitation listed – ready for code-inspected kitchens
At-a-Glance Specs
| Overall size (W × D × H) | 53 1/8″ × 25 1/2″ × 44 1/16″ |
|---|---|
| Compartment size (each) | 16″ W × 20″ F-B × 14″ D |
| Backsplash | 10″ boxed, 45° top, 2″ return |
| Faucet holes | (1) set, 8″ centers, 1″ Ø |
| Drain openings | 3-1/2″ die-stamped |
| Material / Finish | 16 ga Type 300 SS / #4 satin |
| Legs & bracing | Stainless, 1-5/8″ Ø legs with 1-1/4″ Ø side bracing |
| Feet | 1″ adjustable stainless bullet feet |
| Weight | ≈ 99 lb |
| Manufacturing | Effingham, IL & Nevada, MO facilities |
Popular Add-Ons (sold separately)
- Deck-mount or wall-mount faucets
- Lever waste drains
- Pre-rinse sprayer assemblies
- Stainless overshelves or pot rack
Care & Maintenance
Keep your sink looking new by cleaning with non-chloride, non-abrasive stainless steel cleaners and a soft cloth, always wiping in the direction of the grain. Rinse thoroughly and dry to preserve the protective chromium oxide film.
All dimensions are typical (+/- 0.5″). Specifications are subject to change without notice.
