John Boos 3B16204-1D18L-X Compartment Sinks
Description

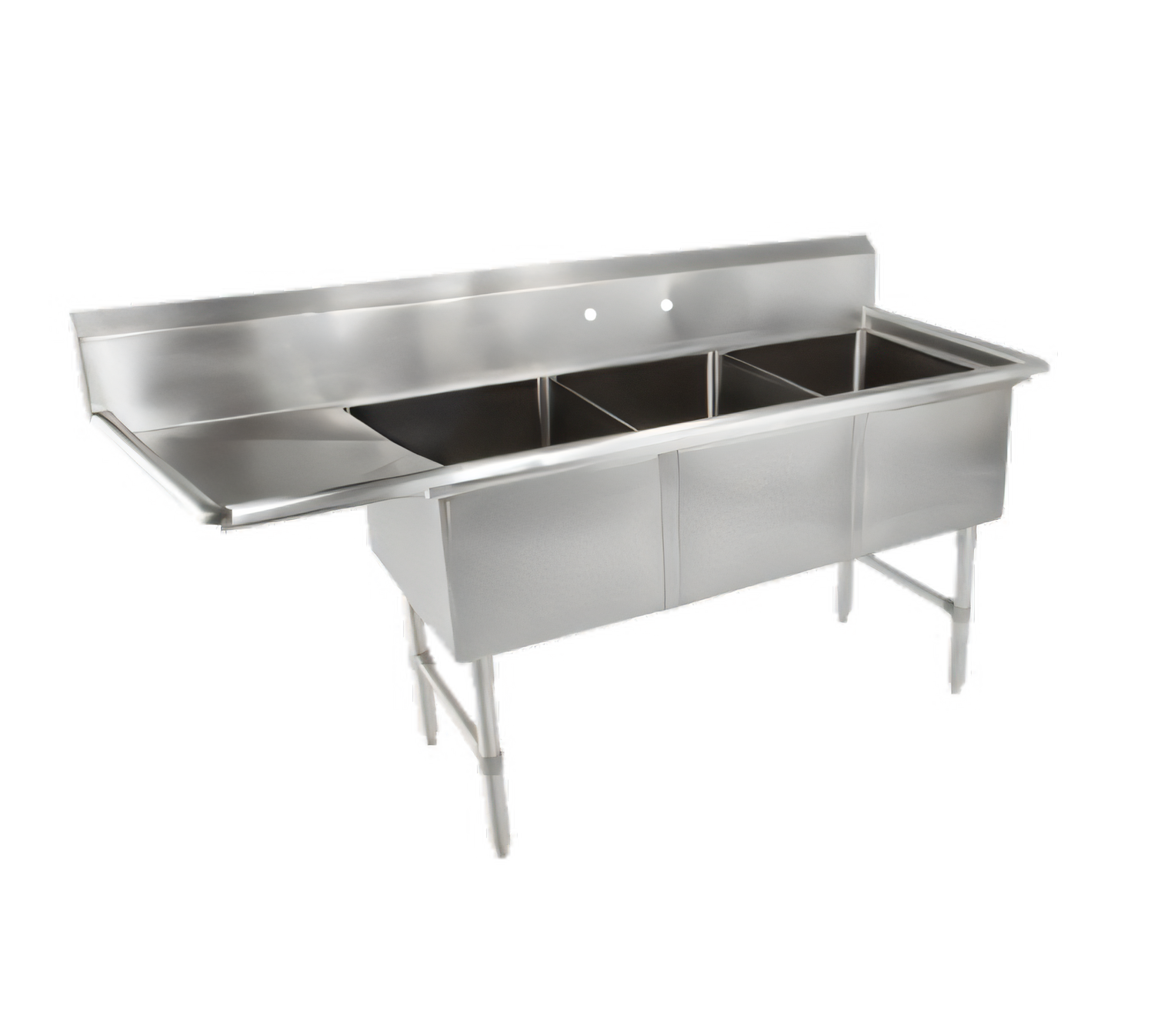

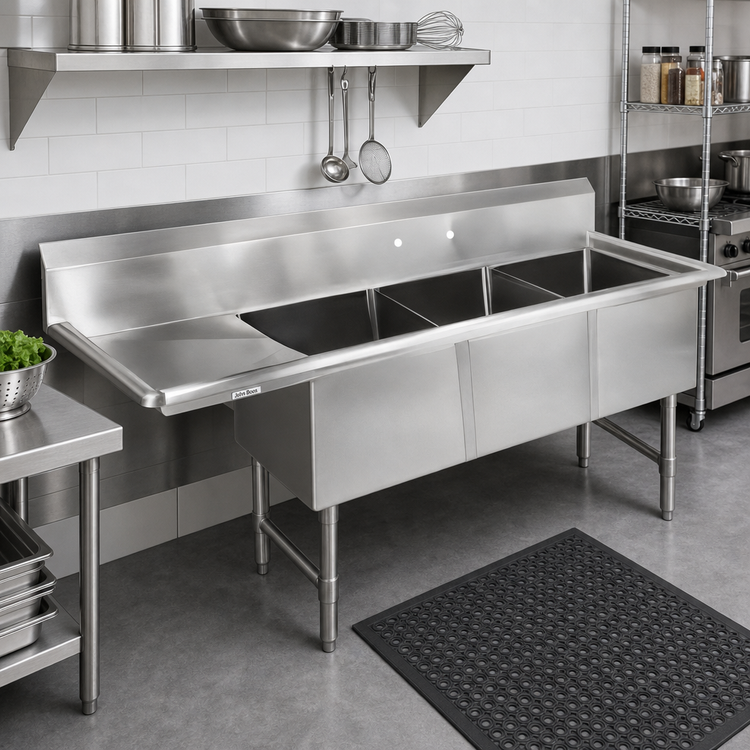

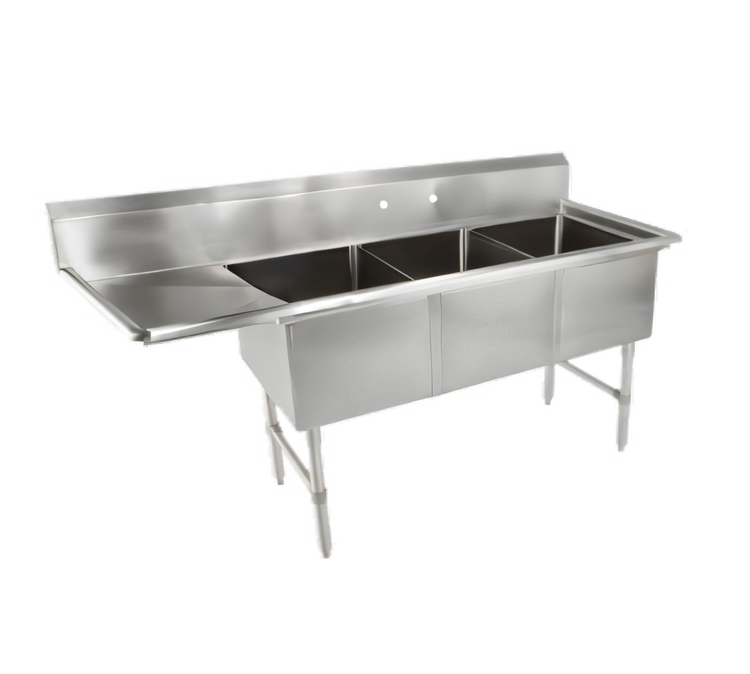

John Boos “B” Series 3-Compartment Sink w/ 18" Left Drainboard
Model 3B16204-1D18L | 70" W × 25-1/2" D × 44" H (overall)Built for the daily grind of commercial kitchens, this heavy-duty “B” Series sink from John Boos delivers uncompromising durability, food-safe sanitation and ergonomic workflow in a compact 70 inch footprint.
Key Features

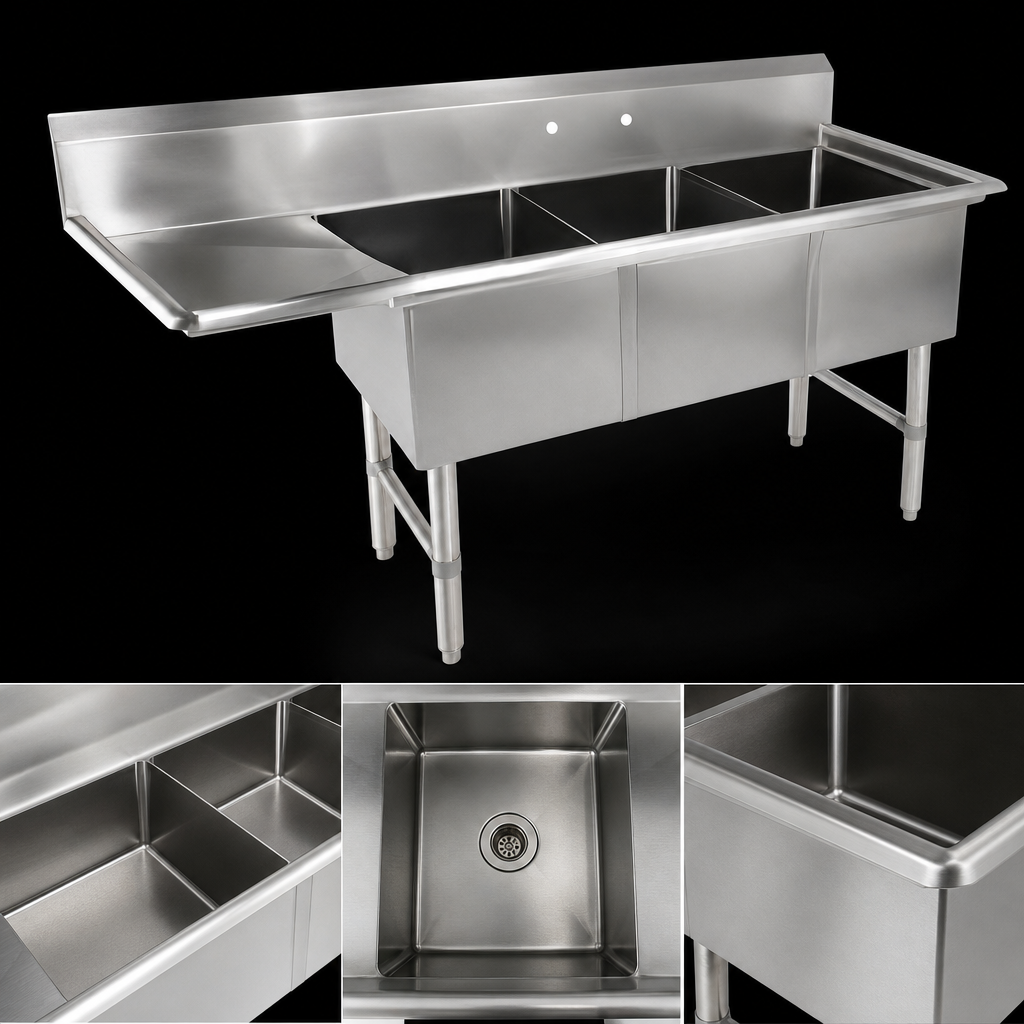

- Three 16" W × 20" F-B × 14" D compartments handle prep, wash & rinse simultaneously.
- Integrated 18" left-hand drainboard keeps clean or dirty ware organized and off the worktop.
- 16 ga, Type 300 stainless steel with #4 satin finish—scratch-resistant, easy to sanitize.
- 10" boxed backsplash with 45° top & 2" return protects walls; 1" rear lip prevents drips.
- Splash-mount faucet deck pre-punched for 8" on-center fixtures (faucet sold separately).
- 3-1/2" die-stamped drain openings—industry-standard for baskets or lever wastes.
- 1-5/8" Ø stainless steel legs with adjustable side bracing for rock-solid stability.
- 1" adjustable stainless bullet feet level the sink on uneven floors.
- All interior corners coved to 3/4" radius; exterior edges bull-nosed for operator safety.
- TIG-welded bowls & top, MIG-welded base; welds polished to match adjacent surfaces.
Technical Specifications
| Overall dimensions | 70" W × 25-1/2" D × 44" H (to top of backsplash) |
|---|---|
| Work height | 35-1/2" to sink roll (w/ feet at mid-adjustment) |
| Compartments (3) | 16" W × 20" F-B × 14" D |
| Drainboard | 18" (left side, ribbed & pitched) |
| Backsplash | 10" H boxed, 45° top, 2" return, 1" turned-down lip |
| Faucet holes | One set, 8" centers, 1" Ø |
| Drain openings | 3-1/2" die-stamped (fits standard drain baskets/lever wastes) |
| Material & finish | 16 ga, Type 300 stainless steel, #4 satin polish |
| Legs / bracing | 1-5/8" Ø stainless legs, 1-1/4" Ø adjustable side bracing |
| Feet | 1" stainless bullet feet, height-adjustable |
| Certifications | NSF Listed, CSA-Sanitation |
| Manufacturing locations | Effingham, IL & Nevada, MO, USA |
Compatible Accessories (sold separately)
- 8" center splash-mount faucets or add-a-faucets
- Pre-rinse spray units
- Lever waste drains & basket strainers
- Stainless overshelves & pot racks
Care & Maintenance
To keep your John Boos stainless steel looking its best:
- Clean daily with mild soap or a non-chloride stainless cleanser; rinse & wipe dry.
- Avoid abrasive pads or cleansers containing chlorides or quaternary salts.
- Polish with John Boos Stainless Steel Cleaner to restore the protective finish.
Following these simple steps maintains the passive film that makes stainless steel rust-resistant and food-safe.
All dimensions are typical and subject to ±0.5" manufacturing tolerances. Specifications may change without notice.
