John Boos 2PB204-1D30R Pro-Bowl Compartment Sinks
John Boos 2PB204-1D30R Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

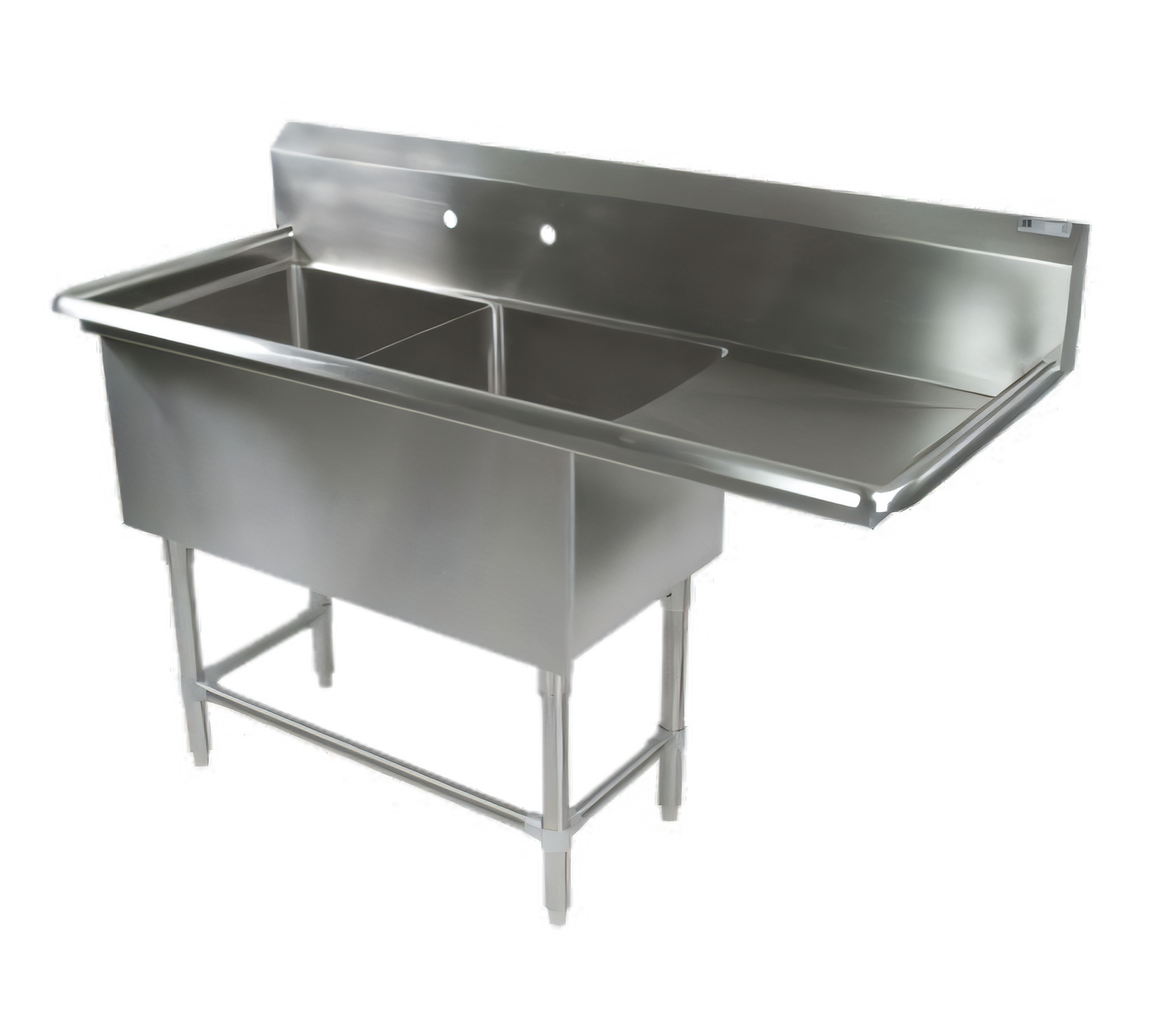

John Boos Pro-Bowl 2-Compartment Sink with 30" Right Drainboard
Model 2PB204-1D30R | 74-3/16" W × 25-1/2" D × 44-1/16" HBuilt for high-volume kitchens that refuse to compromise on durability or hygiene, the John Boos Pro-Bowl sink pairs heavy-duty 16-gauge stainless steel with workflow-boosting details. Two spacious 20" × 20" × 14" bowls handle everything from stockpots to sheet pans, while a full 30" right-side drainboard keeps clean and dirty items clearly separated.
Why You’ll Love It
- Food-service ready 16-gauge, Type 300 stainless steel—resists corrosion and everyday abuse.

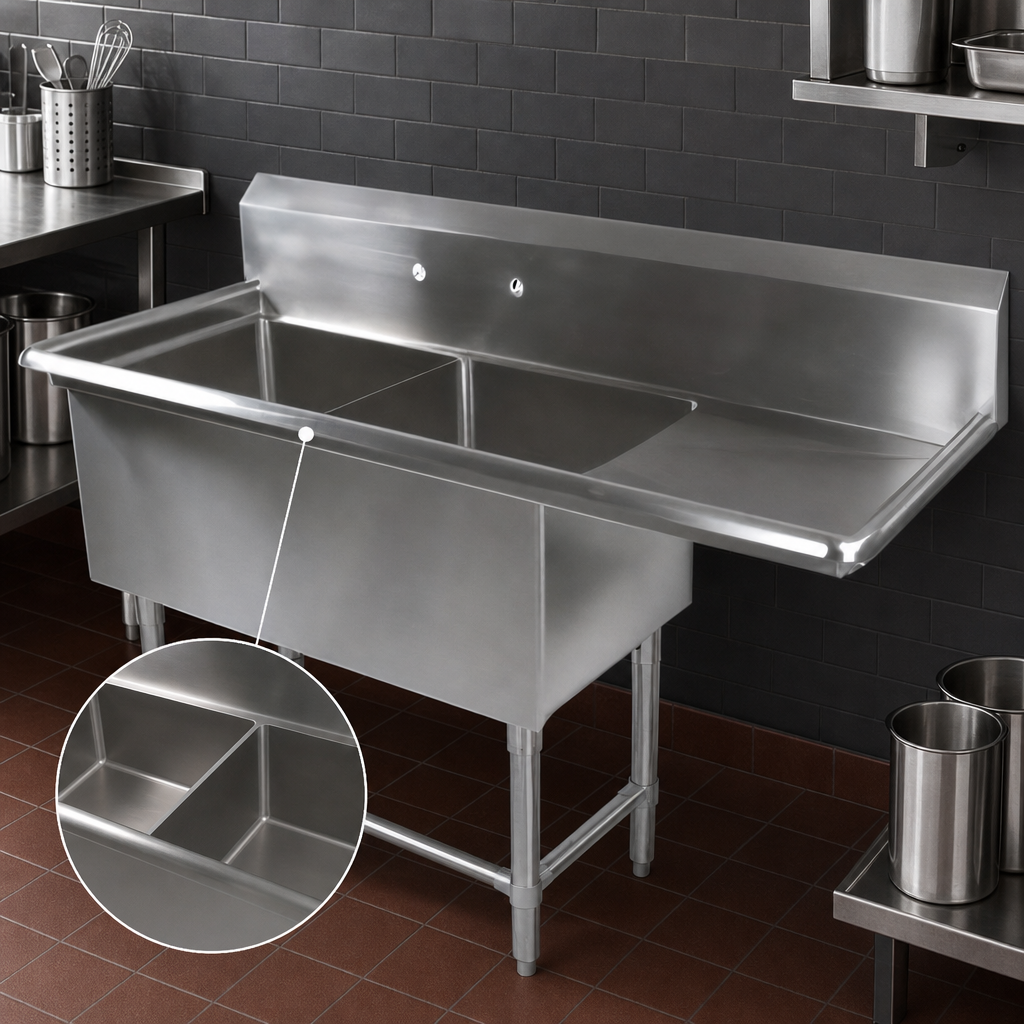

- (2) 20" W × 20" front-to-back × 14" deep compartments for versatile warewashing.
- 10" boxed backsplash with a 45° return prevents wall damage and simplifies clean-up.
- Splash-mount faucet holes—8" on-center, 1" Ø—fit most commercial faucets (sold separately).
- 30" integrated right drainboard slopes gently for rapid drainage.
- 3-1/2" die-stamped drain openings accept standard basket strainers or lever wastes.
- TIG-welded one-piece top; all exposed welds polished to a #4 satin finish.
- 1-5/8" O.D. stainless legs with adjustable side & front bracing for rock-solid stability.
- 1" stainless bullet feet adjust to level the sink on uneven floors.
- NSF & CSA-Sanitation certified for worry-free code compliance.
- Knock-down (KD) design ships economically and assembles quickly on site.
Technical Specifications
Model | 2PB204-1D30R (Right Drainboard) |
---|---|
Compartments | 2 |
Overall Dimensions | 74-3/16" W × 25-1/2" D × 44-1/16" H (to top of backsplash) |
Bowl Size (each) | 20" W × 20" F/B × 14" Deep |
Drainboard | 30" (right side) |
Backsplash | 10" H boxed, 2" return at 45° with 3/4" turned-down rear lip |
Faucet Holes | (2) 1" Ø, 8" on-center |
Drain Opening | 3-1/2" die-stamped (per bowl) |
Material / Gauge | 16-gauge Type 300 series stainless steel |
Finish | #4 satin polish |
Legs & Bracing | 1-5/8" O.D. stainless legs • 1-1/4" O.D. stainless bracing |
Feet | 1" adjustable stainless bullet feet |
Certifications | NSF, CSA-Sanitation |
Shipping | Knock-Down (assembly required) |
Optional Accessories (sold separately)
- 8" center wall-mount or splash-mount faucets
- Lever-action or twist-handle drain assemblies
- Pre-rinse units for rapid rinsing
- Stainless overshelves or pot racks
- End splashes (left, right, or both)
John Boos & Co. reserves the right to change specifications without notice.
