John Boos  |  Pro-Bowl  |  SKU: 2PB20284-1D24R  |  UPC: 662969379438

John Boos 2PB20284-1D24R Pro-Bowl Compartment Sinks

$3,423.98
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Instructions Care & maintenance
Related Searches
Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

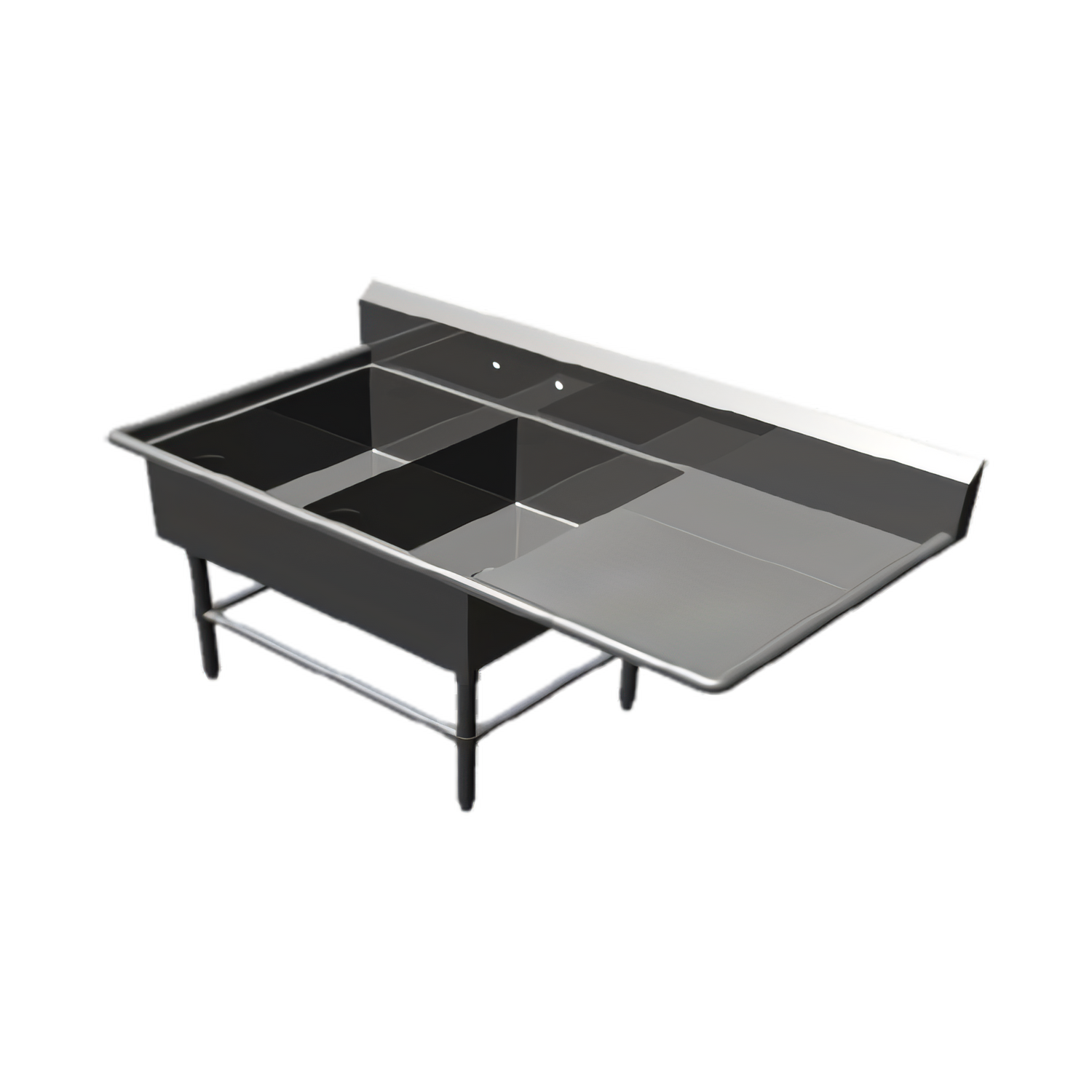

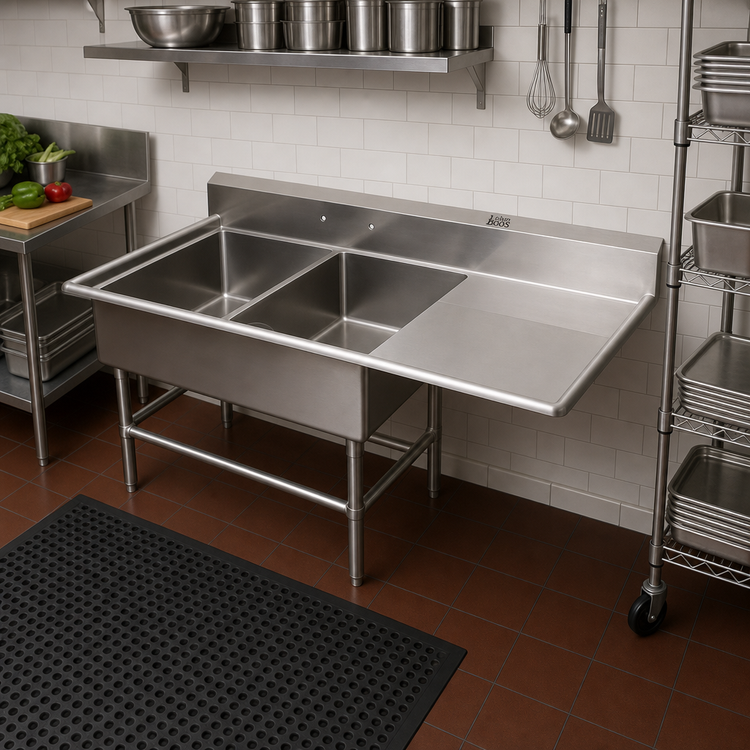

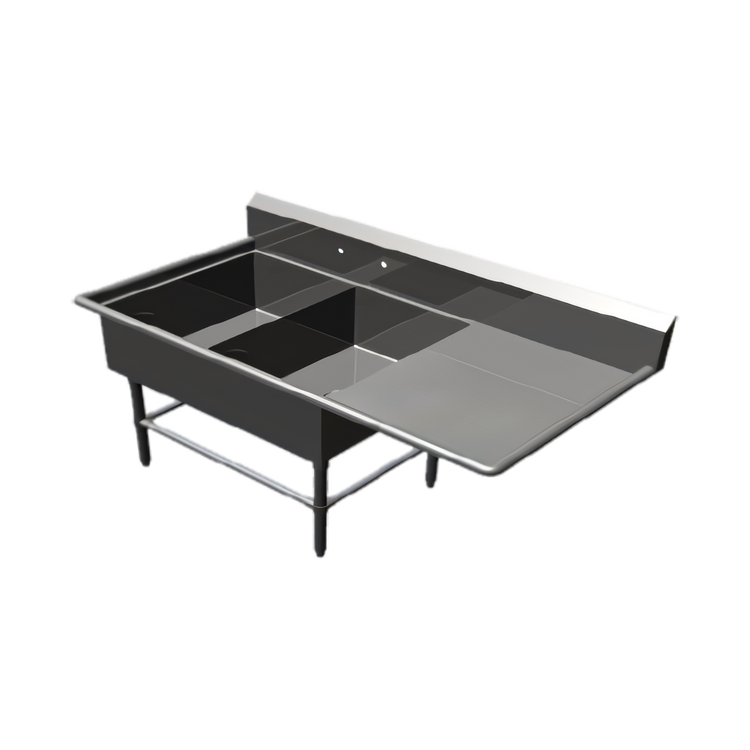

Pro-Bowl 2-Compartment Sink with 24" Right Drainboard

John Boos Model 2PB20284-1D24R

Built for high-volume bakery and restaurant use, the John Boos Pro-Bowl series pairs rugged 16-gauge stainless steel construction with thoughtful, workflow-boosting details—so your dish and prep area stays fast, organized, and sanitary shift after shift.

Key Features

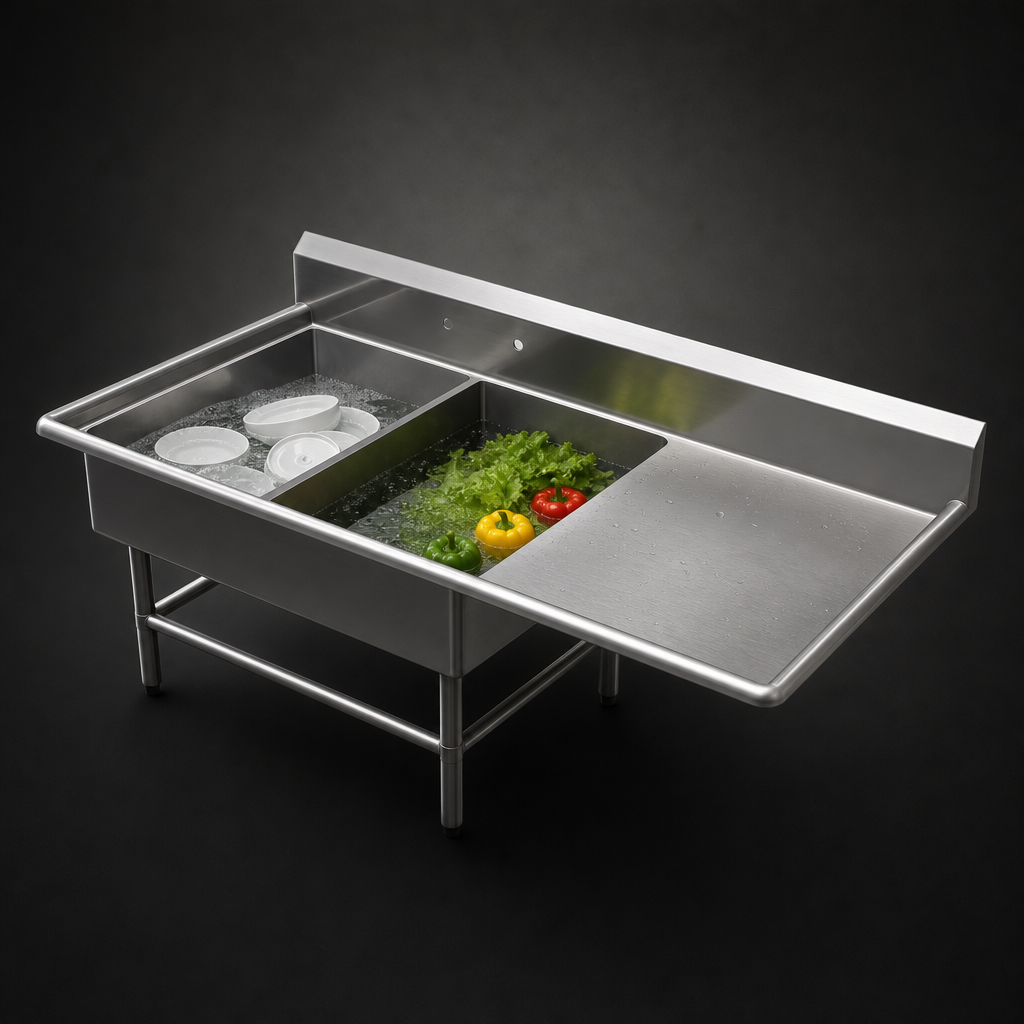

  • (2) 20" W × 28" F-B × 14" D compartments for efficient wash & rinse cycles
  • 24" right-hand drainboard slopes to the bowl for quick drying & easy cleanup
  • 10" boxed backsplash with 45° return and ¾" rolled top edge contains splashes
  • Pre-drilled 8" on-center faucet holes (splash-mount)—ready for your choice of deck hardware
  • 3-½" die-stamped drain openings accept standard basket strainers or lever wastes
  • 16-gauge Type 300 stainless steel top, bowls & apron with #4 satin polish
  • 1-⅝" O.D. stainless steel legs with adjustable bullet feet & front/side bracing
  • TIG-welded seams ground & polished to a smooth, sanitary finish
  • NSF & CSA-Sanitation listed; ships knocked-down (KD) for reduced freight costs

Technical Specifications

Overall size 68-3/16" W × 33-1/2" D × 44-1/16" H (to top of backsplash)
Compartment size (2) 20" W × 28" F-B × 14" D
Drainboard 24" W (right side) with positive drainage
Backsplash 10" H boxed, 2" return
Faucet holes (2) 1" dia. on 8" centers, splash mount
Material / gauge 16-ga Type 300 stainless steel, #4 satin finish
Legs / bracing Stainless legs, 1-¼" O.D. bracing, adjustable bullet feet
Drain openings 3-½" dia. die-stamped
Certifications NSF, CSA-Sanitation
Ship weight Approx. 128 lb (KD)

Popular Accessories (sold separately)

  • Deck- or wall-mount faucets & pre-rinse units
  • Lever waste drains & basket strainers
  • End splashes (left, right or pair)
  • Overshelves & pot racks for added storage
Care Tip: Preserve the satin finish by cleaning with non-chloride detergents and a soft cloth. Avoid abrasive pads or bleach; rinse and dry immediately after use.

Photos may show optional accessories. Confirm local plumbing codes and faucet compatibility before installation.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

68.19in

Depth

33.5in

Shipping Weight

128.0lbs

Compartment (front - back)

28"

Top Stainless Series

300 series

Overall Length

63" - 72"

Compartment Width (side - side)

20"

Top Gauge

16 gauge

Base Type

legs with front & side crossrails

Drainboards

with right-hand drainboard

Splash Height

10"

Sink Depth (rim - drain)

14"

Base Construction

stainless steel

Specifications

Pro-Bowl Sink, 2-compartment, 68-3/16"W x 33-1/2"D x 44-1/16"H overall size, (2) 20"W x 28" front-to-back x 14" deep compartments, (1) 24" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
