John Boos

John Boos 2B244-X Commercial 2-Compartment Stainless Steel Sink, 24" x 24" Bowls, 14" Deep, 10" Backsplash

SKU: 2B244-X
$1,678.08
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

John Boos B Series Commercial 2-Compartment Stainless Steel Sink, 53-1/8" x 29-1/2", 14" Deep Bowls

24" x 24" compartments, 10" boxed backsplash, stainless steel legs

A rugged two-compartment sink built from 16-gauge 300 series stainless steel for reliable commercial prep and wash performance.

  • Two 24" x 24" compartments provide generous wash space, with each bowl 14" deep.
  • 16-gauge Type 300 stainless steel construction delivers lasting durability and a clean satin finish.
  • 10" boxed backsplash with a 2" return helps protect the wall behind the sink.
  • Stainless steel legs, adjustable side bracing, and bullet feet provide stable support and leveling.
  • 3-1/2" die-stamped drain openings and formed bowl bottoms support efficient drainage.
  • Splash-mount faucet holes with 8" centers simplify faucet installation.
  • No drainboards keeps the footprint streamlined for tight work areas.

Overall Dimensions:

53.13"W x 29.5"D x 44.0"H

Product Weight:

97.0 lb

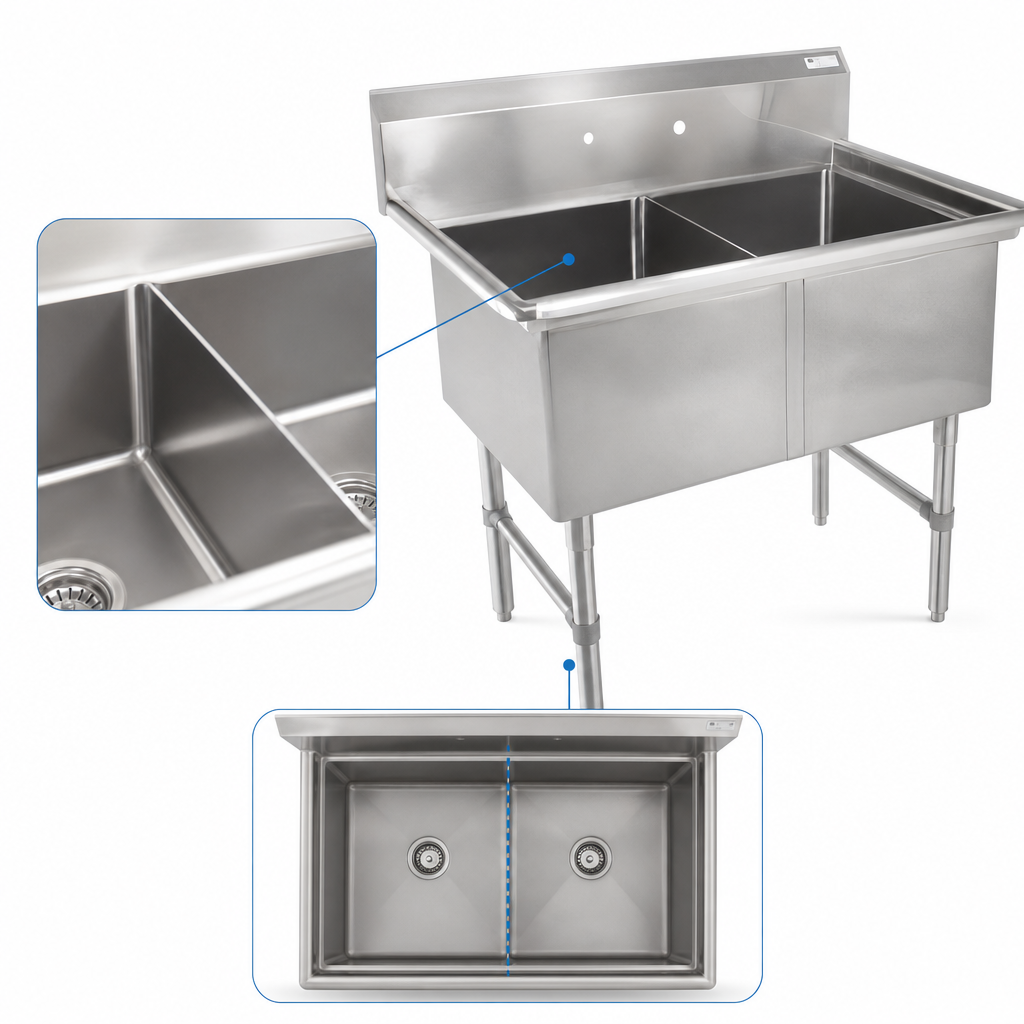

Two-Compartment Layout

Separate bowls support washing, rinsing, or prep tasks in one sink station.

Two-Compartment Layout

16-Gauge Stainless Steel Construction

Heavy-duty Type 300 stainless steel is built for demanding commercial use.

Deep 14-Inch Bowls

Extra-deep compartments help contain water and improve sink utility.

Boxed 10-Inch Backsplash

Includes a 2" return to the wall at 45° and a turned-down rear lip for wall protection.

Drainage-Formed Bowl Bottoms

Bottoms are formed to direct water toward the 3-1/2" die-stamped drain openings.

Stainless Steel Base Support

Stainless steel legs, bracing, and gussets create a stable freestanding base.

Adjustable Bullet Feet

Helps level the sink on uneven floors.

Bullnosed Exterior Corners

Rounded outside corners provide a safer, polished edge.

Faucet Mounting Holes

Splash-mount faucet holes are set at 8-inch centers in the backsplash.

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Compartment Sinks Equipment Equipment John Boos New Arrivals Plumbing & Water Treatment Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations
Type 2-Compartment Sink
Style B Series
Installation Type Floor Model
Compartments 2
Compartment Width 24 Inches
Compartment Depth 24 Inches
Sink Depth 14 Inches
Backsplash Height 10 Inches
Material 300 Series Stainless Steel
Finish Satin Finish
Gauge 16 Gauge
Base Construction Stainless Steel
Drain Opening 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Width 54 Inches
Depth 30 Inches
Height 44 Inches
Weight 97 Pounds

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

No, this model is without drainboards.
Each compartment measures 24 inches wide by 24 inches front-to-back by 14 inches deep.
It is constructed from 16-gauge Type 300 stainless steel with stainless steel legs.
The boxed backsplash is 10 inches high and includes a 2-inch return to the wall at 45°.
It includes a splash-mount faucet hole set with 8-inch centers.
Yes, the sink includes adjustable stainless steel bullet feet.
