Key specifications

Dimensions
99.25"W × 29.5"D × 44.06"H
Type
Compartment Sink
Style
B Series
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Spec sheet
John Boos SKU: 2B244-2D24 UPC: 662969159092

John Boos 2B244-2D24 2-Compartment Sink, Left & Right Drainboards

$1,814.67
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $168/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Style B Series
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Polish #4
Compartments 2
Compartment Width 24 Inches
Compartment Depth 24 Inches
Sink Depth 14 Inches
Drainboards Left and Right
Drainboard Width 24 Inches
Splash Height 10 Inches
Backsplash Angle 45 Degrees
Backsplash Return 2 Inches
Top Gauge 16 Gauge
Stainless Steel Series 300 Series
Faucet Hole Type Splash Mount
Faucet Hole Centers 8 Inches
Faucet Hole Diameter 1 Inch
Drain Opening Diameter 3-1/2 Inches
Base Type Legs With Side Crossrails
Leg Diameter 1-5/8 Inches
Bracing Diameter 1-1/4 Inches
Foot Type Adjustable Bullet Feet
Corner Radius 3/4 Inch

Description

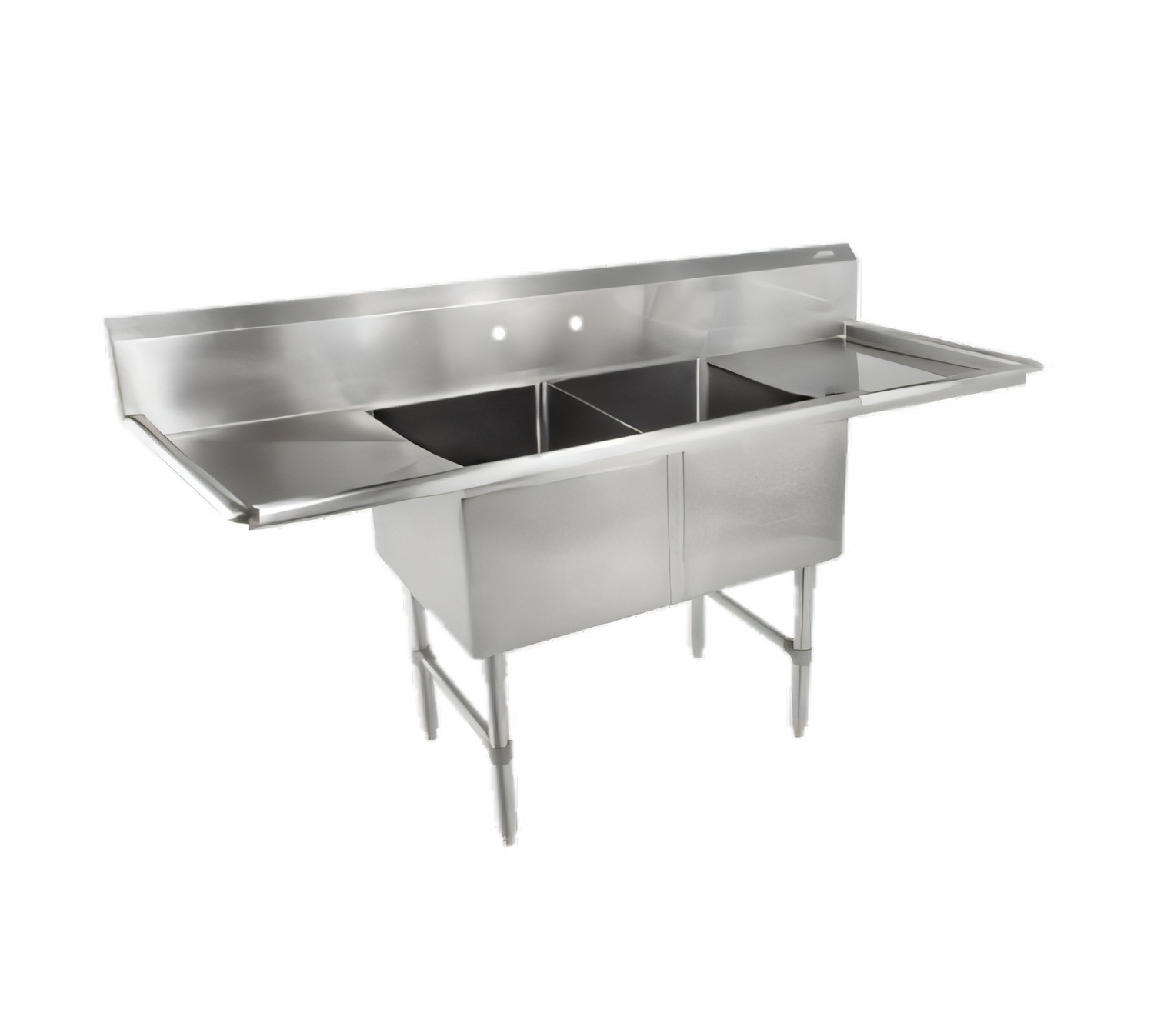

The John Boos 2B244-2D24 is a B Series, two-compartment stainless steel sink with 24-inch drainboards on the left and right sides.

Each compartment measures 24 inches wide by 24 inches front-to-back and 14 inches deep. The sink has a 10-inch boxed backsplash with a 45-degree top and 2-inch return, plus one set of splash-mount faucet holes on 8-inch centers.

  • 16-gauge Type 300 stainless steel with #4 polish and satin finish
  • 3-1/2-inch die-stamped drain openings
  • Stainless steel legs, adjustable side bracing, and adjustable bullet feet
  • Coved interior corners and bullnosed outside corners

Overall Dimensions:

99.25"W x 29.5"D x 44.06"H

Product Weight:

132.0 lb

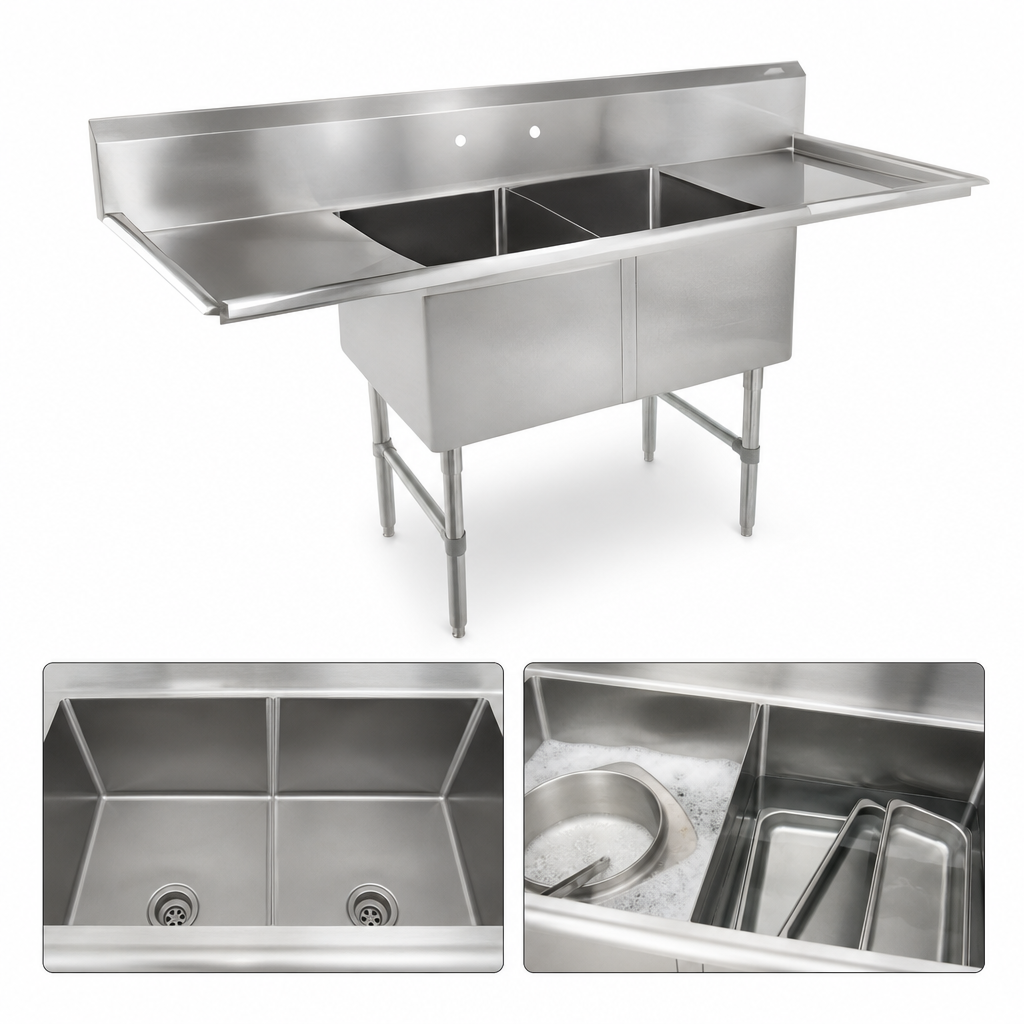

Two Compartments

Each compartment measures 24 inches wide by 24 inches front-to-back and 14 inches deep.

Left and Right Drainboards

The sink includes a 24-inch drainboard on both the left and right sides.

Boxed Backsplash

The 10-inch backsplash has a 45-degree top and a 2-inch return to the wall.

Stainless Steel Construction

The bowls and top are made from 16-gauge Type 300 stainless steel with #4 polish and satin finish.

Faucet Holes

One set of splash-mount faucet holes is provided with 8-inch centers; the faucet holes are 1 inch in diameter.

Die-Stamped Drain Openings

Each compartment has a 3-1/2-inch die-stamped drain opening.

Adjustable Base

The stainless steel base includes stainless steel legs, adjustable side bracing, and adjustable bullet feet.

Coved and Bullnosed Edges

Interior vertical and horizontal corners are coved at a 3/4-inch radius, and outside corners are bullnosed.

Frequently Asked Questions

Each of the two compartments measures 24 inches wide by 24 inches front-to-back and 14 inches deep.
Yes. It includes a 24-inch drainboard on both the left and right sides.
The overall dimensions are 99.25 inches wide, 29.5 inches deep, and 44.06 inches high.
It has a 10-inch boxed backsplash with a 45-degree top and a 2-inch return to the wall.
Yes. It includes one set of splash-mount faucet holes on 8-inch centers, with 1-inch faucet holes.
The bowls and top are 16-gauge Type 300 stainless steel with #4 polish and satin finish.
The product is certified to NSF and CSA-Sanitation.
