John Boos 2B244-1D24R Compartment Sinks
Description

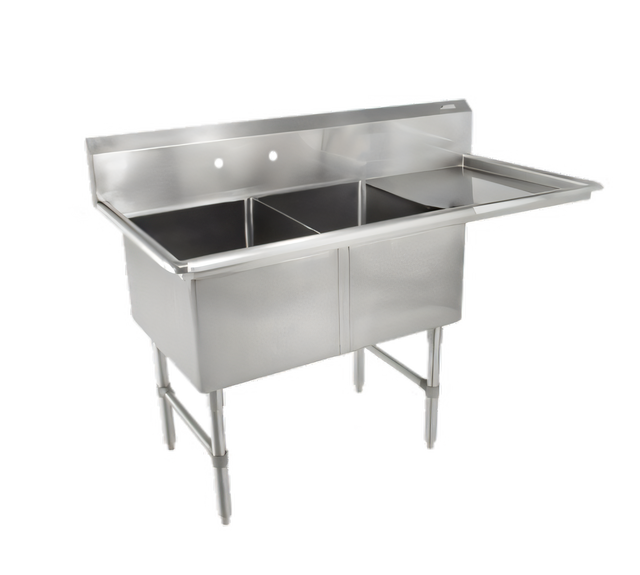

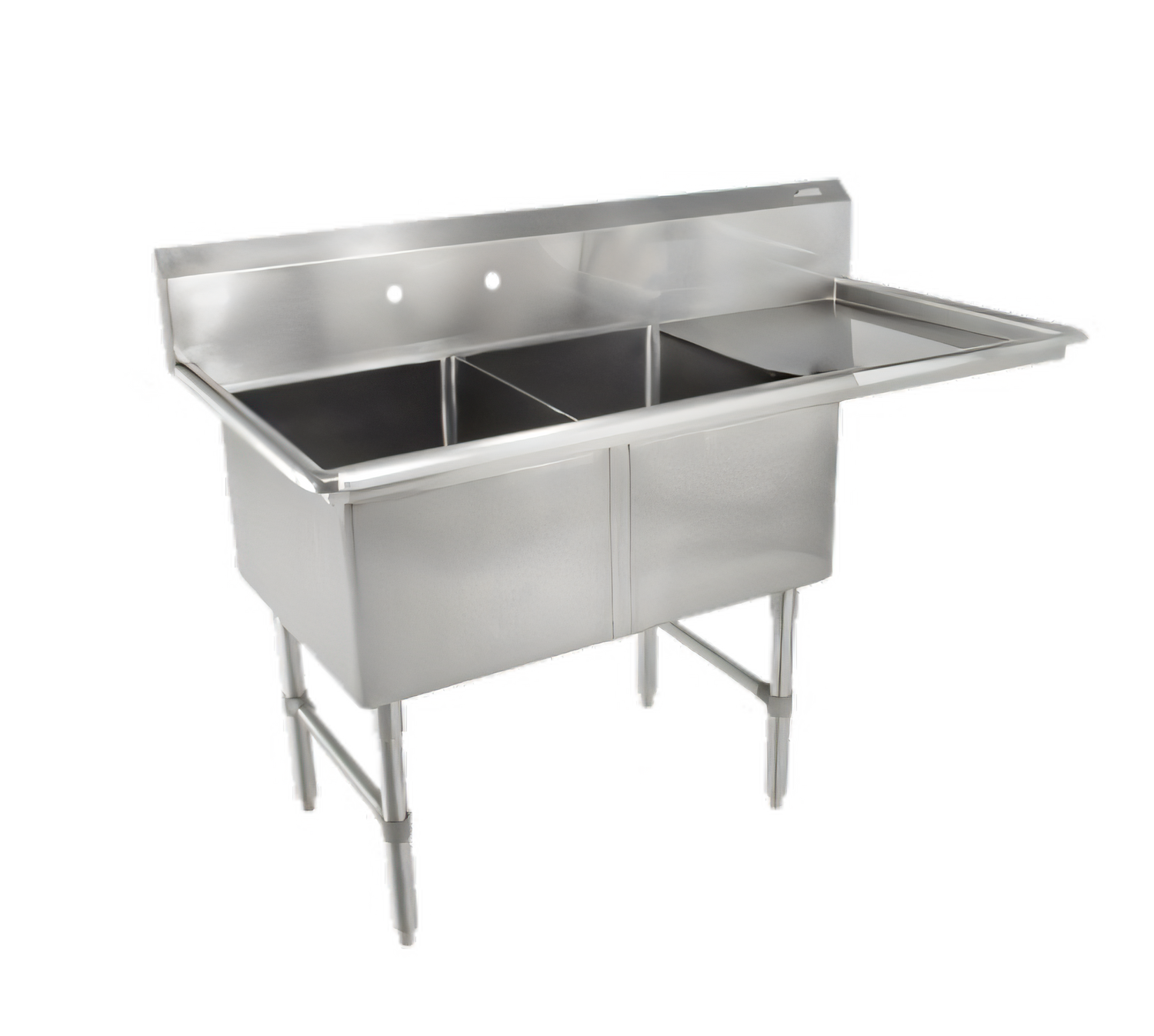

John Boos “B” Series 76" 2-Compartment Sink with Right Drainboard
Model 2B244-1D24R | 16-Gauge Type 300 Stainless SteelBuilt for the punishment of high-volume kitchens, this John Boos two-compartment sink delivers the capacity, durability, and sanitation compliance you need—plus a generous right-hand drainboard that keeps workflow moving.
Key Features

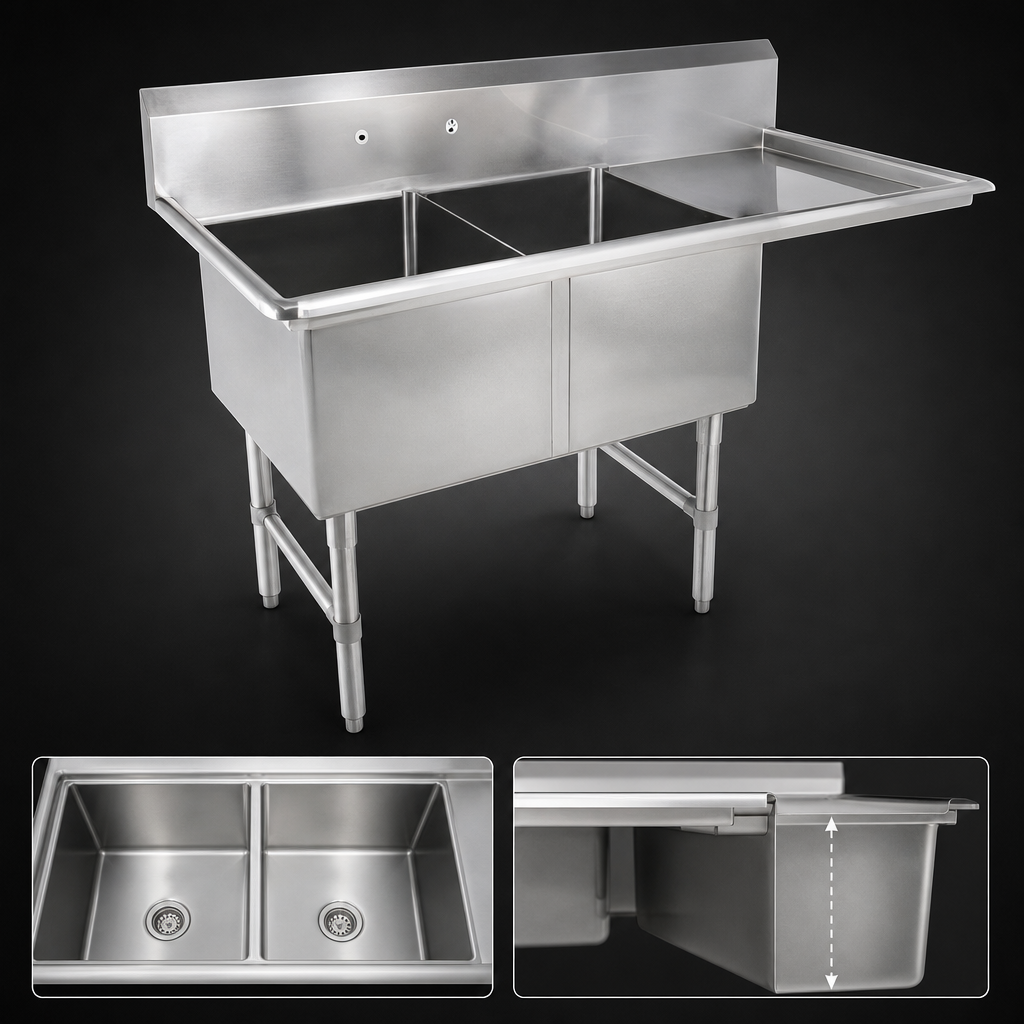

- Two roomy 24" × 24" × 14" deep bowls accommodate stock pots, sheet pans, and bulky wares.
- Integrated 24" right-side drainboard speeds drying and staging.
- Heavy-duty 16-ga, Type 300 stainless steel with #4 satin polish resists corrosion and wipes clean fast.
- 10" boxed backsplash with 2" 45° return protects walls from splashes.
- Coved ¾" bowl corners and bull-nosed front/side edges enhance safety and hygiene.
- One set of 1" faucet holes on 8" centers accepts standard splash-mount faucets (not included).
- 3½" die-stamped drain openings ensure a tight, leak-free fit for drain assemblies.
- 1⅝" Ø stainless legs with 1¼" stainless side bracing add rock-solid stability.
- Adjustable stainless bullet feet level the sink on uneven floors.
- NSF & CSA-Sanitation listed for worry-free code compliance.
At-a-Glance Specifications
| Overall size (W × D × H) | 76" W × 29-1/2" D × 44" H |
|---|---|
| Compartments | 2 × 24" W × 24" front-to-back × 14" D |
| Drainboard | 24" right-hand |
| Backsplash | 10" H boxed with 2" return, 45° top |
| Faucet mounting | Splash mount, 8" on-center holes (1" dia.) |
| Drain openings | 3½" dia. die-stamped |
| Material & gauge | 16-ga Type 300 stainless steel, #4 finish |
| Legs / bracing | 1⅝" Ø SS legs with 1¼" Ø SS side bracing |
| Feet | Adjustable stainless steel bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Approx. shipping weight | 117 lb |
Why Choose a John Boos “B” Series Sink?
- Made in the USA since 1887—trusted by chefs, butchers, and institutions worldwide.
- TIG-welded seams are polished to match the surrounding satin finish for a seamless, easy-to-sanitize surface.
- Quick field assembly—legs, bracing, and feet install in minutes.
- Compatible add-ons (sold separately): pre-rinse faucets, lever wastes, overshelves, and pot racks for a fully integrated dish station.
Care & Maintenance
Preserve the brilliant stainless finish by washing with mild soap or Bar Keepers Friend, always wiping along the grain. Avoid chlorine-based or abrasive cleaners. Finish with John Boos Stainless Steel Cleaner for a lasting shine.
