John Boos 2B244-1D24L-X Compartment Sinks
Description

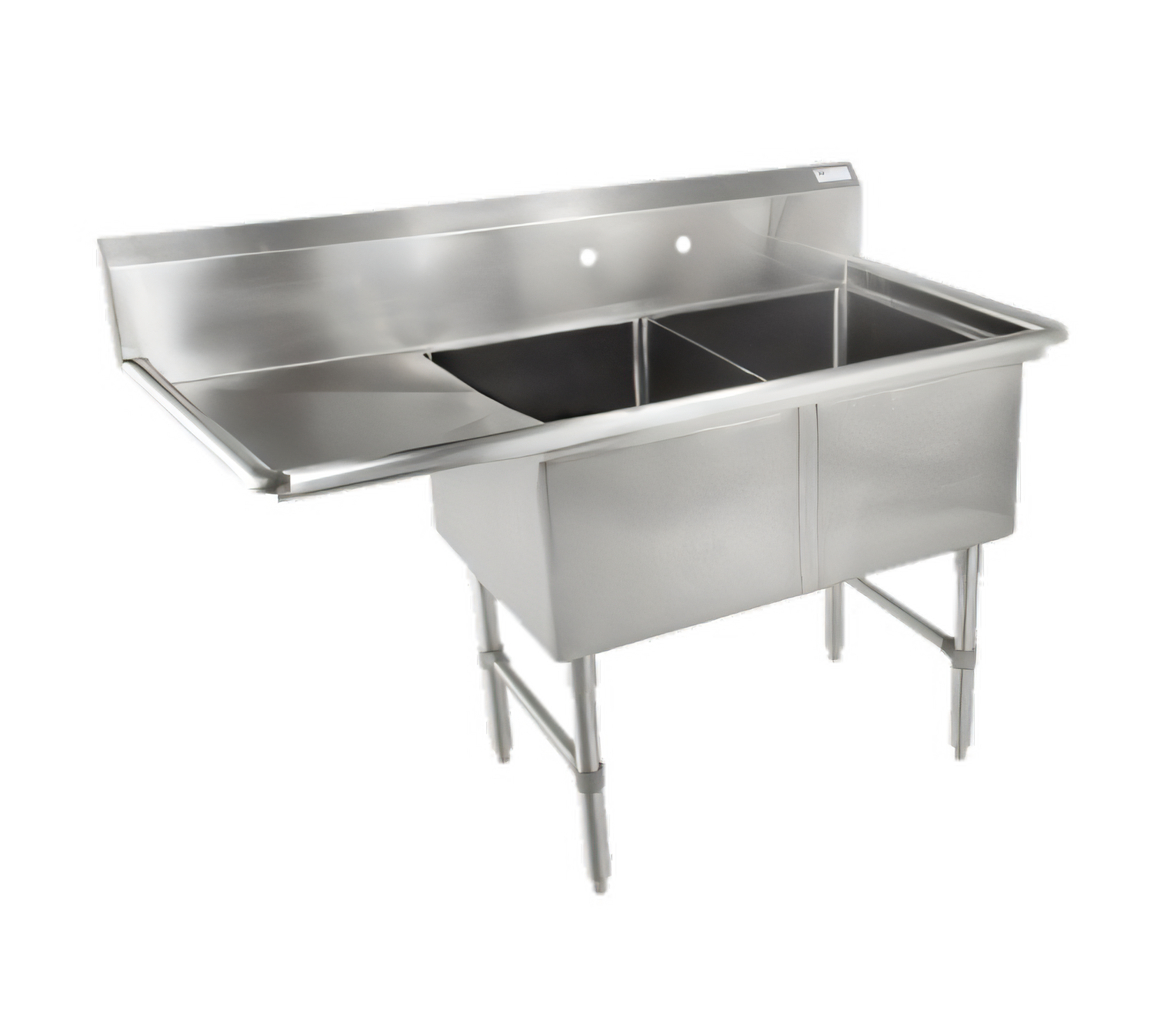

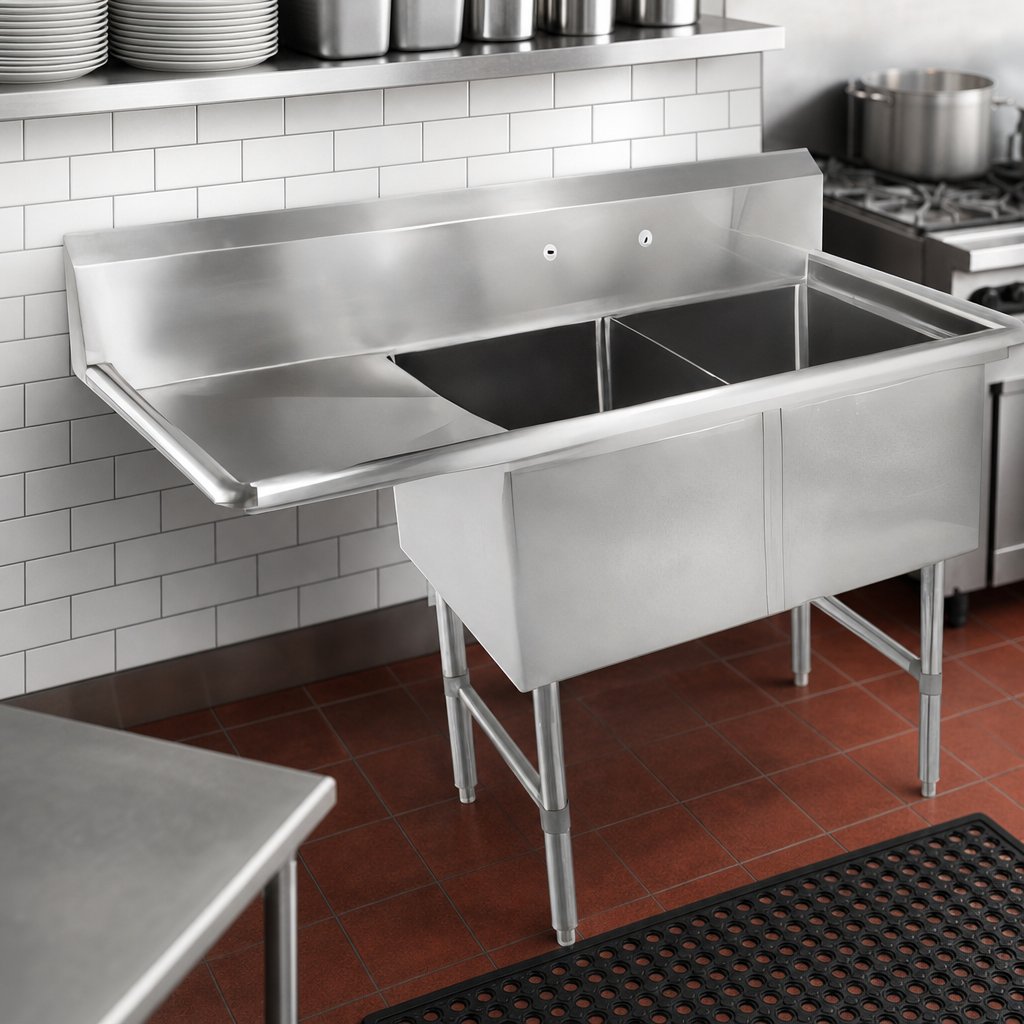

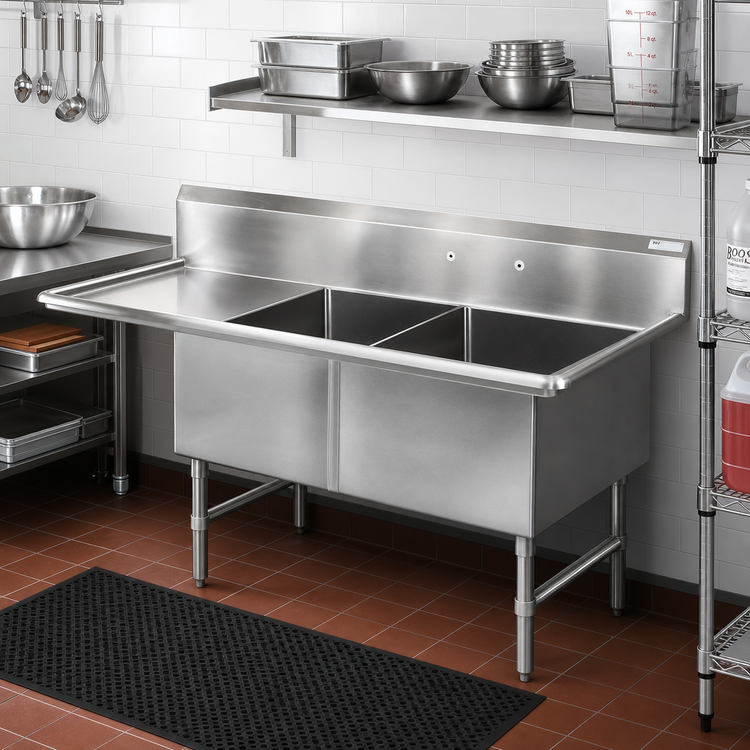

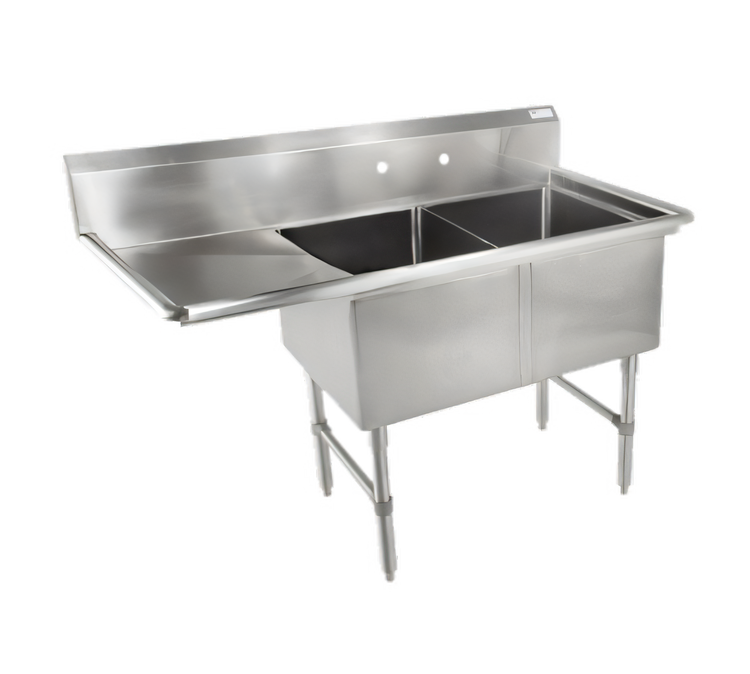

John Boos “B” Series 2-Compartment Sink w/ 24" Left Drainboard — Model 2B244-1D24L
76" W x 29-1/2" D x 44" H | 16-Gauge Type 300 Stainless Steel | NSF & CSA-SanitationBuilt to thrive in the toughest back-of-house environments, the John Boos 2B244-1D24L delivers the rugged capacity you need with the legendary finish you expect. Two oversized 24" x 24" x 14" bowls tackle high-volume warewashing while a full 24" left-side drainboard keeps workflow organized and efficient.
Key Features
- Durable 16-gauge, Type 300 stainless steel with #4 satin polish for a professional look and easy cleanup.
- (2) 24" W x 24" F-B x 14" D compartments formed with 3/4" coved corners for fast, sanitary rinsing.
- Full-length 24" drainboard on the left side speeds drying and staging.
- 10" high boxed backsplash with 2" return at a 45° angle and 1" turned-down rear lip protects walls from splashes.
- Splash-mount faucet holes pre-punched on 8" centers (1" Ø) for simple faucet installation.
- 3-1/2" die-stamped drain openings ensure a leak-free fit with standard basket strainers.
- 1-5/8" Ø stainless steel legs with adjustable side bracing add rock-solid stability.
- 1" adjustable stainless steel bullet feet level the sink on uneven floors.
- Bowl bottoms are pitched toward the drain for quick water evacuation.
- All exterior corners are bull-nosed to eliminate sharp edges for staff safety.
- Fully TIG-welded top; exposed welds are polished to match adjacent surfaces.
- NSF & CSA-Sanitation certified and proudly made in the USA (Effingham, IL & Nevada facilities).
At-a-Glance Specifications
| Model & Series | 2B244-1D24L — “B” Series |
|---|---|
| Overall Dimensions | 76" W x 29-1/2" D x 44" H (to top of backsplash) |
| Compartment Size (x2) | 24" W x 24" F-B x 14" D |
| Drainboard | 24" left side |
| Backsplash | 10" boxed, 2" return @ 45°, 1" rear lip |
| Faucet Holes | (1) set splash-mount, 8" centers, 1" Ø |
| Drain Openings | 3-1/2" die-stamped |
| Material & Finish | 16-gauge Type 300 stainless steel, #4 satin |
| Legs / Bracing | 1-5/8" Ø stainless legs with adjustable 1-1/4" Ø side bracing |
| Feet | 1" adjustable stainless bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping Weight | ≈117 lb |
Compatible Accessories (sold separately)
- Deck or splash-mount faucets & add-a-faucets
- Pre-rinse assemblies
- Lever wastes & basket strainers
- Stainless overshelves and pot racks
Care & Maintenance
Maintain the factory satin finish by washing with clean water and a non-chloride cleanser, then wiping dry along the grain. Avoid abrasive pads or cleaners containing bleach or quaternary salts. For deep cleaning and passivation, John Boos Stainless Steel Cleaner or Bar Keepers Friend is recommended.
