John Boos 2B184-1D18R-X Compartment Sinks
Description

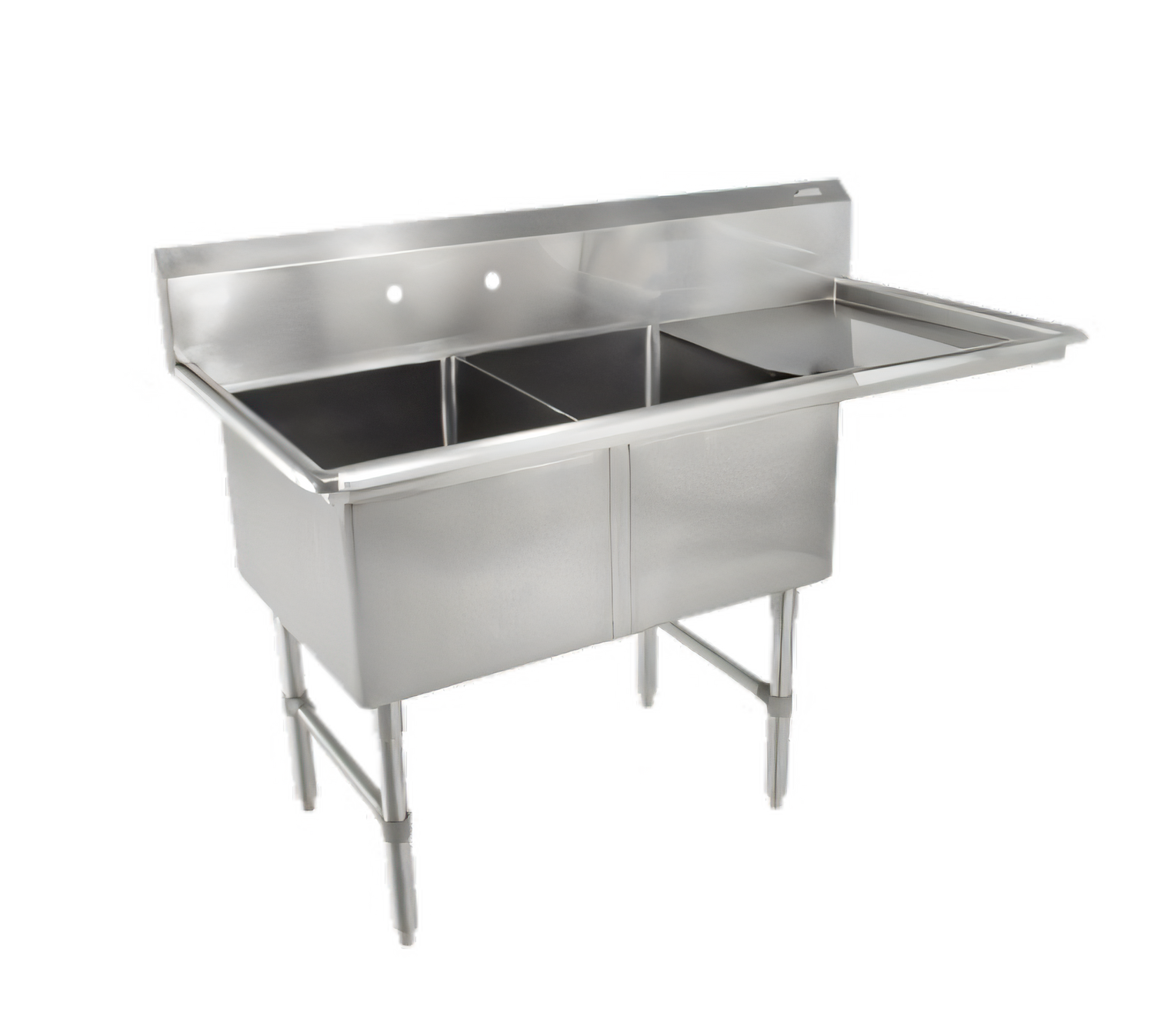

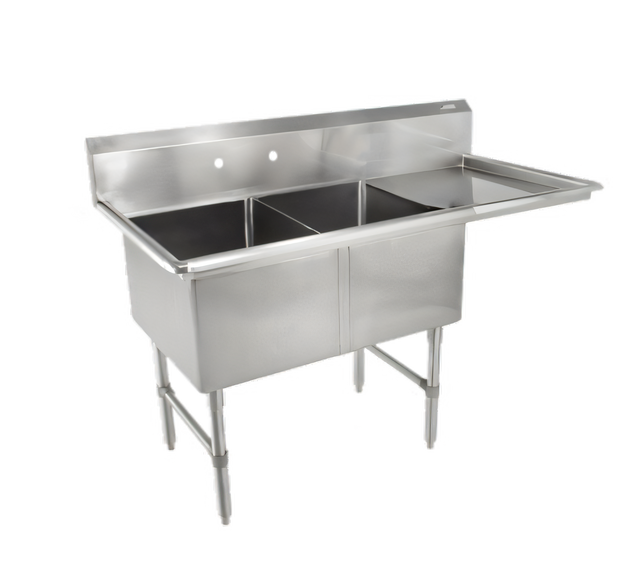

John Boos “B”-Series 2-Compartment Sink – 18" Right Drainboard
Model 2B184-1D18R | NSF & CSA-Sanitation CertifiedBuilt for the daily grind of commercial kitchens, this 58" wide John Boos compartment sink combines rugged 16 gauge type 300 stainless steel with ergonomic design details that speed up prep and clean-up tasks while meeting the strictest health codes.
Why this sink stands out
- Two 18" W x 18" F/B x 14" D bowls handle prep, wash & rinse cycles with ease.

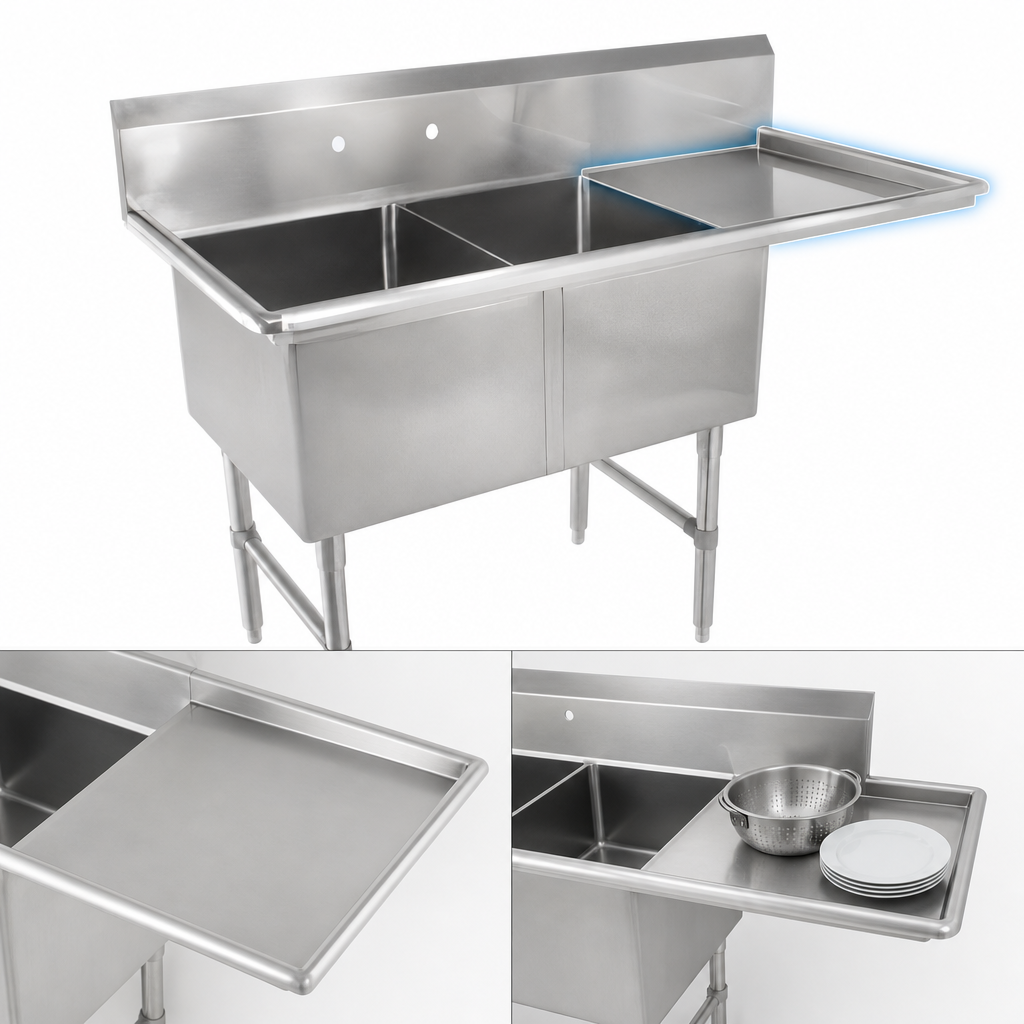

- 18" right-hand drainboard keeps glassware or cookware organised and off the counter.
- 10" boxed backsplash with 2" 45° return protects walls from splashes.
- Splash-mount faucet openings pre-drilled on 8" centres for fast installation (faucet sold separately).
- 3-1/2" die-stamped drain openings fit standard commercial sink strainers.
- One-piece TIG-welded top; all exposed welds blended to a smooth #4 satin finish.
- 1-5/8" Ø stainless steel legs with adjustable side bracing for added rigidity.
- Adjustable 1" bullet feet level the sink on uneven floors.
- NSF & CSA-Sanitation listed for worry-free health-department approval.
At-a-glance specifications
| Overall size | 58" W x 23-1/2" D x 44" H (to top of backsplash) |
|---|---|
| Bowl dimensions (2) | 18" W x 18" front-to-back x 14" D |
| Drainboard | 18" right side with pitched surface |
| Material & finish | 16 ga type 300 stainless steel, #4 satin polish |
| Backsplash | 10" high boxed style, 2" 45° return |
| Faucet holes | (1) set, 1" Ø, 8" on centre, splash-mount |
| Drain openings | 3-1/2" die-stamped (centered in each bowl) |
| Legs / bracing | 1-5/8" Ø SS legs | 1-1/4" Ø SS side bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Ships from | Effingham, IL & Nevada facilities |
Compatible accessories (sold separately)
- Commercial faucets & add-a-faucets (8" centres)
- Lever waste drains
- Pre-rinse sprayers
- Overshelves & pot racks
Stainless steel care
Maintain the sink’s satin lustre by cleaning with non-chloride detergents and a soft cloth. For stubborn stains, Bar Keepers Friend followed by John Boos Stainless Steel Cleaner will quickly restore the passive protective film.
Avoid abrasive pads, wire brushes, or cleaners containing bleach to keep your warranty intact.
