Description

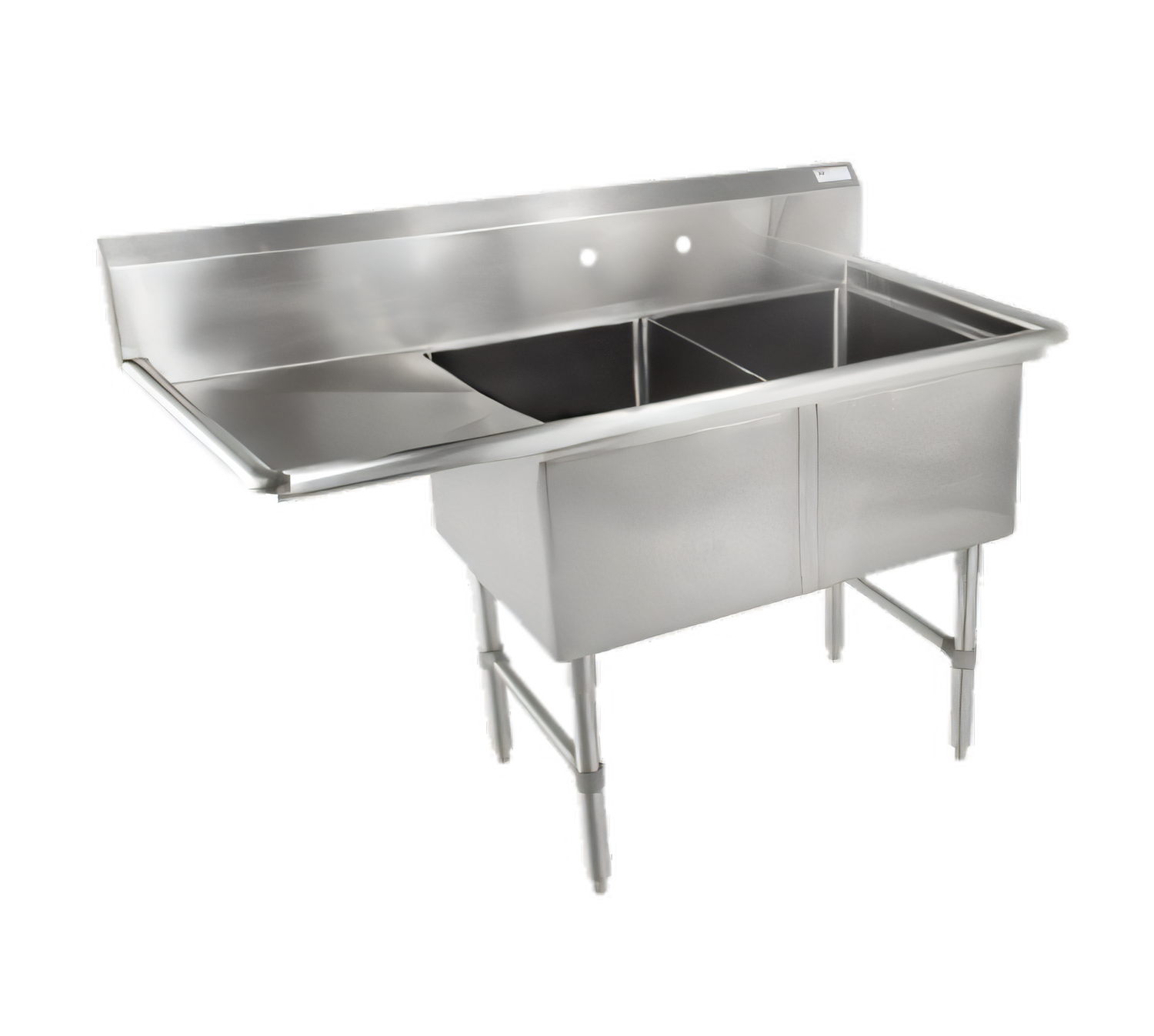

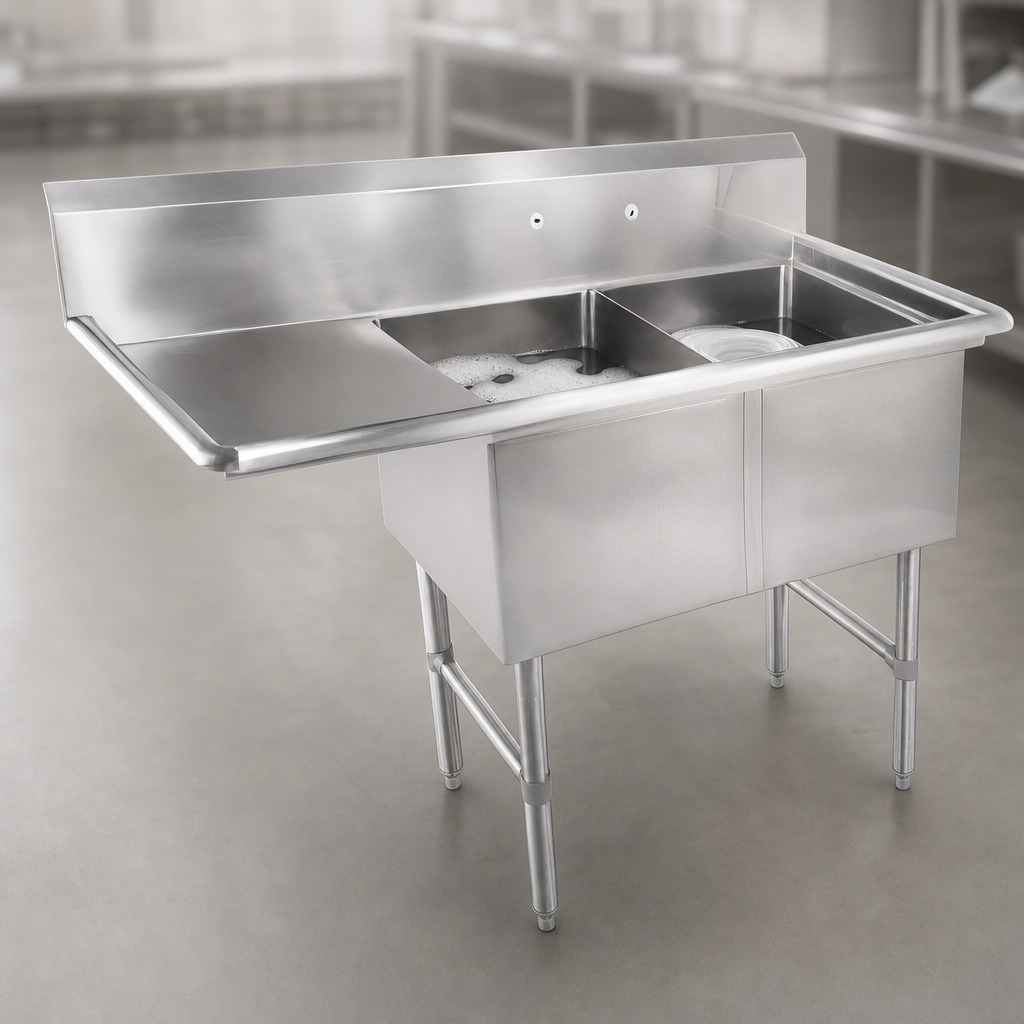

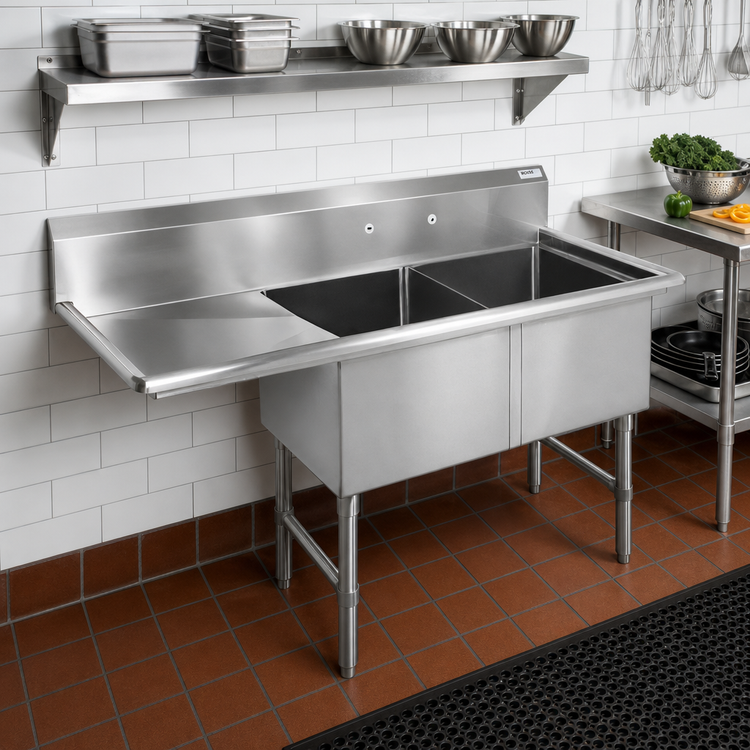

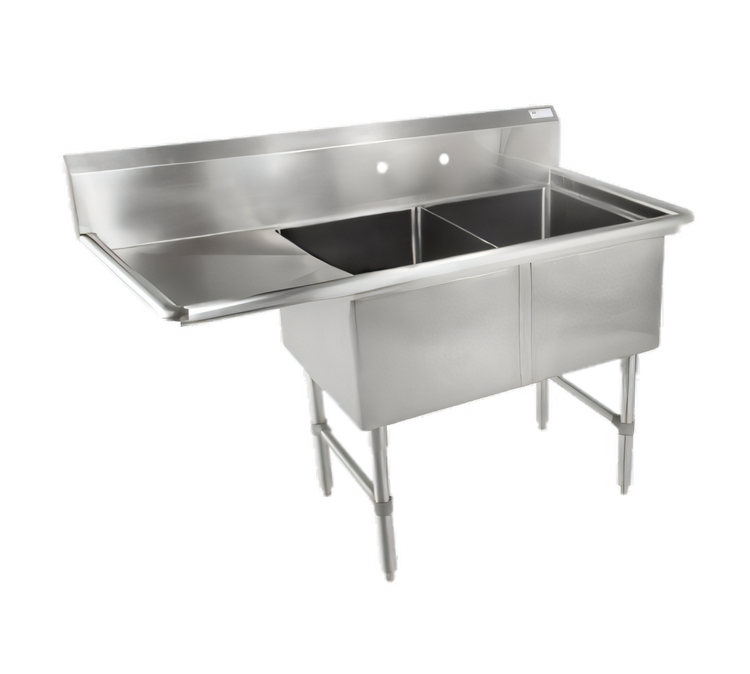

John Boos “B” Series 2-Compartment Sink
58" W x 23-1/2" D, 18" Left Drainboard • Model 2B184-1D18L

Built for demanding commercial kitchens, this NSF & CSA-Sanitation approved John Boos sink combines rugged 16-gauge, type 300 stainless steel construction with the clean lines and polish that have made Boos the benchmark in food-service fabrication since 1887.

Why you’ll love it

  • Two 18" x 18" x 14" deep compartments handle prep, wash, or rinse tasks with ease.
  • Integrated 18" left-side drainboard speeds up drying and staging.
  • 10" boxed backsplash with 2" 45° return protects walls from splashes.
  • Pre-punched 8"-on-center faucet holes simplify installation of most commercial faucets (sold separately).
  • 3-1/2" die-stamped drain openings fit standard commercial basket strainers or lever wastes.
  • All TIG-welded seams are ground & polished to a seamless satin #4 finish for easy cleaning.
  • 1-5/8" O.D. stainless steel legs with adjustable side bracing and bullet feet provide rock-solid stability on uneven floors.

Technical specifications

Overall size 58" W x 23-1/2" D x 44" H (to top of backsplash)
Bowl size (each) 18" W x 18" F/B x 14" H
Drainboard 18" L (left side, integrally welded)
Backsplash 10" boxed, 45° top, 2" return
Faucet holes (2) 1" holes, 8" centers, splash-mount
Drain openings 3-1/2" diameter, die-stamped
Material / gauge 16-ga, type 300 series stainless steel, #4 satin polish
Base construction Stainless steel legs, 1-1/4" O.D. stainless side bracing, adjustable stainless bullet feet
Certifications NSF, CSA-Sanitation
Manufacturing locations Effingham, IL & Nevada, MO, USA

Care & maintenance

  • Clean daily with mild soap or non-chloride detergent and a soft cloth; always wipe in the direction of the polish lines.
  • Avoid abrasive pads, wire brushes, or cleaners containing chlorides or quaternary salts.
  • For stubborn stains or surface corrosion, use Bar Keepers Friend™ followed by John Boos Stainless Steel Cleaner to restore the protective finish.

Following these guidelines preserves the passive chromium film that keeps stainless steel rust-free.

Ordering & installation notes

Important: Faucet, basket strainers, and waste valves are shown for reference only and are sold separately.
  • Sink ships knocked down to reduce freight costs; simple field assembly required.
  • Need a different drainboard side? Specify “R” model 2B184-1D18R at checkout.
  • Custom overshelves, lever wastes, and pre-rinse units available—contact us for details.

Features & Specs

Manufacturer

John Boos

Certifications

NSF, CSA-Sanitation

Height

44.0in

Width

58.18in

Depth

23.5in

Shipping Weight

86.0lbs

Overall Length

54" - 62"

Sink Depth (rim - drain)

14"

Drainboards

with left-hand drainboard

Top Stainless Series

300 series

Top Gauge

16 gauge

Base Construction

stainless steel

Compartment Width (side - side)

18"

Splash Height

10"

Base Type

legs with side crossrails

Compartment (front - back)

18"

Specifications

"B" Series Sink, 2-compartment, 58-3/16"W x 23-1/2"D x 44"H overall size, (2) 18"W x 18" front-to-back x 14" deep compartments, (1) 18" left drainboard, 10"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable side bracing, adjustable bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)
