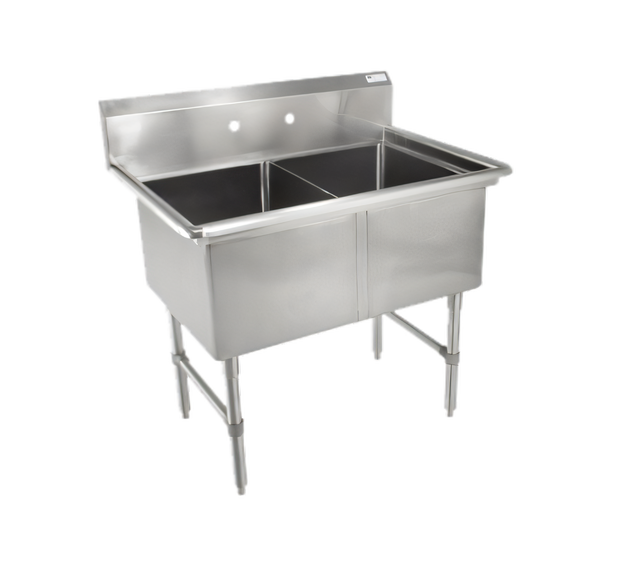

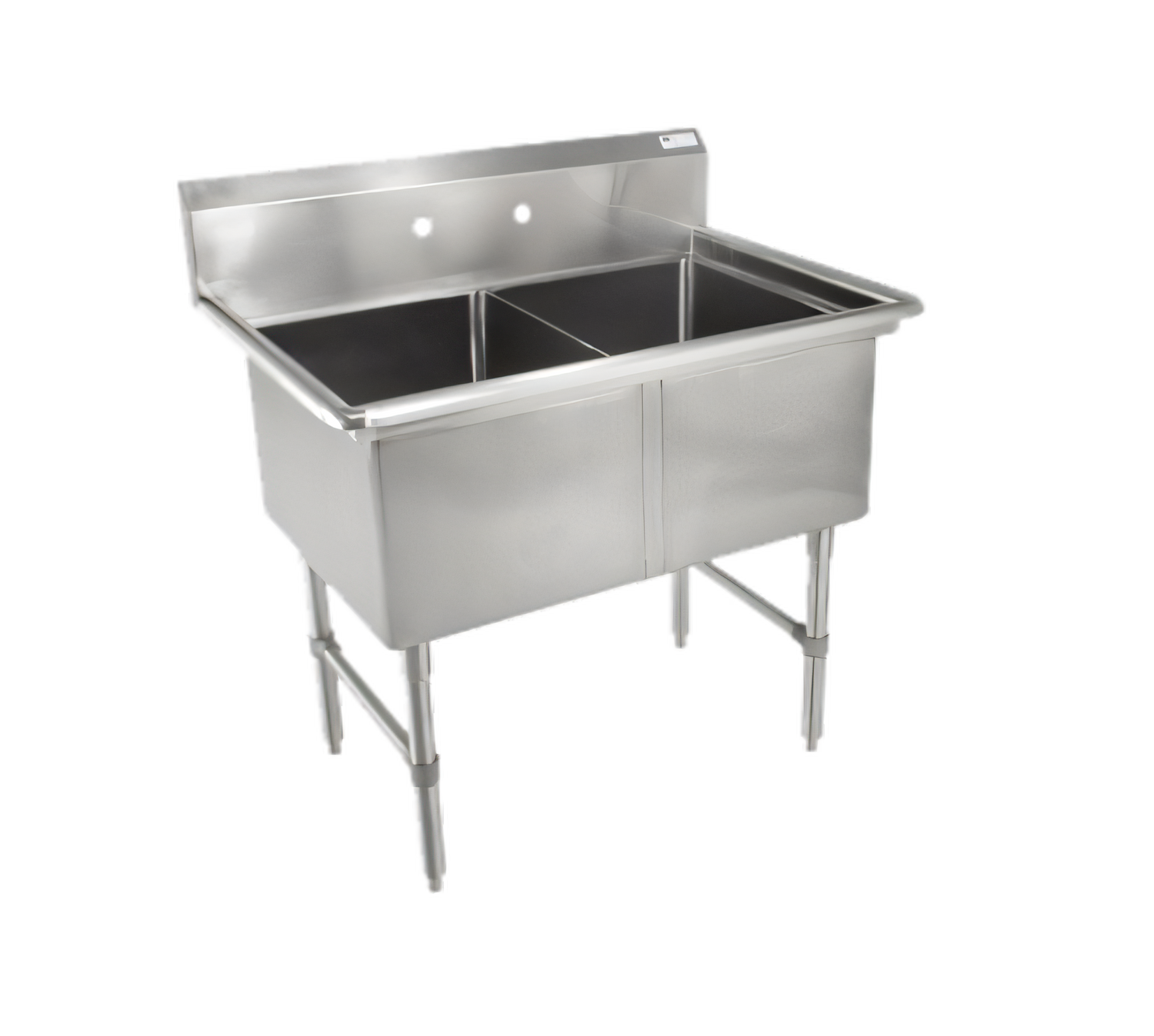

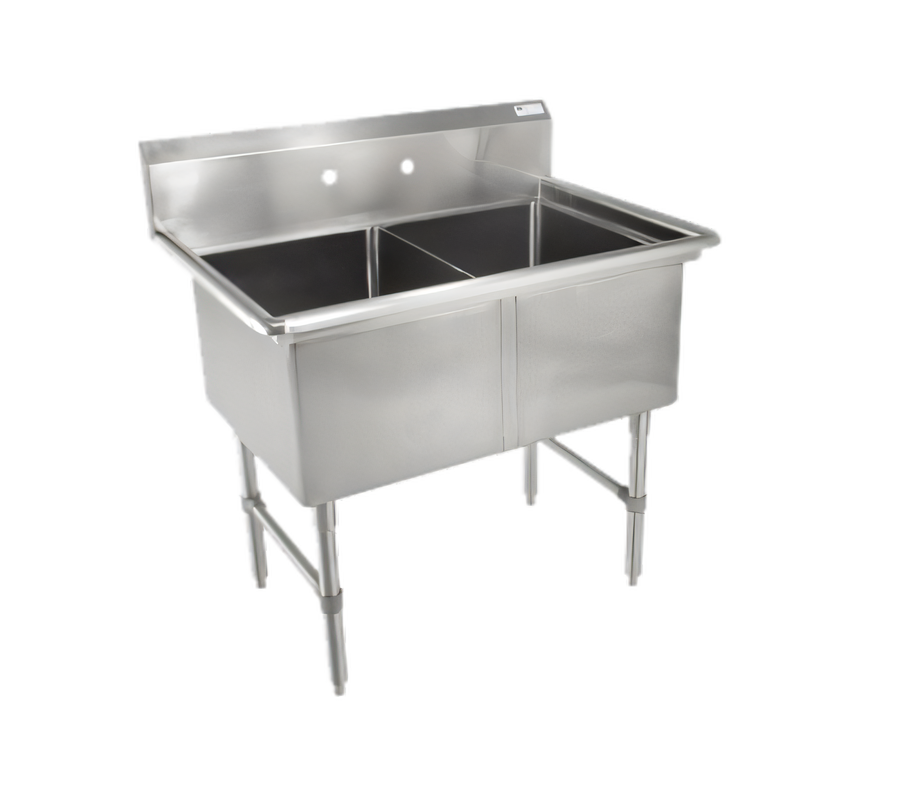

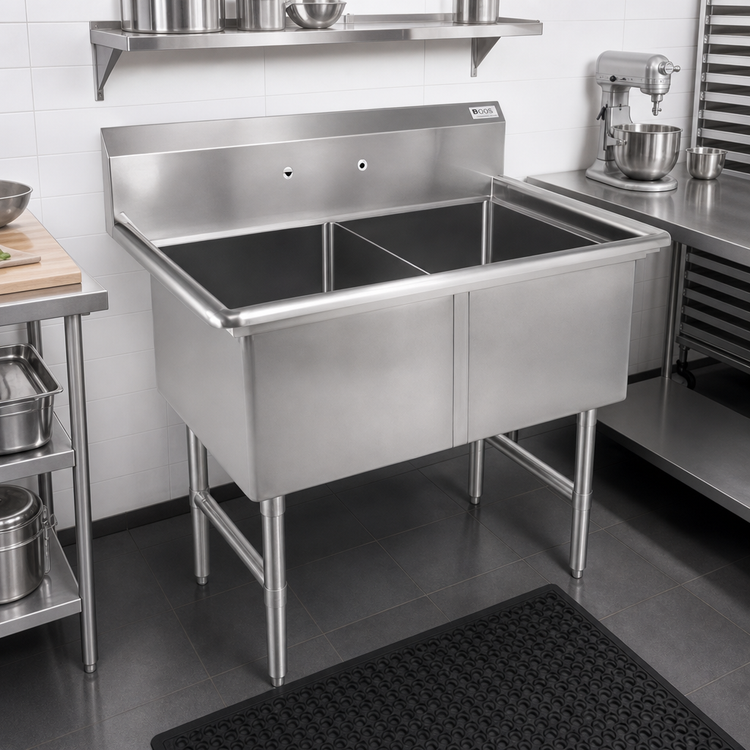

John Boos B Series 2-Compartment Stainless Steel Sink with Legs and 10-Inch Backsplash

41-1/8 x 29-1/2 x 44 Inches Overall, 14-Inch Deep Bowls

Built for demanding prep and wash stations, this two-compartment sink pairs a durable stainless steel build with a tall backsplash and stable leg base.

  • Two 18" x 24" x 14" deep compartments create a practical wash and rinse station.
  • 16-gauge Type 300 stainless steel construction is built for daily commercial use.
  • 10" boxed backsplash helps protect the wall behind the sink.
  • Stainless steel legs, side bracing, and adjustable bullet feet support a stable floor installation.
  • 3-1/2" die-stamped drain openings and formed bowl bottoms promote efficient drainage.
  • No drainboards keeps the footprint focused on sink capacity.

Overall Dimensions:

41.12"W x 29.5"D x 44.0"H

Product Weight:

83.0 lb

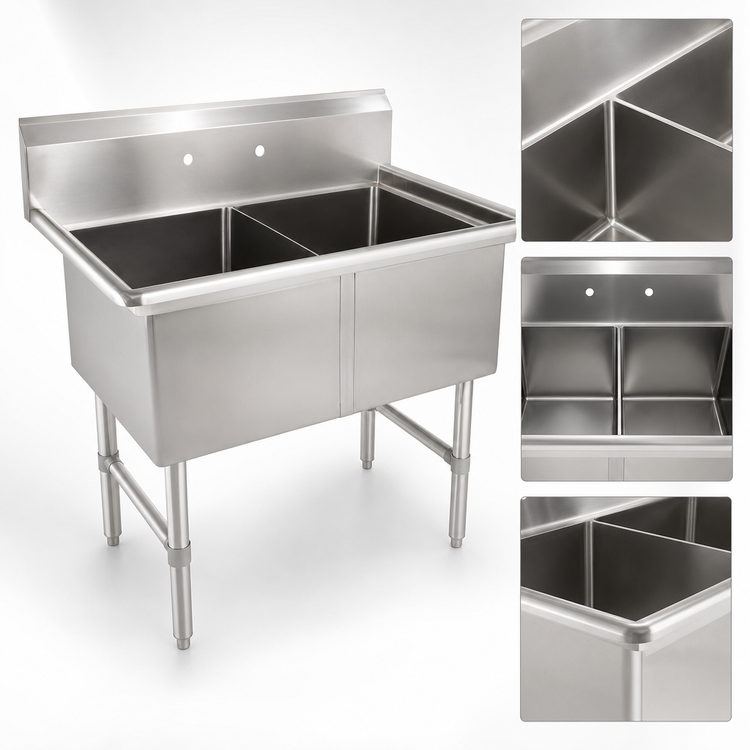

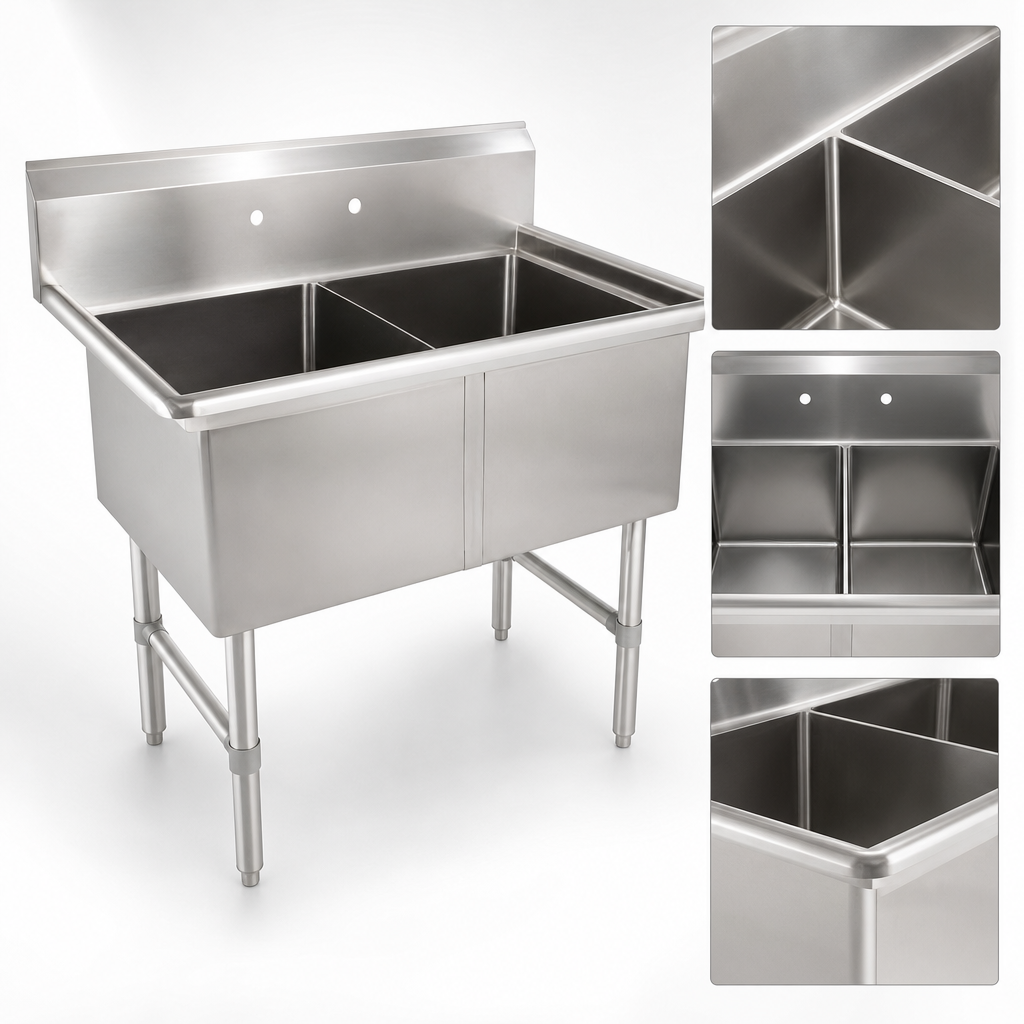

Two-Compartment Layout

Two separate bowls provide dedicated space for washing, rinsing, and prep tasks.

16-Gauge Stainless Steel Construction

Built with 16GA Type 300 stainless steel for strength and long-term durability.

Satin Finish

#4 polish satin finish helps the sink present a clean, professional appearance.

Tall Boxed Backsplash

10" boxed backsplash with a 2" return to the wall at 45° and a turned-down rear lip helps protect the wall surface.

Die-Stamped Drain Openings

3-1/2" drain openings and bowl bottoms formed for drainage help move water efficiently.

Stainless Steel Leg Base

Stainless steel legs with adjustable side bracing and bullet feet provide stable support and leveling.

Safe, Clean Edges

Coved bowl corners and bullnosed outside corners help reduce sharp edges and simplify cleaning.

Faucet Hole Provision

Includes splash-mount faucet holes with 8-inch centers for compatible faucet installation.

Type 2-Compartment Sink
Style B Series
Installation Type Floor Model (With Legs)
Compartments 2
Drainboards Without Drainboards
Material Stainless Steel
Finish #4 Polish, Satin Finish
Top Gauge 16 Gauge
Top Stainless Series 300 Series
Base Construction Stainless Steel
Base Type Legs with Side Crossrails
Backsplash Height 10 Inches
Compartment Width 18 Inches
Compartment Depth 24 Inches
Sink Depth 14 Inches
Drain Opening Size 3-1/2 Inches
Faucet Hole Centers 8 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 83 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Each compartment measures 18" wide x 24" front-to-back x 14" deep.
The overall size is 41-1/8" wide x 29-1/2" deep x 44" high.
Yes. It has a full-length 10" boxed backsplash with a 2" return to the wall at 45° and a 1" turned-down rear lip.
The sink includes splash-mount faucet holes with 8" centers.
Listed accessories include faucets, add-a-faucets, pre-rinse units, lever waste, overshelves, and pot rack options.
