Key specifications

Dimensions
75.25"W × 29.5"D × 44.06"H
Type
Compartment Sink
Style
B Series
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin Finish
Spec sheet
John Boos SKU: 2B18244-2D18 UPC: 662969158941

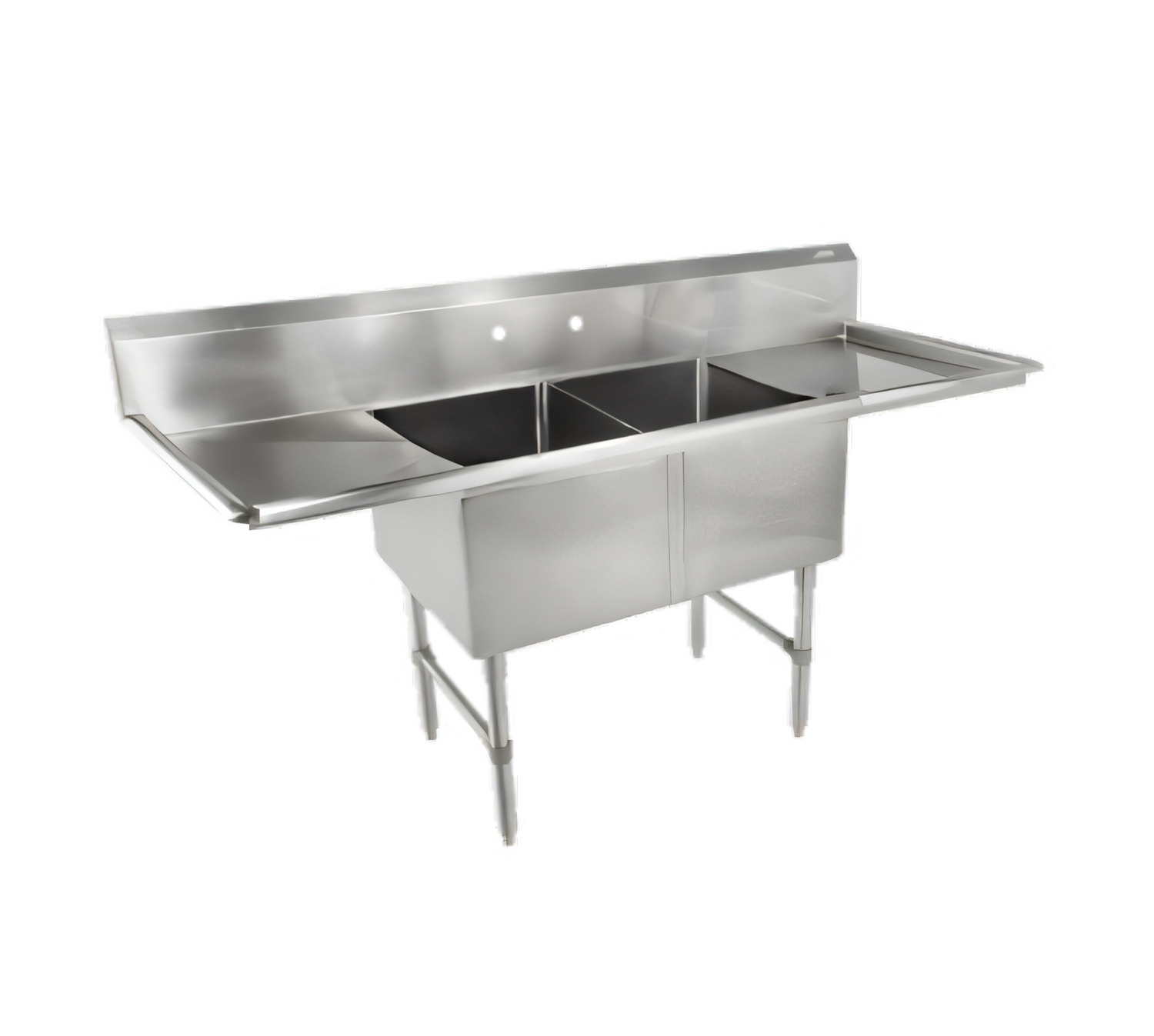

John Boos 2B18244-2D18 2-Compartment Sink, 18" Drainboards

$1,530.54
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $142/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Style B Series
Installation Type Floor Model
Material Stainless Steel
Finish Satin Finish
Top Gauge 16 Gauge
Stainless Steel Series 300 Series
Compartments 2
Compartment Width 18 in
Compartment Front-To-Back 24 in
Compartment Depth 14 in
Drainboards Left and Right
Backsplash Height 10 in
Backsplash Return 2 in
Backsplash Angle 45 Degrees
Faucet Mounting Splash Mount
Faucet Hole Diameter 1 in
Faucet Hole Centers 8 in
Drain Opening Diameter 3.5 in
Drain Opening Type Die Stamped
Base Type Legs With Side Crossrails
Leg Diameter 1.625 in
Bracing Adjustable Side Bracing
Feet Type Adjustable Bullet Feet
Overall Width 75.25 in
Overall Depth 29.5 in
Overall Height 44.06 in
Weight 109 lb

Description

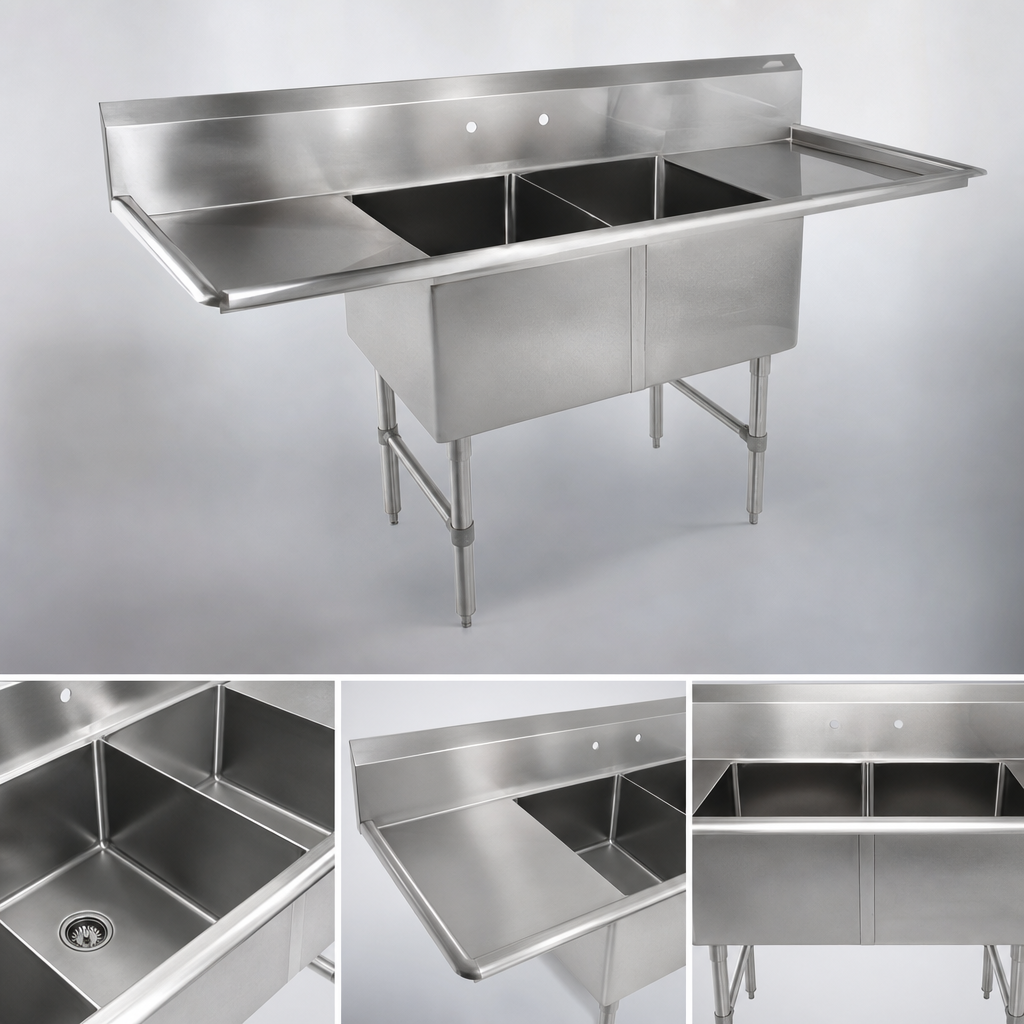

The John Boos 2B18244-2D18 is a B Series 2-compartment sink with an 18 in drainboard on each side. Its 16-gauge 300 series stainless steel top and bowls include a 10 in boxed backsplash with a 2 in return.

  • Compartments: Two compartments measuring 18 in wide x 24 in front-to-back x 14 in deep.
  • Construction: Stainless steel top, bowls, base, legs, bracing, gussets, and adjustable bullet feet.
  • Drainage: 3.5 in die-stamped drain openings formed for drainage.
  • Faucet mounting: Splash-mount faucet holes with 8 in centers.

Overall Dimensions:

75.25"W x 29.5"D x 44.06"H

Product Weight:

109.0 lb

Two Compartments

Each compartment measures 18 in wide x 24 in front-to-back x 14 in deep.

Left and Right Drainboards

An 18 in drainboard is positioned on each side of the sink.

Stainless Steel Construction

The top and bowls are 16-gauge 300 series stainless steel; the base, legs, bracing, gussets, and feet are stainless steel.

Boxed Backsplash

The backsplash is 10 in high with a 45-degree top and a 2 in return to the wall.

Splash-Mount Faucet Holes

The backsplash has a set of 1 in faucet holes with 8 in centers.

Die-Stamped Drain Openings

The bowls have 3.5 in die-stamped drain openings formed for drainage.

Adjustable Support Base

The sink has stainless steel legs, adjustable side bracing, and adjustable stainless steel bullet feet.

Coved Corners

The vertical and horizontal corners are coved at a 0.75 in radius.

Frequently Asked Questions

Each of the two compartments measures 18 in wide x 24 in front-to-back x 14 in deep.
The overall dimensions are 75.25 in wide x 29.5 in deep x 44.06 in high.
Yes. It has one 18 in drainboard on the left and one 18 in drainboard on the right.
The backsplash has a set of splash-mount faucet holes with 8 in centers. The faucet holes are 1 in in diameter.
It has stainless steel legs, adjustable side bracing, and adjustable stainless steel bullet feet.
