John Boos

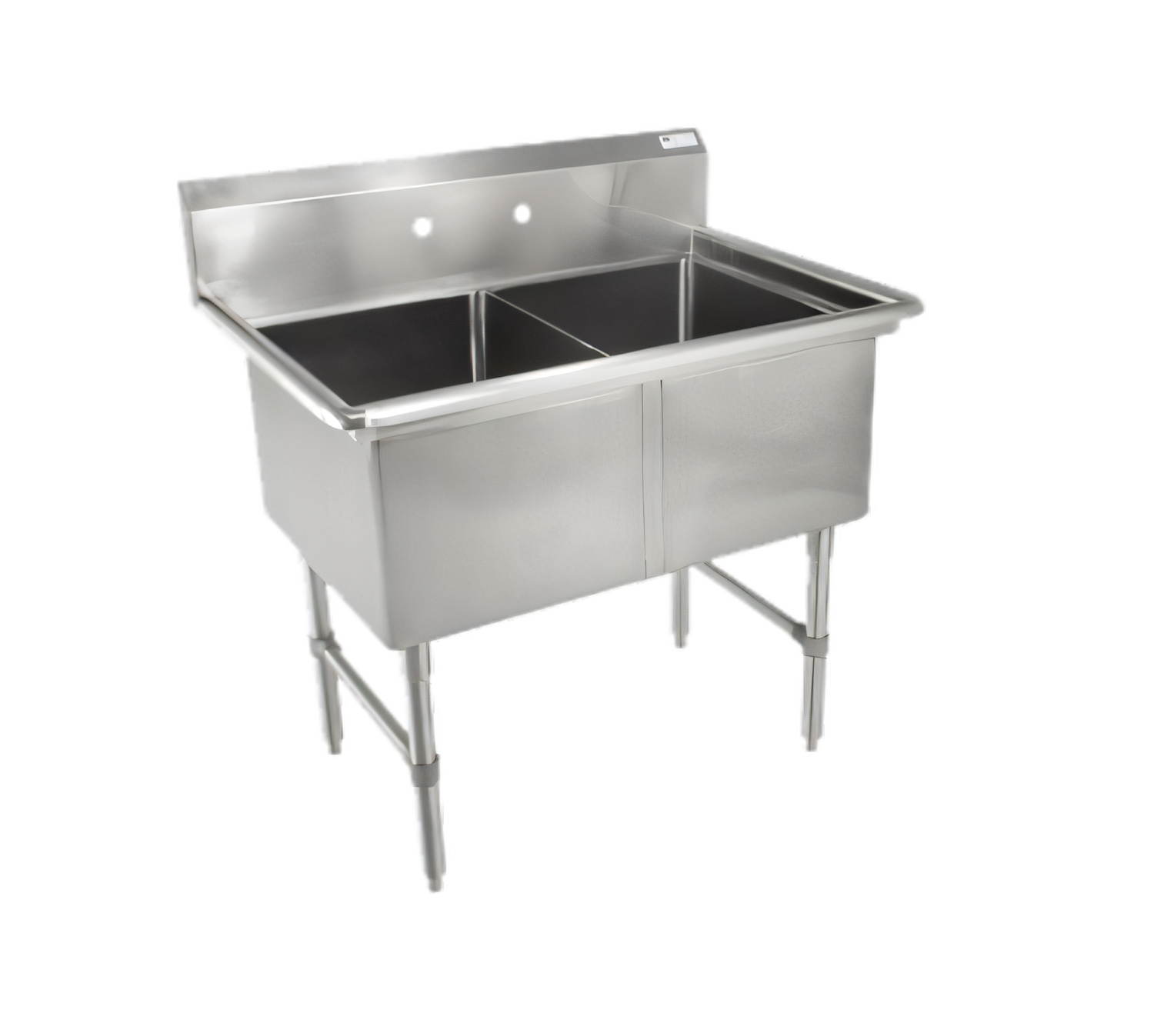

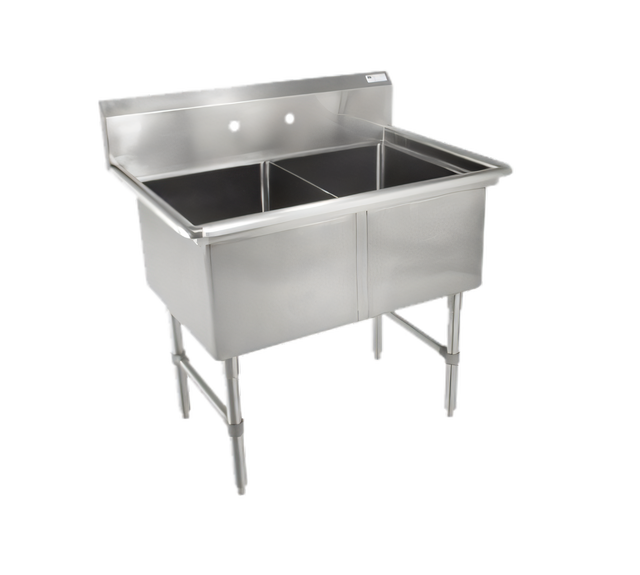

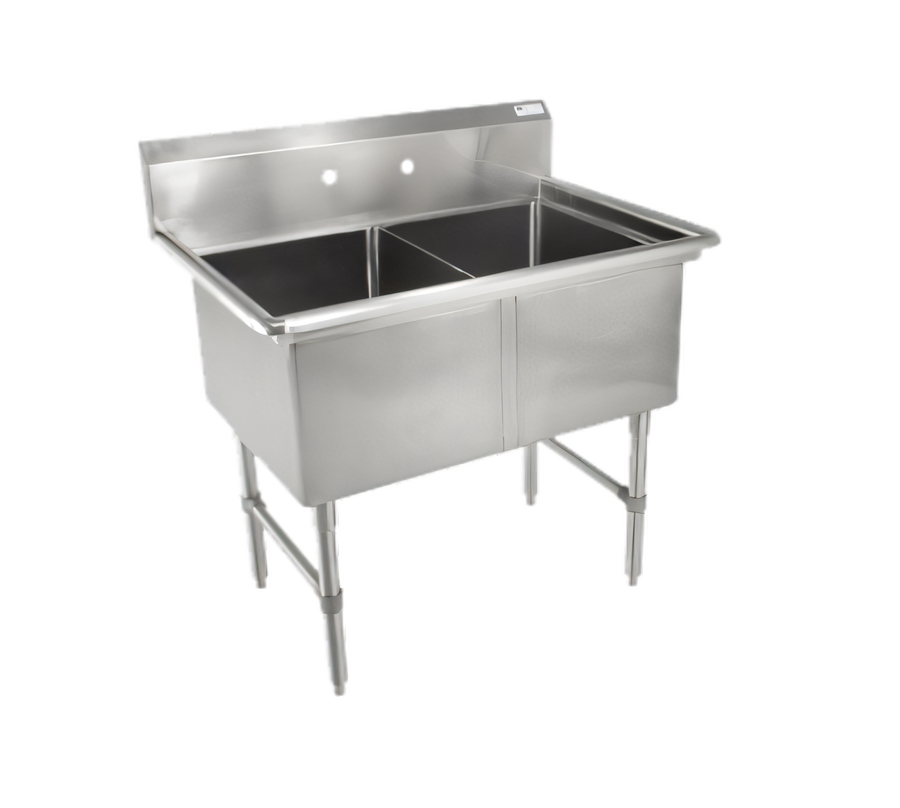

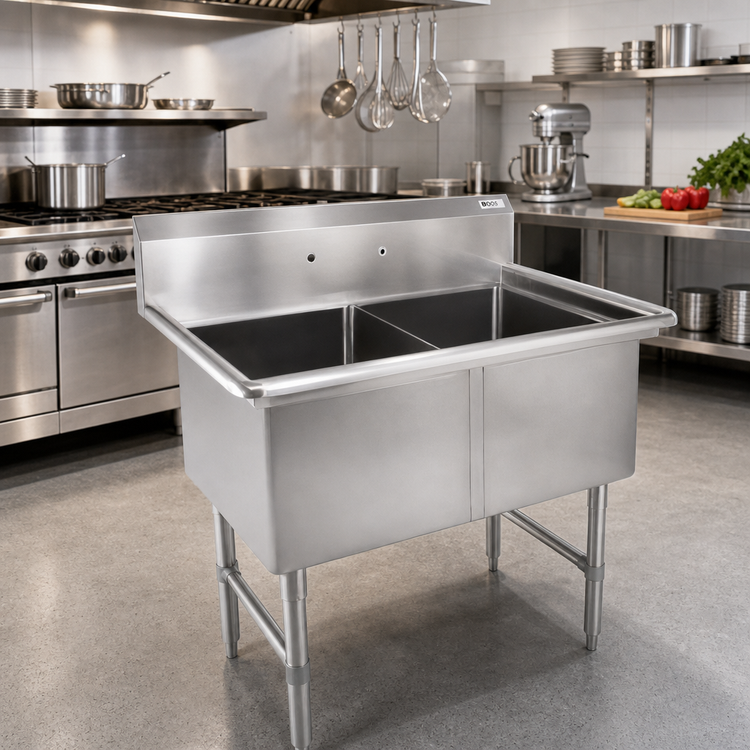

John Boos B Series 2-Compartment Stainless Steel Sink with 16" x 20" x 14" Bowls and Stainless Steel Leg Base

SKU: 2B16204-X
$1,239.18
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos B Series 2-Compartment Stainless Steel Sink with 16" x 20" x 14" Bowls and Stainless Steel Leg Base

37-1/8"W x 25-1/2"D, 10" Boxed Backsplash, Splash-Mount Faucet Holes

A rugged two-bowl sink built from 16-gauge stainless steel, designed for busy prep areas with deep compartments, a tall backsplash, and a stable leg base.

  • Two 16" x 20" x 14" compartments provide separate wash and prep space.
  • 16-gauge Type 300 stainless steel construction is built for demanding commercial use.
  • 10" boxed backsplash with a 45° return helps protect walls from splashes.
  • One set of splash-mount faucet holes with 8" centers simplifies installation.
  • Stainless steel legs, adjustable side bracing, and bullet feet provide a stable base.
  • NSF and CSA-Sanitation listed for commercial kitchen compliance.

Overall Dimensions:

37.12"W x 25.5"D x 44.0"H

Product Weight:

71.0 lb

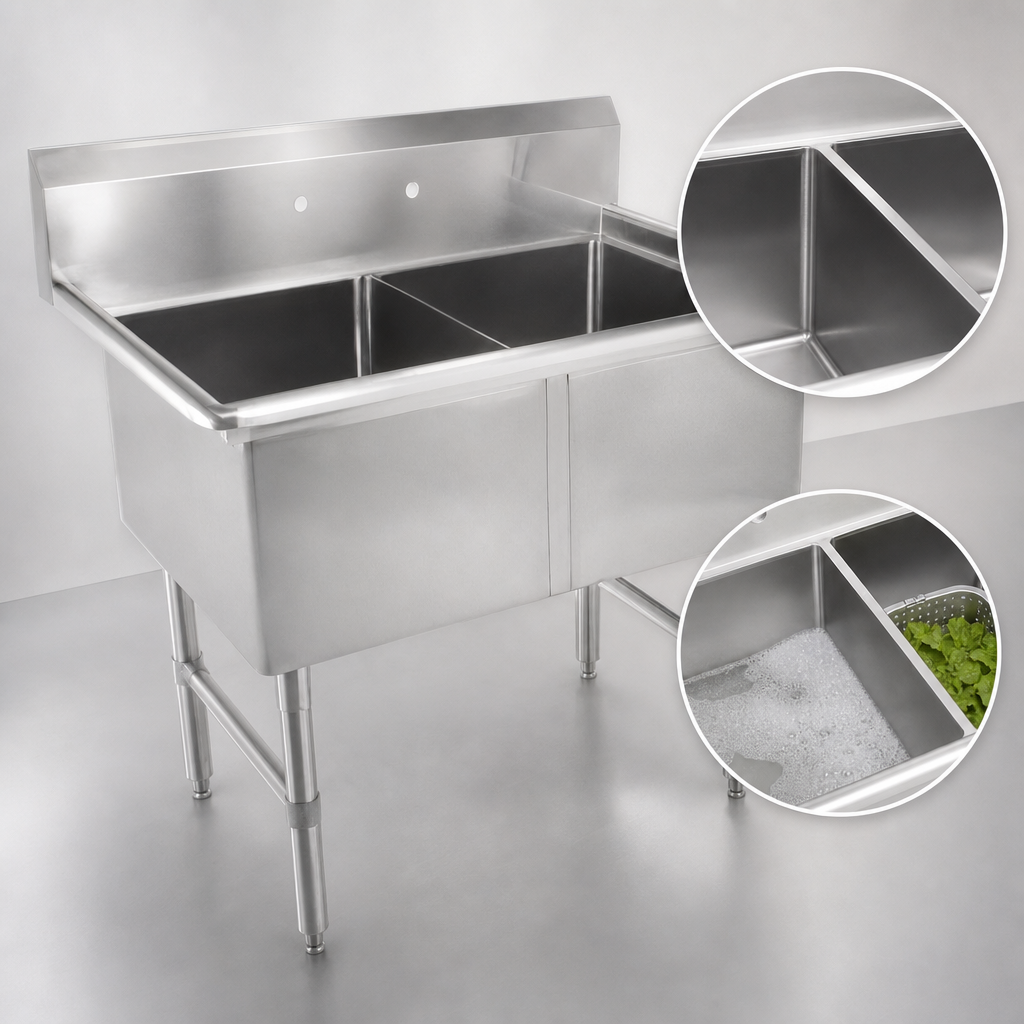

Two-Compartment Layout

Includes two separate sink compartments for multitasking in prep, wash, or utility areas.

Heavy-Duty Stainless Steel Construction

Made with 16-gauge Type 300 stainless steel for durability in commercial environments.

Deep Sink Bowls

Each compartment measures 16" wide x 20" front-to-back x 14" deep for practical working capacity.

10-Inch Boxed Backsplash

A full-length backsplash with a 2" return at 45° helps reduce wall splash and supports a cleaner install.

Drainage-Focused Bowl Design

Bottoms are formed for drainage and feature 3-1/2" die-stamped drain openings.

Splash-Mount Faucet Holes

One set of faucet holes with 8" centers is provided in the backsplash.

Stainless Steel Leg Base

The base includes stainless steel legs, adjustable side bracing, and bullet feet for stability and leveling.

Bullnosed Outside Corners

Outside corners are rounded for a safer, cleaner, more finished edge.

Type Compartment Sink
Style B Series
Installation Type Floor Model (With Legs)
Compartments 2
Compartment Width 16 Inches
Compartment Depth 20 Inches
Sink Depth 14 Inches
Backsplash Height 10 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Top Gauge 16 Gauge
Base Type Legs with Side Crossrails
Material 300 Series Stainless Steel
Finish #4 Polish, Satin Finish
Selling Unit Each
Units Per Case 1
Shipping Width 38 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 71 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

This model has 2 compartments, each measuring 16" wide x 20" front-to-back x 14" deep.
Yes. It includes one set of splash-mount faucet holes with 8" centers.
The sink has a 10" high boxed backsplash with a 2" return to the wall at 45° and a 1" turned-down rear lip.
No. This sink is listed without drainboards.
It is made from 16-gauge Type 300 stainless steel and includes stainless steel legs and bracing.
