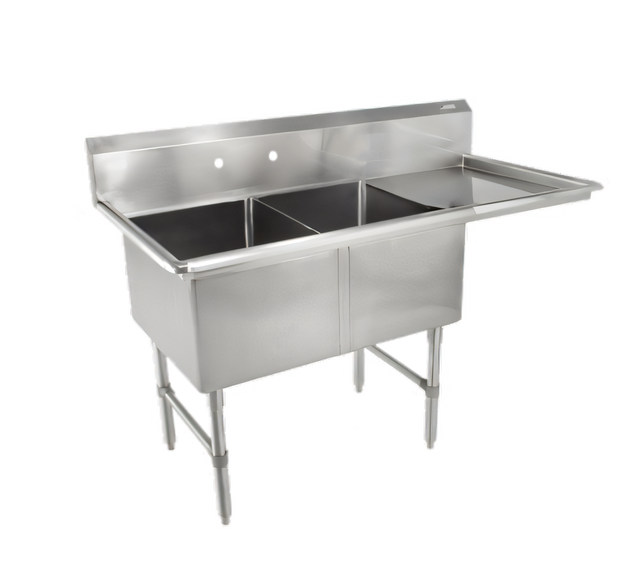

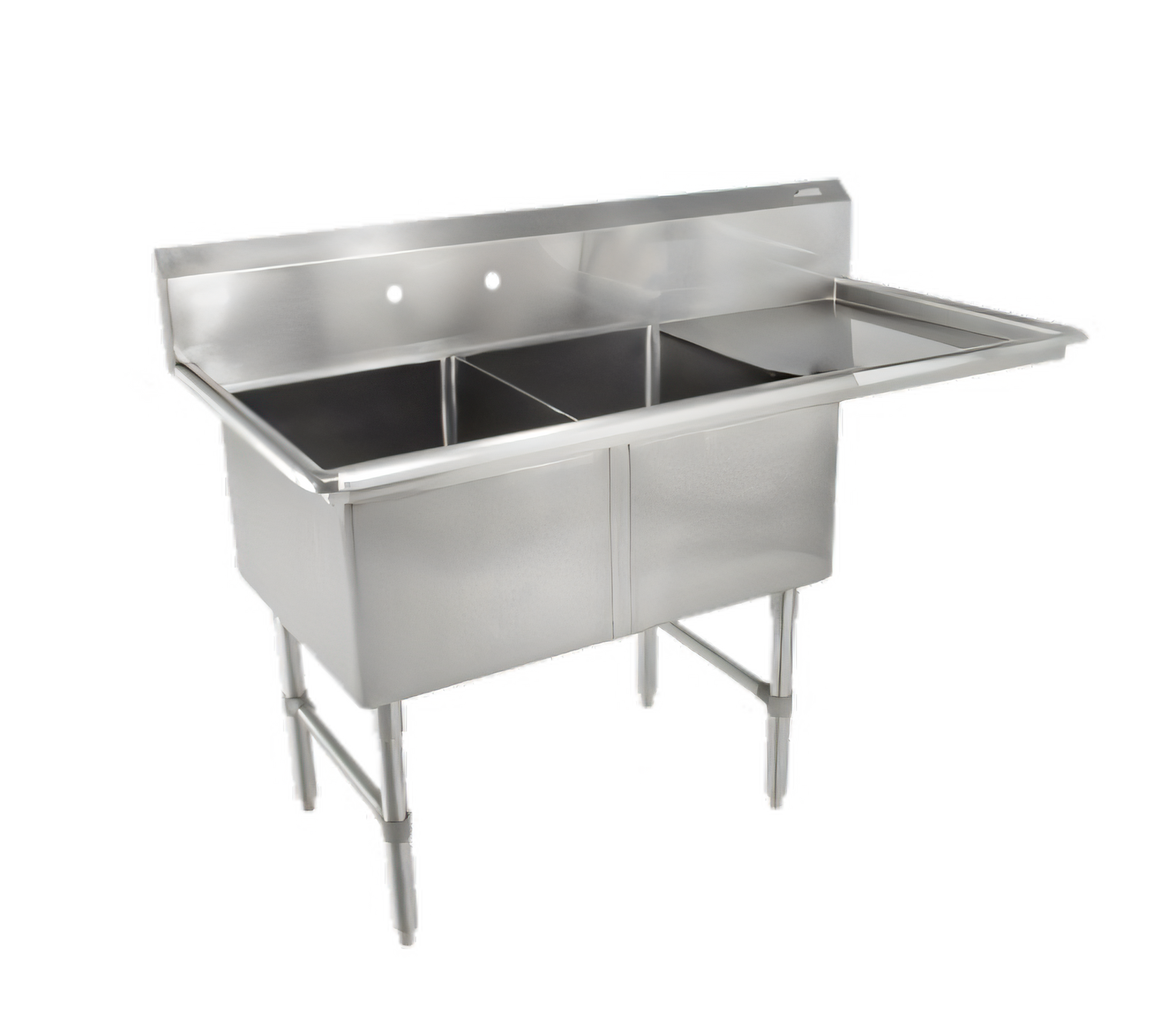

John Boos B Series 2-Compartment Sink with Right Drainboard, 54-3/16"W x 25-1/2"D x 44"H, 16-Gauge Stainless Steel

14" Deep Bowls, 10" Boxed Backsplash, Adjustable Bullet Feet

A durable 16-gauge stainless steel sink with dual deep bowls, a right-hand drainboard, and a tall backsplash for efficient prep and wash stations.

  • Two 16" x 20" x 14" deep compartments support separated washing and prep tasks.
  • 18" right-hand drainboard provides a convenient landing area for draining and staging.
  • 16-gauge Type 300 stainless steel top with satin finish is built for long-term commercial use.
  • 10" boxed backsplash with 2" return helps protect walls from splashes.
  • 3-1/2" die-stamped drain openings and coved bowl corners promote drainage and easier cleanup.
  • Stainless steel legs, adjustable side bracing, and bullet feet provide stable, level support.
  • Splash-mount faucet holes with 8" centers simplify faucet installation.

Overall Dimensions:

54.18"W x 25.5"D x 44.0"H

Product Weight:

85.0 lb

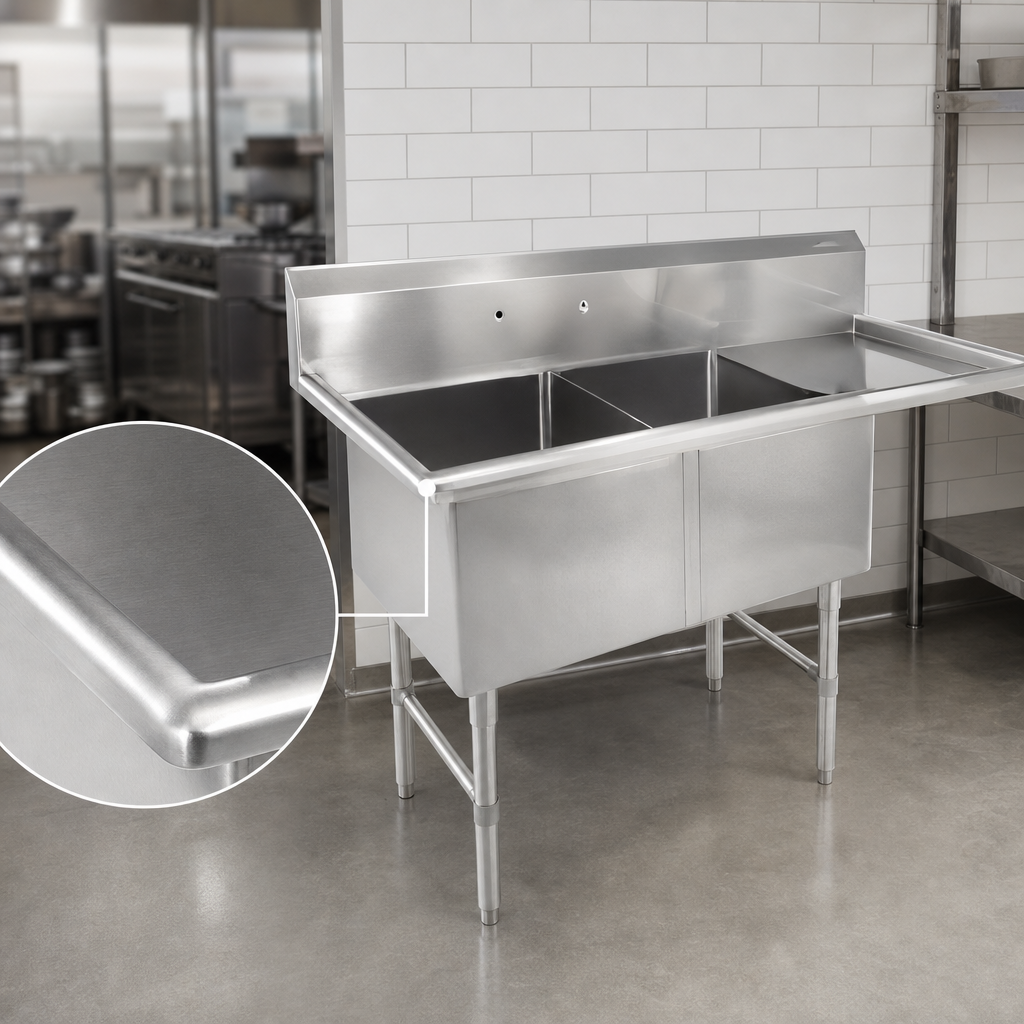

16-Gauge Stainless Steel Construction

Type 300 stainless steel top and bowls deliver strength and corrosion resistance for heavy-duty use.

Two Deep Compartments

Each bowl measures 16" wide x 20" front-to-back x 14" deep for washing, rinsing, or prep separation.

Right-Hand Drainboard

The 18" drainboard gives you a dedicated surface for draining dishes, pans, or prep items.

Boxed Backsplash

A 10" high backsplash with a 2" return helps reduce splashback and protect the wall behind the sink.

Sanitary Bowl Design

Coved corners and 3-1/2" die-stamped drain openings help move water out of the bowls and make cleaning easier.

Stainless Steel Base

Stainless steel legs, adjustable side bracing, and bullet feet provide stable support and easy leveling.

Faucet Hole Provision

Splash-mount faucet holes with 8" centers are ready for faucet installation.

Type Compartment Sink
Style 2-Compartment with Right Drainboard
Installation Type Floor Model
Compartments 2
Compartment Width 16 Inches
Compartment Depth 20 Inches
Sink Depth 14 Inches
Drainboard Side Right
Drainboard Length 18 Inches
Backsplash Height 10 Inches
Top Gauge 16 Gauge
Material Stainless Steel
Finish Satin
Base Type Legs with Side Crossrails
Selling Unit Each
Units Per Case 1
Shipping Width 55 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 85 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This model has a right-hand drainboard.
Each compartment measures 16" wide x 20" front-to-back x 14" deep.
It is made from 16-gauge Type 300 stainless steel with stainless steel legs and base components.
Yes. It includes splash-mount faucet holes with 8" centers in the backsplash.
The sink has a 10" high boxed backsplash with a 2" return to the wall.
