John Boos 2B16204-1D18L-X Compartment Sinks
Description

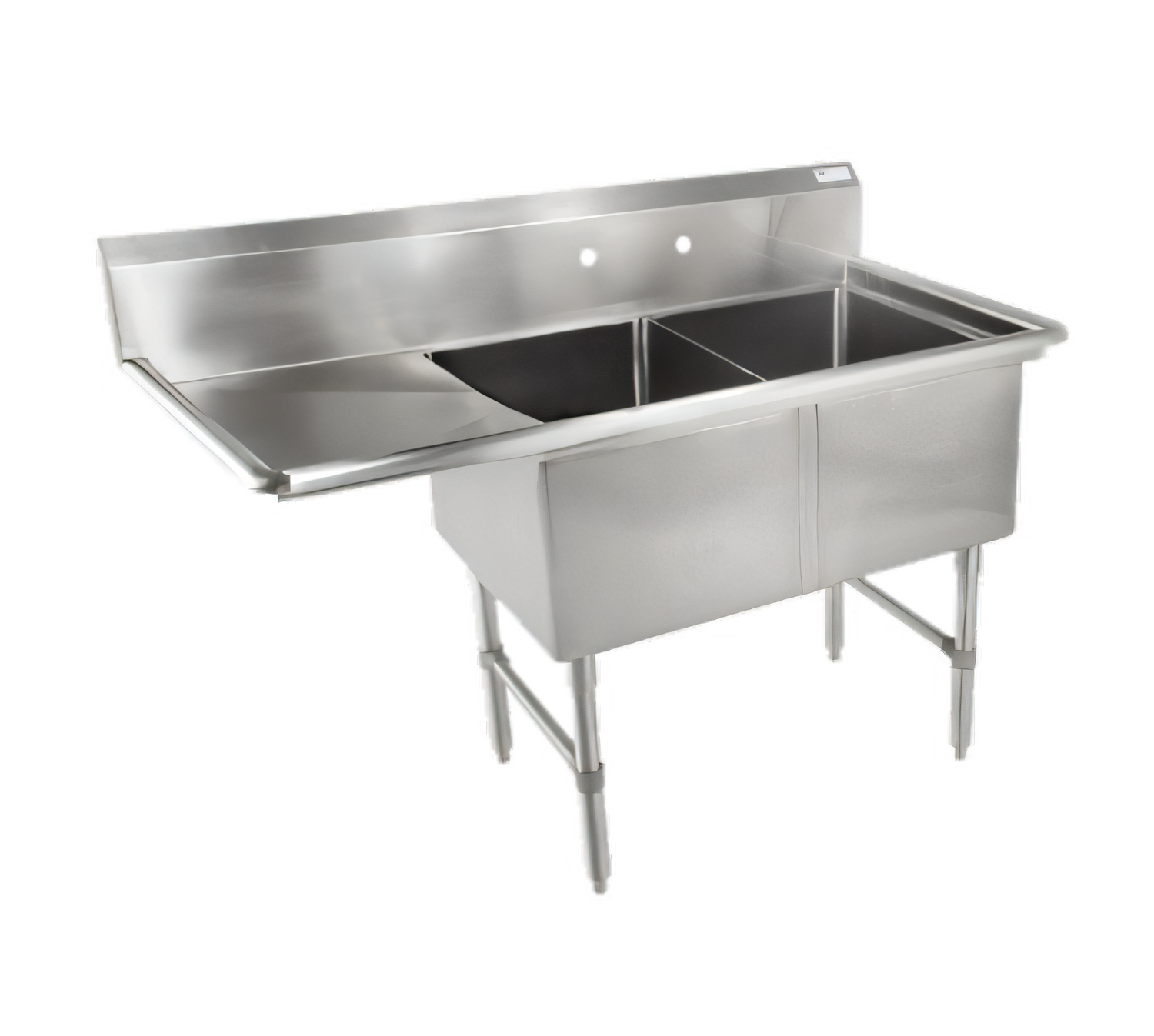

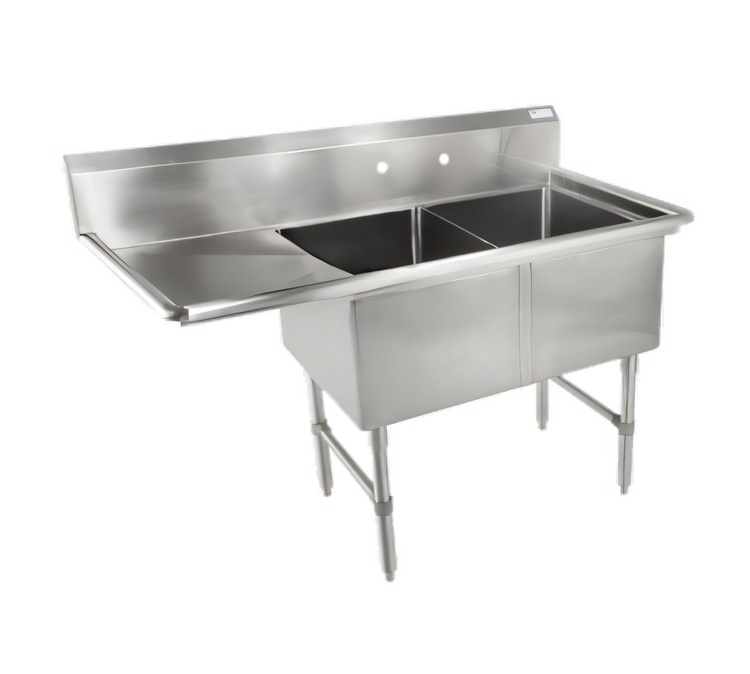

John Boos “B” Series 54" 2-Compartment Sink w/ 18" Left Drainboard
Model # 2B16204-1D18L | 16 GA Type 300 Stainless SteelEngineered for demanding commercial kitchens, this John Boos “B” Series sink delivers rugged durability, food-safe sanitation and ergonomic workflow in one compact 54-inch footprint. Two roomy 14-inch-deep compartments handle prep or ware-washing with ease, while the integrated 18-inch left-side drainboard keeps clean or dirty wares organized and off your worktop.
Why You’ll Love It

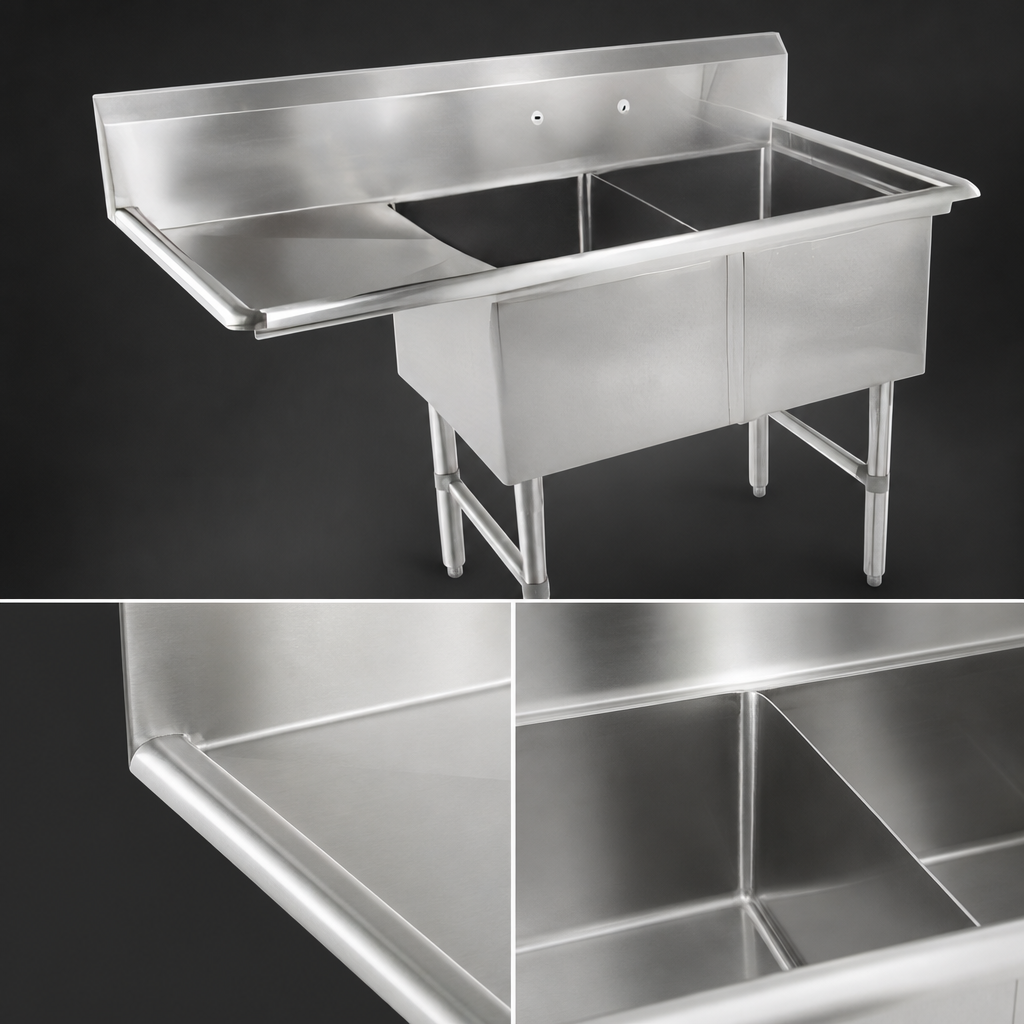

- Heavy-duty 16 gauge Type 300 stainless steel—built to resist corrosion and dents.
- (2) 16" W x 20" F-B x 14" D bowls with ¾" coved corners for effortless cleaning.
- 18" left drainboard formed with positive pitch for fast water run-off.
- 10" boxed backsplash with 2" return & 45° top edge helps contain splashes.
- Pre-punched splash-mount faucet holes on 8" centers (faucet sold separately).
- 3-½" die-stamped drain openings fit standard commercial sink strainers.
- 1-5/8" O.D. stainless steel legs with adjustable side bracing for rock-solid stability.
- Adjustable 1" stainless bullet feet level the sink on uneven floors.
- NSF & CSA-Sanitation listed for front-of-house or back-of-house use.
- Made in the USA (Effingham, IL & Nevada, MO facilities).
Technical Specifications
| Overall dimensions | 54" W x 25-1/2" D x 44" H |
|---|---|
| Bowl size (each) | 16" W x 20" F-B x 14" D |
| Drainboard | 18" L (left side), integrally welded |
| Backsplash | 10" boxed, 2" return, 45° top |
| Faucet holes | (2) Ø1" holes on 8" centers, splash mount |
| Drain openings | Ø3-1/2" die-stamped |
| Material / finish | 16 GA Type 300 SS, #4 satin polish |
| Legs / bracing | Stainless legs, 1-1/4" O.D. SS side bracing (adjustable) |
| Feet | 1" stainless adjustable bullet feet |
| Certifications | NSF, CSA-Sanitation |
Ideal Applications
- Restaurants & bars
- Ghost kitchens & food trucks needing compact efficiency
- Bakeries & commissaries
- Healthcare & institutional foodservice
Care & Maintenance
Preserve the sink’s satin shine and NSF compliance with routine cleaning:
- Wipe daily with mild soap or detergent and a soft cloth.
- Avoid chlorine bleach or harsh, chloride-based cleaners.
- For tough stains, use Bar Keepers Friend and a non-abrasive pad, always scrubbing with the grain.
- Rinse thoroughly and dry to prevent mineral spotting.
