John Boos 2B16204-1D18L Compartment Sinks
Description

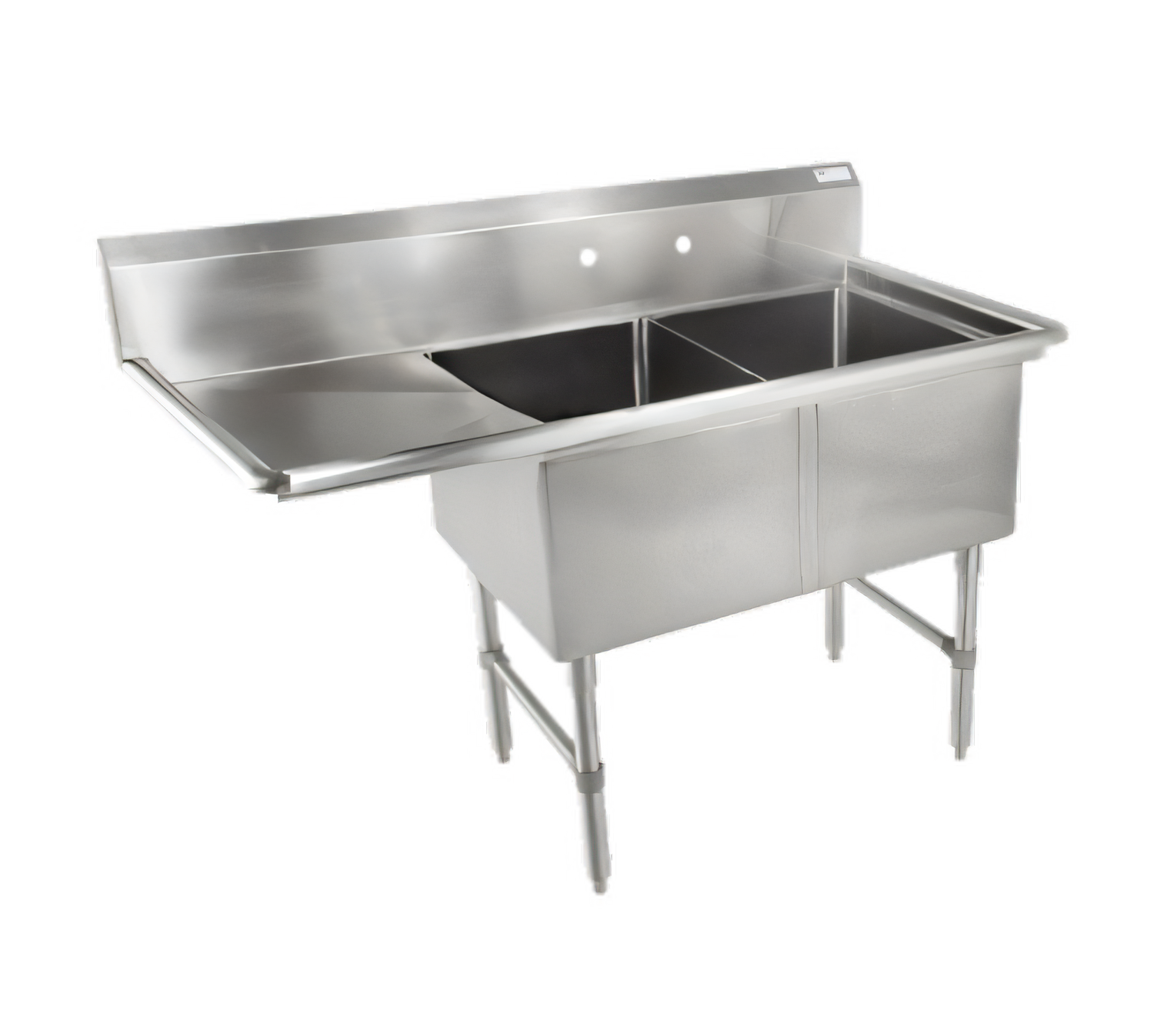

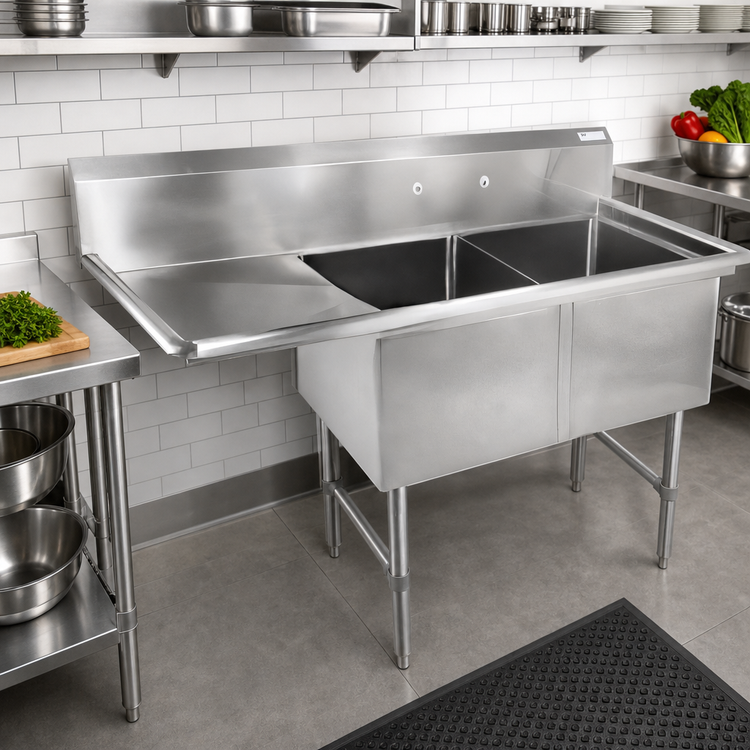

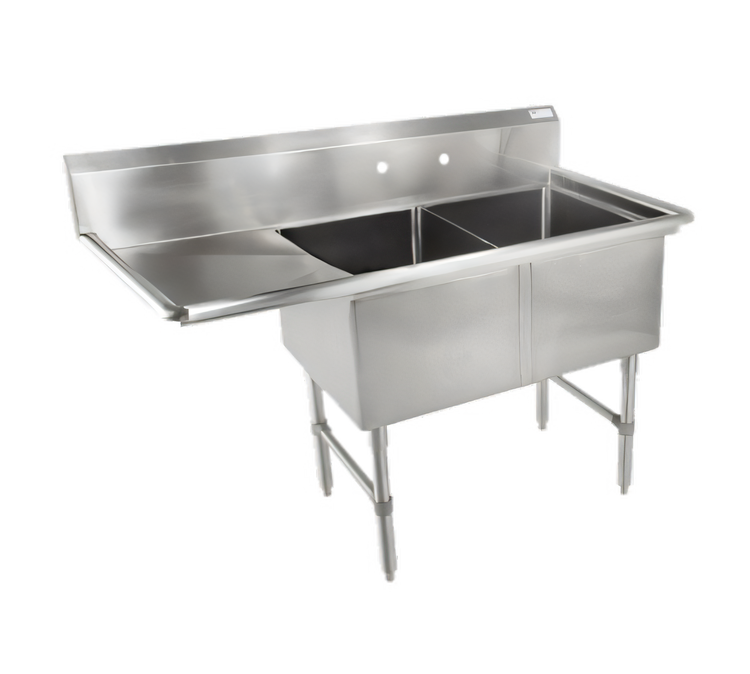

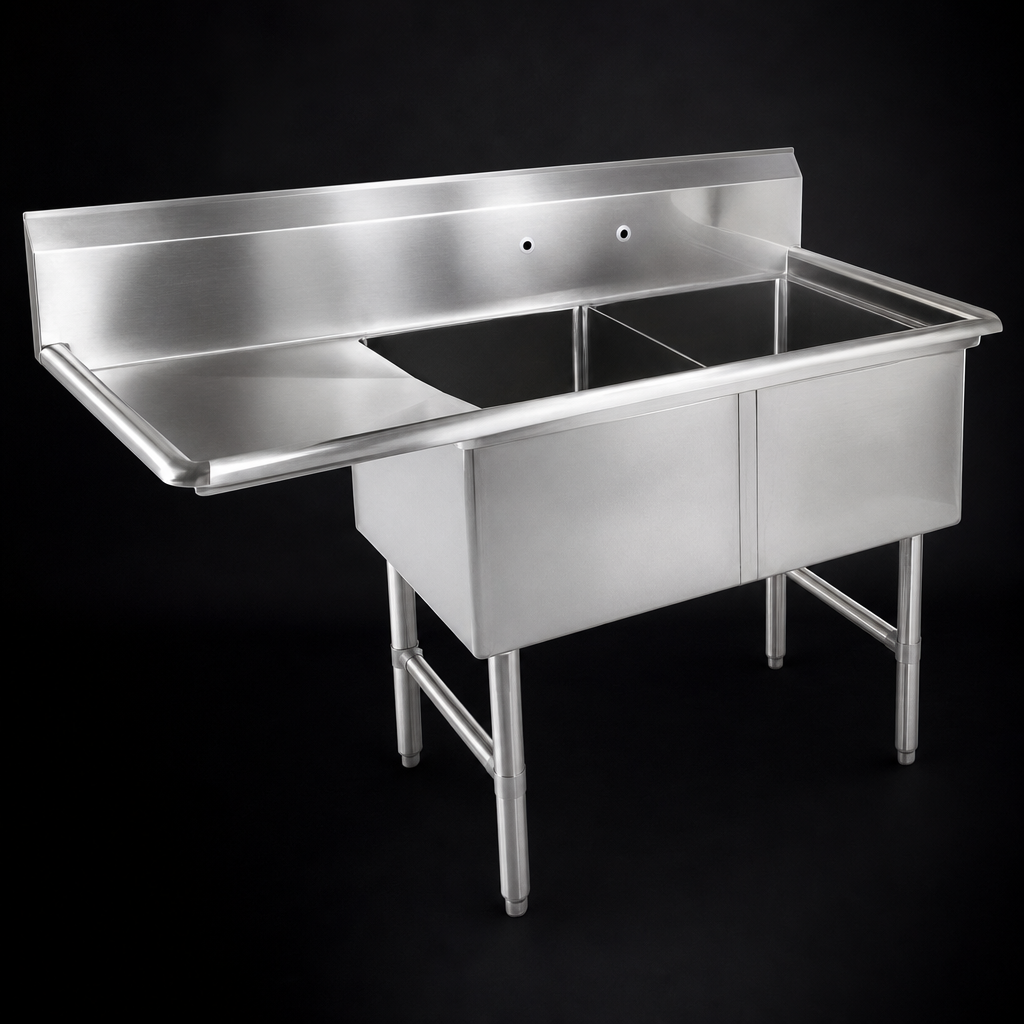

John Boos B-Series 2-Compartment Sink w/ Left Drainboard – 54" (Model 2B16204-1D18L)
Heavy-duty 16-gauge 300 series stainless steel • NSF & CSA-Sanitation certifiedKeep prep lines moving and health inspectors happy with this premium John Boos B-Series compartment sink. Two generous 14" deep bowls handle washing and rinsing duties, while the integrated 18" left-hand drainboard and 10" boxed backsplash channel water safely where it belongs. Built entirely from food-grade stainless steel and reinforced with rock-solid legs and bracing, this sink is engineered for years of reliable service in restaurants, bakeries, cafeterias, and commissary kitchens.
Key Features
- Two 16" W × 20" F/B × 14" D bowls for simultaneous wash & rinse operations.
- 18" left-side drainboard with creased surface for fast water runoff.
- 10" high boxed backsplash with 45° top edge and 2" return protects surrounding walls.
- Splash-mount faucet holes on 8" centers – fits most commercial faucets (sold separately).
- 3-1/2" die-stamped drain openings accept standard basket strainers or lever wastes.
- TIG-welded, #4 satin-polished 16GA type 300 stainless steel – superior corrosion resistance.
- 1-5/8" Ø stainless steel legs with adjustable 1-1/4" Ø side bracing for extra rigidity.
- 1" stainless steel bullet feet adjust for level installation on uneven floors.
- All vertical & horizontal corners coved to a 3/4" radius; bull-nosed edges for operator safety.
- NSF & CSA-Sanitation listed – meets national food-service codes.
Dimensions & Specifications
| Overall width | 54" (1375 mm) |
|---|---|
| Overall depth | 25 1/2" (648 mm) |
| Overall height | 44" (1118 mm) to top of backsplash |
| Bowl size (each) | 16" W × 20" F/B × 14" D |
| Drainboard | 18" – left side |
| Backsplash | 10" H, boxed style, 45° top, 2" return |
| Faucet holes | (2) 1" Ø holes, 8" centers |
| Material | 16-gauge type 300 stainless steel, #4 satin finish |
| Legs / bracing | 1-5/8" Ø stainless legs with adjustable 1-1/4" Ø stainless side bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Drain openings | 3-1/2" die-stamped |
| Approx. weight | 85 lb |
| Certifications | NSF, CSA-Sanitation |
| Warranty | 1-Year Limited Manufacturer Warranty |
Need a right-hand drainboard or different bowl size? Ask us about additional John Boos B-Series models.
Recommended Accessories (Sold Separately)
- Splash-mount faucet or add-a-faucet kits (8" centers)
- Lever waste drains / basket strainers
- Pre-rinse spray assemblies for high-volume dishrooms
- Stainless steel overshelves & pot racks for extra storage
Care & Maintenance
- Clean daily with non-chloride detergents and a soft cloth or sponge.
- Rinse and dry after each use to maintain the protective stainless film.
- Avoid abrasive pads, wire brushes, or cleaners containing harsh chlorides.
- For stubborn stains, use Bar Keepers Friend® along the grain, then polish with John Boos Stainless Steel Cleaner.
