John Boos 1PB3024-1D36L Pro-Bowl Compartment Sinks
Description

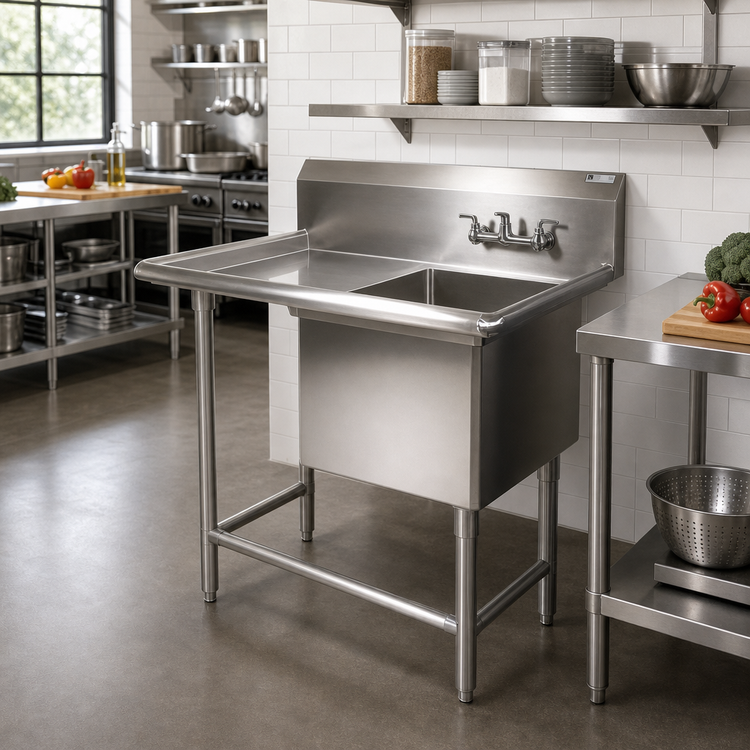

John Boos Pro-Bowl 1-Compartment Sink w/ 36" Left Drainboard – 70" Wide
Model 1PB3024-1D36L | NSF & CSA-Sanitation CertifiedEngineered for the busiest prep and dish rooms, the Pro-Bowl series delivers rugged 16-gauge stainless steel durability, a spacious 30" x 24" bowl, and an extra-long drainboard that keeps workflow smooth and sanitary.
Why this sink works harder

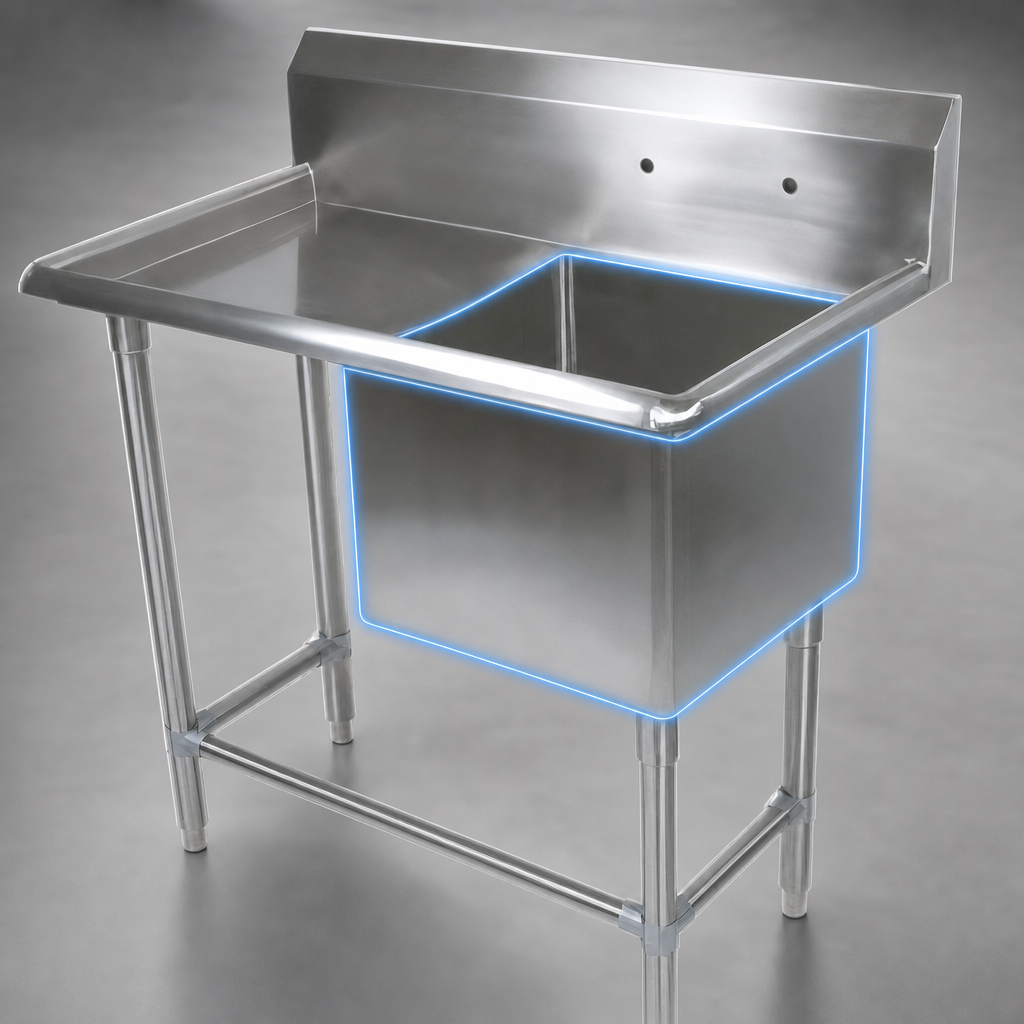

- Roomy 30" W x 24" F/B x 12" D compartment fits full-size sheet pans and stock pots.
- 36" left-side drainboard provides generous landing space for dirty or clean wares.
- 10" boxed backsplash with 2" return shields walls from overspray.
- Splash-mount faucet ledge drilled on 8" centers – just bolt on the faucet and go.
- TIG-welded seams polished to a #4 satin finish for easy wipe-down.
- 1-5/8" O.D. stainless legs, adjustable front & side bracing, and bullet feet keep the unit rock-steady on uneven floors.
- Ships knocked-down (KD) to cut freight costs and fit through tight doorways – assembles quickly on site.
Specifications
| Manufacturer | John Boos & Co. |
|---|---|
| Series | Pro-Bowl “1PB-1D” |
| Model # | 1PB3024-1D36L |
| Compartments | 1 |
| Overall Dimensions (W × D × H) | 70-3/16" × 29-1/2" × 44-1/16" |
| Compartment Size (W × F/B × Depth) | 30" × 24" × 12" |
| Drainboard | 36" (left side) |
| Backsplash | 10" boxed, 45° top, 2" return |
| Faucet Holes | (1) set, 8" on-center, 1" dia. |
| Drain Opening | 3-1/2" die-stamped |
| Material | 16-ga, Type 300 stainless steel, #4 satin |
| Legs / Bracing | 1-5/8" O.D. SS legs with 1-1/4" O.D. adjustable SS bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Ship Weight | Approx. 87 lb |
| Certifications | NSF, CSA-Sanitation |
Optional accessories (sold separately)
- End splashes – left, right, or both
- Deck & splash-mount faucets, add-a-faucets
- Pre-rinse spray units
- Lever waste drains
- Overshelves & pot racks
Need help pairing the right faucet or overshelf? Reach out to our product specialists – we’re happy to help.
Care & maintenance
Clean daily with a soft cloth and non-chloride detergent, wiping in the direction of the polish lines. For stubborn residue, use Bar Keepers Friend followed by John Boos Stainless Steel Cleaner to restore the original satin sheen.
