John Boos  |  Pro-Bowl  |  SKU: 1PB24-2D30  |  UPC: 662969633608

John Boos 1PB24-2D30 Pro-Bowl Compartment Sinks

$2,283.42
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

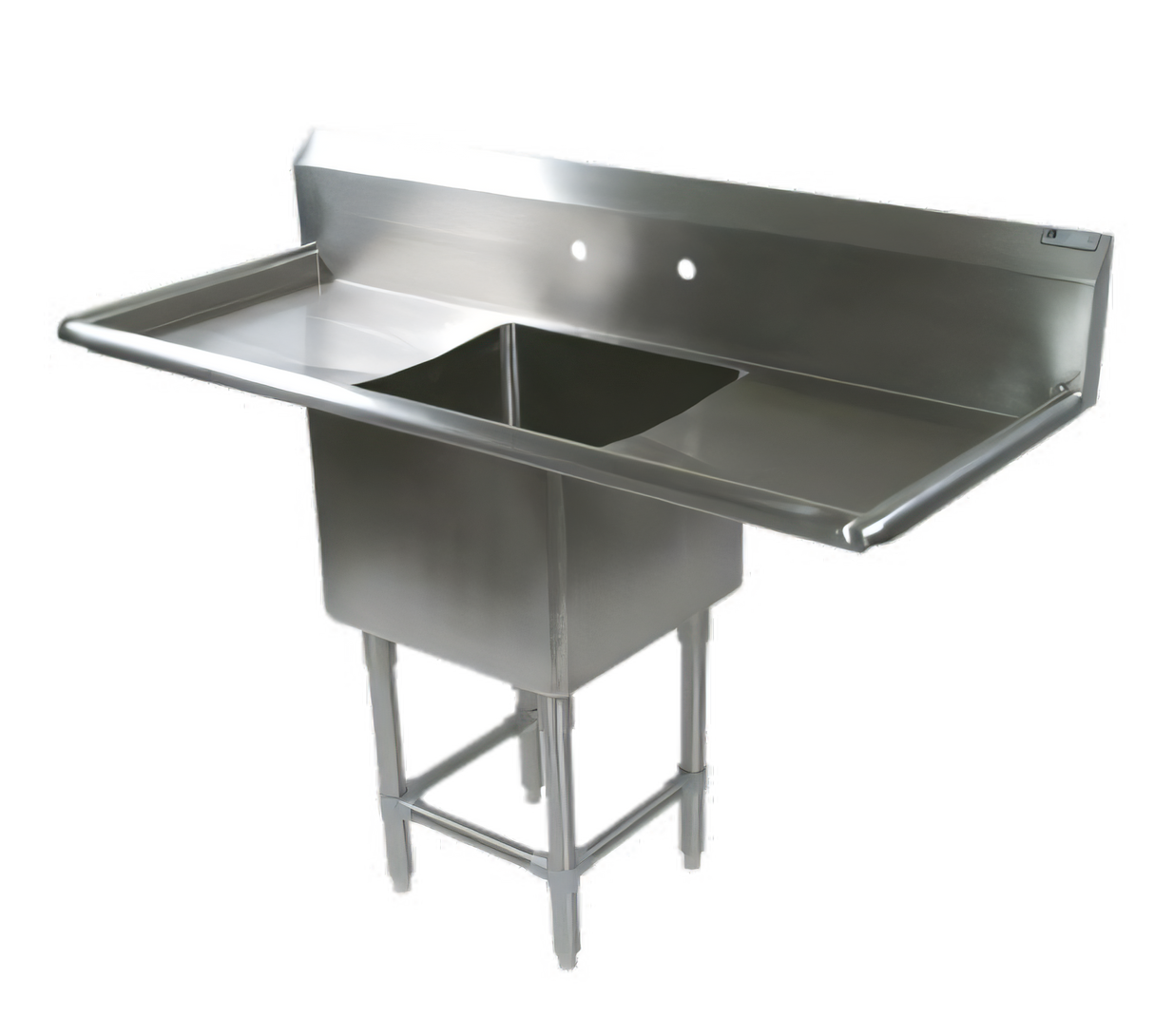

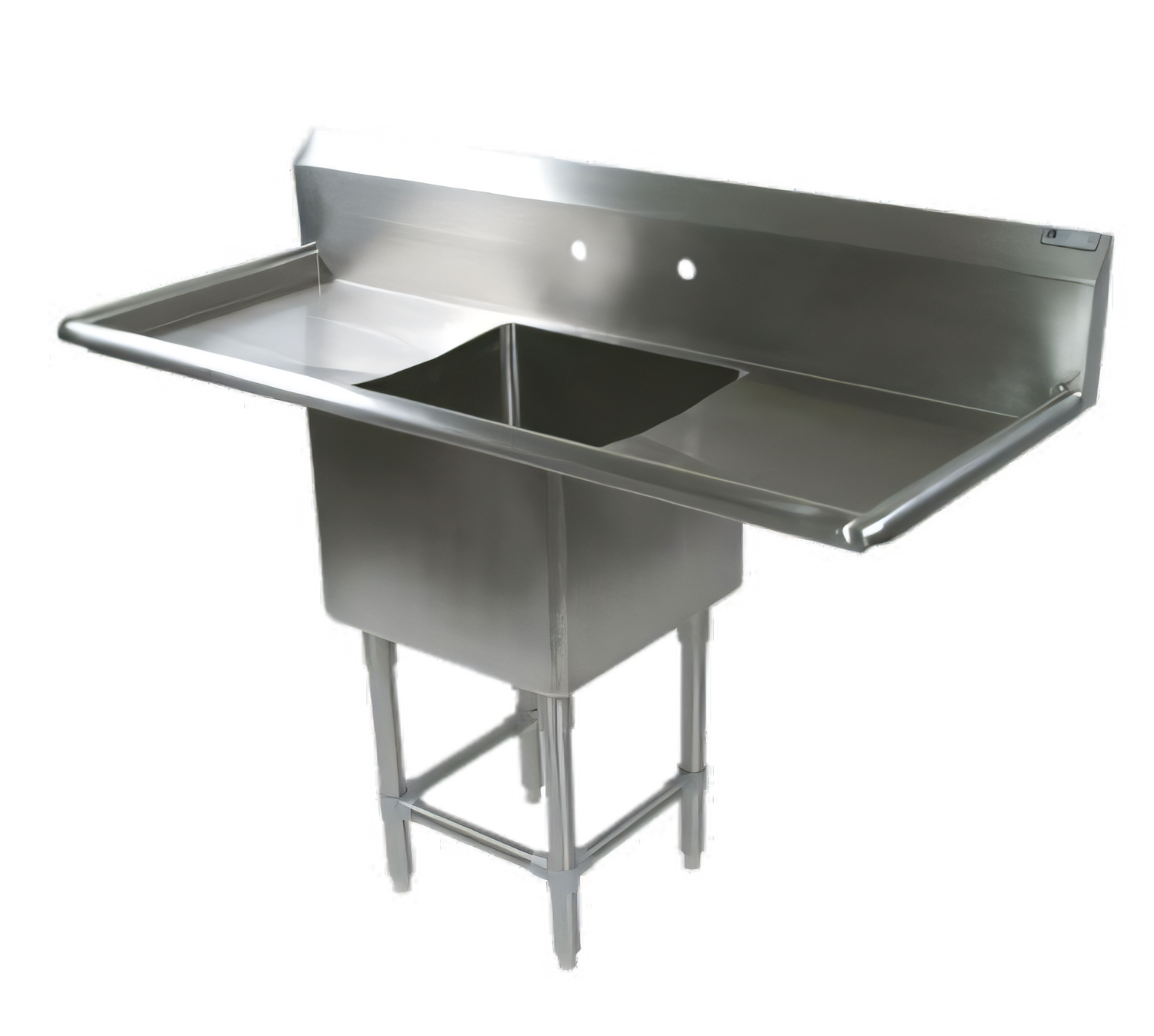

John Boos Pro-Bowl 1-Compartment Sink w/ Dual 30" Drainboards – 87-1/4" x 29-1/2"

Model 1PB24-2D30 | 16 GA Type 300 Stainless Steel | NSF & CSA-Sanitation Listed

Built for the rigors of high-volume kitchens, the John Boos Pro-Bowl series pairs heavy-duty 16-gauge stainless steel with smart, operator-friendly design. A roomy 24" x 24" x 12" wash compartment is flanked by full-size 30" drainboards, giving you a dedicated zone for every step of the wash-rinse-air-dry cycle.

Key Features

  • Single compartment: 24" W × 24" F-B × 12" D with 5/8" coved corners for effortless cleaning
  • Integrated 30" left & right drainboards pitched for rapid water run-off
  • 10" boxed backsplash with 45° top & 2" return shields walls from splashes
  • Splash-mount faucet holes – 8" on-center (faucet sold separately)
  • 3-1/2" die-stamped drain opening accepts standard sink strainers

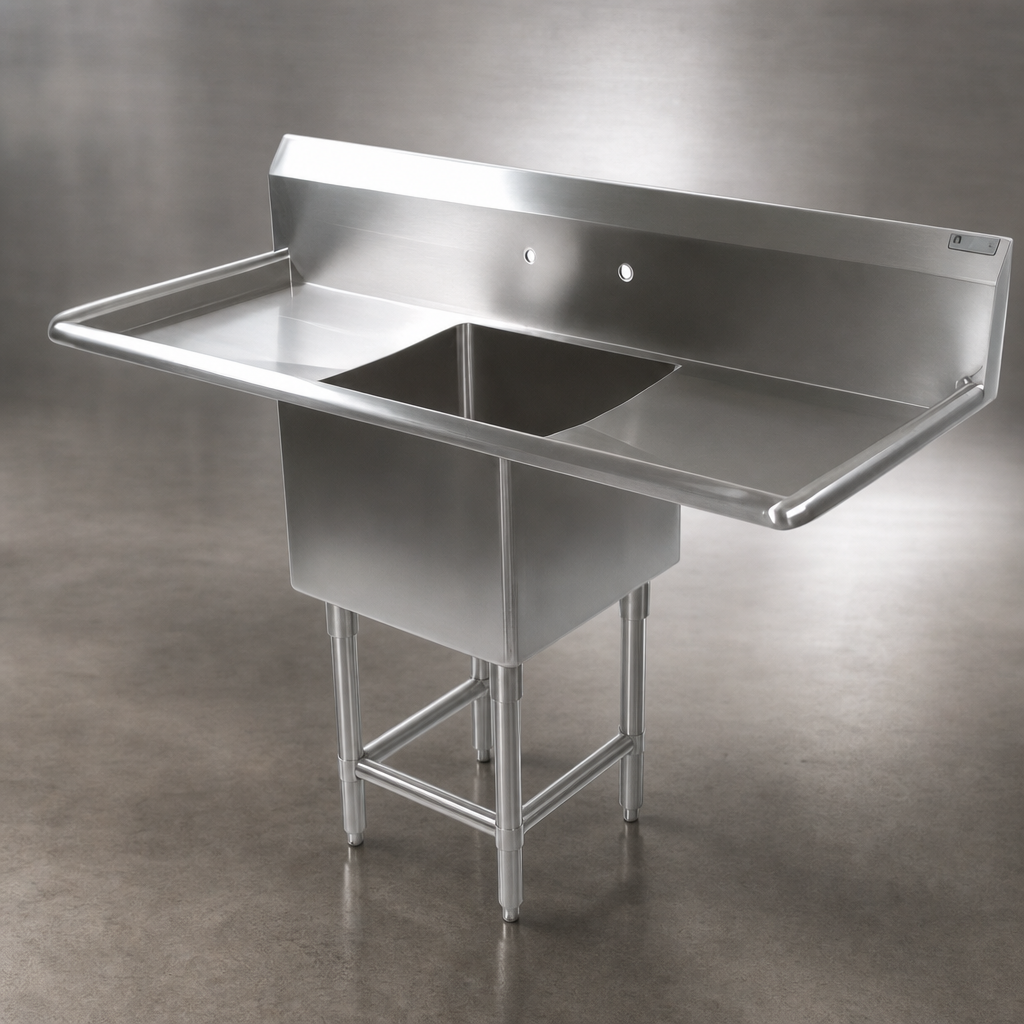

  • All TIG-welded 16 GA type 300 stainless steel, #4 satin finish
  • 1-5/8" Ø stainless steel legs with adjustable front & side bracing
  • 1" adjustable stainless bullet feet for fast, level installation
  • Bullnosed edges enhance operator comfort & safety
  • Knock-Down design ships economically & assembles quickly on-site
  • NSF & CSA-Sanitation certified – ready for regulated food-service use

At-a-Glance Specifications

Overall dimensions 87-1/4" W × 29-1/2" D × 44-1/16" H (to top of backsplash)
Compartment size 24" W × 24" F-B × 12" D
Drainboards (2) × 30" integrated, left & right
Backsplash 10" H boxed, 45° top, 2" rear return
Faucet mounting 8" on-center splash-mount holes
Drain opening 3-1/2" dia. die-stamped
Material / finish 16 GA type 300 stainless steel, #4 satin
Legs & bracing Stainless steel legs (1-5/8" Ø) with adjustable S/S front & side bracing
Feet 1" adjustable stainless bullet feet
Approx. ship weight 97 lb
Certifications NSF, CSA-Sanitation

Ideal Applications

  • Restaurant prep & pot washing stations
  • Catering commissaries & ghost kitchens
  • Bakeries, breweries & produce wash areas
  • School, hospital & corporate cafeterias

Optional Accessories (sold separately)

  • Commercial faucets or add-a-faucet pre-rinse units
  • Lever waste drains & basket strainers
  • End splashes (left, right or both)
  • Stainless overshelves or pot racks for added storage

Need help selecting faucets or accessories? Our food-service equipment specialists are here to assist.

Care & Maintenance

  • Clean daily with mild soap/detergent & a soft cloth, wiping with the grain
  • Avoid chlorine bleach or abrasive pads that can damage the stainless finish
  • Restore shine with John Boos Stainless Steel Cleaner or Bar Keepers Friend as directed
Important: Faucet, drain assembly and installation hardware are not included unless otherwise noted.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

87.25in

Depth

29.5in

Shipping Weight

97.0lbs

Base Type

legs with front & side crossrails

Top Stainless Series

300 series

Overall Length

73" - 108"

Splash Height

10"

Top Gauge

16 gauge

Drainboards

with left & right-hand drainboards

Base Construction

stainless steel

Compartment (front - back)

24"

Sink Depth (rim - drain)

12"

Compartment Width (side - side)

24"

Specifications

Pro-Bowl Sink, 1-compartment, 87-1/4"W x 29-1/2"D x 44-1/16"H overall size, (1) 24"W x 24" front-to-back x 12" deep compartment, (2) 30" left & right drainboards, 10"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
