John Boos

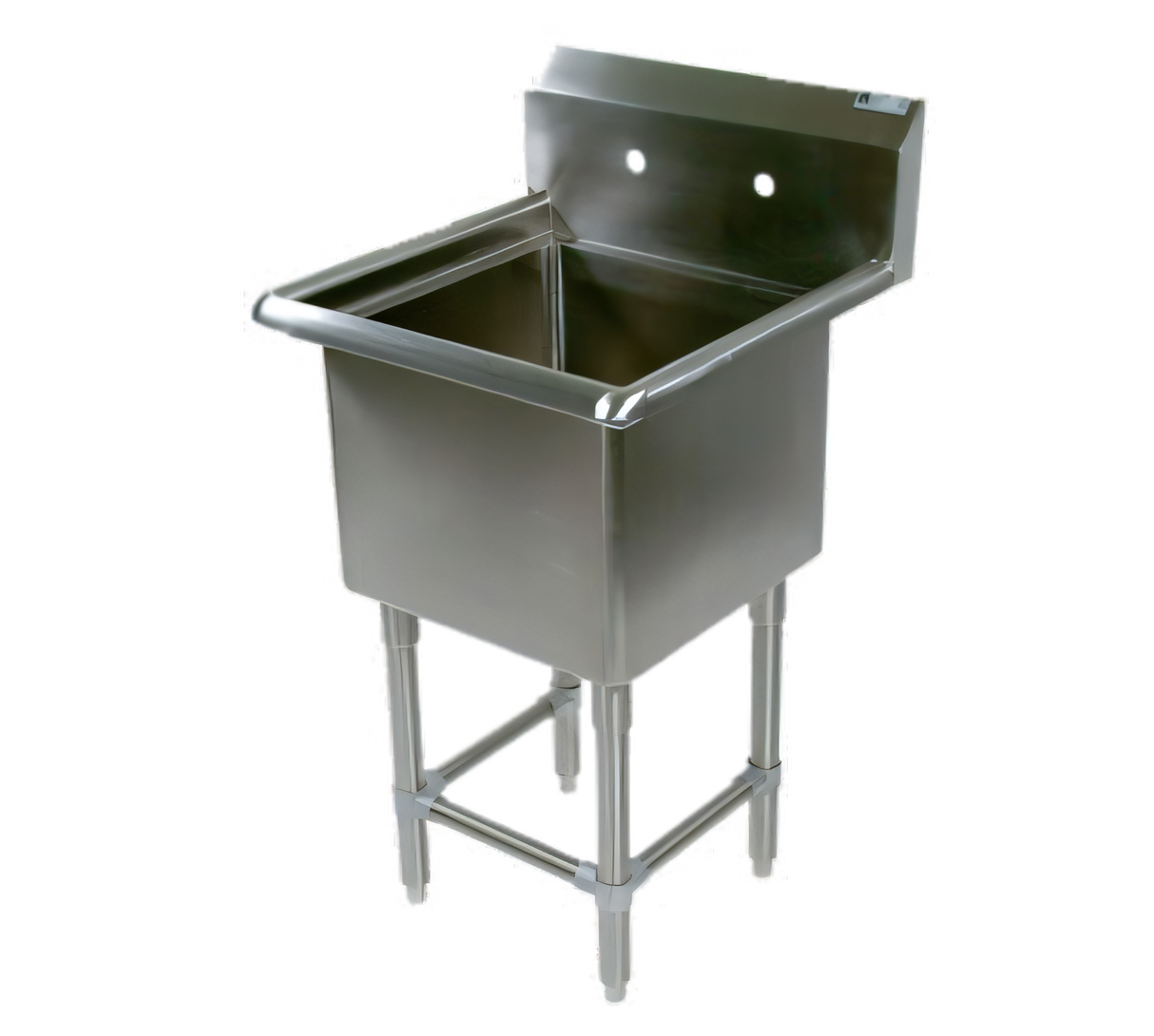

John Boos Pro-Bowl 1-Compartment Floor Model Sink, 20 x 20 x 14-Inch Bowl, 16-Gauge Stainless Steel

SKU: 1PB204
$1,231.56
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 1-Compartment Floor Model Sink, 20 x 20 x 14-Inch Bowl, 16-Gauge Stainless Steel

Type 300 stainless steel, 10-inch boxed backsplash, splash-mount faucet holes

A durable, compact commercial sink with a roomy 20-inch square bowl, stainless steel construction, and a tall backsplash for better splash protection.

  • Single 20" x 20" x 14" bowl provides a practical wash station in a compact footprint.
  • 16-gauge Type 300 stainless steel construction with #4 polish and satin finish for durability.
  • 10-inch boxed backsplash with a 45° top and 2-inch return helps protect walls from splashes.
  • 8-inch on-center splash-mount faucet holes and a 3-1/2-inch die-stamped drain opening support standard plumbing.
  • Stainless steel legs, adjustable front and side bracing, and bullet feet create a stable base.
  • Knocked-down construction helps simplify shipping and on-site assembly.

Overall Dimensions:

25.13"W x 25.5"D x 44.06"H

Product Weight:

51.0 lb

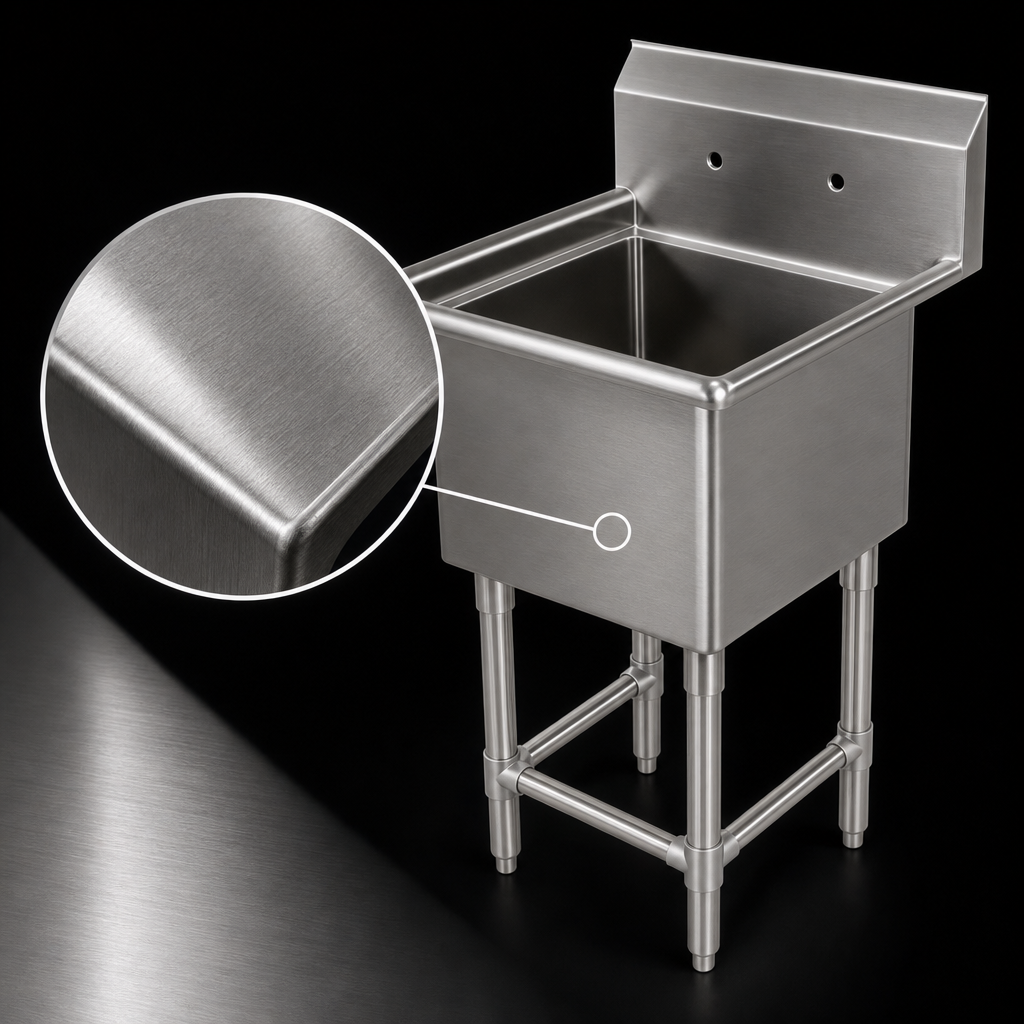

16-Gauge Type 300 Stainless Steel Construction

Built with 16-gauge Type 300 stainless steel for a durable commercial sink surface and base.

20 x 20 x 14-Inch Single Bowl

The single compartment provides a roomy 20-inch by 20-inch wash area with 14-inch depth.

10-Inch Boxed Backsplash

A full-length 10-inch backsplash with 45° top and 2-inch return helps reduce wall splashing.

8-Inch On-Center Faucet Holes

Includes one set of splash-mount faucet holes spaced 8 inches on center for faucet installation.

3-1/2-Inch Die-Stamped Drain Opening

The bowl is formed for drainage to a standard 3-1/2-inch die-stamped drain opening.

Stainless Steel Legs and Bracing

Stainless steel legs with adjustable front and side bracing support the sink securely.

Adjustable Bullet Feet

1-inch adjustable stainless steel bullet feet help level the sink on uneven floors.

Coved Bowl Corners

Vertical and horizontal corners are coved at a 5/8-inch radius for easier cleaning.

Type Compartment Sink
Style Pro-Bowl
Installation Type Floor Model (With Legs)
Compartments 1
Top Gauge 16 Gauge
Material Stainless Steel
Finish Satin Finish
Compartment Width 20 Inches
Compartment Depth 14 Inches
Backsplash Height 10 Inches
Backsplash Return 2 Inches
Faucet Hole Centers 8 Inches
Drain Opening 3-1/2 Inches
Shipping Width 26 Inches
Shipping Depth 26 Inches
Shipping Height 45 Inches
Shipping Weight 51 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The sink has one compartment that measures 20 inches wide by 20 inches front-to-back by 14 inches deep.
Overall dimensions are 25-1/8 inches wide x 25-1/2 inches deep x 44-1/16 inches high.
Yes. It includes one set of splash-mount faucet holes with 8-inch centers.
It is constructed from 16-gauge Type 300 stainless steel with a #4 polish, satin finish.
No. The base is standard knocked-down construction for easier shipping and assembly.
Available accessories listed in the documentation include end splashes, faucets, add-a-faucets, pre-rinse units, lever waste, overshelves, and a pot rack.
