John Boos  |  Pro-Bowl  |  SKU: 1PB204-1D30L

John Boos 1PB204-1D30L Pro-Bowl Compartment Sinks

$1,882.98
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
1-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

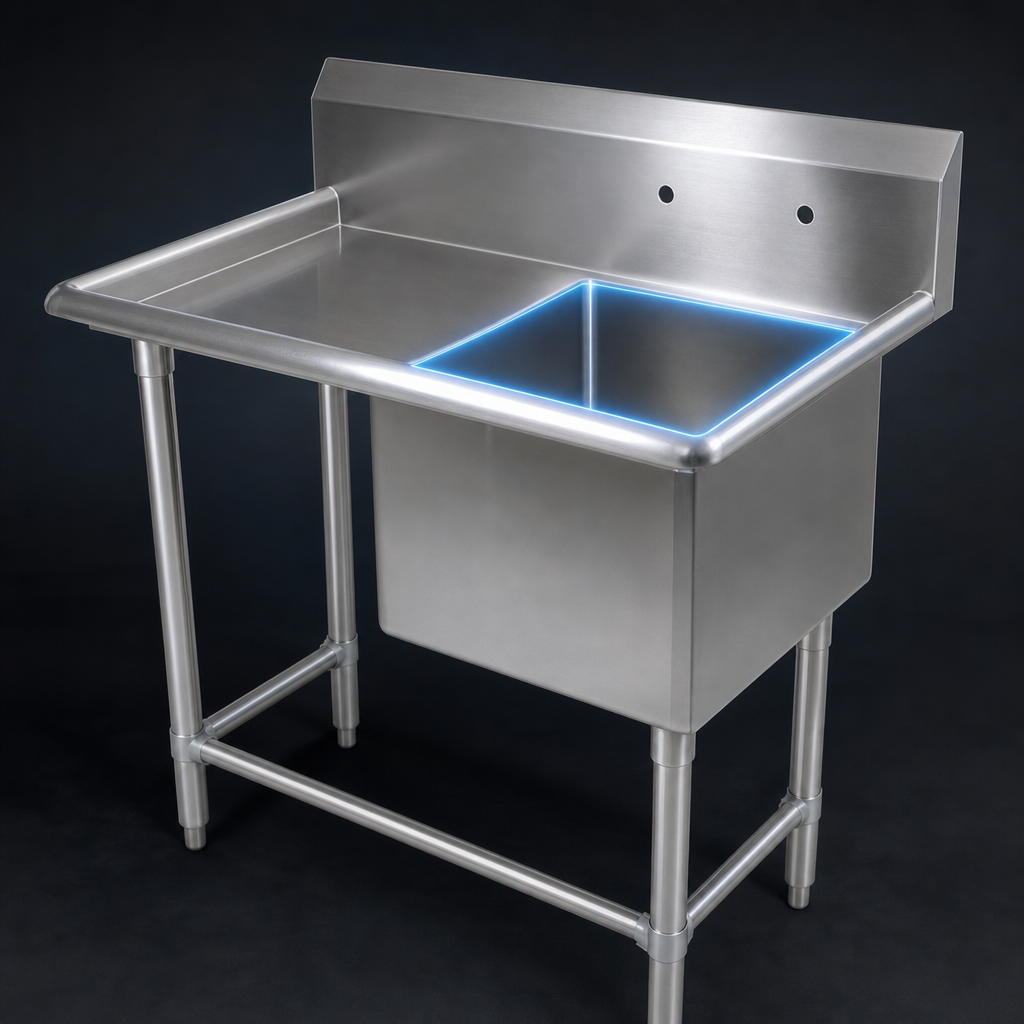

John Boos Pro-Bowl 1-Compartment Sink w/ 30" Left Drainboard

Model 1PB204-1D30L | 54-3/16" W × 25-1/2" D × 44-1/16" H

Engineered for the rigors of commercial kitchens, the John Boos Pro-Bowl series delivers uncompromising durability, sanitary performance and workflow efficiency in one sleek stainless-steel package. The generous 30-inch left-hand drainboard and deep 20" × 20" compartment keep prep and rinse tasks moving fast—even in the peak rush.

Key Features

  • Heavy-duty 16-gauge, Type 300 stainless steel top, bowl & front panel with #4 satin polish.
  • 14" deep compartment with 5/8" radius interior corners for effortless, NSF-approved clean-up.
  • Full-length 10" boxed backsplash with 2" return and 45° top reduces wall splash.
  • Pre-punched splash-mount faucet holes on 8" centers—fits most commercial faucets.
  • Spacious 30" left drainboard—ideal for air-drying cookware, produce or dishes.
  • 3-1/2" die-stamped drain opening accepts standard sink drains and lever wastes.
  • Stainless steel legs with adjustable front & side bracing provide rock-solid stability.
  • 1" adjustable stainless bullet feet level the sink on uneven floors.
  • Ships knocked-down (KD) to save freight and fit through tight doorways.
  • NSF & CSA-Sanitation listed for worry-free code compliance.

Specifications

Overall dimensions 54-3/16" W × 25-1/2" D × 44-1/16" H
Work height (to sink rim) ≈ 36-5/16"
Compartment size 20" W × 20" F/B × 14" D
Drainboard 30" left side, corrugated for positive drainage
Backsplash 10" H boxed, 2" return, 45° top
Faucet holes (2) 1" Ø, 8" on-center (splash-mount)
Drain opening 3-1/2" die-stamped
Material thickness 16 ga (0.0625")
Steel type 300 series stainless
Legs 1-5/8" Ø stainless steel
Bracing 1-1/4" Ø stainless tubing (front & sides, adjustable)
Feet 1" stainless, adjustable bullet style
Certifications NSF, CSA-Sanitation
Shipping Knocked-Down (assembly required)

Looking for a right-hand drainboard, pre-rinse faucet or lever waste? Contact us—most accessories can ship pre-bundled with your sink.

Heads-up: Faucet, drain assembly and overflow are sold separately unless added to your order.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

54.19in

Depth

25.5in

Shipping Weight

71.0lbs

Sink Depth (rim - drain)

14"

Top Gauge

16 gauge

Compartment (front - back)

20"

Base Type

legs with front & side crossrails

Splash Height

10"

Compartment Width (side - side)

20"

Drainboards

with left-hand drainboard

Base Construction

stainless steel

Top Stainless Series

300 series

Overall Length

54" - 62"

Specifications

Pro-Bowl Sink, 1-compartment, 54-3/16"W x 25-1/2"D x 44-1/16"H overall size, (1) 20"W x 20" front-to-back x 14" deep compartment, (1) 30" left drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
