John Boos 1PB204-1D24R Pro-Bowl Compartment Sinks
$1,817.63
Unit price
/
Unavailable
Description

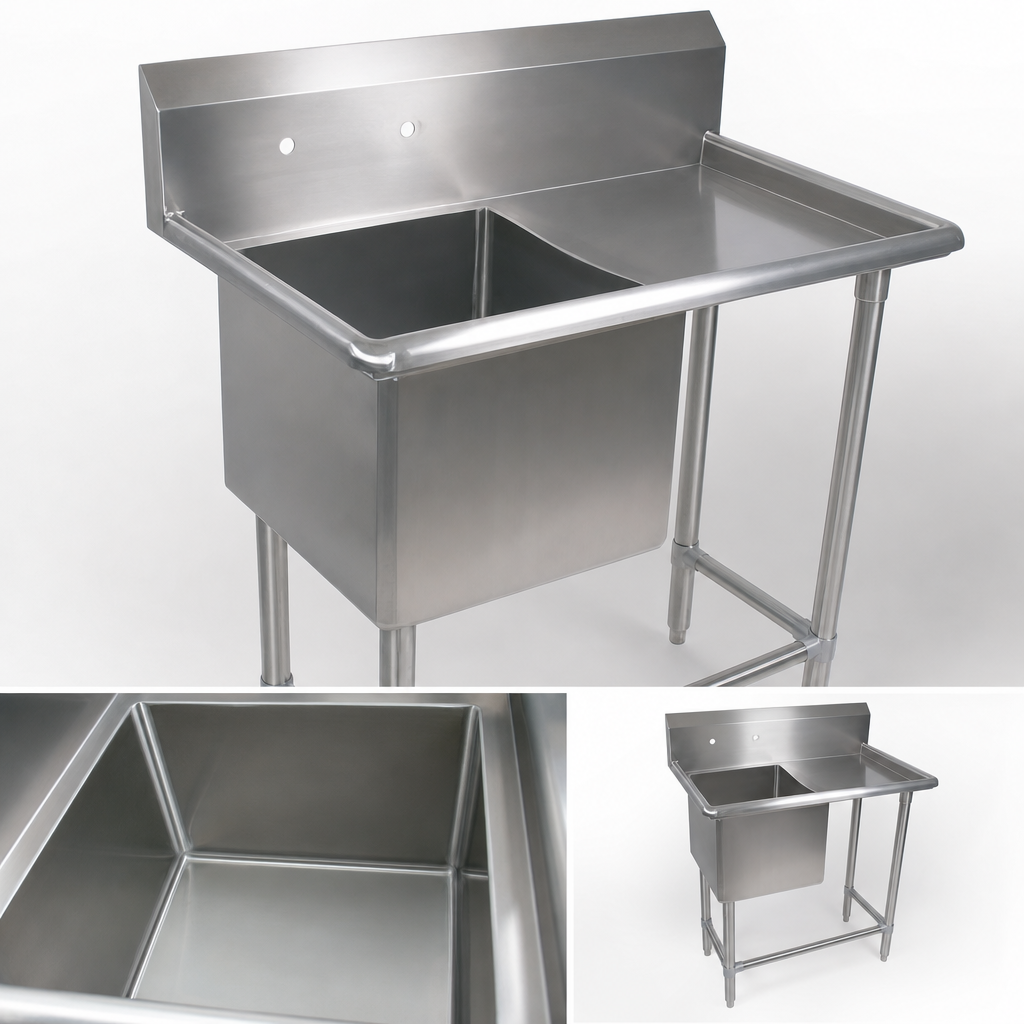

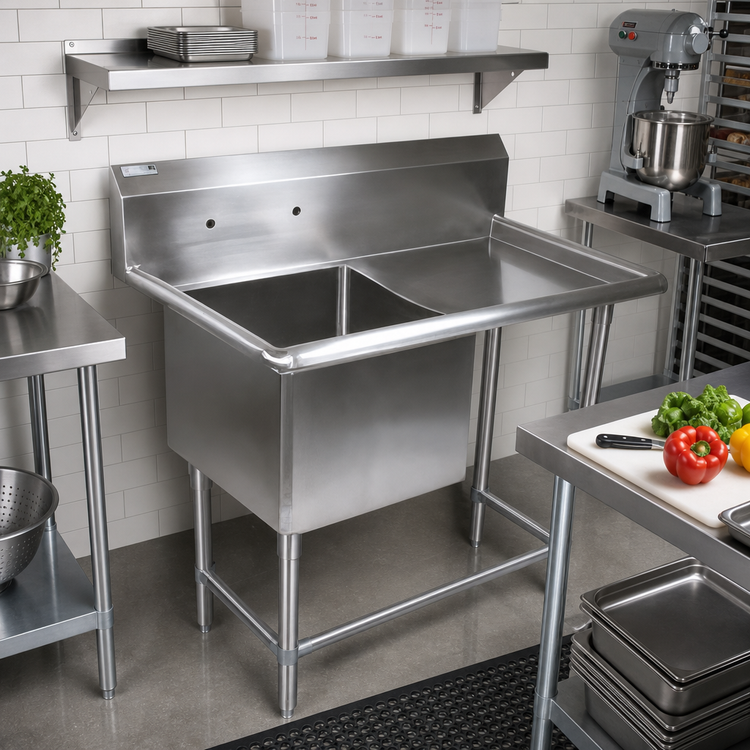

John Boos Pro-Bowl 1-Compartment Sink – 48 ⅛" x 25 ½"
Model 1PB20-1D24R | 24" Right Drainboard, 14" Deep BowlBuilt for the busiest prep and dish rooms, the John Boos Pro-Bowl sink delivers the rock-solid durability of 16-gauge stainless steel with ergonomic details that keep workflows fast, safe, and sanitary.
Why You’ll Love It
- Spacious 20" x 20" x 14" bowl easily fits full-size sheet pans and stock pots.
- Integrated 24" right-hand drainboard provides a generous landing zone for rinsed wares.
- 10" boxed backsplash with a 45° top edge and 2" return stops messy wall splashes.
- Pre-punched 8" on-center splash-mount faucet holes for quick installation of faucets or pre-rinse units.
- 3-½" die-stamped drain opening guarantees a positive, leak-free fit with standard waste fittings.
- 16-gauge Type 300 stainless steel top and bowl; TIG-welded seams are polished to a smooth, sanitary satin finish.
- 1-⅝" Ø stainless steel legs with adjustable front & side bracing for maximum rigidity.
- Adjustable stainless steel bullet feet level the sink on uneven floors.
- Bull-nosed front and side edges for a safer, snag-free work environment.
- Knocked-down (KD) design lowers freight costs and simplifies delivery through tight doorways.
Technical Specifications
| Overall Dimensions | 48 3/16" W × 25 1/2" D × 44 1/16" H |
|---|---|
| Bowl Interior | 20" W × 20" F/B × 14" Deep |
| Drainboard | 24" (right side) |
| Backsplash | 10" high, boxed, 2" return with 45° top |
| Faucet Mount | 8" on-center holes (1" Ø) in backsplash |
| Drain Opening | 3-½" die-stamped |
| Construction | 16-ga Type 300 stainless steel top & bowl |
| Legs / Bracing | 1-⅝" Ø stainless legs, adjustable stainless bracing |
| Feet | Adjustable stainless steel bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping | Ships knocked-down; minimal field assembly required |
Complete your setup with compatible John Boos faucets, lever wastes, and overshelves.
Important: This configuration has the drainboard on the right. For a left-hand drainboard, order model 1PB20-1D24L.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Pro-Bowl
Certifications
NSF, CSA-Sanitation
Height
44.06in
Width
48.19in
Depth
25.5in
Shipping Weight
67.0lbs
Base Type
legs with front & side crossrails
Base Construction
stainless steel
Top Gauge
16 gauge
Overall Length
40" - 53"
Compartment Width (side - side)
20"
Splash Height
10"
Compartment (front - back)
20"
Sink Depth (rim - drain)
14"
Top Stainless Series
300 series
Drainboards
with right-hand drainboard
Specifications
Pro-Bowl Sink, 1-compartment, 48-3/16"W x 25-1/2"D x 44-1/16"H overall size, (1) 20"W x 20" front-to-back x 14" deep compartment, (1) 24" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
