John Boos 1PB204-1D24L Pro-Bowl Compartment Sinks
Description

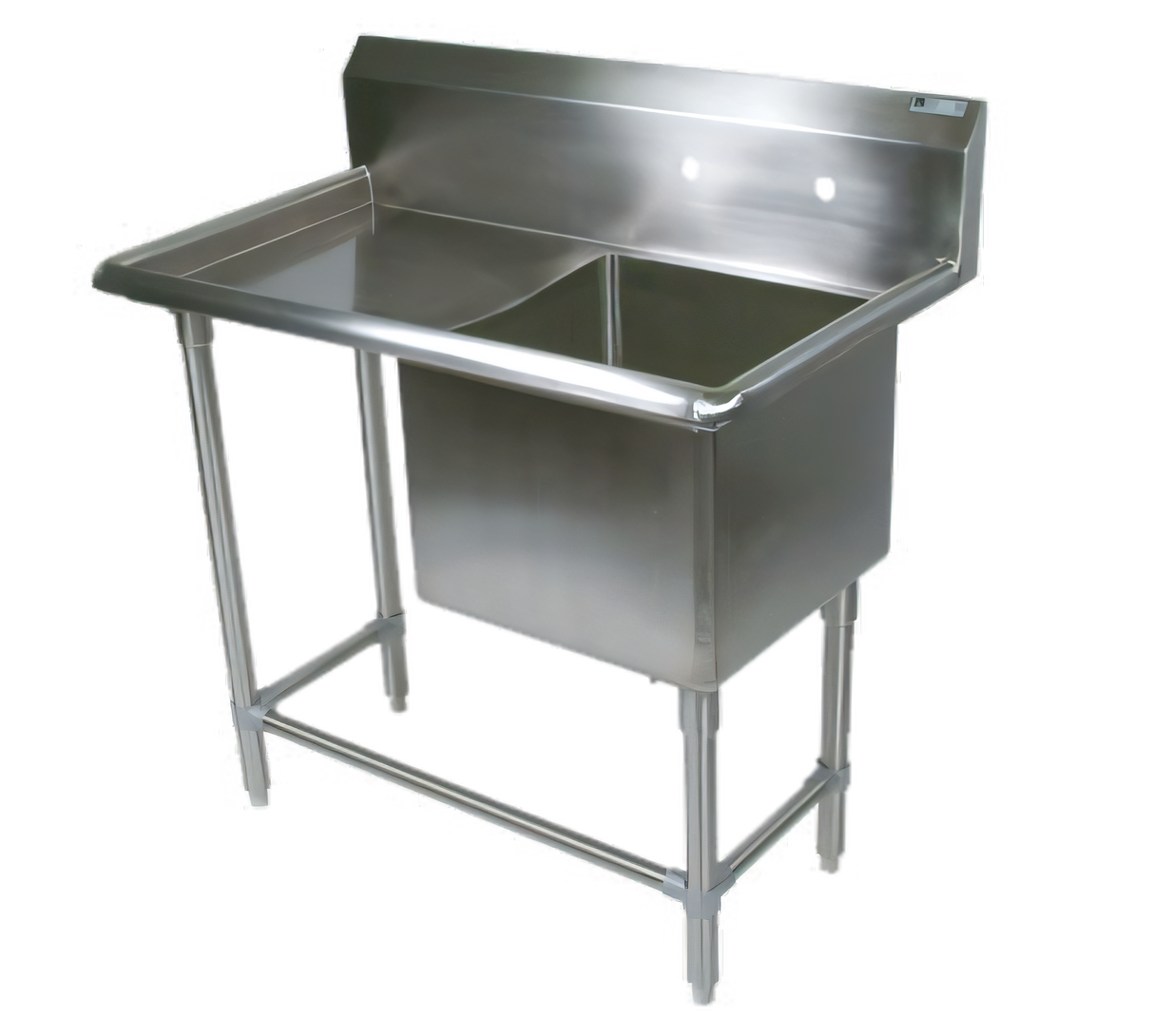

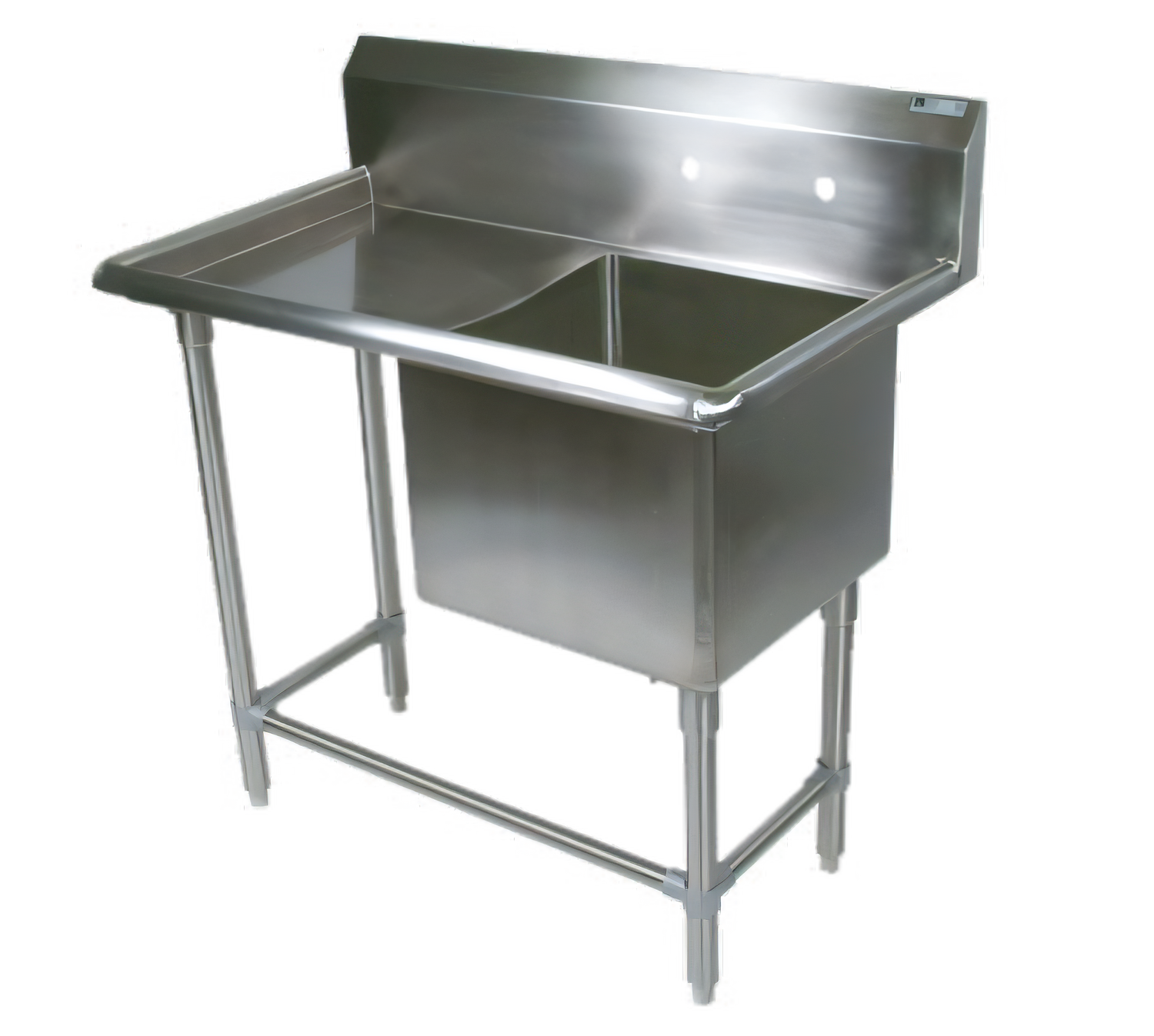

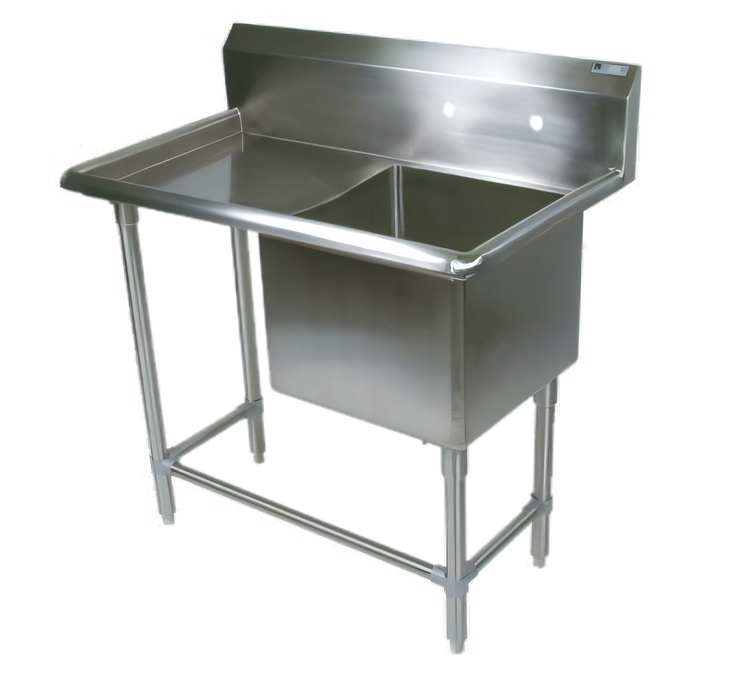

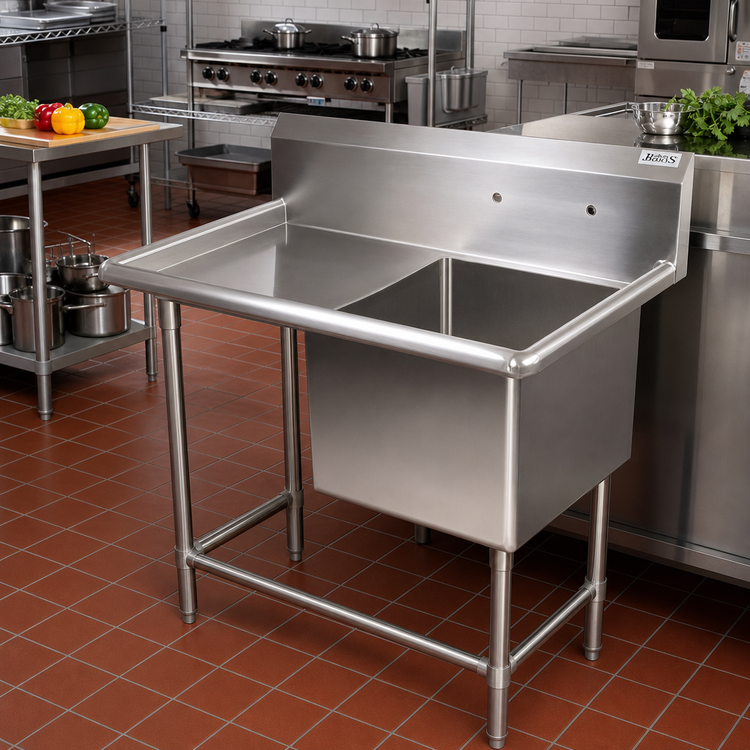

Pro-Bowl 48" 1-Compartment Sink with 24" Left Drainboard
John Boos Model 1PB20-1D24L | 16 GA Type 300 Stainless SteelEngineered for the daily grind of commercial kitchens, the John Boos Pro-Bowl series delivers uncompromising durability, sanitary performance, and ergonomic workflow. This 48 inch, one-compartment sink combines an extra-deep 14" bowl with a spacious left-side drainboard—perfect for prep, pot washing, or bar service.
Highlights

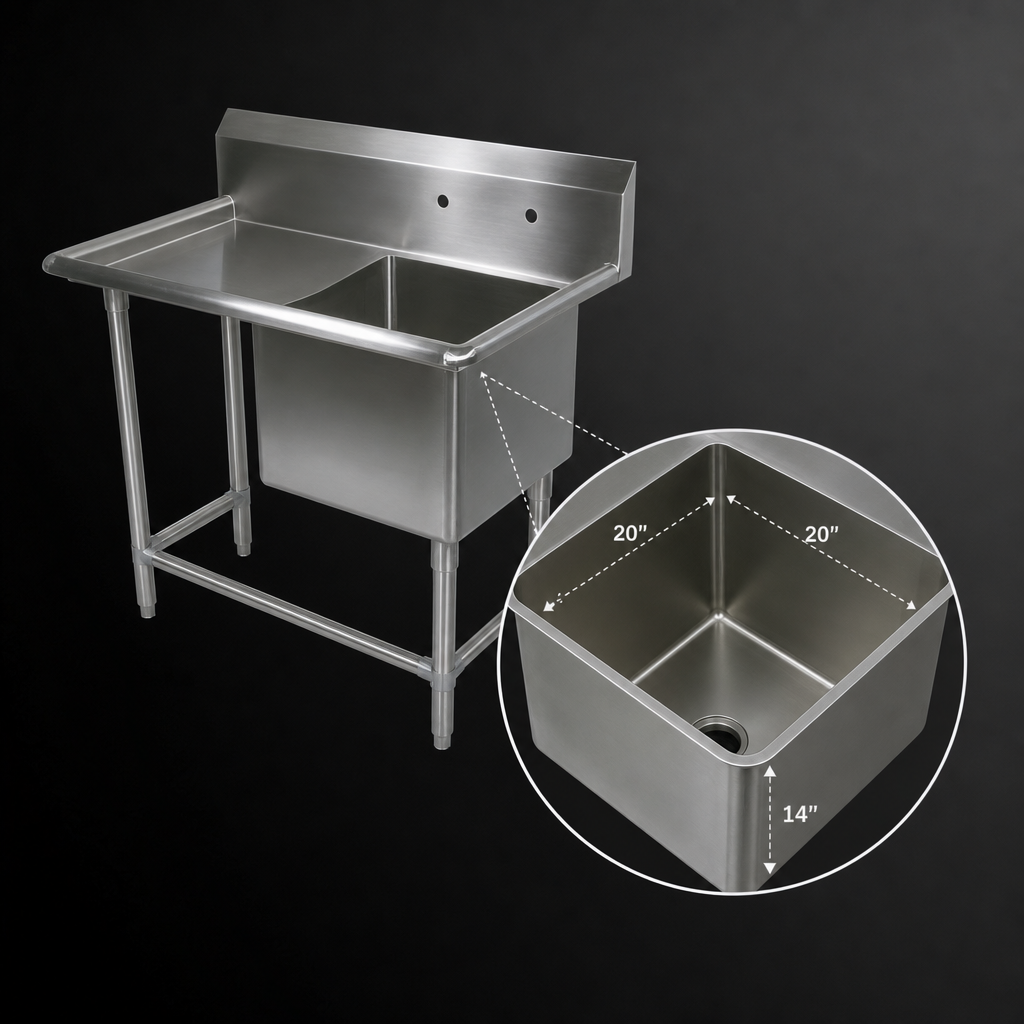

- Generous 20" W × 20" F/B × 14" D compartment handles stockpots and sheet pans with ease.
- 24" built-in left drainboard slopes toward the bowl for efficient draining.
- 10" boxed backsplash with 45° top edge & 2" return protects walls and keeps water in check.
- Splash-mount faucet deck pre-punched with 8" on-center, 1" diameter holes.
- 3 ½" die-stamped drain opening—compatible with standard lever-waste or basket strainers.
- 16 GA, Type 300 stainless steel top & bowl with #4 satin polish—TIG-welded & seam-polished.
- Stainless steel base: 1 ⅝" O.D. legs, adjustable front & side bracing, and bullet feet.
- 5 ⁄ 8" radius interior corners for quick, thorough cleaning; bull-nosed exterior edges for safety.
- Ships knock-down (KD) to reduce freight costs and navigate tight corridors.
- NSF & CSA-Sanitation listed for code-compliant installation.
Technical Specifications
| Overall dimensions | 48 3⁄16" W × 25 1⁄2" D × 44 1⁄16" H (to top of backsplash) |
|---|---|
| Bowl size (1) | 20" W × 20" F/B × 14" D |
| Drainboard | 24" left side, integrally pitched toward bowl |
| Backsplash | 10" boxed | 45° top | 2" wall return |
| Faucet holes | 8" centers, 1" dia., splash-mount |
| Material / Gauge | 16 GA (0.0625") Type 300 stainless steel |
| Legs & feet | 1 ⅝" O.D. stainless legs • adjustable bracing • adjustable SS bullet feet |
| Drain opening | 3 ½" dia. die-stamped |
| Certifications | NSF, CSA-Sanitation |
| Ship type | Knocked Down (KD) for assembly on site |
Popular Add-Ons (sold separately)
- 8" on-center swing or gooseneck faucets
- Lever-waste drains or basket strainers
- Pre-rinse units & add-a-faucets
- End splashes, overhead shelves, or pot racks
All dimensions are nominal ± 0.5". Product specifications are subject to change without notice by John Boos & Co.
