John Boos 1PB204-1D18L Pro-Bowl Compartment Sinks
Description

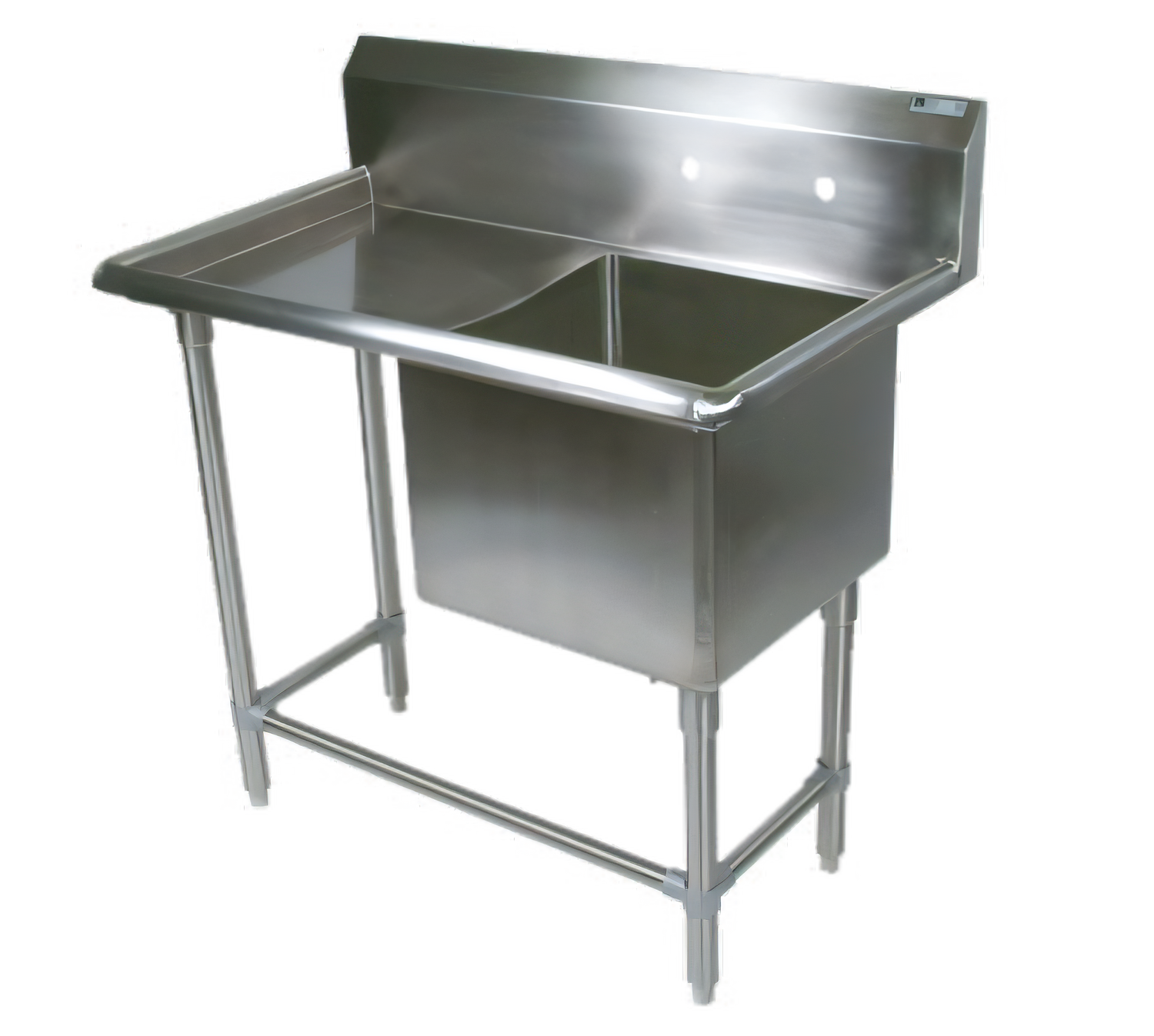

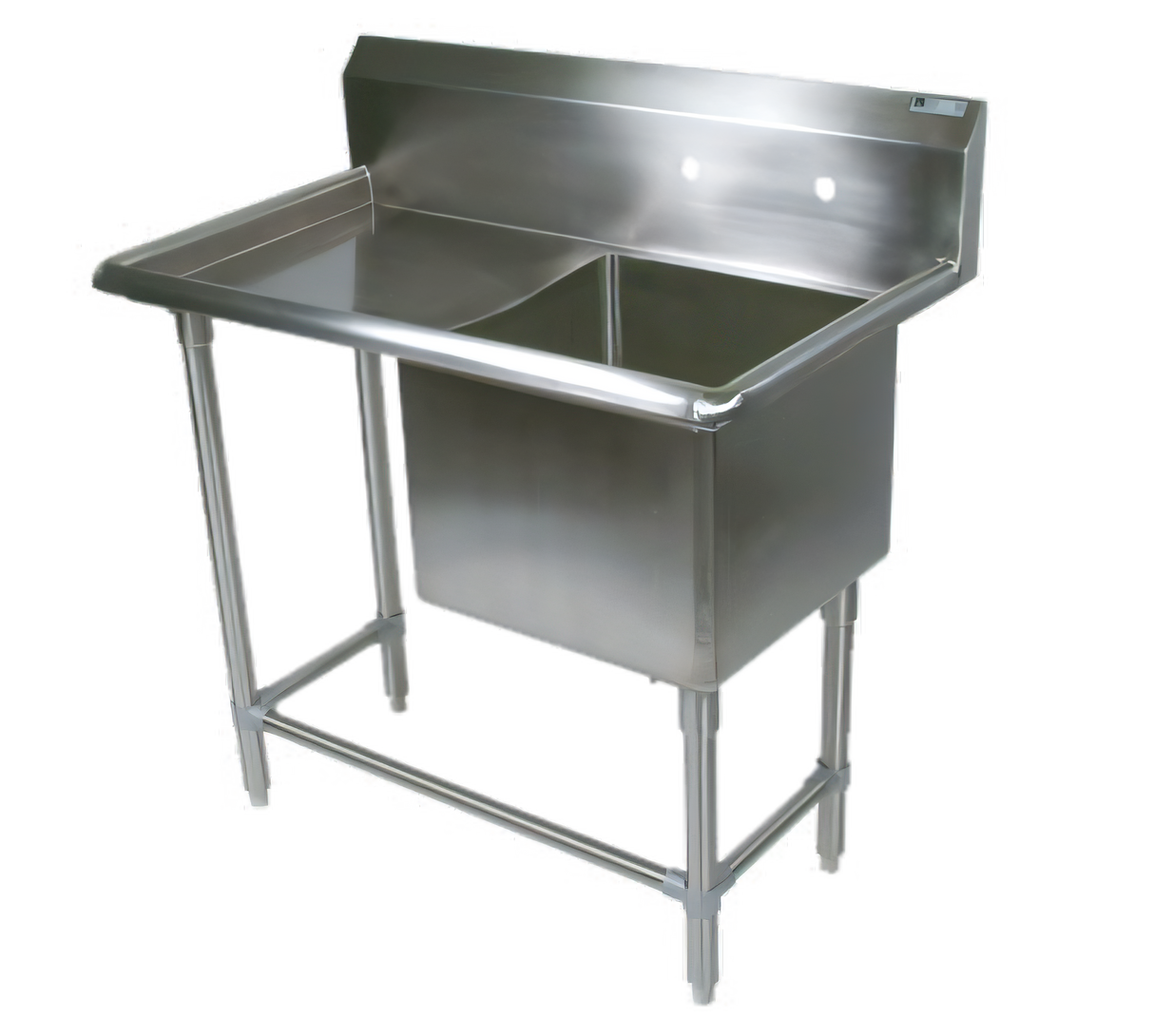

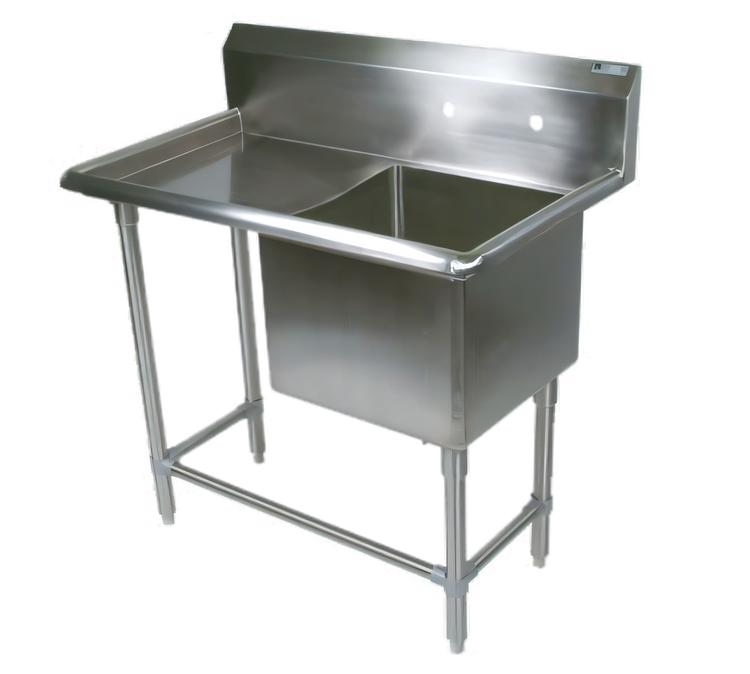

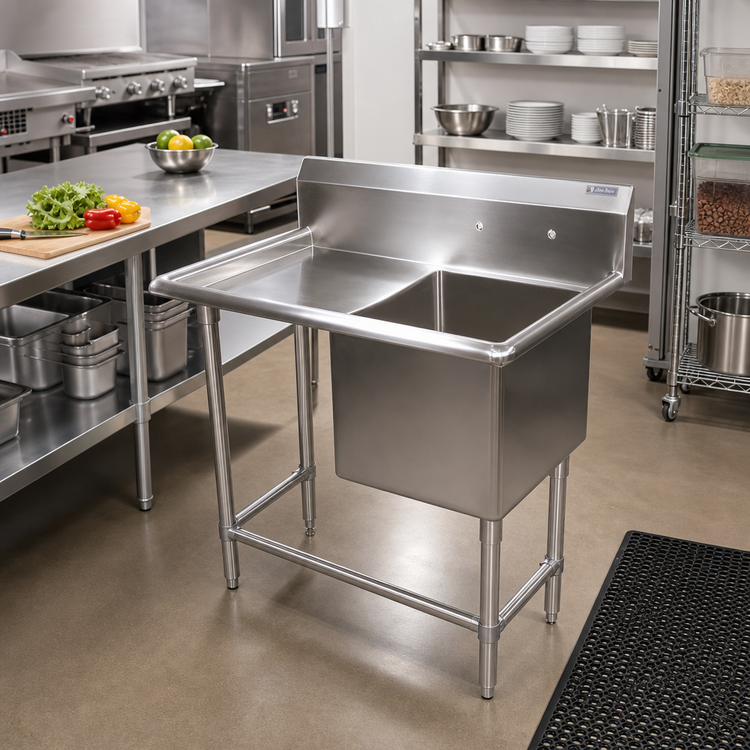

John Boos “Pro-Bowl” 1-Compartment Sink w/ 18" Left Drainboard
Model 1PB20-1D18L | 16-Gauge 300 Series Stainless SteelEngineered for the heavy-duty demands of commercial kitchens, the John Boos Pro-Bowl sink line delivers uncompromising durability, effortless sanitation, and ergonomic performance. This 42 inch, one-compartment model combines a spacious 20" × 20" bowl with an integrated 18" left-side drainboard, making prep, wash, and rinse cycles faster and more organized.
Key Features & Benefits
- 16 GA Type 300 stainless steel top, bowl, front panel & drainboard with #4 satin polish.

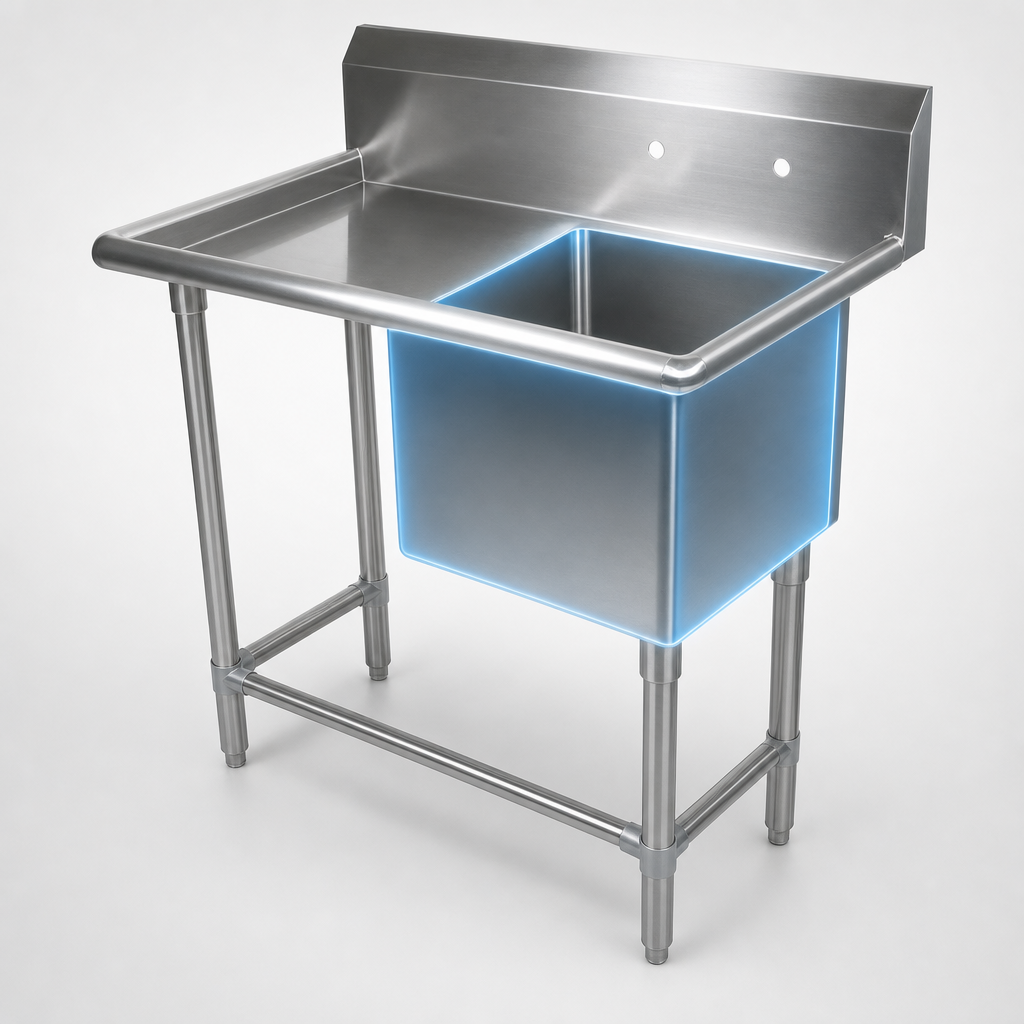

- One oversized 20" W × 20" F-B × 14" D compartment – coved 5/8" radius corners for easy cleaning.
- 18" left drainboard slopes toward the bowl for rapid water run-off.
- 10" boxed backsplash with 45° top edge & 2" return protects surrounding walls.
- 8"-on-center splash-mount faucet holes (1" dia.) – ready for commercial faucets or pre-rinse units.
- 3½" die-stamped drain opening fits industry-standard basket drains & lever wastes.
- Stainless steel legs (1-5/8" Ø) with adjustable 1-¼" Ø side & front bracing for rock-solid stability.
- Adjustable stainless steel bullet feet simplify leveling on uneven floors.
- Bull-nosed outside edges provide a safer, more finished appearance.
- NSF & CSA-Sanitation listed for worry-free code compliance.
- Ships knocked-down (KD) to minimize freight cost; fast, bolt-together assembly on site.
Technical Specifications
| Overall dimensions (L × W × H) | 42 3/16" × 25 1/2" × 44 1/16" (to top of backsplash) |
|---|---|
| Bowl size (W × F-B × Depth) | 20" × 20" × 14" |
| Drainboard length | 18" (left side) |
| Backsplash height | 10" boxed, 45° top, 2" wall return |
| Faucet holes | 8" centers, 1" diameter, splash-mount |
| Drain opening | 3 1/2" die-stamped |
| Material & finish | 16-GA 300 Series stainless, #4 satin polish |
| Base construction | Stainless legs, adjustable front & side bracing, bullet feet |
| Net weight | ≈ 63 lb |
| Certifications | NSF, CSA-Sanitation |
| Ship state | Knocked-down (KD) |
Recommended Accessories (sold separately)
- Wall-mount or deck-mount faucets & pre-rinse units
- Lever waste or basket drain assemblies
- Stainless steel overshelves or pot racks
- End splashes (right, left, or both) for added containment
Need help configuring faucets or add-ons? Contact our foodservice specialists for free planning assistance.
