John Boos 1PB20-1D24L Pro-Bowl Compartment Sinks
Description

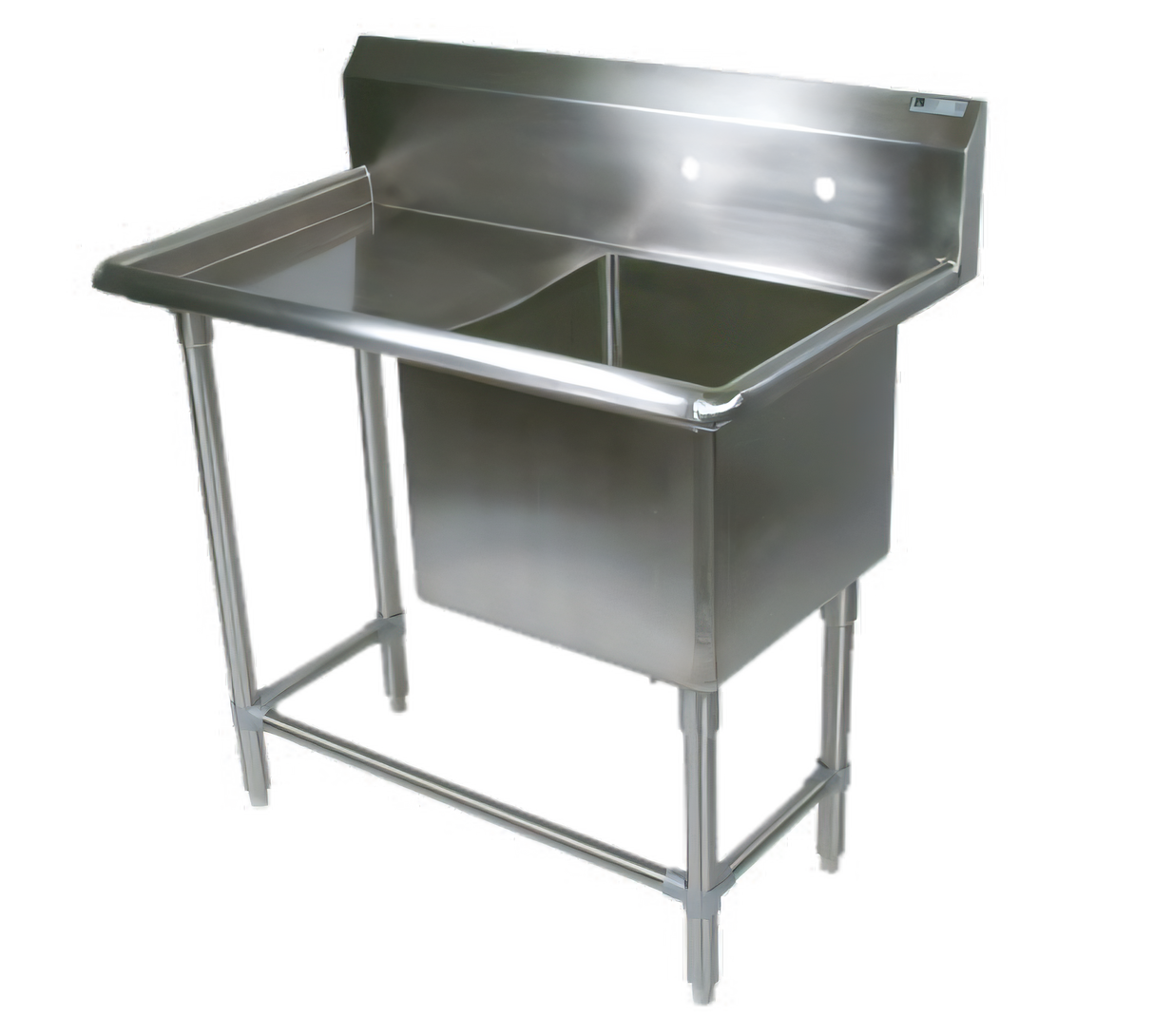

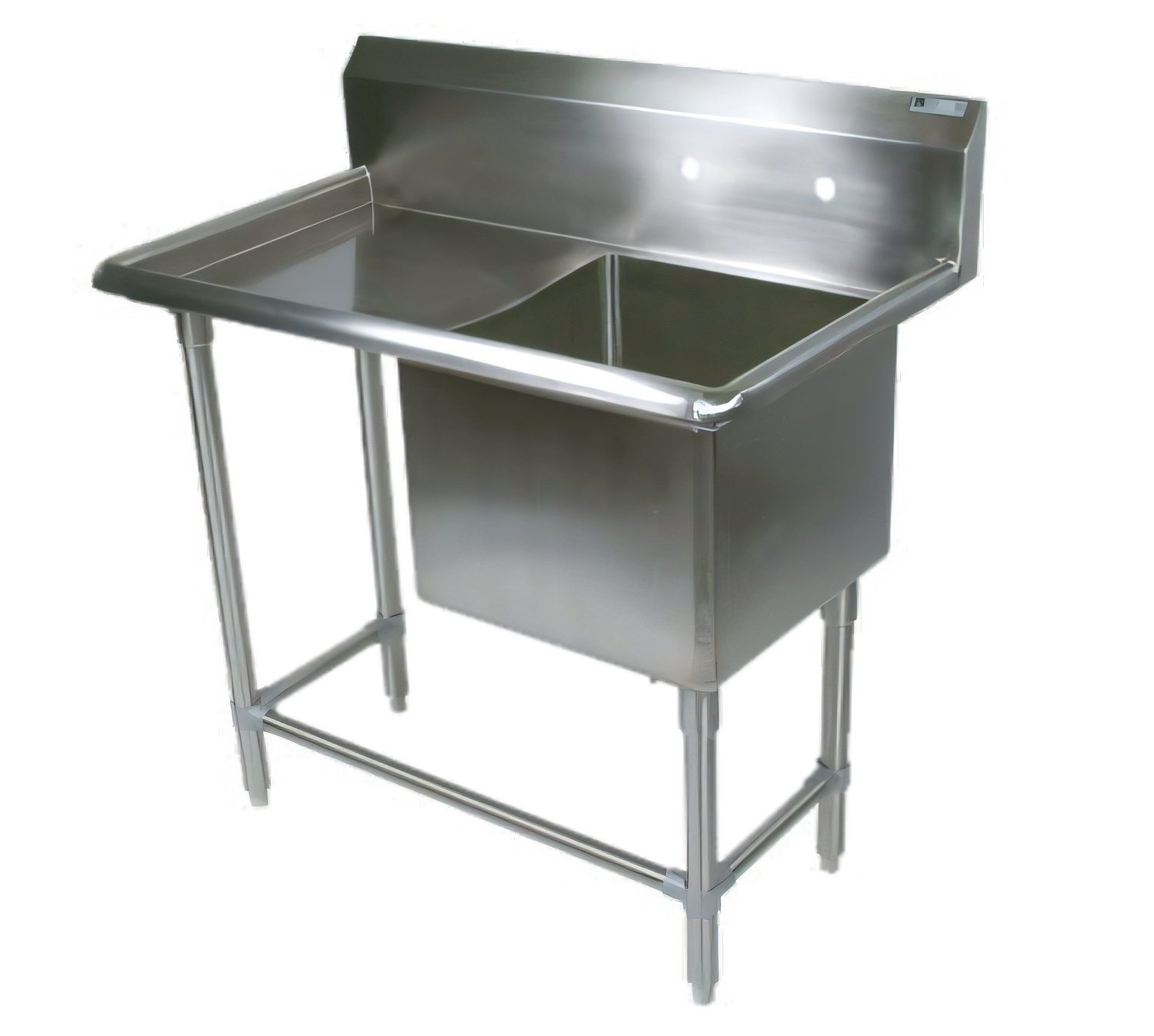

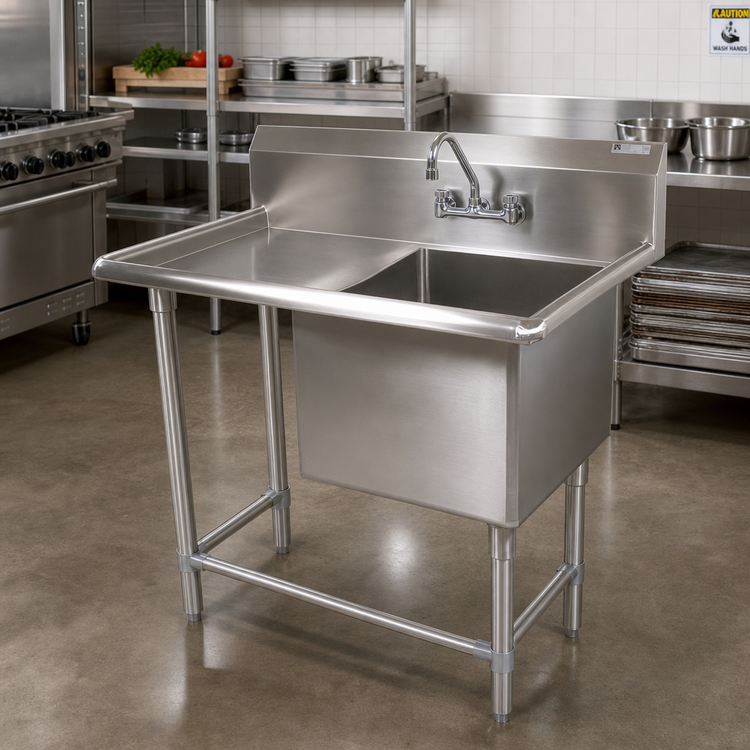

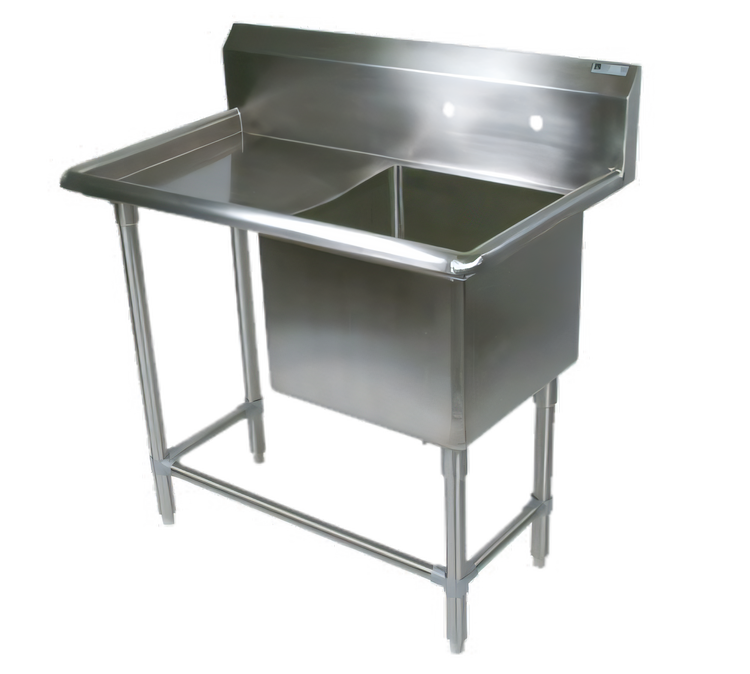

John Boos Pro-Bowl 1-Compartment Sink w/ 24" Left Drainboard
Model 1PB1620-1D24L • 48-3/16" W × 25-1/2" D × 44-1/16" HBuilt for demanding commercial kitchens, the John Boos Pro-Bowl sink combines heavy-duty 16-gauge stainless steel construction with thoughtful design details that speed up prep-and-wash cycles while simplifying cleanup. A spacious 20" × 20" × 12" bowl, 24" left drainboard, and 10" boxed backsplash help you keep workflow smooth and sanitary— day after day, shift after shift.
Key Features
- Rugged 16-ga Type 300 stainless steel top & bowl with #4 satin finish
- (1) 20" W × 20" F-B × 12" D compartment with 3-1/2" die-stamped drain opening

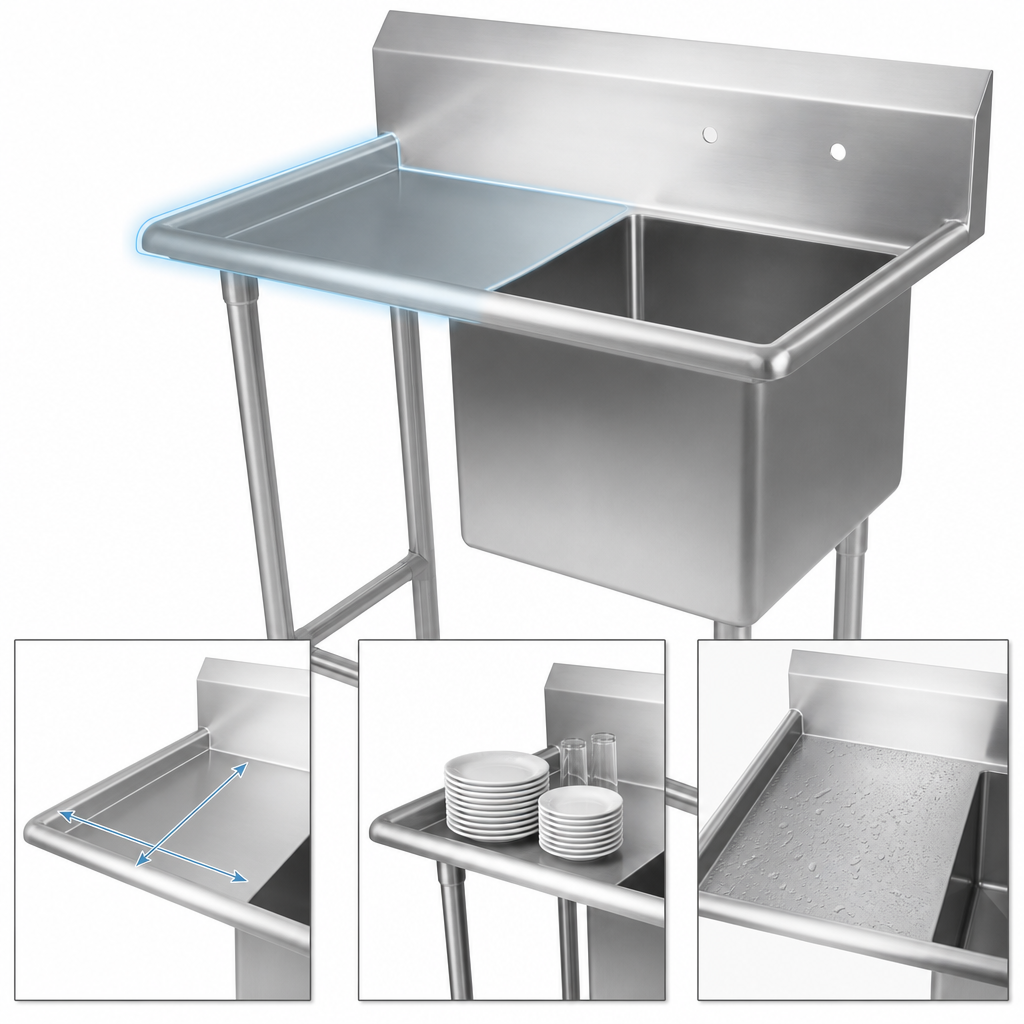

- 24" left-hand drainboard with positive pitch for fast draining
- 10" high boxed backsplash with 2" return and 45° top edge
- Pre-punched 8" on-center splash-mount faucet holes (1" Ø) — faucet sold separately
- 1-5/8" Ø stainless tubular legs; adjustable front & side bracing
- Stainless steel adjustable bullet feet for easy leveling
- All vertical & horizontal corners coved to a 5/8" radius for effortless cleaning
- Bull-nosed front & side edges for operator safety and a polished look
- Ships knocked down (KD) to lower freight costs and ease job-site access
Technical Specifications
| Manufacturer | John Boos & Co. |
|---|---|
| Series | Pro-Bowl |
| Model / SKU | 1PB1620-1D24L |
| Compartments | 1 |
| Overall Dimensions (W × D × H) | 48-3/16" × 25-1/2" × 44-1/16" |
| Bowl Size (W × F-B × Depth) | 20" × 20" × 12" |
| Drainboard | 24" (left side) |
| Backsplash Height | 10" |
| Material & Finish | 16-ga Type 300 stainless steel, #4 satin |
| Legs / Bracing | 1-5/8" Ø SS legs with 1-1/4" Ø adjustable SS bracing |
| Feet | Adjustable stainless bullet feet |
| Faucet Holes | 8" on-center (1" Ø) |
| Drain Opening | 3-1/2" die-stamped |
| Shipping Weight | Approx. 57 lb |
| Configuration | Knocked down (assembly required) |
Certifications
- NSF Certified
- CSA-Sanitation Listed
Looking for a different drainboard side, bowl depth, or accessory package? Contact us for the full range of John Boos Pro-Bowl configurations.
