John Boos  |  Pro-Bowl  |  SKU: 1PB184-1D24R  |  UPC: 662969358617

John Boos 1PB184-1D24R Pro-Bowl Compartment Sinks

$1,675.86
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

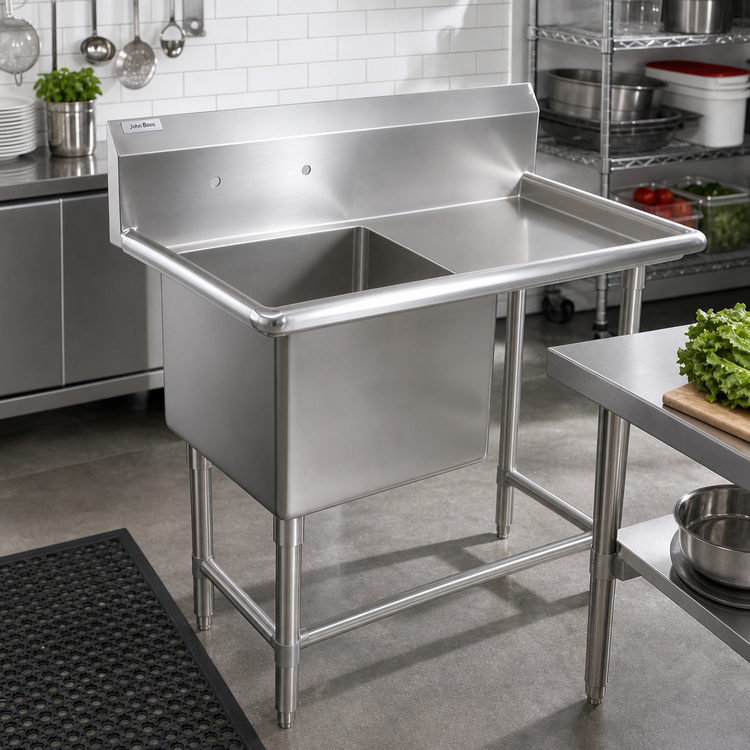

Pro-Bowl 1-Compartment Sink with 24" Right Drainboard

John Boos Model 1PB184-1D24R  |  16 Gauge 300-Series Stainless Steel

Built for the rigorous pace of today’s commercial kitchens, the John Boos Pro-Bowl 1-Compartment Sink delivers rock-solid construction, thoughtful ergonomics, and the NSF/CSA sanitation approvals operators trust. A spacious 24" right-side drainboard keeps your workflow organized while a 14" deep bowl tackles the biggest stock pots and sheet pans with ease.

Key Features & Benefits

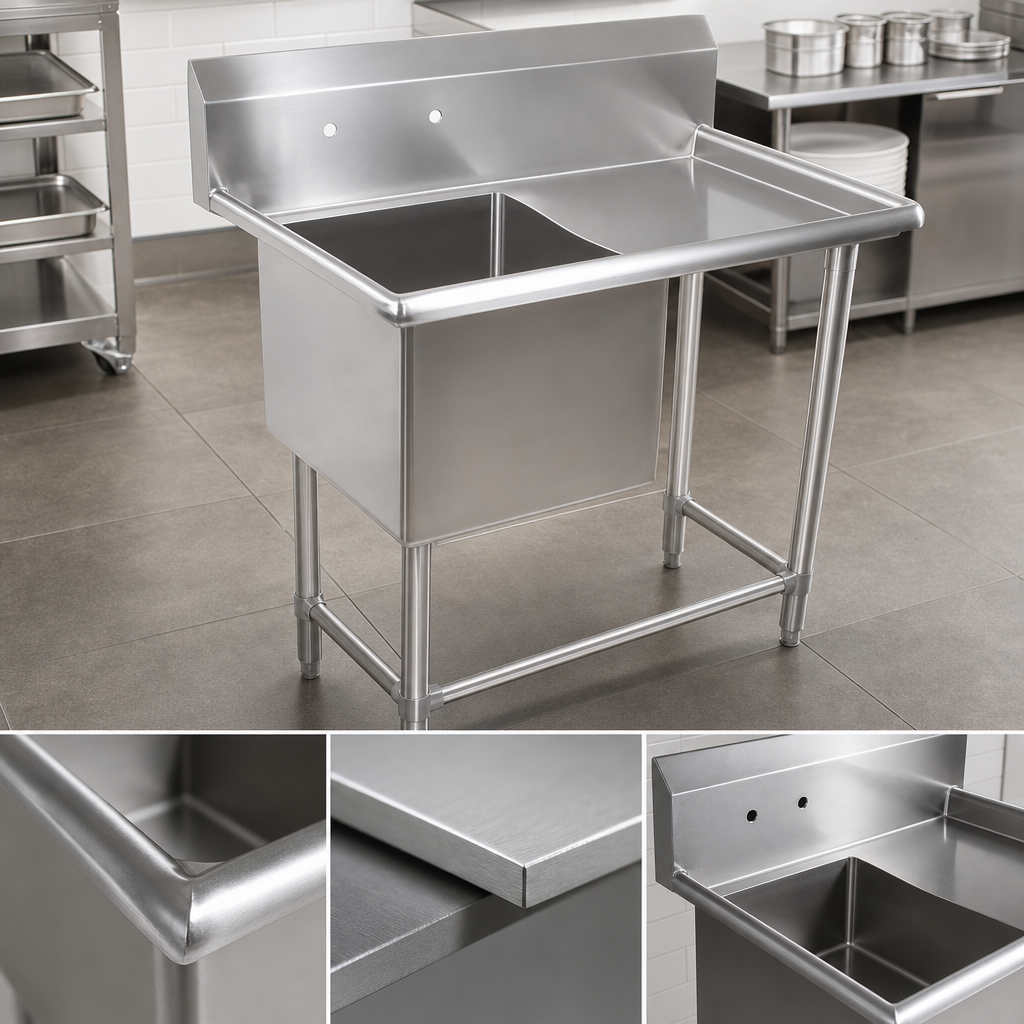

  • One-piece TIG-welded top, bowl, and drainboard fabricated from heavy-duty 16 ga, Type 300 stainless steel with a smooth #4 satin polish.
  • Generous 18" x 18" x 14" deep compartment—perfect for soaking and rinsing large wares.
  • Integrated 24" right drainboard speeds drying and staging and includes positive pitch for fast runoff.
  • 10" boxed backsplash with 2" return and 45° top edge defends surrounding walls against water damage.
  • Pre-punched 8" O.C. splash-mount faucet holes (1" dia.)—ready for your choice of commercial faucet.
  • 3-1/2" die-stamped drain opening accepts industry-standard waste fittings.
  • 1-5/8" round stainless steel legs, 1-1/4" front/side bracing, and adjustable stainless steel bullet feet keep the sink level on uneven floors.
  • Bull-nosed exterior edges for a clean, snag-free profile and easier daily wipe-downs.
  • Ships KD (knocked-down) to minimize freight cost; quick, no-weld assembly on site.
  • NSF & CSA-Sanitation listed for food-service use.

At-a-Glance Specifications

Overall Dimensions 46 3/16" W × 23 1/2" D × 44 1/16" H (to top of backsplash)
Compartment Size 18" W × 18" F-B × 14" D
Drainboard 24" (right side) with pitched surface
Backsplash 10" H boxed, 45° top, 2" rear return
Faucet Mount Splash-mount, 8" centers, 1" dia. holes
Material / Finish 16 ga Type 300 SS  |  #4 satin polish
Legs & Bracing 1-5/8" Ø SS legs  |  1-1/4" Ø SS front & side bracing  |  adjustable SS bullet feet
Drain Opening 3-1/2" die-stamped
Certifications NSF, CSA-Sanitation
Shipping Knocked-down (KD) for freight savings

Ideal Applications

  • Restaurant, hotel, and resort kitchens
  • Bakeries, cafés, commissaries, and ghost kitchens
  • Catering prep rooms and test kitchens
  • School & institutional food-service lines

Care & Maintenance Tips

  • Clean daily with mild soap or approved non-chloride stainless steel cleaner; wipe with the grain.
  • Avoid harsh, abrasive pads or chlorine bleach—these can compromise the protective chromium oxide layer.
  • Rinse and dry promptly to prevent hard-water spotting and keep that signature Boos satin shine.

Need stainless steel cleaner? Ask about the John Boos Stainless Steel Care Kit at checkout.

Important: Faucet, drain assembly, and plumbing fittings are sold separately unless added as accessories.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

46.19in

Depth

23.5in

Shipping Weight

59.0lbs

Base Type

legs with front & side crossrails

Overall Length

40" - 53"

Compartment (front - back)

18"

Splash Height

10"

Top Gauge

16 gauge

Top Stainless Series

300 series

Sink Depth (rim - drain)

14"

Drainboards

with right-hand drainboard

Compartment Width (side - side)

18"

Base Construction

stainless steel

Specifications

Pro-Bowl Sink, 1-compartment, 46-3/16"W x 23-1/2"D x 44-1/16"H overall size, (1) 18"W x 18" front-to-back x 14" deep compartment, (1) 24" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
