John Boos  |  Pro-Bowl  |  SKU: 1PB18-1D24R  |  UPC: 662969125301

John Boos 1PB18-1D24R Pro-Bowl Compartment Sinks

$1,523.98
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

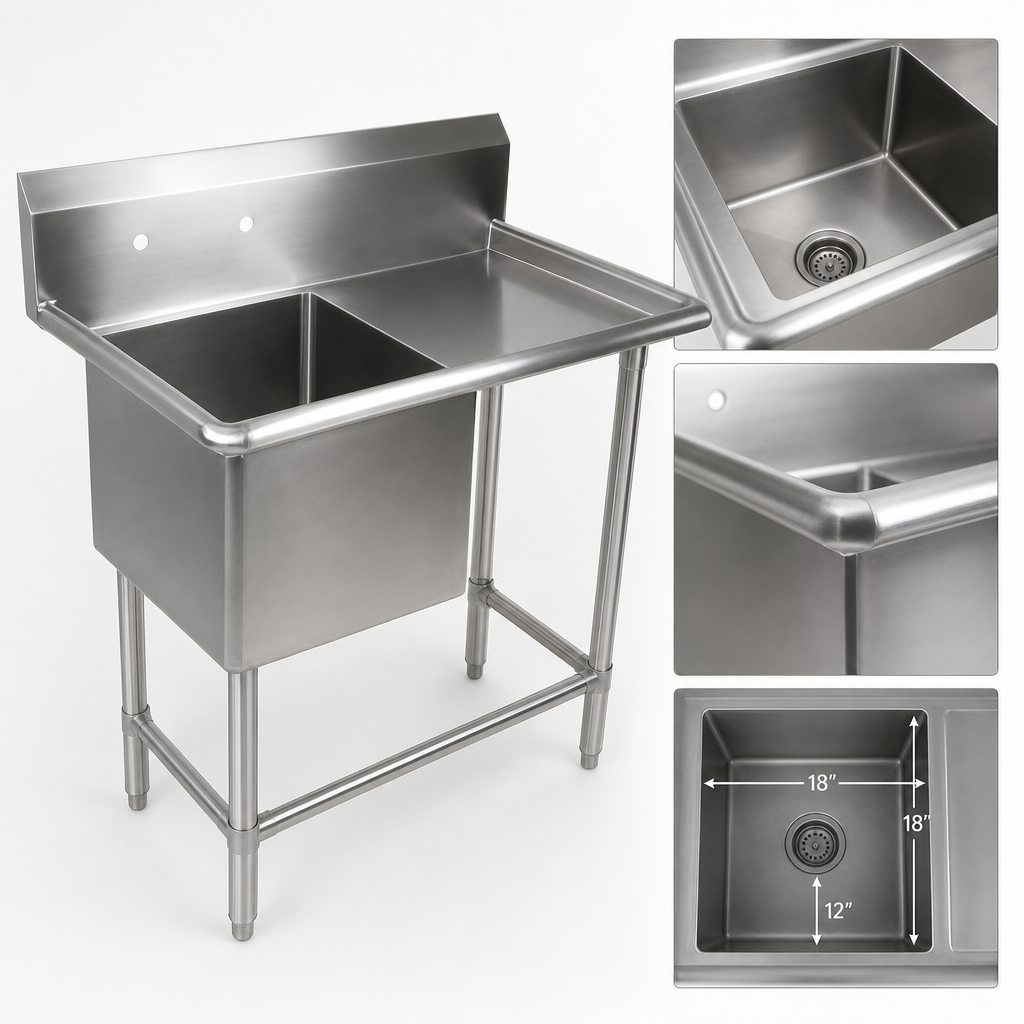

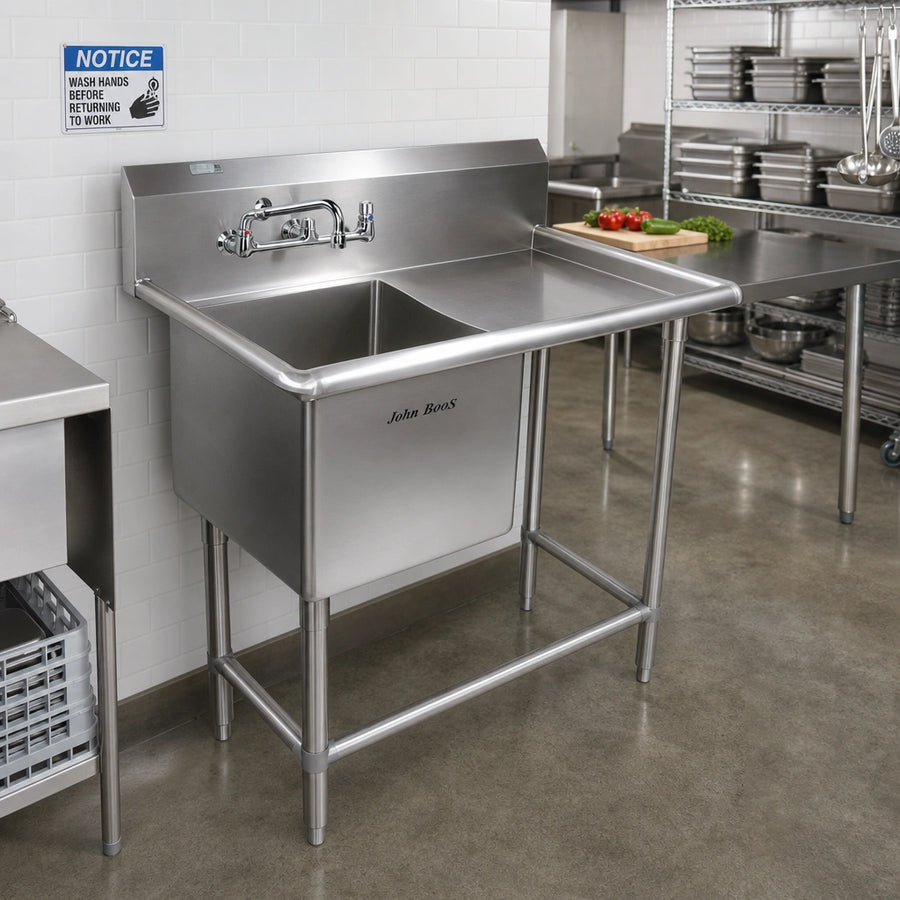

John Boos Pro-Bowl 1-Compartment Sink w/ 24" Right Drainboard

Model 1PB18-1D24R | 46 ⅜"W × 23 ½"D | NSF & CSA Listed

Built for demanding commercial kitchens, this John Boos Pro-Bowl sink delivers rock-solid durability, easy sanitation, and smart workflow in one space-saving station. A generous 24" right-hand drainboard, deep 18" × 18" compartment, and 10" boxed backsplash keep prep, rinse, and cleanup fast and efficient.

Key Features
  • Heavy-duty 16 ga Type 300 stainless steel – TIG-welded and satin-polished for a professional finish.
  • One 18" × 18" bowl, 12" deep, coved on all corners (⅝" radius) for effortless cleaning.
  • Full-length 24" right drainboard formed with positive pitch for fast water runoff.
  • 10" boxed backsplash with 45° top & 2" return protects walls and contains splashes.
  • Splash-mount faucet deck pre-punched 8" on-center (1" Ø) – ready for most commercial faucets.
  • 3 ½" die-stamped drain opening fits standard basket or lever wastes.
  • 1 ⅝" Ø stainless legs with adjustable front & side bracing for rock-solid stability.
  • Adjustable stainless bullet feet level the sink on uneven floors.
  • Bull-nosed outer edges for a safe, comfortable work zone.
  • Ships knocked-down (KD) to cut freight costs and fits through tight doorways.
Ideal For
  • Restaurant prep and dish areas
  • Cafeterias & school kitchens
  • Food trucks & ghost kitchens
  • Bakery or deli rinse stations
Detailed Specifications
Overall width (left-to-right) 46 3⁄16" (1173 mm)
Overall depth (front-to-back) 23 ½" (597 mm)
Overall height 44 1⁄16" (1119 mm) to top of backsplash
Work height 36 5⁄16" (923 mm) to sink roll
Compartment size 18" W × 18" F-B × 12" D
Drainboard 24" right side, integrally welded
Backsplash height 10" boxed w/ 2" return
Faucet holes (1) set, 8" centers, 1" Ø
Drain opening 3 ½" die-stamped
Material 16 ga Type 300 stainless steel (top & bowl)
Legs / bracing Stainless steel, 1 ⅝" Ø legs / 1 ¼" Ø bracing
Feet Adjustable stainless bullet feet
Shipping weight ≈ 57 lb
Finish #4 satin polish
Certifications
  • NSF Certified for food-zone & splash-zone use
  • CSA-Sanitation listed
Care & Maintenance Tips
  • Clean daily with non-chloride stainless cleaner or mild soap and water.
  • Avoid abrasive pads, steel wool, or bleach that can damage the protective chrome film.
  • Always wipe in the direction of the grain and dry completely to prevent water spots.
  • Restore shine with John Boos Stainless Steel Cleaner or Bar Keepers Friend as needed.
Note: Faucet, drain assembly, and other accessories are sold separately. Always verify local code requirements before installation.

John Boos & Co. reserves the right to modify specifications without prior notice.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

46.19in

Depth

23.5in

Shipping Weight

57.0lbs

Base Type

legs with front & side crossrails

Overall Length

40" - 53"

Compartment (front - back)

18"

Splash Height

10"

Top Gauge

16 gauge

Top Stainless Series

300 series

Sink Depth (rim - drain)

12"

Drainboards

with right-hand drainboard

Base Construction

stainless steel

Compartment Width (side - side)

18"

Specifications

Pro-Bowl Sink, 1-compartment, 46-3/16"W x 23-1/2"D x 44-1/16"H overall size, (1) 18"W x 18" front-to-back x 12" deep compartment, (1) 24" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
