John Boos 1PB18-1D24L Pro-Bowl Compartment Sinks
Description

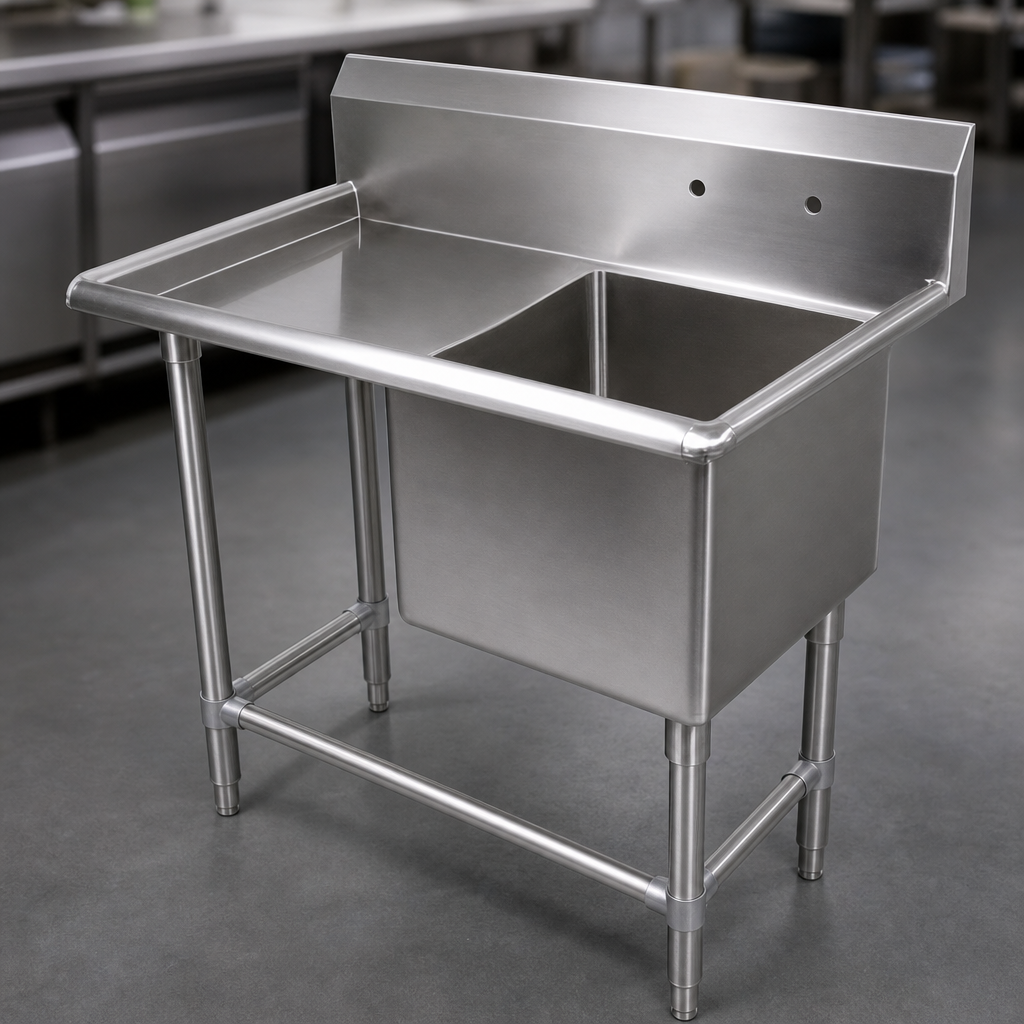

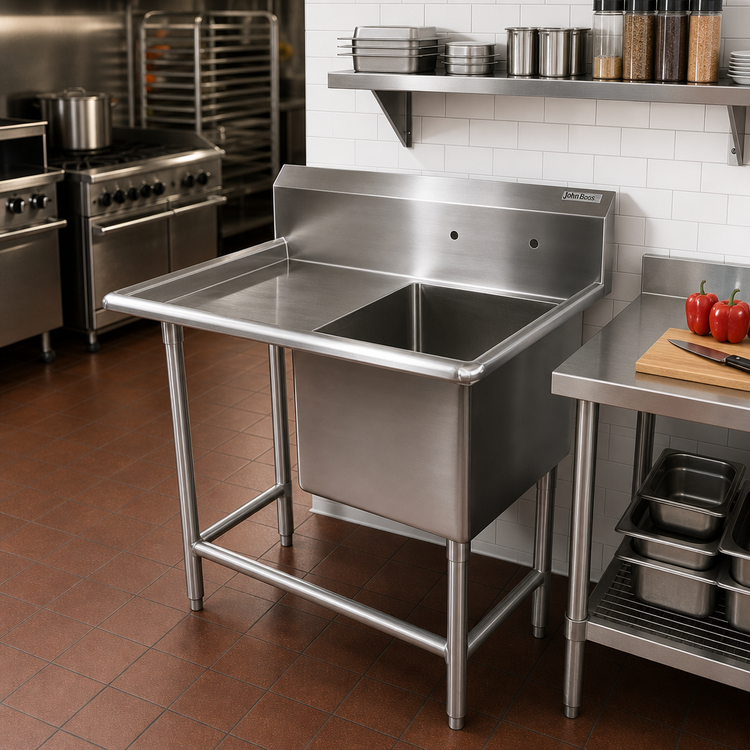

John Boos Pro-Bowl 1-Compartment Sink with 24" Left Drainboard
Model 1PB18-1D24L | 16 GA Type 300 Stainless SteelBuilt for the daily grind of commercial foodservice, the Pro-Bowl series pairs heavy-duty construction with labor-saving design details. A generous drainboard, deep 18" x 18" bowl and high boxed backsplash keep dishes moving and messes contained, while all-stainless components stand up to years of water, chemicals and heat.
Key benefits at a glance
- One-piece TIG-welded top & bowl in robust 16 ga. type 300 stainless steel (#4 satin finish)
- Spacious 18"W x 18"F-B x 12"D compartment handles large cookware & bus tubs
- 24" left-hand drainboard speeds drying and staging
- 10" boxed backsplash with 2" return & 45° top protects walls from overspray
- Pre-punched 8" on-center splash-mount faucet holes—ready for your faucet choice
- 3-1/2" die-stamped drain opening fits standard sink strainers & disposers
- 1 ⅝" O.D. stainless steel legs with adjustable side & front bracing for rock-solid stability
- Adjustable stainless bullet feet level the sink on uneven floors
- Bull-nosed edges and 5/8" radius corners for easy cleaning and crew safety
- NSF & CSA-Sanitation listed for code-compliant installation
- Ships knocked-down (KD) to save freight costs and speed delivery
Technical specifications
| Overall dimensions | 46 3/16"W x 23 1/2"D x 44 1/16"H (to top of backsplash) |
|---|---|
| Bowl size (1) | 18"W x 18"F-B x 12"D |
| Drainboard | 24" left side, pitched for positive drainage |
| Backsplash | 10"H boxed, 2" return, 45° top |
| Faucet mounting | (2) 1" holes, 8" centers, splash-mount |
| Drain opening | 3 1/2" dia. die-stamped |
| Material / finish | 16 ga. Type 300 stainless steel, #4 satin |
| Legs & bracing | Stainless steel; 1 ⅝" O.D. legs / 1 ¼" O.D. bracing (adjustable) |
| Feet | 1" dia. stainless bullet feet, height-adjustable |
| Certifications | NSF, CSA-Sanitation |
| Shipping | Knocked-down (assembly required); hardware included |
Optional accessories (sold separately)
- Commercial faucets & add-a-faucets
- Lever waste and basket strainers
- Pre-rinse spray units for high-volume dish rooms
- Drop-on overshelves or pot racks for extra storage
- End splashes (left, right or both) for additional splash protection
For best results, clean daily with non-chloride cleaners and polish periodically with John Boos Stainless Steel Cleaner to maintain the protective surface layer.
