Description

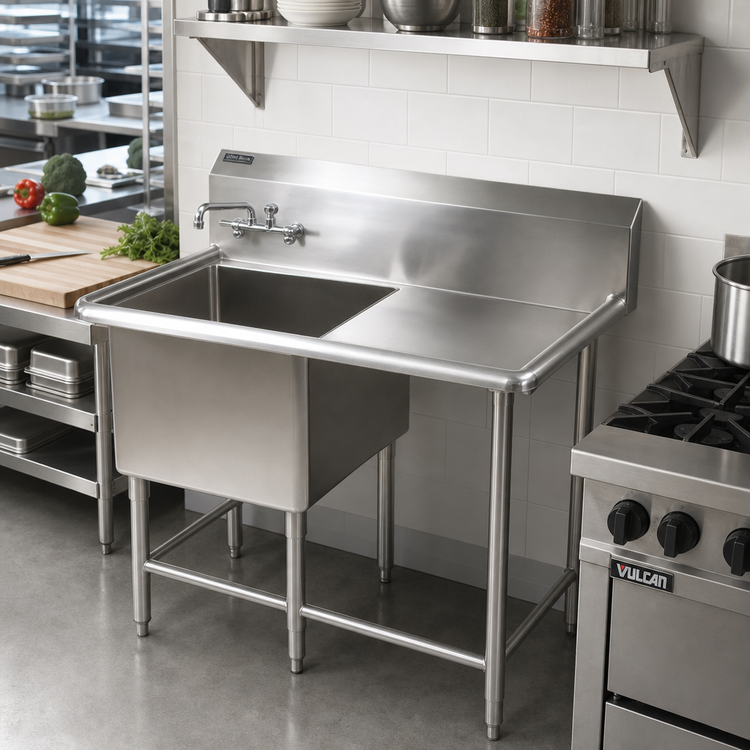

John Boos “Pro-Bowl” 1-Compartment Sink w/ 18" Right Drainboard

Model 1PB16204-1D18R  |  16 GA Type 300 Stainless Steel

Engineered for demanding commercial kitchens, the John Boos Pro-Bowl series combines heavyweight 16-gauge stainless steel with thoughtful, operator-friendly details that boost productivity and streamline clean-up.

Key Advantages

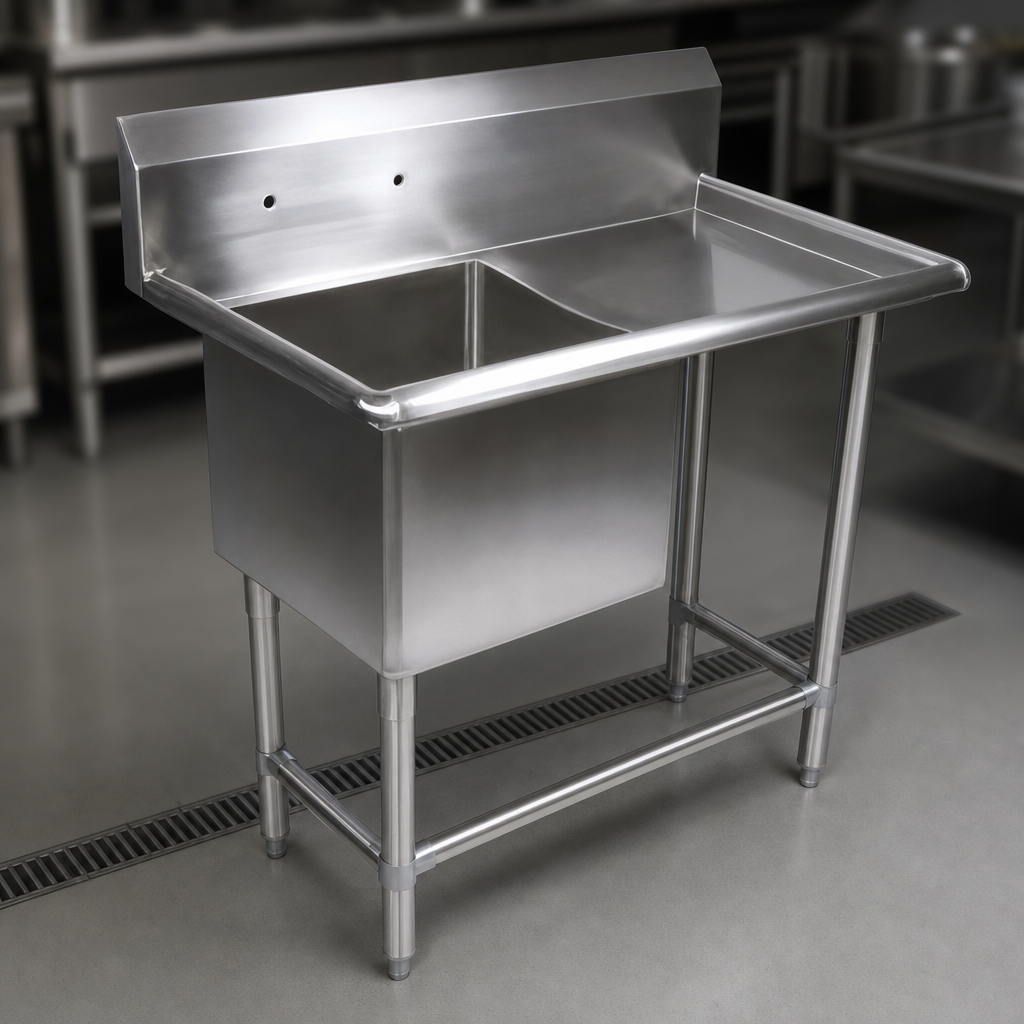

  • Heavy-duty 16 GA type 300 stainless steel top, bowl and drainboard—built to withstand years of daily use
  • Generous 18" right-side drainboard speeds drying and staging while keeping work areas organized
  • 14" deep compartment with 5⁄8" radius coved corners for easy, NSF-compliant sanitation
  • 10" high boxed backsplash with 2" 45° return protects walls and contains splashes
  • Splash-mount faucet holes pre-punched on 8" centers (faucet sold separately)
  • 3-1⁄2" die-stamped drain opening fits standard commercial sink strainers & disposers
  • Adjustable stainless steel bullet feet level the sink on uneven floors
  • Front & side stainless steel bracing add rigidity while remaining fully adjustable in the field
  • Ships knock-down (KD) to reduce freight cost; quick TIG-welded assembly on-site
  • NSF & CSA-Sanitation certified – ready for health-department inspection

At-a-Glance Specs

Overall Dimensions (W × D × H) 38 3⁄16" × 25 1⁄2" × 44 1⁄16"
Compartment Size (W × F-B × Depth) 16" × 20" × 14"
Drainboard 18" long, right side, integrally TIG-welded
Backsplash 10" boxed, 45° top edge, 2" return
Faucet Holes 8" on-center, 1" diameter (splash-mount)
Drain Opening 3 1⁄2" die-stamped
Material / Finish 16 GA type 300 stainless, #4 satin polish
Base Construction 1-5⁄8" Ø stainless legs, 1-1⁄4" Ø SS bracing
Feet 1" adjustable stainless bullet feet
Certification NSF, CSA-Sanitation
Shipping Knock-down (KD) for lower freight class

Faucet, drain assembly and other accessories sold separately.

Simple Care & Maintenance

  • Clean daily with mild soap, warm water and a soft cloth or sponge.
  • Avoid chlorine bleach and harsh, chloride-based cleansers—these attack the protective stainless film.
  • For stubborn stains, apply non-chloride cleanser such as Bar Keepers Friend in line with the polish grain.
  • Rinse thoroughly and dry to prevent water spots and maintain the Pro-Bowl’s satin sheen.
  • Finish with John Boos Stainless Steel Cleaner to restore brilliance.
Installation note: This sink must be leveled, properly plumbed, and all joints sealed to meet local code requirements.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

38.19in

Depth

25.5in

Shipping Weight

55.0lbs

Overall Length

36" - 39"

Top Gauge

16 gauge

Splash Height

10"

Base Type

legs with front & side crossrails

Compartment (front - back)

20"

Compartment Width (side - side)

16"

Sink Depth (rim - drain)

14"

Top Stainless Series

300 series

Drainboards

with right-hand drainboard

Base Construction

stainless steel

Specifications

Pro-Bowl Sink, 1-compartment, 38-3/16"W x 25-1/2"D x 44-1/16"H overall size, (1) 16"W x 20" front-to-back x 14" deep compartment, (1) 18" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
