Key specifications

Dimensions
75.25"W × 29.5"D × 44.0"H
Type
Compartment Sink
Style
B Series
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Spec sheet
John Boos SKU: 1B244-2D24 UPC: 662969271794

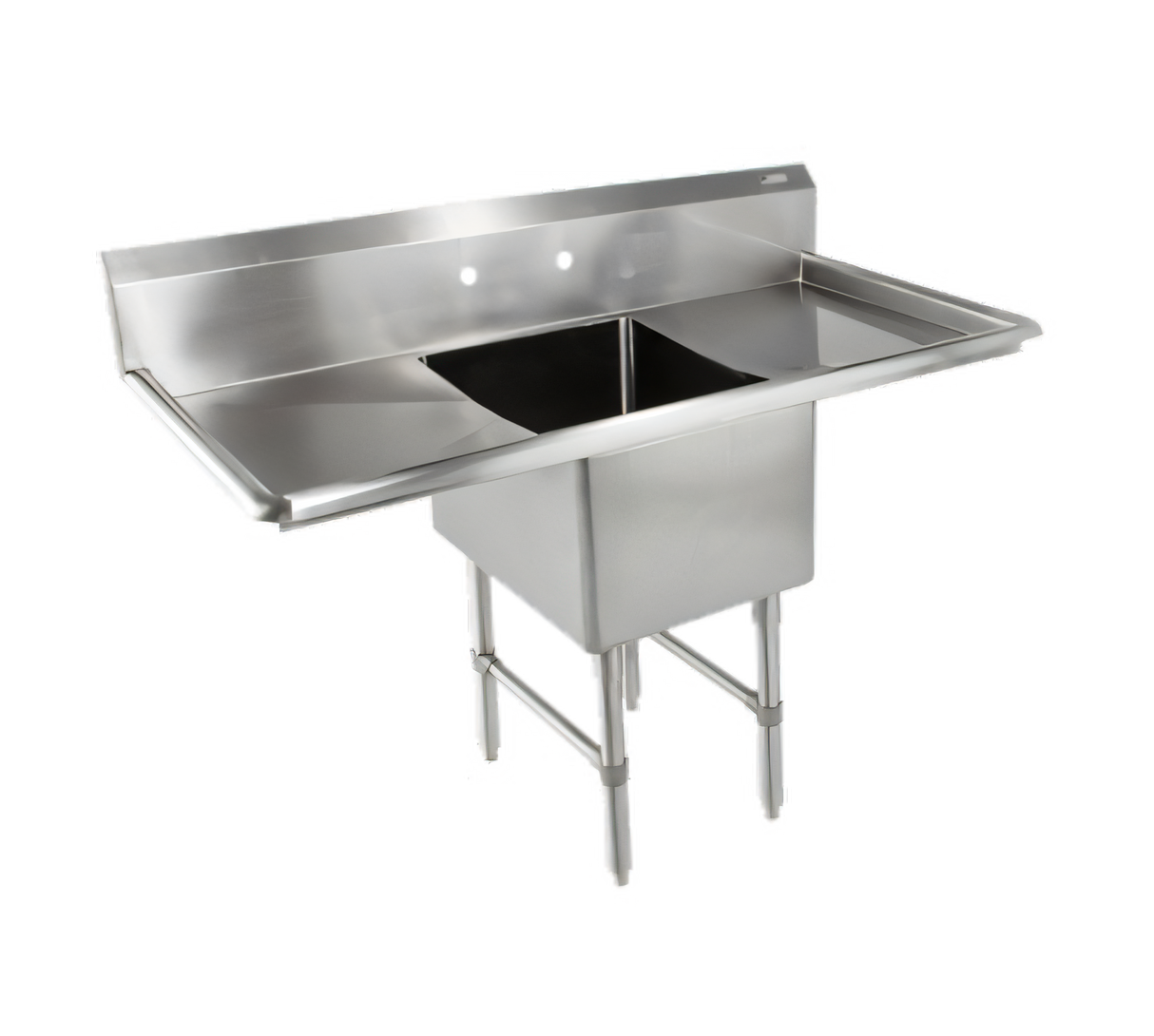

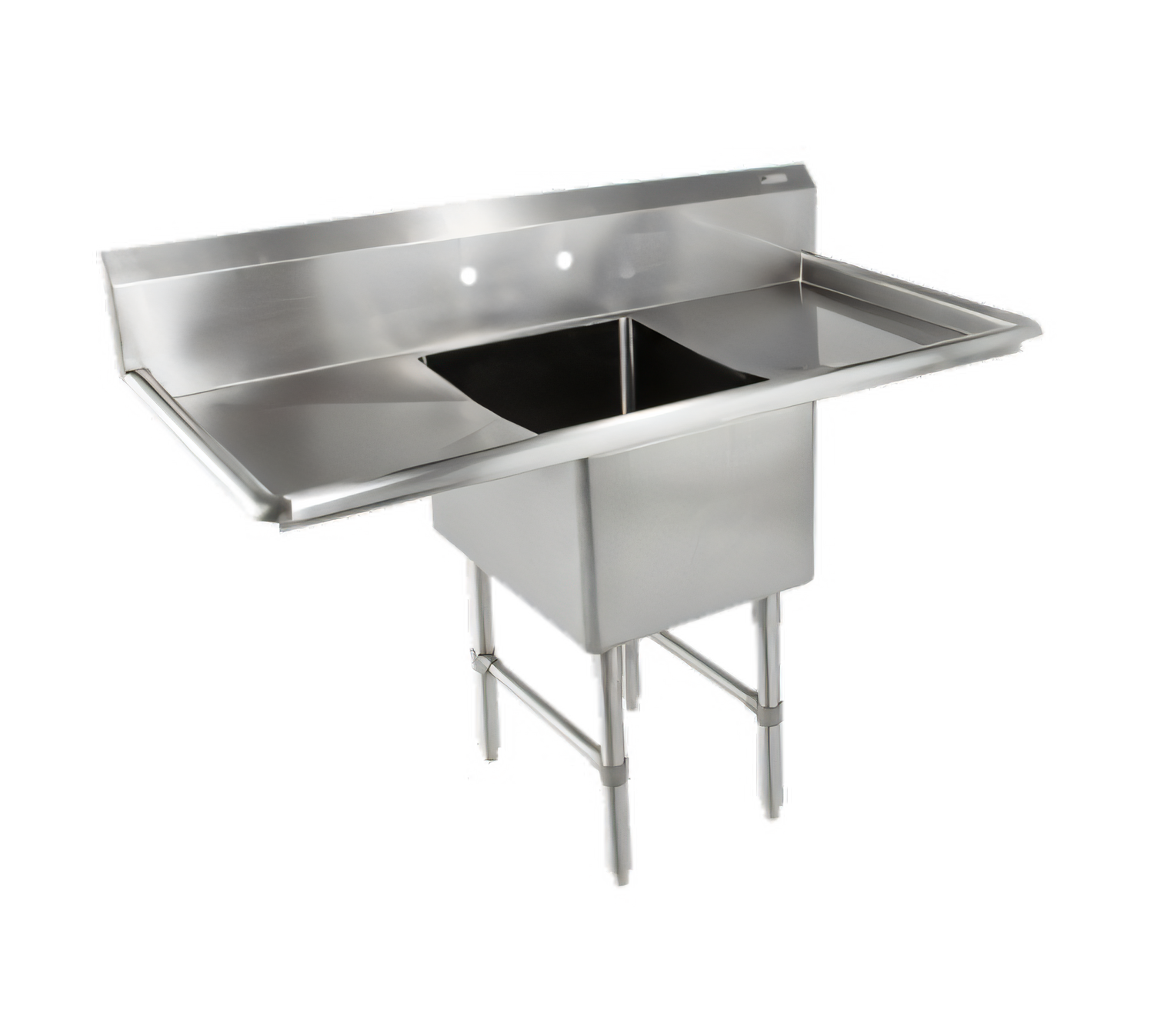

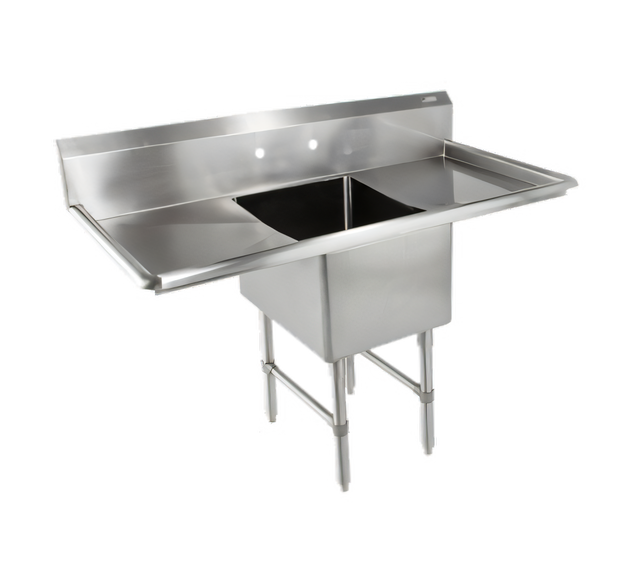

John Boos 1B244-2D24 1-Compartment Sink with 2 Drainboards

$1,206.70
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Size
Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $112/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Style B Series
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Compartments 1
Compartment Width 24 in
Compartment Depth 24 in
Sink Depth 14 in
Drainboards Left and Right
Drainboard Width 24 in
Splash Height 10 in
Backsplash Return 2 in
Top Gauge 16 Gauge
Top Stainless Series 300 Series
Base Type Legs With Side Crossrails
Faucet Hole Type Splash Mount
Faucet Hole Centers 8 in
Drain Opening 3-1/2 in
Side Bracing Adjustable
Feet Type Adjustable Bullet Feet

Description

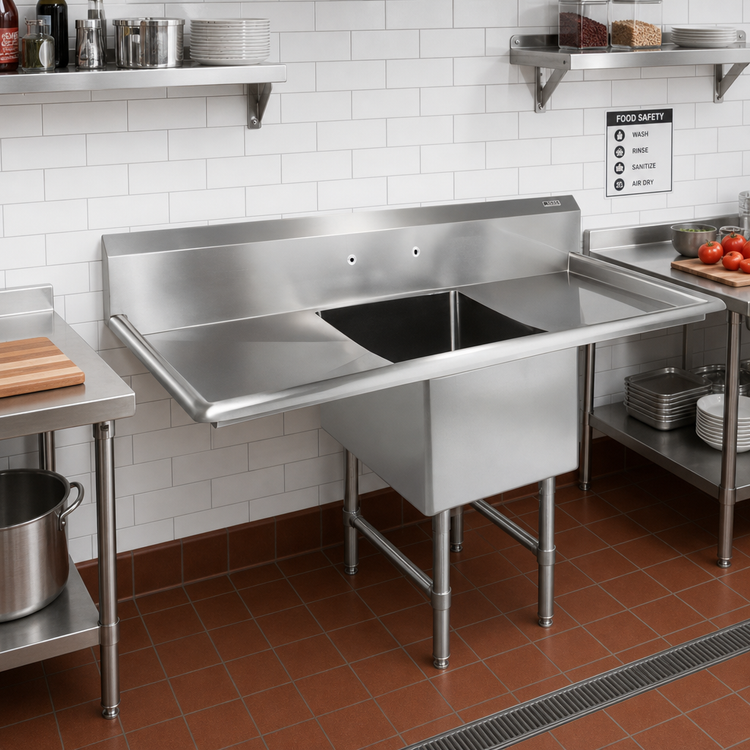

The John Boos B Series floor-model sink has one 24 in x 24 in compartment that is 14 in deep, with 24 in drainboards on the left and right.

It features a 10 in high boxed backsplash with a 45° top and 2 in return, one set of splash-mount faucet holes on 8 in centers, and a 3-1/2 in die-stamped drain opening.

The sink uses 16-gauge, 300-series stainless steel construction with a satin finish, stainless steel legs, adjustable side bracing, and adjustable bullet feet.

Overall Dimensions:

75.25"W x 29.5"D x 44.0"H

Product Weight:

92.0 lb

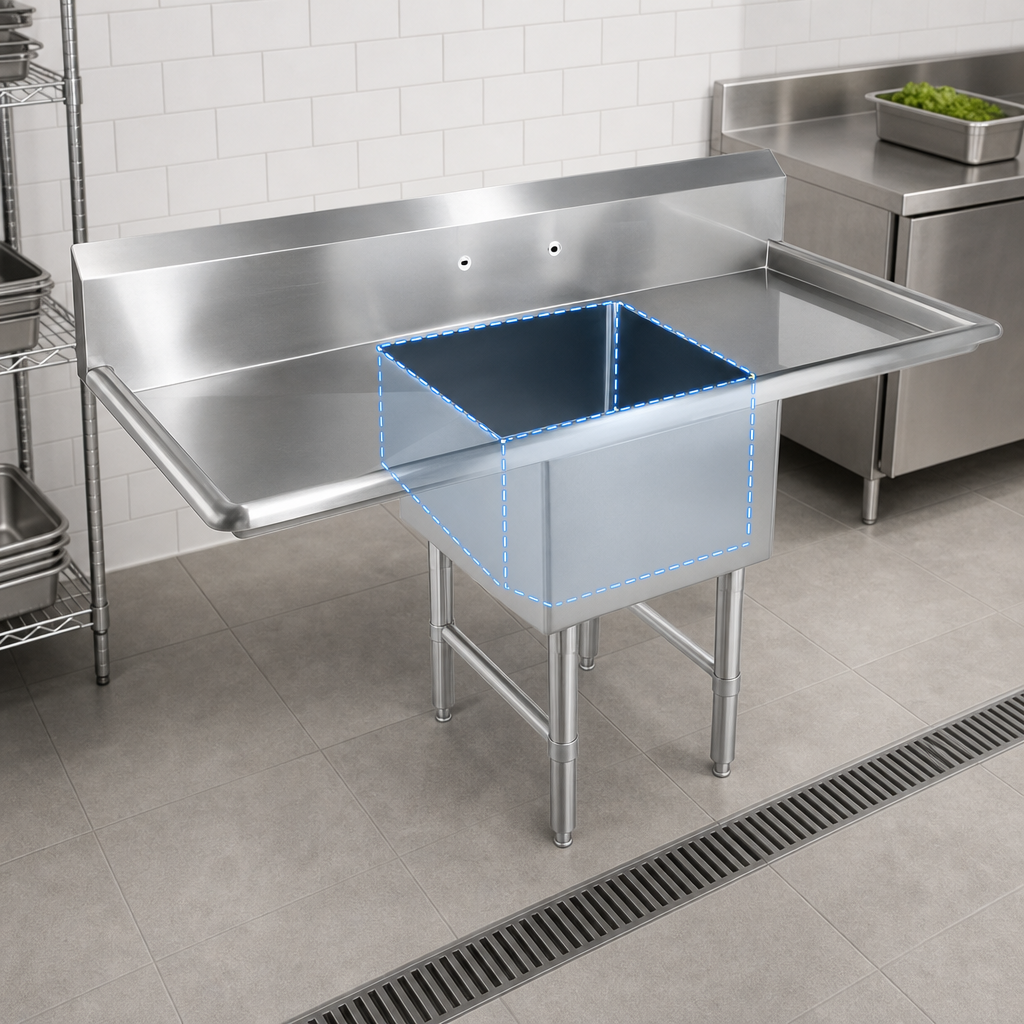

One Compartment

The compartment measures 24 in wide by 24 in front-to-back and is 14 in deep.

Left and Right Drainboards

The sink has 24 in drainboards on both the left and right sides.

Boxed Backsplash

The 10 in high backsplash has a 45° top and 2 in return.

Splash-Mount Faucet Holes

One set of faucet holes is provided with 8 in centers.

Stainless Steel Construction

The sink uses 16-gauge, 300-series stainless steel construction with a satin finish.

Adjustable Base Components

The base includes stainless steel legs, adjustable side bracing, and adjustable bullet feet.

Die-Stamped Drain Opening

The compartment has a 3-1/2 in die-stamped drain opening.

Frequently Asked Questions

It has one compartment measuring 24 in wide by 24 in front-to-back and 14 in deep.
Yes. It has 24 in drainboards on both the left and right sides.
The overall dimensions are 75-1/4 in wide, 29-1/2 in deep, and 44 in high.
It has one set of splash-mount faucet holes with 8 in centers.
The sink has a 3-1/2 in die-stamped drain opening.
