John Boos

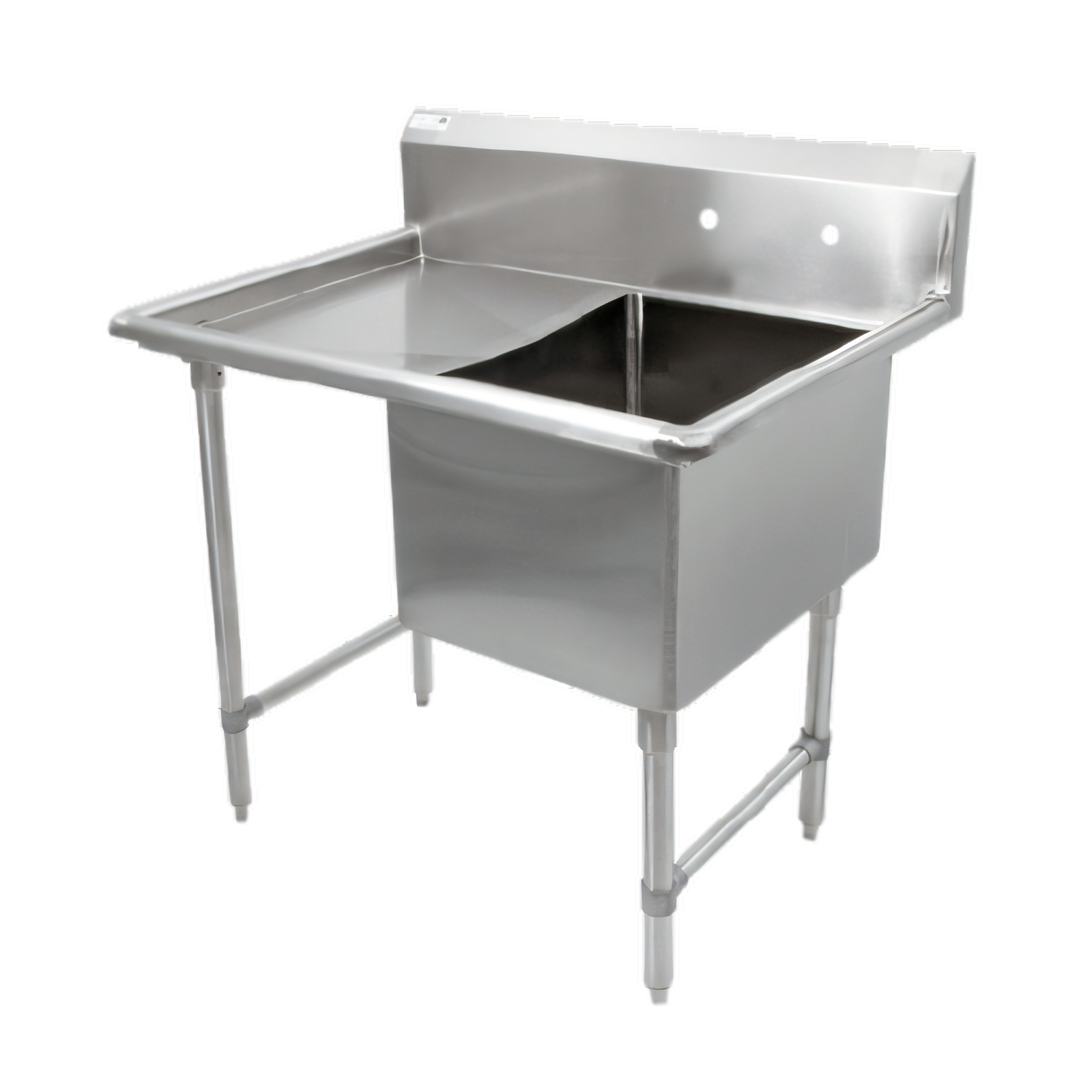

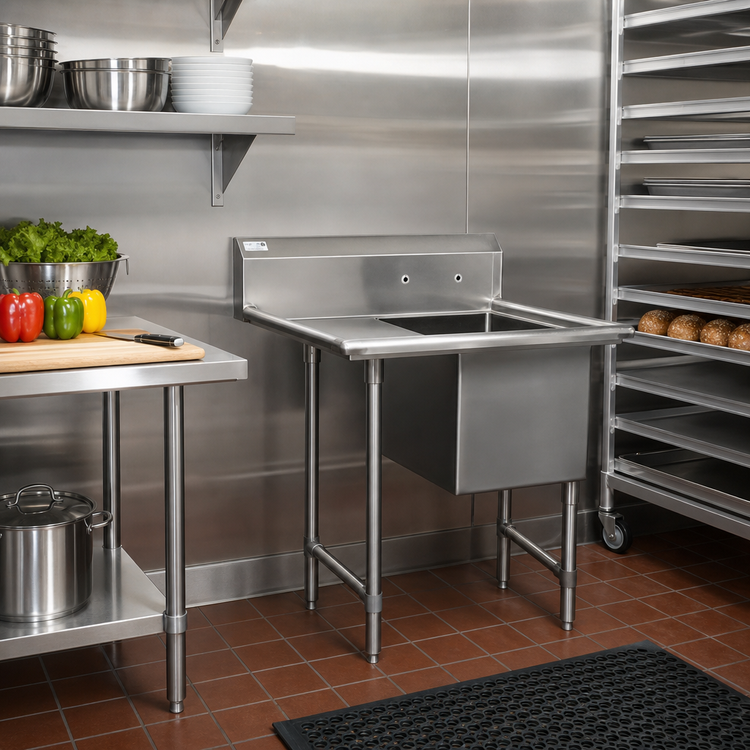

John Boos B Series 1-Compartment Stainless Steel Floor Model Sink with Left Drainboard

SKU: 1B244-1D24L-X
$1,151.40
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos B Series 1-Compartment Stainless Steel Floor Model Sink with Left Drainboard

52-3/16" W x 29-1/2" D x 44" H, 24" x 24" x 14" Bowl, 10" Backsplash

A rugged floor-model sink with a roomy single bowl, left drainboard, and tall 10-inch backsplash built for efficient commercial prep and cleanup.

  • Single 24" x 24" x 14" compartment provides a practical wash station for prep and cleanup tasks.
  • 24" left drainboard adds landing and drying space to streamline kitchen workflow.
  • 10" boxed backsplash with a 45° top and 2" return helps protect the wall from splashes.
  • Built with 16-gauge 300 series stainless steel for durable commercial service.
  • Stainless steel legs, adjustable side bracing, and bullet feet provide a stable floor setup.
  • Includes splash-mount faucet holes on 8" centers and a 3-1/2" die-stamped drain opening.

Overall Dimensions:

52.18"W x 29.5"D x 44.0"H

Product Weight:

77.0 lb

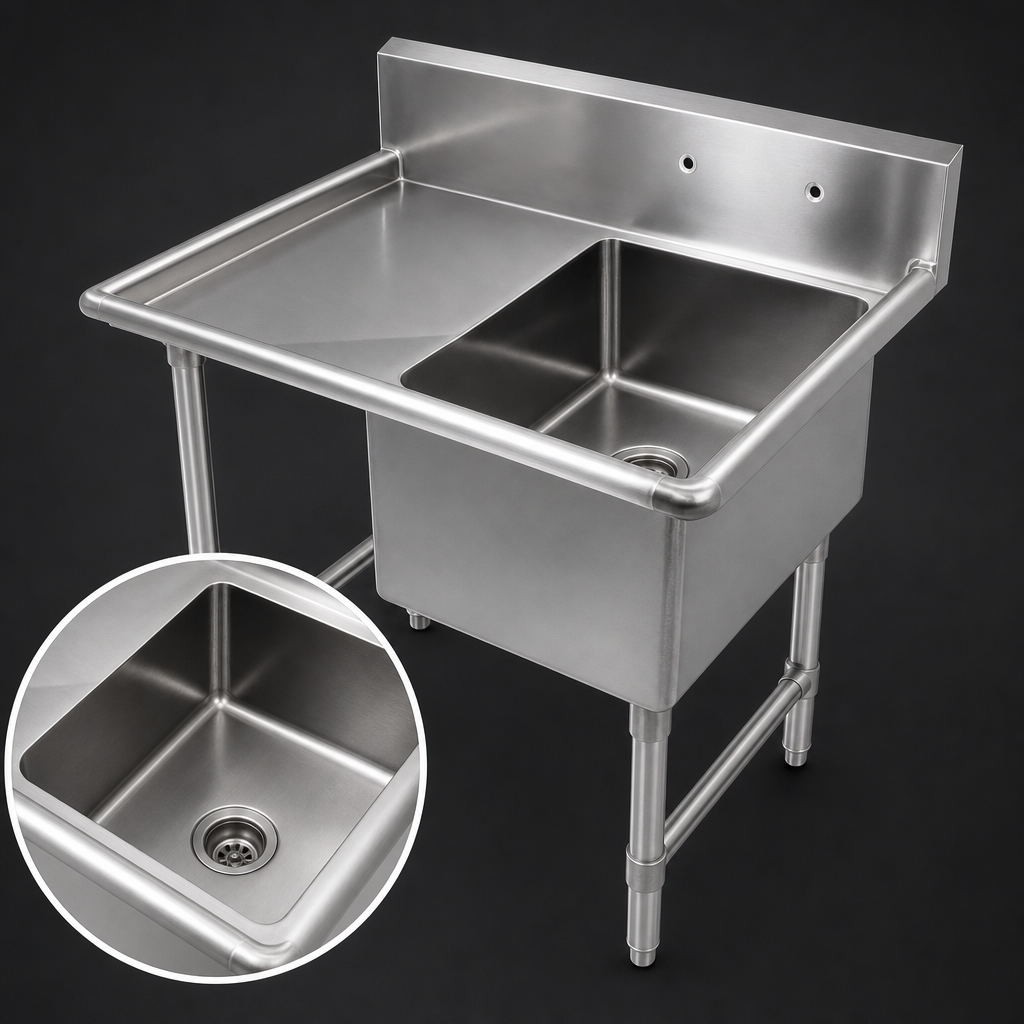

Single Compartment Sink

One 24" front-to-back x 24" side-to-side x 14" deep bowl provides a versatile wash area.

Left-Hand Drainboard

A 24" drainboard on the left side offers extra space for staging, draining, and drying.

10-Inch Boxed Backsplash

The tall backsplash includes a 45° top and 2" return to help reduce wall splash.

16-Gauge 300 Series Stainless Steel Construction

Durable stainless steel top construction is designed for heavy-duty commercial use.

Stainless Steel Leg Base

Stainless steel legs with adjustable side bracing support the sink on the floor.

Adjustable Bullet Feet

Bullet feet make it easier to level the sink on uneven flooring.

Splash-Mount Faucet Holes

One set of faucet holes with 8" centers is provided for splash-mount faucet installation.

3-1/2-Inch Die-Stamped Drain Opening

A standard drain opening is built into the bowl for plumbing connection.

Type 1-Compartment Sink
Style B Series
Installation Type Floor Model
Material Stainless Steel
Stainless Series 300 Series
Top Gauge 16 Gauge
Compartments 1
Compartment Width 24 Inches
Compartment Depth 14 Inches
Backsplash Height 10 Inches
Drainboard Location Left
Base Type Legs with Side Crossrails
Mounting Type Splash Mount
Faucet Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 53 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 77 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall size is 52-3/16" W x 29-1/2" D x 44" H.
It has one 24" x 24" x 14" compartment.
Yes. It includes a 24" left-hand drainboard.
It has a 10" boxed backsplash with a 45° top and 2" return.
The sink includes one set of splash-mount faucet holes with 8" centers.
It is constructed from 16-gauge 300 series stainless steel with stainless steel legs and adjustable side bracing.
