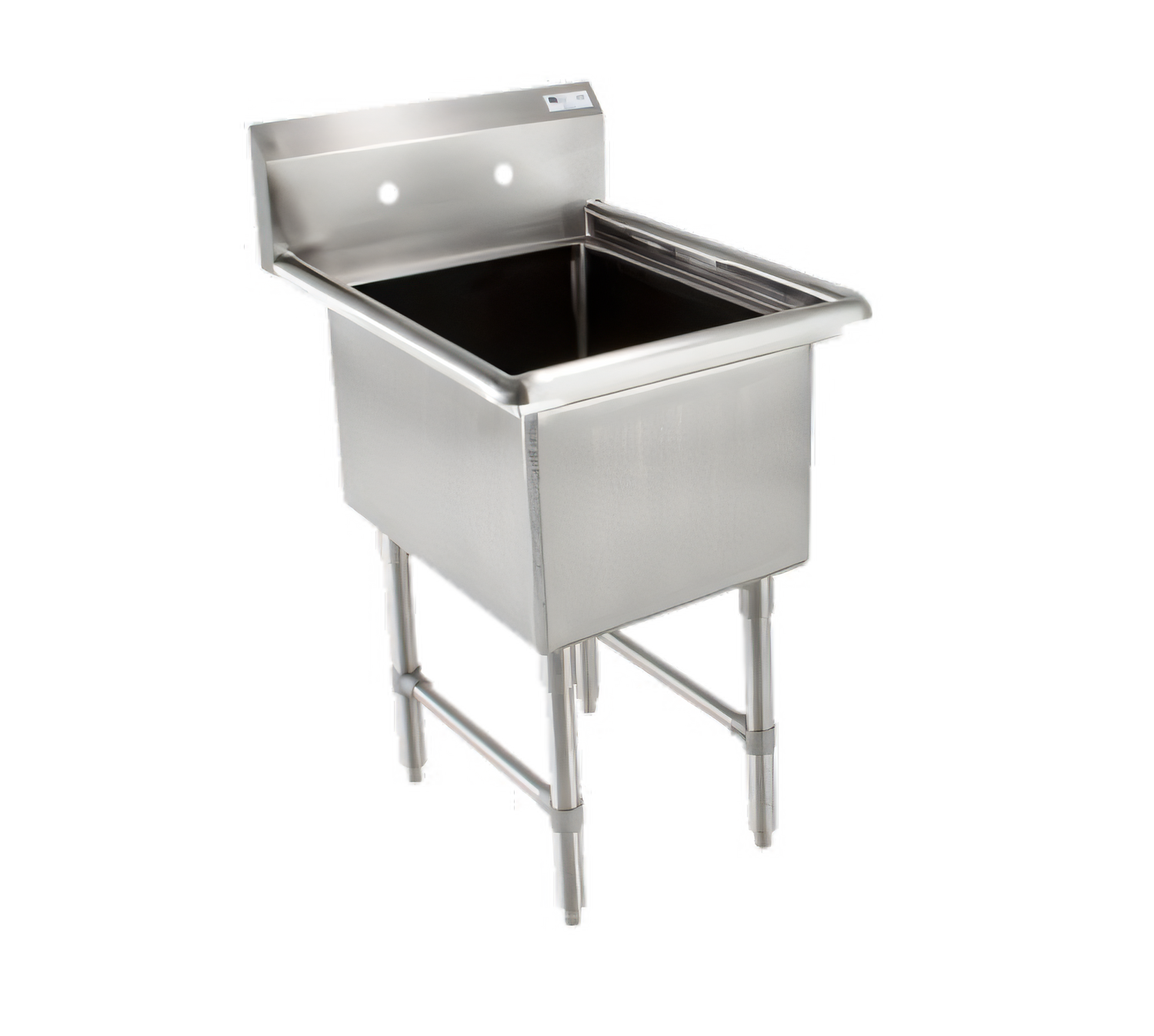

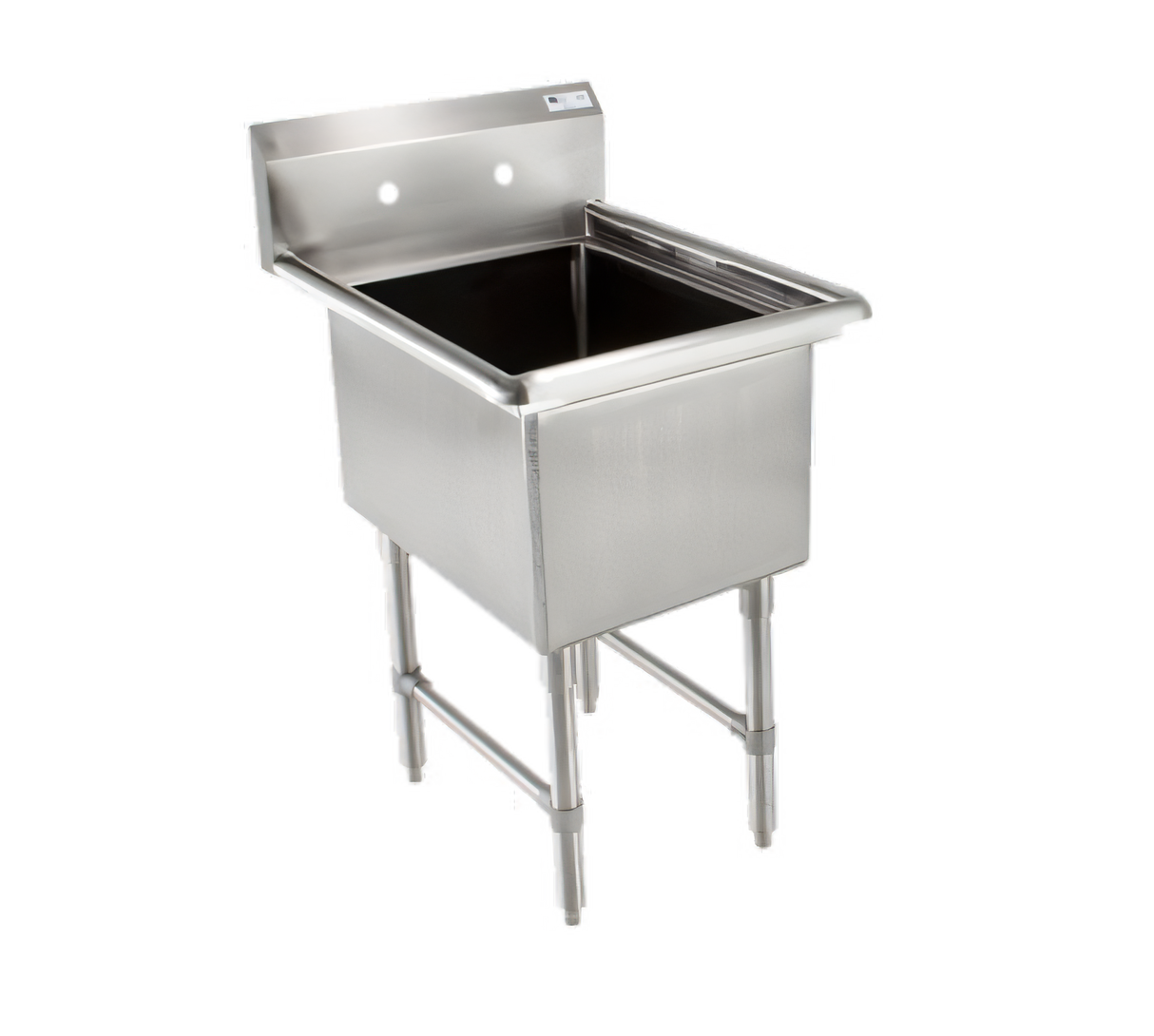

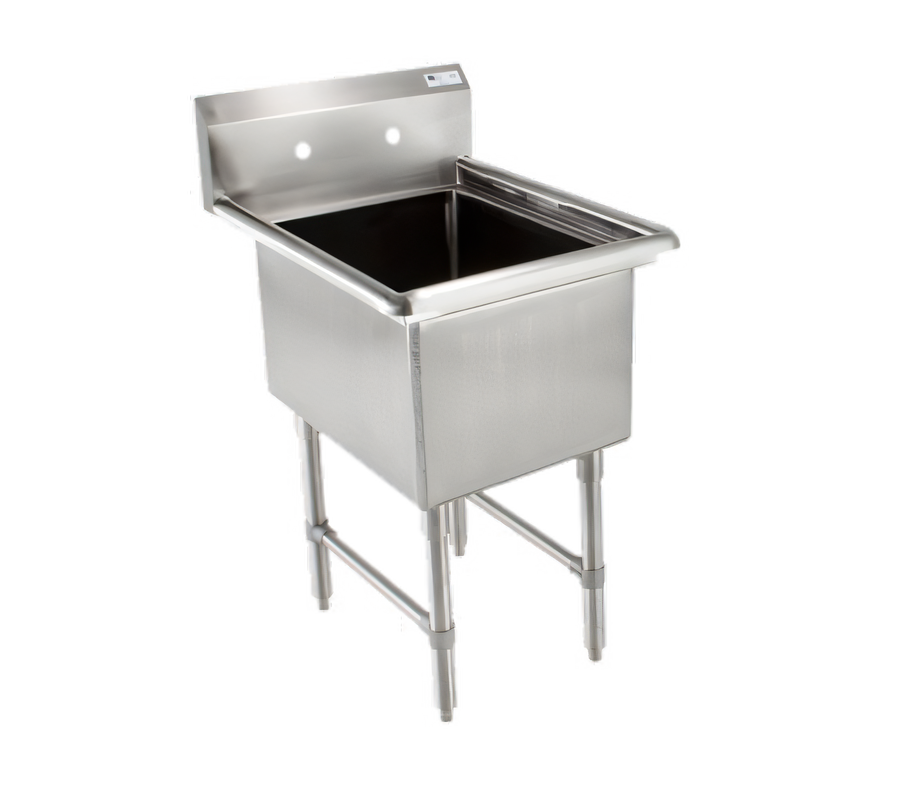

John Boos B-Series 1-Compartment Stainless Steel Sink with 10-Inch Backsplash and Legs
John Boos B-Series 1-Compartment Stainless Steel Sink with 10-Inch Backsplash and Legs
16 Gauge, Type 300 Stainless Steel, Floor Model
A durable floor-mounted sink built with a deep 18 x 18 x 14-inch bowl, stainless steel legs, and a sanitary boxed backsplash for busy commercial kitchens.
- 1-compartment design with an 18 x 18 x 14-inch bowl for prep, wash, and utility use.
- 16-gauge Type 300 stainless steel construction with a satin finish for long-lasting durability.
- 10-inch boxed backsplash with a 45° return helps protect walls from splash.
- 3-1/2-inch die-stamped drain opening promotes efficient drainage.
- Stainless steel legs, side bracing, and adjustable bullet feet provide stable floor support.
- Splash-mount faucet holes with 8-inch centers simplify faucet installation.
- Without drainboards for a compact footprint.
Overall Dimensions:
23.12"W x 23.5"D x 44.0"HProduct Weight:

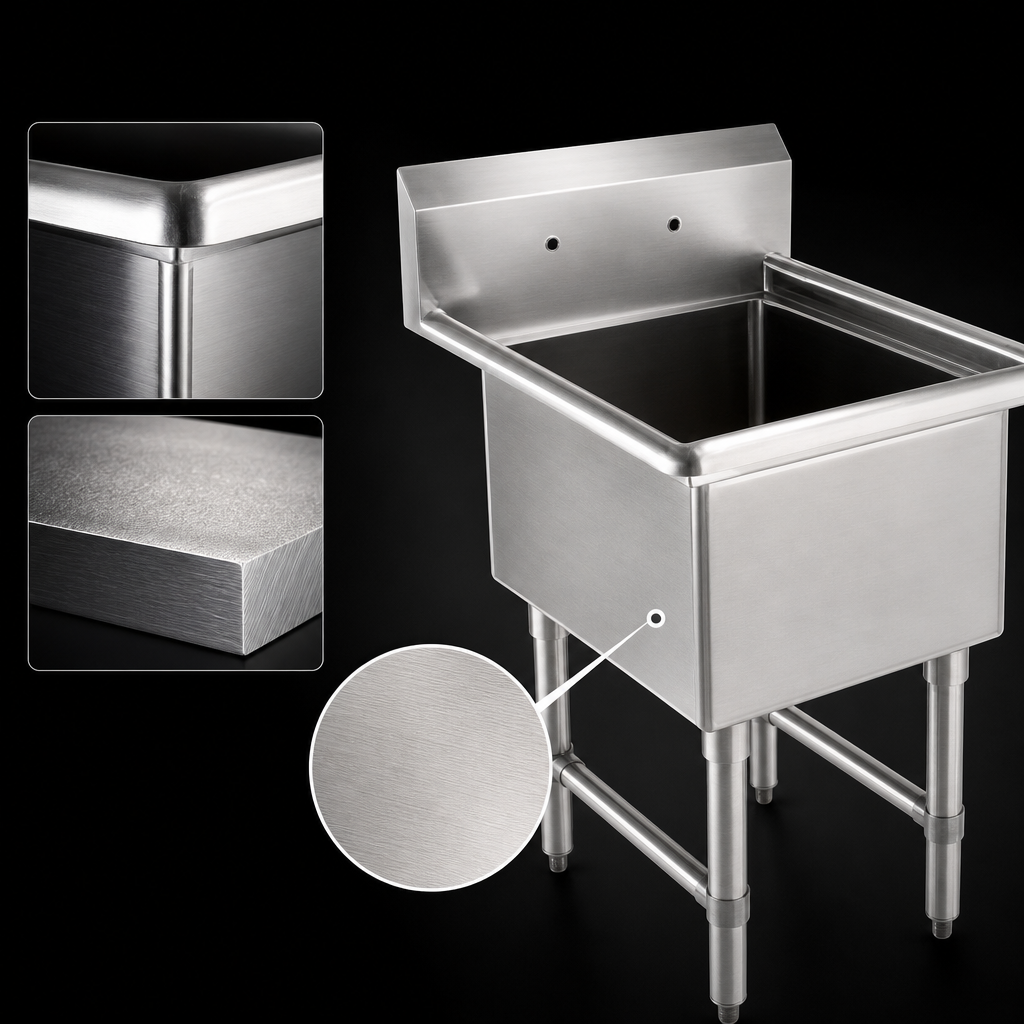

44.0 lb16-Gauge Stainless Steel Construction
Top and bowls are made from 16-gauge Type 300 stainless steel for commercial-grade strength and corrosion resistance.
Single 18 x 18 x 14-Inch Bowl
One deep compartment provides a compact work area with room for washing, rinsing, or prep tasks.
10-Inch Boxed Backsplash
The full-length backsplash includes a 2-inch return to the wall at a 45° angle and a turned-down rear lip to help contain splashes.
Drainage-Formed Bowl Bottom
The bowl bottom is formed to direct water toward the 3-1/2-inch die-stamped drain opening.
Stainless Steel Legs and Bracing
Standard round stainless steel legs and side bracing support the sink on the floor and add stability.
Adjustable Bullet Feet
Adjustable bullet feet help level the sink on uneven floors.
Splash-Mount Faucet Holes
One set of faucet holes with 8-inch centers is provided in the backsplash for faucet mounting.
Sanitary Corner Design
Coved inside corners and bullnosed outside corners help create smoother, easier-to-clean edges.
Welded Stainless Steel Base
The sink top is TIG welded and the base frame is MIG welded for a durable assembled structure.
Certifications & Compliance
