John Boos  |  SKU: 1B184-1D18L-X

John Boos 1B184-1D18L-X Compartment Sinks

$836.76
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Video Instructions Care & maintenance
Related Searches
1-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

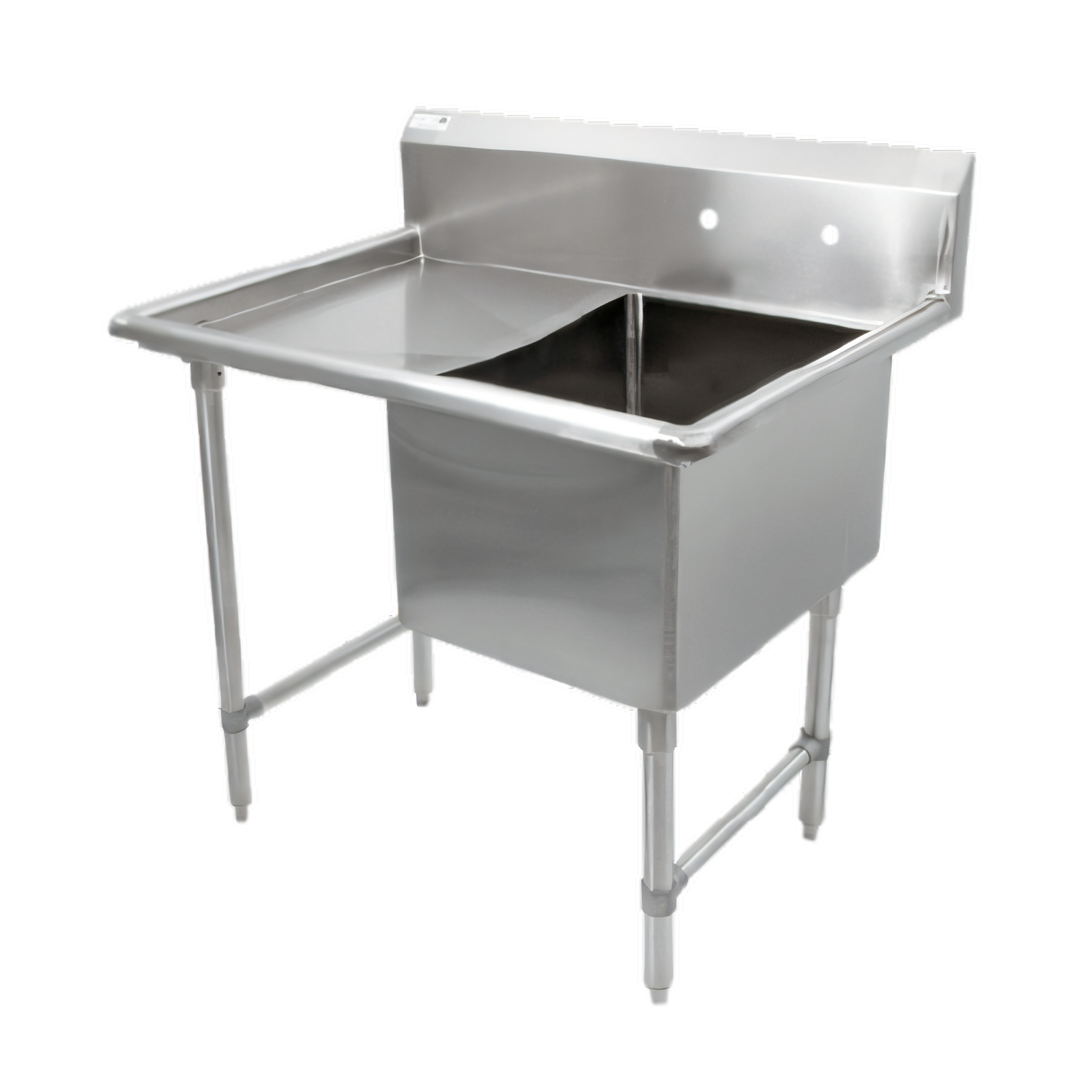

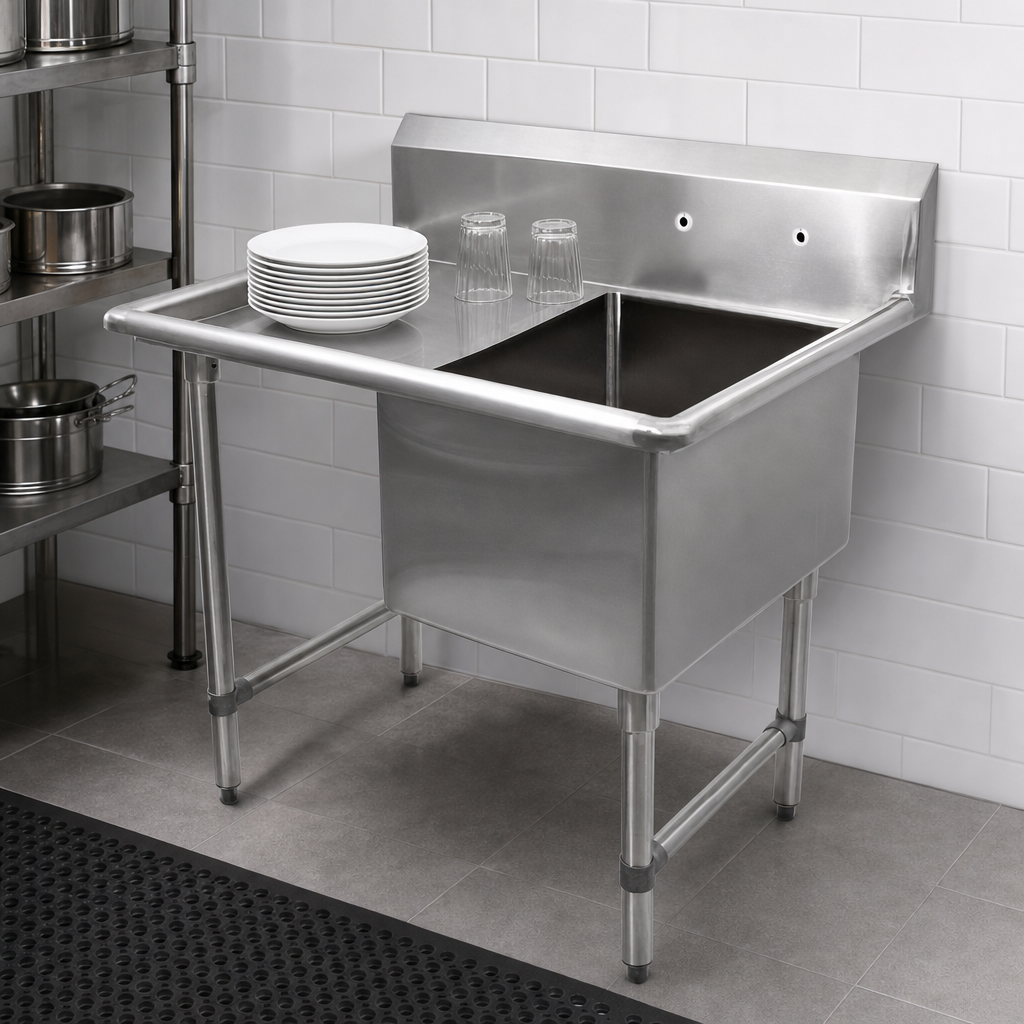

"B" Series Sink, 1-compartment, 40"W x 23-1/2"D x 44"H overall size, (1) 18"W x 18" front-to-back x 14" deep compartment, (1) 18" left drainboard, 10"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable side bracing, adjustable bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)

Features & Specs

Manufacturer

John Boos

Certifications

NSF, CSA-Sanitation

Height

44.0in

Width

40.18in

Depth

23.5in

Shipping Weight

58.0lbs

Base Type

legs with side crossrails

Drainboards

with left-hand drainboard

Compartment (front - back)

18"

Splash Height

10"

Top Gauge

16 gauge

Overall Length

40" - 53"

Sink Depth (rim - drain)

14"

Top Stainless Series

300 series

Compartment Width (side - side)

18"

Base Construction

stainless steel

Specifications

"B" Series Sink, 1-compartment, 40-3/16"W x 23-1/2"D x 44"H overall size, (1) 18"W x 18" front-to-back x 14" deep compartment, (1) 18" left drainboard, 10"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable side bracing, adjustable bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)
