John Boos 1B184-1D18L Compartment Sinks
Description

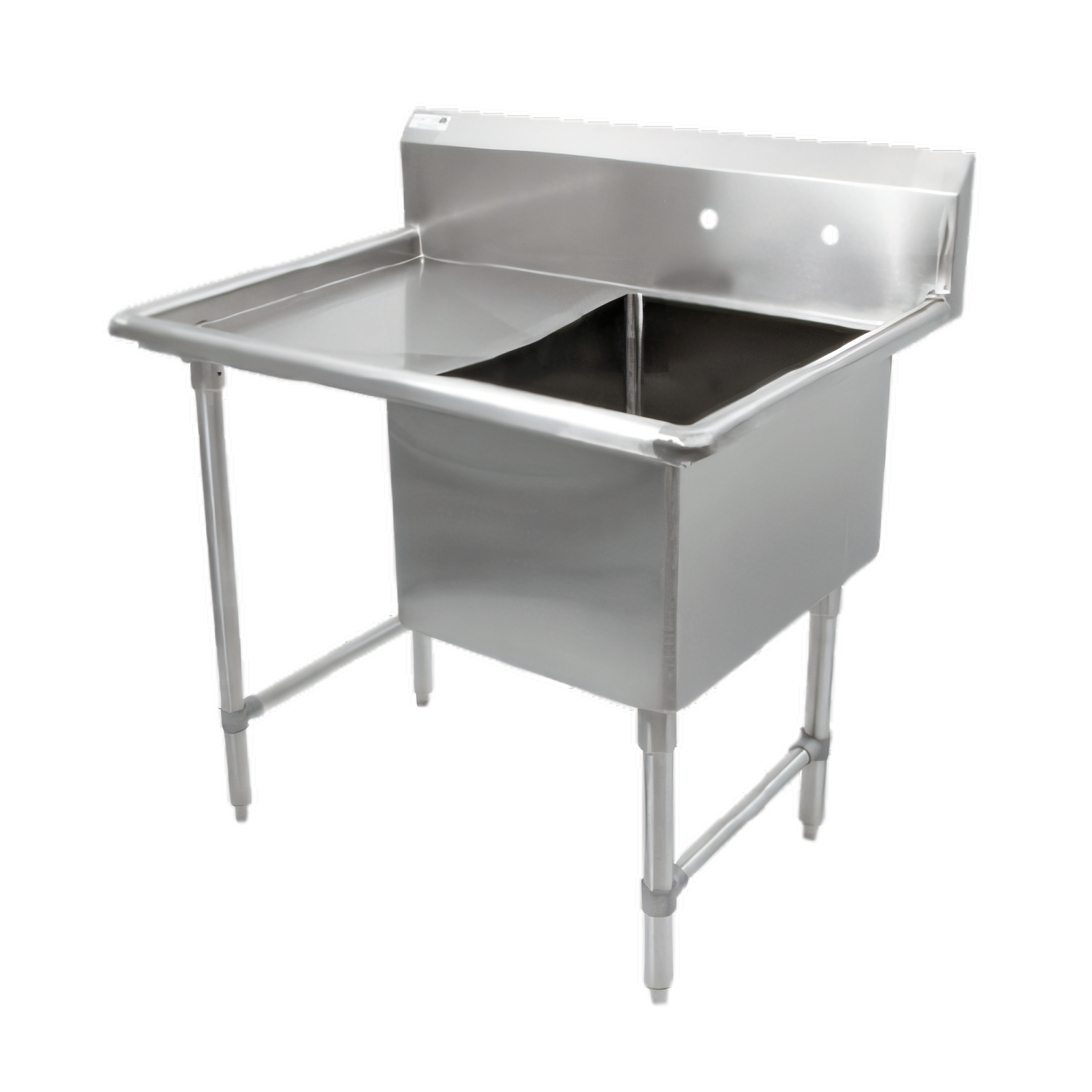

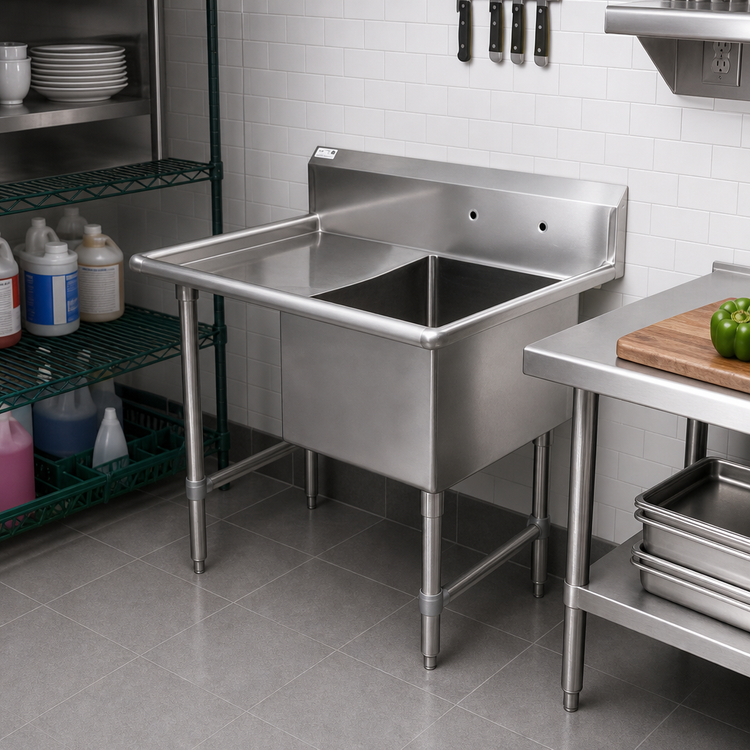

John Boos B-Series 1-Compartment Sink with 18" Left Drainboard
Model 1B184-1D18L • 40" W × 23 ½" D × 44" H • NSF & CSA-Sanitation CertifiedEngineered for heavy-duty food-service use, this John Boos B-Series sink pairs a space-saving 18" drainboard with a deep 14" bowl—giving you a reliable workstation for rinsing, soaking and staging dishes without sacrificing valuable kitchen real estate.
Key advantages
- Rugged 16 ga Type 300 stainless steel top, bowl & backsplash with #4 satin finish

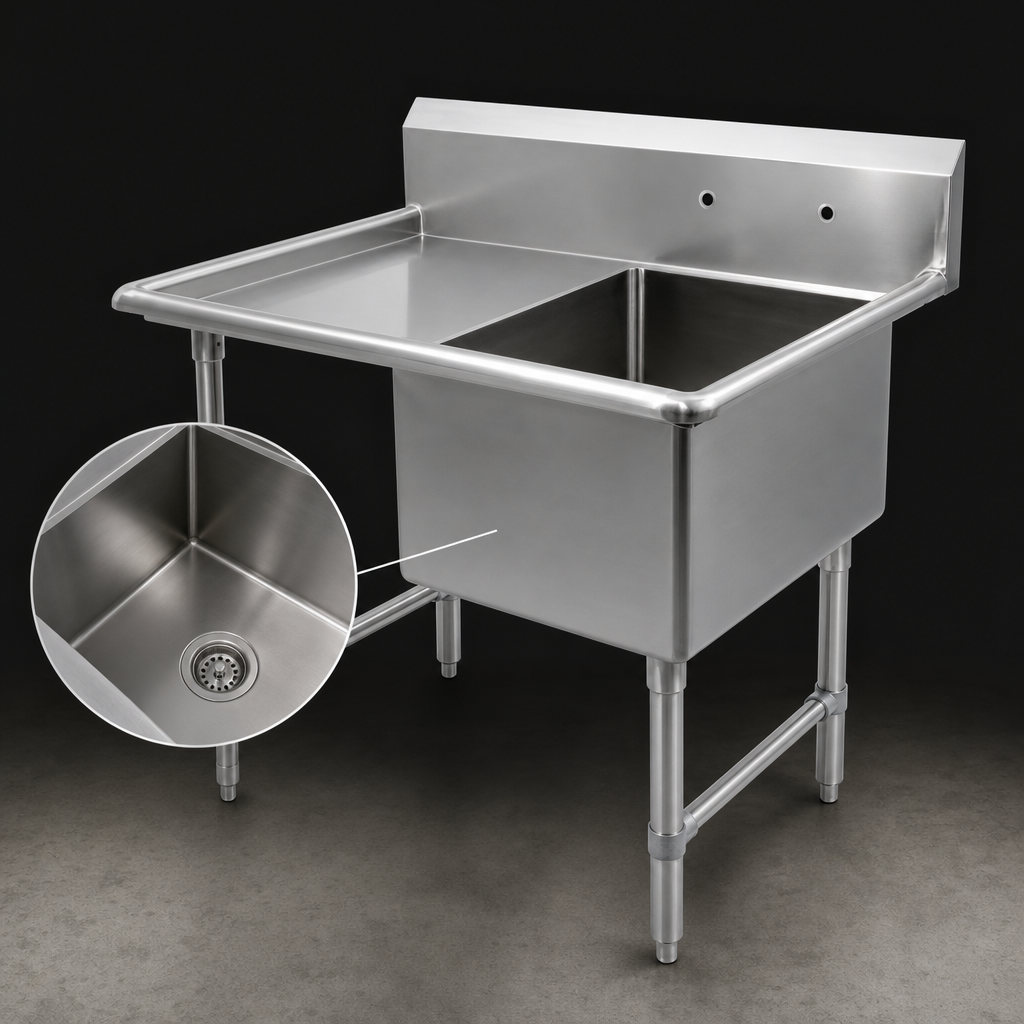

- 18" W × 18" F/B × 14" deep compartment fits stock pots and bus tubs
- Integrated 18" left-side drainboard speeds drying and prep flow
- 10" boxed backsplash with 45° sloped top & 2" return keeps walls dry
- Pre-drilled 8" on-center splash-mount faucet holes for quick installation
- 3 ½" die-stamped drain opening for positive drainage
- 1 ⅝" Ø stainless steel legs with adjustable side bracing for maximum rigidity
- 1" adjustable stainless bullet feet level the sink on uneven floors
- All corners bull-nosed for a safe, easy-to-clean edge
Detailed specifications
| Overall dimensions (W × D × H) | 40" × 23 ½" × 44" |
|---|---|
| Bowl size (W × F/B × Depth) | 18" × 18" × 14" |
| Drainboard | 18" left side (right-hand version available) |
| Backsplash | 10" boxed, 45° top, 2" return to wall |
| Faucet mounting | (2) 1" holes, 8" centers, splash mount |
| Drain opening | 3 ½" die-stamped |
| Material thickness | 16-gauge (0.062") |
| Material grade | Type 300 stainless steel, #4 finish |
| Legs / bracing | 1 ⅝" Ø legs, 1 ¼" Ø side bracing – all stainless |
| Feet | 1" adjustable stainless steel bullet feet |
| Approx. weight | 58 lb |
| Certifications | NSF, CSA-Sanitation |
Popular accessories (sold separately)
- 8" center deck or splash-mount faucets
- Pre-rinse units for high-volume rinsing
- Lever waste drains
- Stainless overshelves & pot racks
The John Boos difference
Since 1887, John Boos & Co. has crafted premium, American-made food-service equipment renowned for durability and sanitation. Their B-Series sinks combine time-tested construction with modern compliance—trusted by chefs, bakers and bar owners nationwide.
All dimensions are typical and subject to a ±½" tolerance. Specifications may change without notice.
