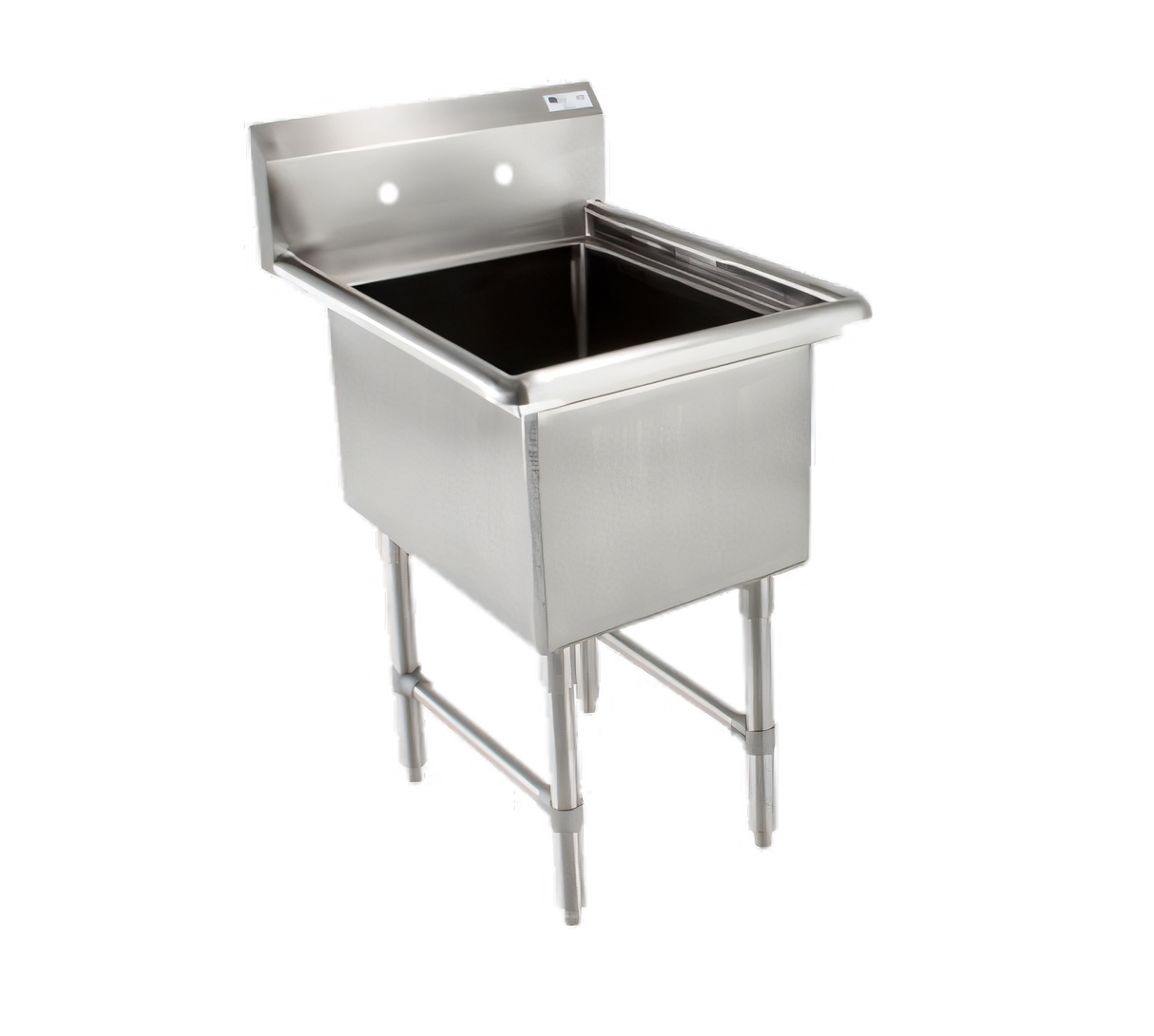

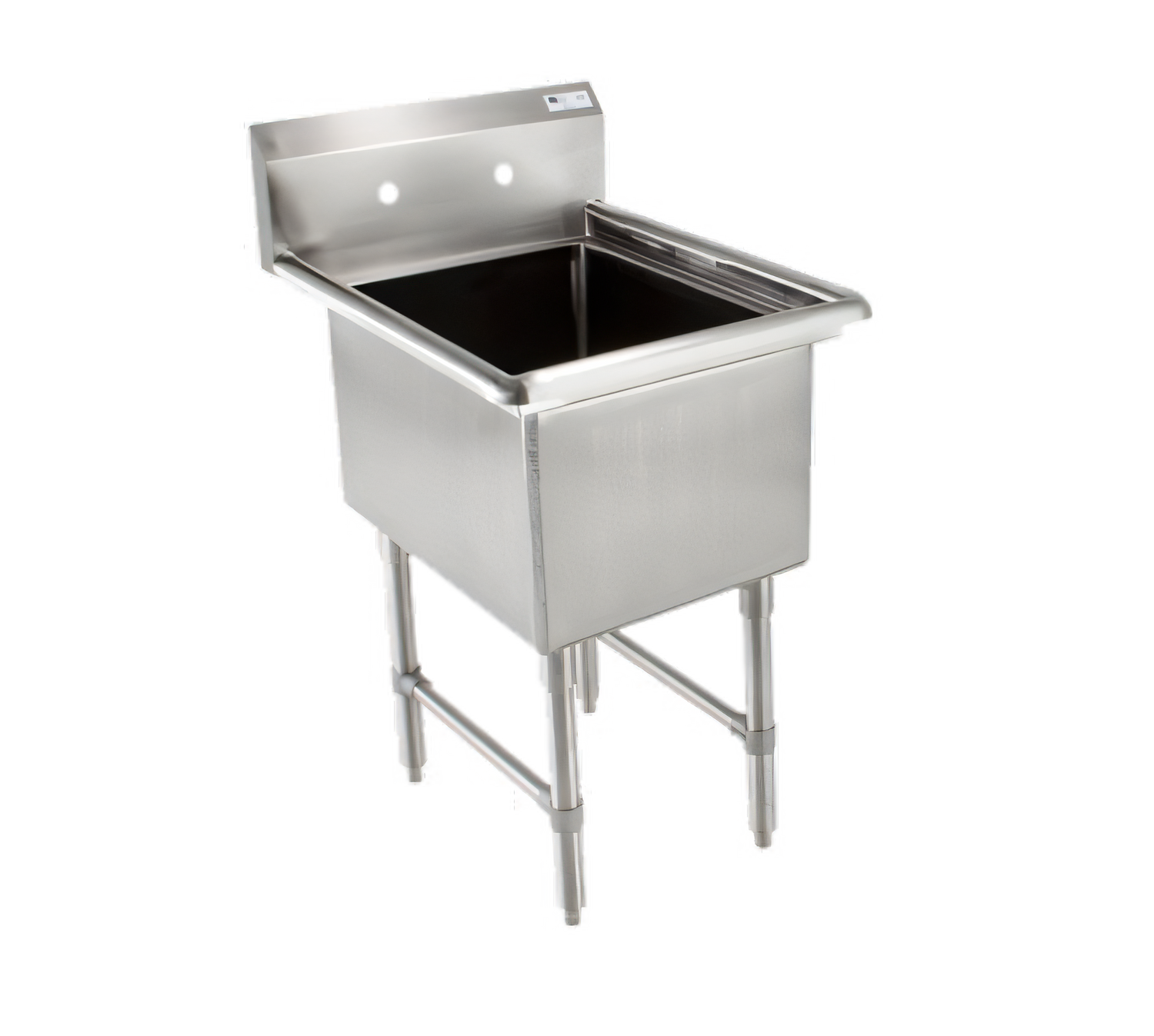

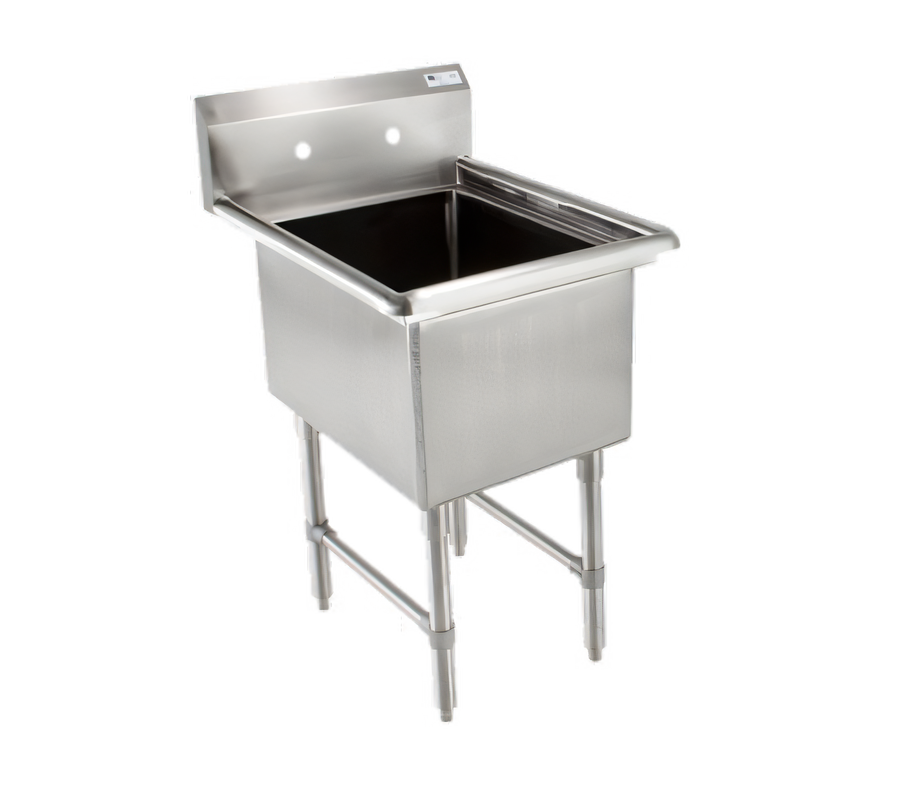

John Boos B Series 1-Compartment Stainless Steel Sink with 10" Backsplash and Legs

18" x 24" x 14" Bowl, 16-Gauge, No Drainboards

A durable, no-drainboard wash sink with a deep single basin, splash-controlling backsplash, and a stable stainless steel base for busy commercial prep areas.

  • Single 18" x 24" x 14" compartment provides a roomy wash basin.
  • 10" boxed backsplash with 45° return helps protect walls from splashes.
  • 16-gauge Type 300 stainless steel construction with a satin finish stands up to daily use.
  • Stainless steel legs, side bracing, and adjustable bullet feet create a stable, level base.
  • 3-1/2" die-stamped drain opening and coved corners support drainage and easier cleanup.
  • Splash-mount faucet holes on 8" centers simplify faucet installation.
  • Compact, no-drainboard design keeps the footprint focused on the sink bowl.

Overall Dimensions:

23.12"W x 29.5"D x 44.0"H

Product Weight:

50.0 lb

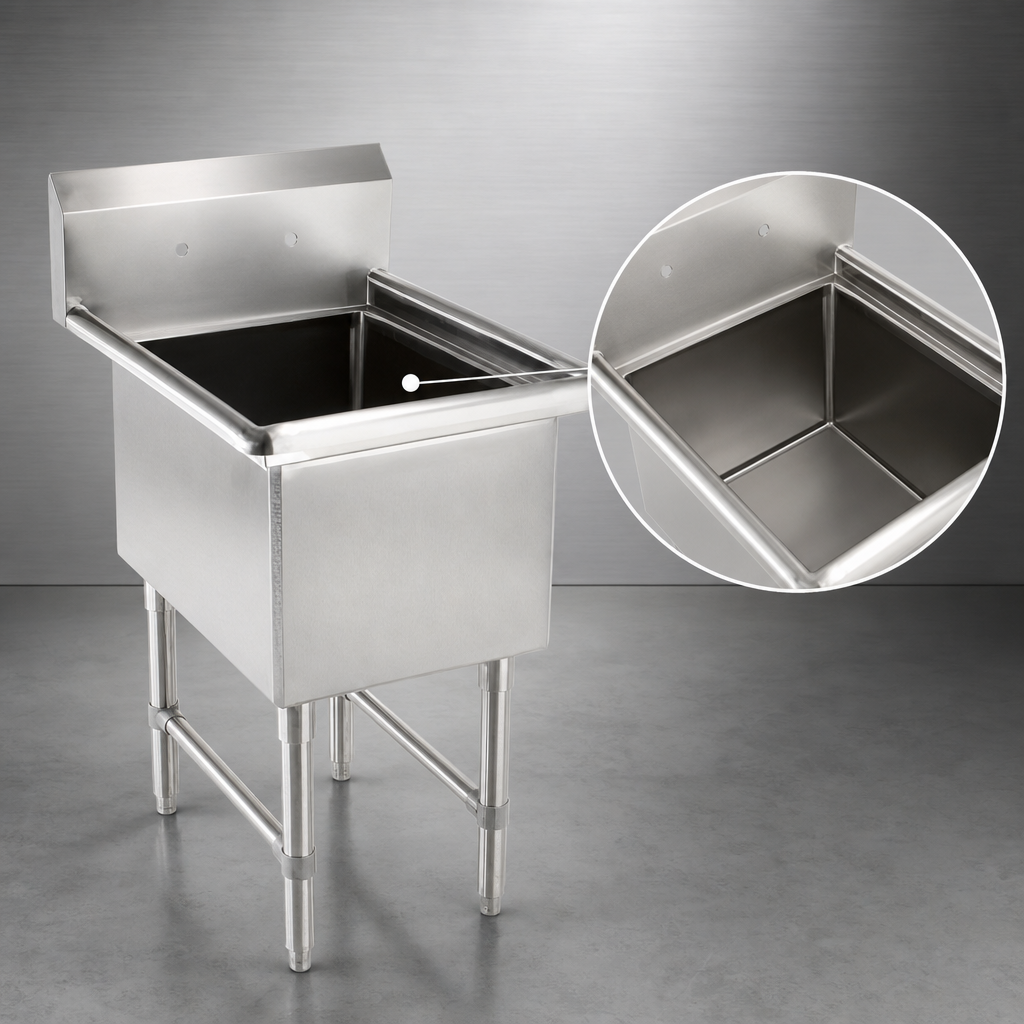

Single Compartment Bowl

One 18" wide x 24" front-to-back x 14" deep compartment provides a practical wash and prep area.

16-Gauge Stainless Steel Construction

Top and bowls are made from Type 300 stainless steel with a #4 polish, satin finish.

10-Inch Boxed Backsplash

Full-length backsplash includes a 2" return to the wall at 45° and a turned-down rear lip to help control splatter.

Drainage-Formed Bowl Bottom

The bowl bottom is formed to drain toward the 3-1/2" die-stamped opening for efficient water removal.

Coved Corners

Vertical and horizontal corners are coved at a 3/4" radius to help simplify cleaning.

Stainless Steel Base and Legs

Stainless steel frame and 1-5/8" diameter stainless steel legs provide durable support.

Adjustable Bullet Feet

1" adjustable bullet feet help level the sink on uneven floors.

Splash-Mount Faucet Holes

Backsplash includes faucet holes on 8" centers for standard faucet mounting.

Bullnosed Outer Corners

Rounded outer corners provide a safer, polished edge on the assembly.

Type Compartment Sink
Style B Series
Installation Type Floor Model
Compartments 1
Gauge 16 Gauge
Material 300 Series Stainless Steel
Finish #4 Polish, Satin Finish
Backsplash Height 10 Inches
Compartment Width 18 Inches
Compartment Depth 24 Inches
Sink Depth 14 Inches
Drain Opening Size 3-1/2 Inches
Faucet Hole Centers 8 Inches On Center
Base Type Legs with Side Crossrails
Base Construction Stainless Steel
Drainboards Without Drainboards
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 50 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Video assembly instructions PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The sink has one compartment measuring 18" wide x 24" front-to-back x 14" deep.
No, this model is without drainboards.
The top and bowls are made from 16-gauge Type 300 stainless steel with a #4 polish, satin finish, and the base is stainless steel.
Yes, it includes 1" adjustable bullet feet for leveling on uneven floors.
The documentation lists Faucets, Add-A-Faucets, Pre-Rinse Units, Lever Waste, Overshelves, and Pot Rack as accessory options.
