Key specifications

Dimensions
23.13"W × 29.5"D × 44.0"H
Type
Compartment Sink
Style
B Series
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Spec sheet
John Boos SKU: 1B18244 UPC: 662969158620

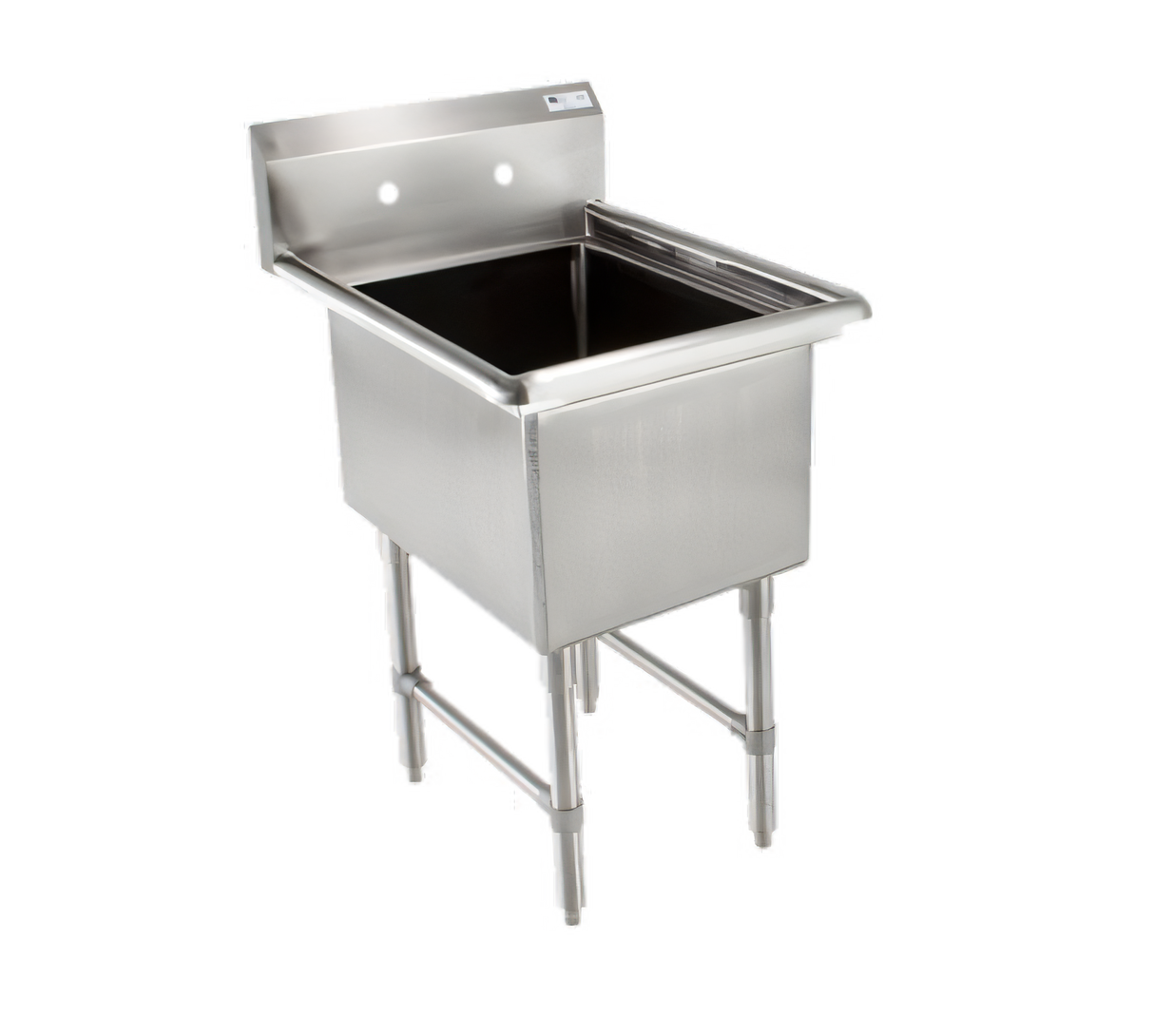

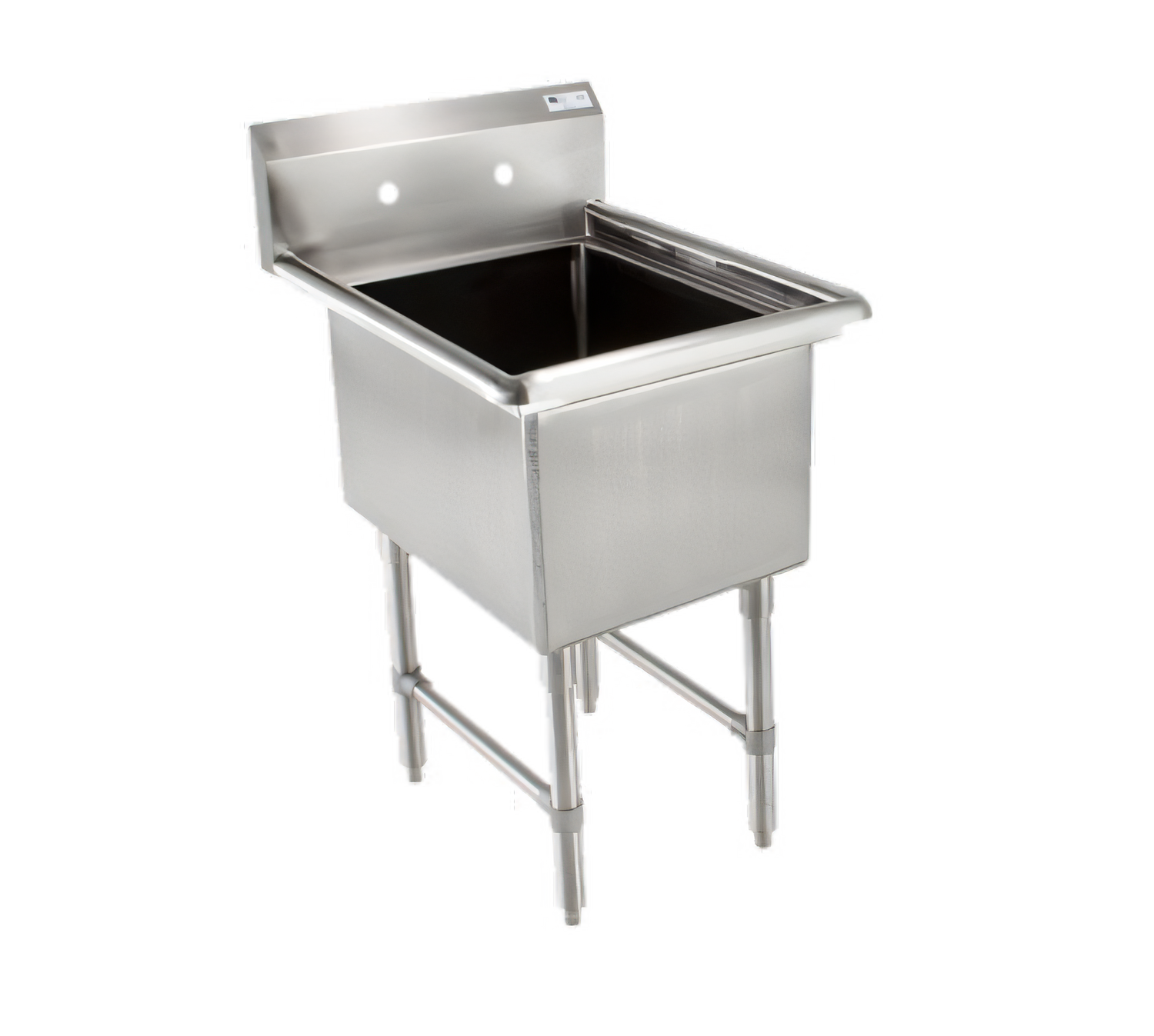

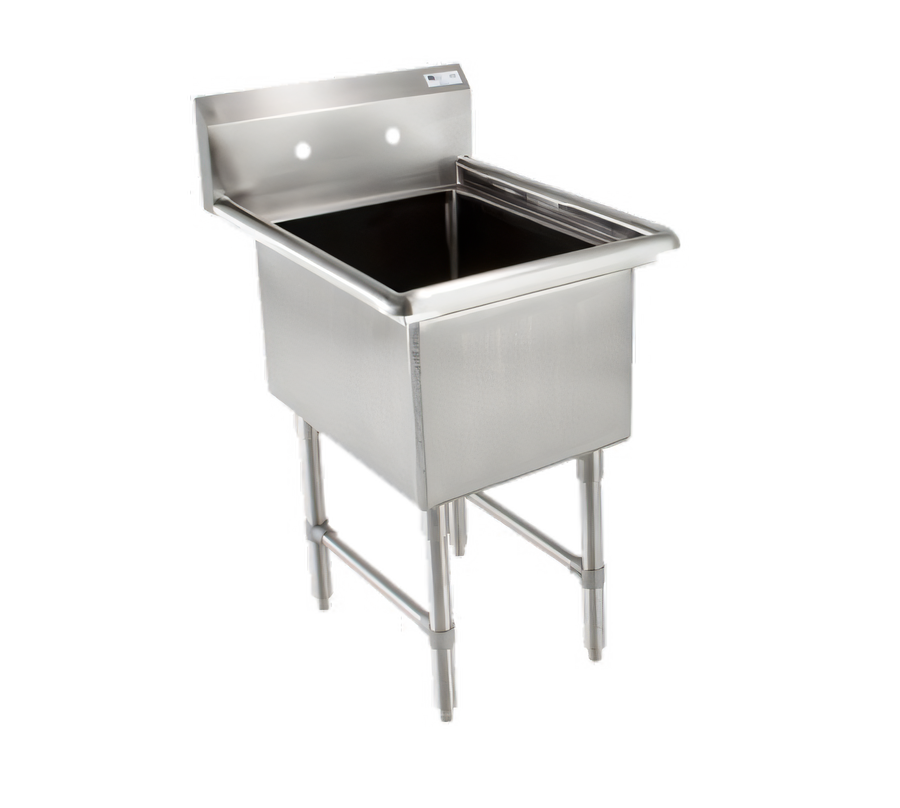

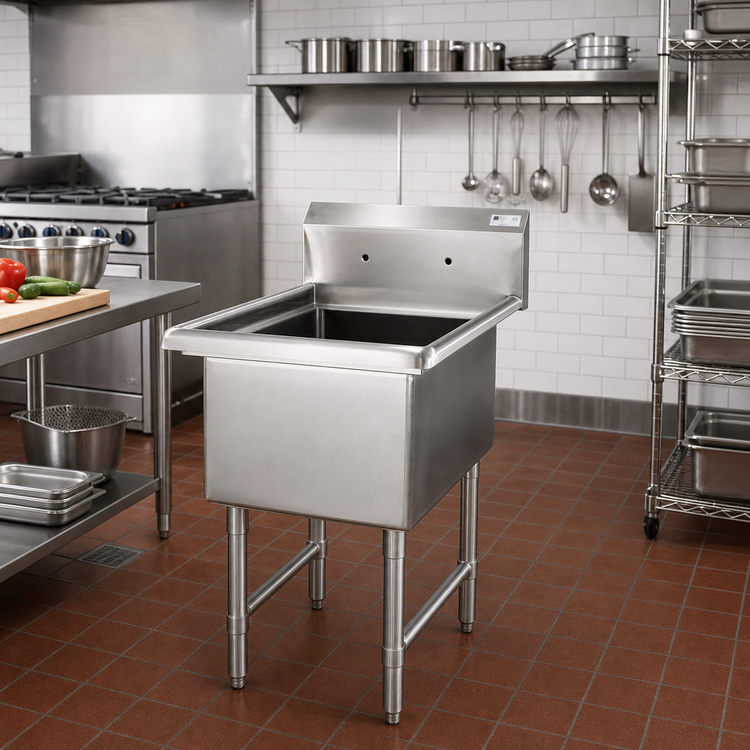

John Boos 1B18244 1-Compartment Sink, 18 x 24 x 14-Inch Bowl

$673.20
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $62/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Style B Series
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Compartments 1
Compartment Width 18 Inches
Compartment Front-to-Back 24 Inches
Sink Depth 14 Inches
Splash Height 10 Inches
Top Gauge 16 Gauge
Stainless Steel Series 300 Series
Faucet Holes 1 Set
Faucet Hole Diameter 1 Inch
Faucet Hole Centers 8 Inches
Drain Opening 3.5 Inches
Drainboards Without Drainboards
Base Type Legs With Side Crossrails
Side Bracing Adjustable
Feet Type Adjustable Bullet Feet
Leg Diameter 1.625 Inches

Description

John Boos 1B18244 is a B Series, floor-model compartment sink with one 18-inch-wide by 24-inch front-to-back by 14-inch-deep bowl.

The sink is constructed of 16-gauge, Type 300 stainless steel with a #4 polish satin finish. It includes a 10-inch boxed backsplash with a 2-inch return at 45 degrees, splash-mount faucet holes on 8-inch centers, and a 3-1/2-inch die-stamped drain opening.

  • Stainless steel legs with adjustable side bracing
  • Adjustable stainless steel bullet feet
  • 3/4-inch-radius coved bowl corners
  • NSF and CSA-Sanitation certifications

Overall Dimensions:

23.13"W x 29.5"D x 44.0"H

Product Weight:

50.0 lb

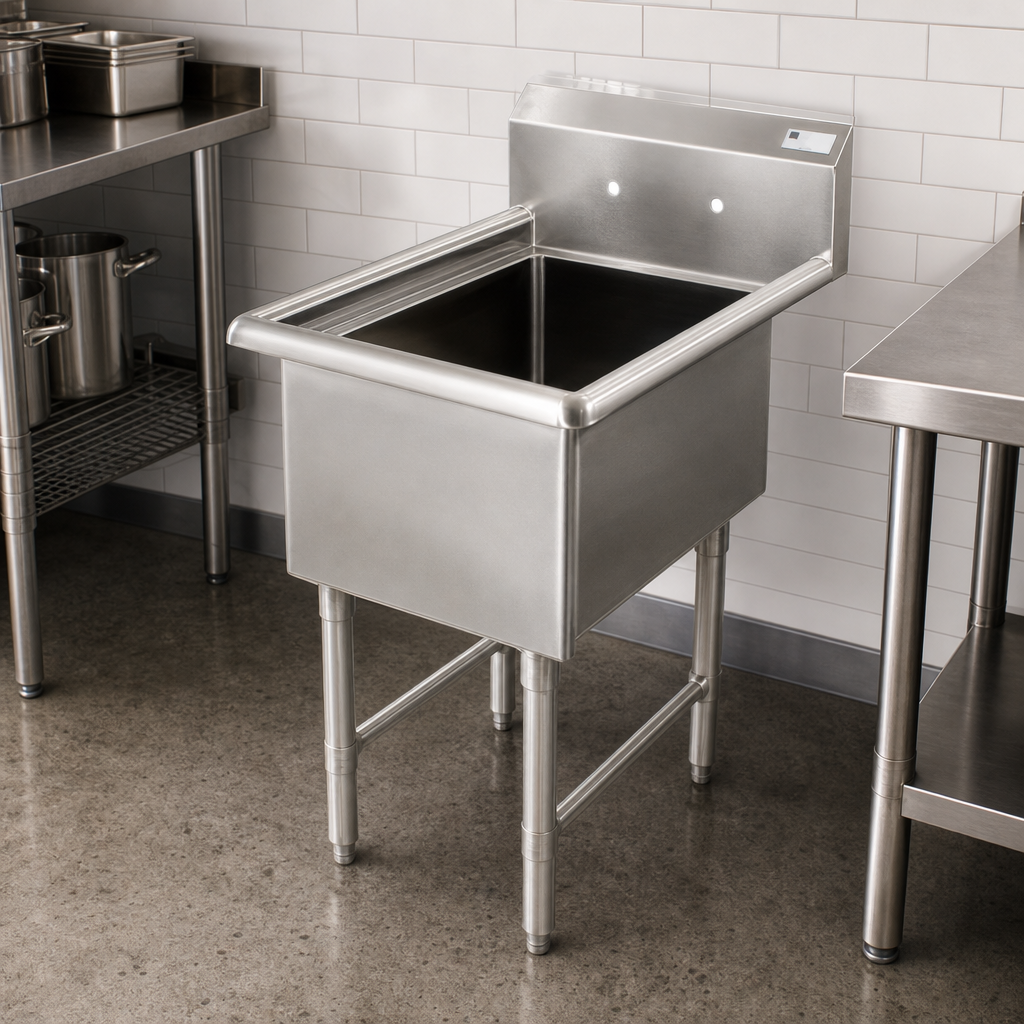

Single Compartment

One bowl measures 18 inches wide by 24 inches front-to-back by 14 inches deep.

Stainless Steel Construction

The top and bowl use 16-gauge Type 300 stainless steel with a #4 polish satin finish.

Boxed Backsplash

The full-length backsplash is 10 inches high and has a 2-inch return at 45 degrees.

Faucet Holes

The backsplash has one set of 1-inch splash-mount faucet holes on 8-inch centers.

Die-Stamped Drain Opening

The bowl bottom forms for drainage to a 3-1/2-inch die-stamped opening.

Adjustable Support Base

Stainless steel legs, adjustable side bracing, and adjustable bullet feet support the sink.

Coved Corners

The bowl corners are coved at a 3/4-inch radius.

Frequently Asked Questions

The sink measures 23.13 inches wide x 29.5 inches deep x 44 inches high.
The compartment measures 18 inches wide x 24 inches front-to-back x 14 inches deep.
It has one compartment.
The top and bowl are made of 16-gauge Type 300 stainless steel with a #4 polish satin finish.
Yes. It has a 10-inch boxed backsplash with a 2-inch return at 45 degrees.
It has one set of 1-inch splash-mount faucet holes on 8-inch centers.
No. This model is specified without drainboards.
It has stainless steel legs, adjustable side bracing, and adjustable bullet feet.
